Every year, The NEWS introduces the latest cooling equipment available for the upcoming summer season in order to help contractors prepare for this busy period by doing the research that will help them to distinguish between brands.

Like last year, this year’s Cooling Showcase is split into two parts — commercial and residential. The commercial information will be published in the May 2 issue while this issue focuses on the residential/light commercial side of the air conditioning industry. The coverage features specific information about each individual product as submitted by the manufacturers.

Click here to view and download the product grid, which includes technical facts, such as unit tonnage, refrigerant type, efficiency rating, and cooling capacity. This article below provides more in-depth information on the features of each individual unit and includes technical support information from each manufacturer. The manufacturers provided all of the data included in the product grid as well as in the photo feature; therefore, any questions should be directed to them via the contact information provided below.

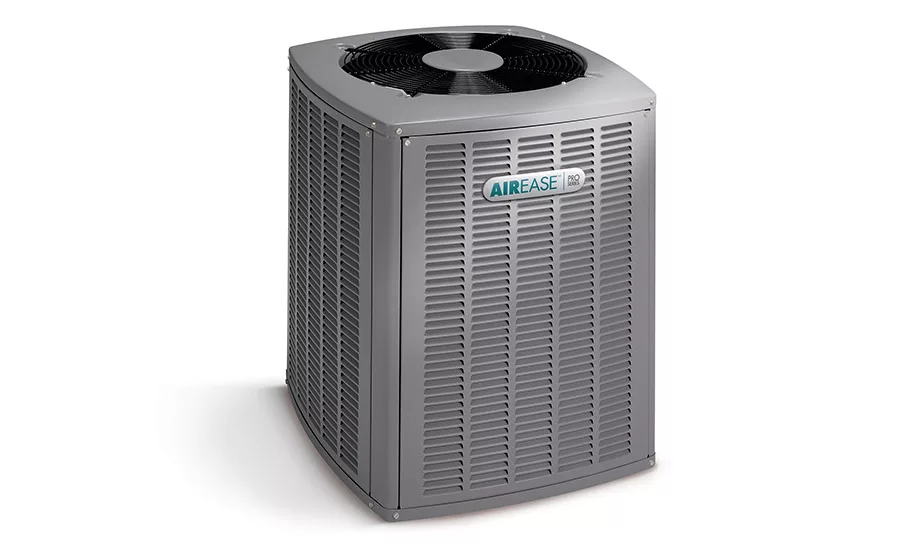

AirEase

Model: Pro Series 4SHP20LX heat pump

Footprint (in inches): 38 (length) by 36 (width) by 38 (height)

Serviceability features: Individual metal louvered panels are easily removable for coil cleaning and service. Fully communicating diagnostics with a linked Comfort Sync™ thermostat are available. A removable service panel provides internal access. Service valves are positioned for quick installation and service, and thread-on pressure switches are included.

Technical support: Specialized training is required for dealers. Installer training is available through authorized distributors.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Swept-wing fan blades allow for better sound control and are engineered for long-lasting durability. A heavy-duty compressor sound blanket ensures quiet operation. A variable-speed fan ramps up and down to match compressor speed. Quiet Shift™ technology allows the heat pump to enter defrost mode without excessive noise.

IAQ equipment supported: Complete Comfort MERV-13 air filter, MERV-11 media air cleaner, UVC germicidal lights, and Complete Comfort bypass humidifiers are supported.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: When paired with the Comfort Sync™ thermostat, the user can control the unit from the palm of his or her hand with advanced temperature monitoring and adjustment using a smartphone, tablet, laptop, or other Web-enabled device. An inverter-driven scroll compressor provides true variable-capacity operation, precise environmental control, and exceptional energy savings. An enhanced tube-and-fin coil design featuring MHT™ technology offers maximum heat transfer and efficiency.

Warranty information: A ten-year limited compressor warranty is available. Five-year limited parts and additional five-year limited extended parts warranties are available if the product is registered online within 60 days of installation. A lifetime heat exchanger warranty is available on registered equipment, and a 20-year warranty is available on all non-registered equipment.

Special installation requirements: Manufacturer did not specify.

Contact: Allied Air Enterprises, 800-448-5872; www.alliedair.com.

eProduct 160

Amana

Model: APH16M variable-speed, packaged heat pump

Footprint (in inches): 51 (length) by 47 (width) by 35 (height)

Serviceability features: Features include a liquid-line filter drier; totally enclosed, permanently lubricated condenser fan motor; and convertible horizontal or downflow multi-position installation options. An electric heat kit is available as a field-installed option. A heavy-gauge galvanized-steel cabinet with two-tone architectural-gray powder-paint finish is offered. A fully insulated air-handling compartment includes convenient access panels.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988 — press 5 to go straight to tech support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; specification sheets; and submittal data sheets are available.

Noise-reduction features: A high-density compressor sound blanket helps minimize noise levels. An efficient variable-speed circulator motor provides quiet system startup and shut down with highly efficient performance. The air-handling compartment is fully insulated.

IAQ equipment supported: Various IAQ products are supported.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The heat pump offers an efficient cooling capacity with refrigeration-grade premium copper tubing. An aluminum-fin condenser coil configuration deliver outstanding heat-transfer properties with R-410A refrigerant. An all-aluminum evaporator coil provides a single-metal solution designed for enhanced durability and performance. An energy-efficient two-stage scroll compressor is offered.

Warranty information: Lifetime compressor limited and 10-year limited parts warranties are available.

Special installation requirements: None.

Contact: Amana Heating & Air Conditioning, 281-536-6063; www.amana-hac.com.

eProduct 161

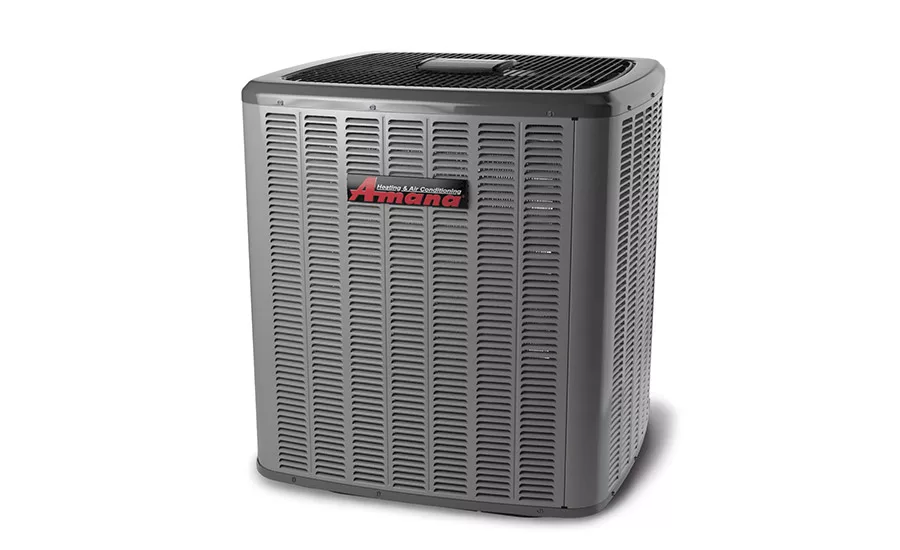

Model: AVXC20 air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 38 (height)

Serviceability features: This air conditioner offers top and side maintenance access, and its sweat connection service valves offer easy access to gauge ports. Controls are accessible through a single panel with space provided for field-installed accessories. In communicating mode, only two low-voltage wires are required to connect to the outdoor unit. The unit also features diagnostic indicator lights, a seven-segment LED display, and fault-code storage.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988 — press 5 to go straight to tech support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; specification sheets; and submittal data sheets are available.

Noise-reduction features: The system is acoustically engineered with enhancements that include a compressor sound-reduction cover made of high-density foam and a specially designed sound-control top. It features a quiet electronically commutated motor (ECM) outdoor fan motor and a high-efficiency, variable-speed compressor that minimizes sound by ramping up slowly to provide just the right amount of cooling needed.

IAQ equipment supported: A wide range of IAQ equipment is supported.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: Additional features include an innovative inverter-driven, variable-speed compressor; advanced diagnostics that constantly monitor the system, which reduces failures and pinpoints trouble spots; and a highly efficient cooling capacity that uses 5-mm refrigeration-grade premium copper tubing and an aluminum-fin condenser coil to deliver outstanding heat transfer properties. It is ComfortNet™-compatible, offers a touchscreen interface that continuously monitors system performance, and includes a field-installed bi-flow filter drier.

Warranty information: Lifetime limited unit replacement and 10-year limited parts warranties are available.

Special installation requirements: None.

Contact: Amana Heating & Air Conditioning, 281-536-6063; www.amana-hac.com.

eProduct 162

American Standard

Model: 4MXW27 indoor air handler, 4TXK27 outdoor ductless heat pump

Footprint (in inches): 35 (length) by 15 (width) by 24 (height)

Serviceability features: This indoor ductless heating and cooling unit works as part of a ductless mini- or multi-split system. Mounted on the wall, this ductless unit offers flexible, high efficiency heating and cooling for precise comfort without the ductwork. The 4MXW27 boasts up to a 27-SEER rating.

Technical support: For technical support, contact a local American Standard Heating & Air Conditioning distributor; call 815-223-7949 or 888-234-8586, option 7; e-mail support@rsductless.com; or visit http://rsductless.com. For mobile support, visit m.rsductless.com.

Technical support materials: Installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; and specification sheets are available.

Noise-reduction features: A specially designed air vent efficiently reduces operation noise to levels as low as 23 dB.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: Additional features include a turbo function/fan speed that offers high-speed operation to quickly reach the desired temperature; seven fan speeds from quiet to turbo; and an auto-clean/triple-filtration option allows the fan to run when the unit is stopped to reduce moisture and inhibit the development of bacteria. An anti-cold design prevents cold air from blowing directly into the room as air is preheated during heating operation.

Warranty information: Five-year limited compressor and functional parts warranties are available when the product is registered. Compressor and coil failures are covered via a unit replacement. Optional extended warranties are available, which can pay for labor and other costs not covered by the manufacturer’s limited warranty. Warranties are for residential use only.

Special installation requirements: Standard ductless installation procedures apply.

Contact: American Standard Heating & Air Conditioning; www.americanstandardair.com.

eProduct 163

Arcoaire

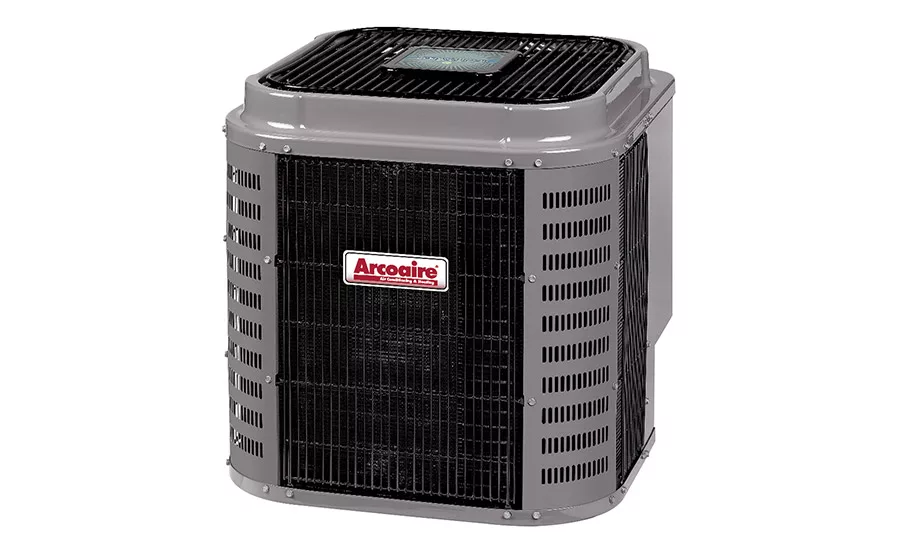

Model: HCA7 DuraComfort™ Deluxe 17 split-system air conditioner

Footprint (in inches): 31-35 (length) by 31-35 (width) by 39-47 (height)

Serviceability features: This air conditioner is compatible with the Observer^® communicating control with Wi-Fi capability, which features system control with remote access when connected to the Internet and text-based diagnostics. Three-piece grille panels can be removed separately to view and clean. The service valves are easily accessible, and only two screws need to be removed to access the control panel. High- and low-pressure switches are also available.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.goarcoaire.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information are available online.

Noise-reduction features: Units are equipped with Copeland scroll UltraTech™ compressors and isolation compressor grommets to minimize sound at maximum performance. A high-performance compressor sound shield comes standard.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). An outdoor air temperature sensor comes factory-installed.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The air conditioner is compatible with the Observer communicating control with Wi-Fi capability, self-configuring capabilities, and easy-to-read diagnostics. A thermostat can be programmed to display a contractor’s name and contact information when homeowners need service, routine maintenance, or cleaning. The unit provides two-stage comfort and boasts efficiencies up to 17-SEER, and a tight-wire coil guard provides maximum protection with optimal airflow.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate for more information. This product qualifies for the Arcoaire 10-year No Hassle Replacement™ limited warranty — if the compressor or covered coil fails within 10 years of the installation date, ICP will provide a one-time replacement outdoor unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: Thermostatic expansion valves (TXVs) are recommended for maximum system reliability. The units must be installed with a fan coil or furnace capable of supporting two-stage cooling.

Contact: International Comfort Products, 615-777-8588; www.goarcoaire.com.

eProduct 164

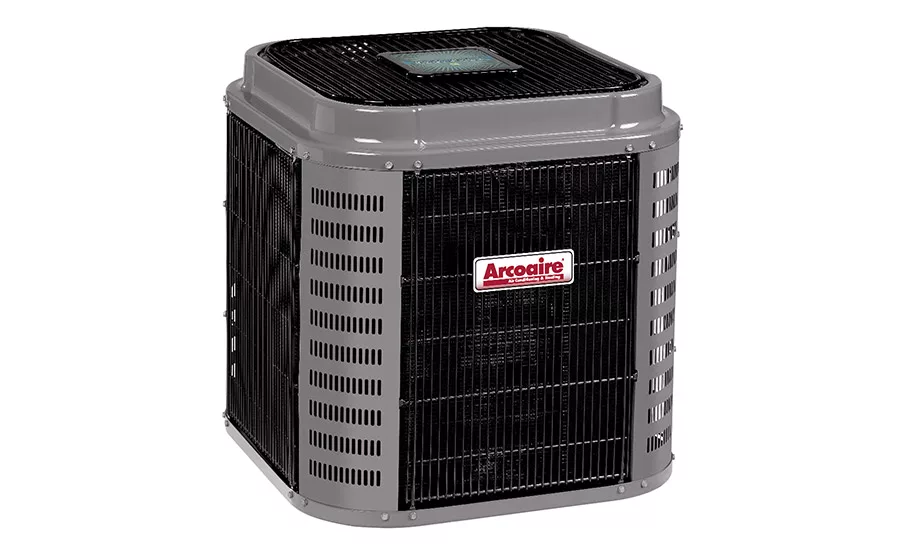

Model: HSA6 DuraComfort 16 split-system air conditioner

Footprint (in inches): 31-35 (length) by 31-35 (width) by 29-47 (height)

Serviceability features: This air conditioner is compatible with the Observer^® communicating control with Wi-Fi capability, which features system control with remote access and text-based diagnostics when connected to the Internet. Three-piece grille panels can be removed separately to view and clean. The service valves are easily accessible, and only two screws need to be removed to access the control panel. High- and low-pressure switches are also available.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.goarcoaire.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information is available online.

Noise-reduction features: Units are equipped with Copeland scroll compressors and isolation compressor grommets to minimize sound at maximum performance. Compressor sound blankets come standard.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). Outdoor air temperature sensors come factory-installed.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: Energy Star ratings are available with selected coil-only combinations in every size. The system features up to a 16-SEER rating, is compatible with the Observer communicating control with Wi-Fi capability, offers self-configuring capabilities, and includes easy-to-read diagnostics. A thermostat can be programmed to display a contractor’s name and contact information when homeowners need service, routine maintenance, or cleaning.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate for more information. This product qualifies for the Arcoaire Five-Year No Hassle Replacement™ limited warranty — if the compressor or covered coil fails within five years from the installation date, ICP will provide a one-time replacement outdoor unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: None.

Contact: International Comfort Products, 615-777-8588; www.goarcoaire.com.

eProduct 165

Armstrong Air

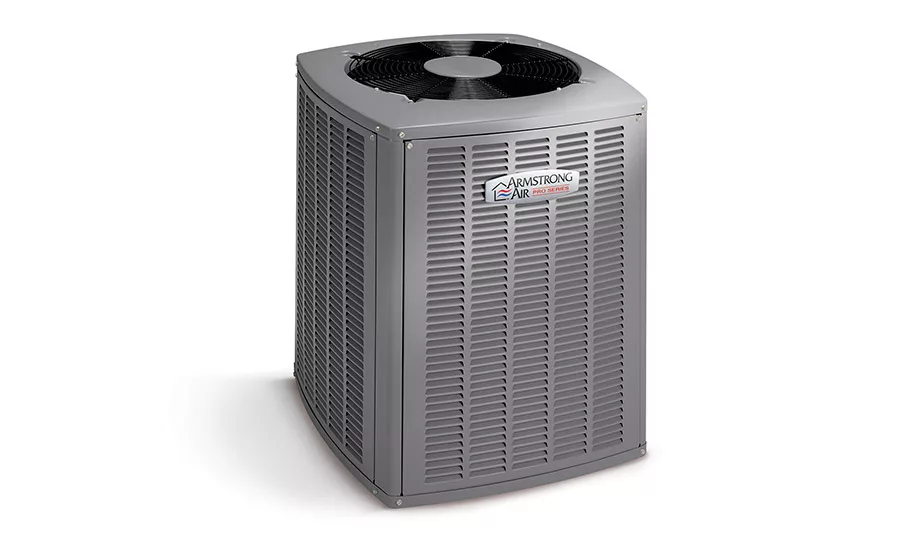

Model: Pro Series 4SCU20LX air conditioner

Footprint (in inches): 38 (length) by 36 (width) by 38 (height)

Serviceability features: The air conditioner features individual metal louvered panels that are easily removable for coil cleaning and service, fully communicating diagnostics with a linked Comfort Sync thermostat, a removable service panel for internal access, and its service valves are positioned for quick installation and service. Thread-on pressure switches are also included.

Technical support: Specialized training is required for dealers. Installer training is available through authorized distributors.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Swept-wing fan blades allow for better sound control and are engineered for long-lasting durability. A heavy-duty insulation guard further reduces noise levels, a heavy-duty compressor sound blanket ensures quiet operation, and a variable-speed fan ramps up and down to match compressor speed.

IAQ equipment supported: A Complete Comfort MERV-13 air filter, MERV-11 media air cleaner, UVC germicidal lights, and Complete Comfort bypass humidifiers are supported.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: When paired with the Comfort Sync™ thermostat, the user can control the unit from the palm of his or her hand with advanced temperature monitoring and adjustment using a smartphone, tablet, laptop, or other Web-enabled device. An inverter-driven scroll compressor provides true variable capacity operation, precise environmental control, and exceptional energy savings. An enhanced tube-and-fin coil design featuring MHT™ technology offers maximum heat transfer and efficiency.

Warranty information: A 10-year limited compressor warranty is available. Five-year limited parts and additional five-year limited extended parts warranties are available, if the product is registered online within 60 days of installation. A lifetime heat exchanger warranty is available on registered equipment, and a 20-year warranty is available on all non-registered equipment.

Special installation requirements: Manufacturer did not specify.

Contact: Allied Air Enterprises, 800-448-5872; www.alliedair.com.

eProduct 166

Bard

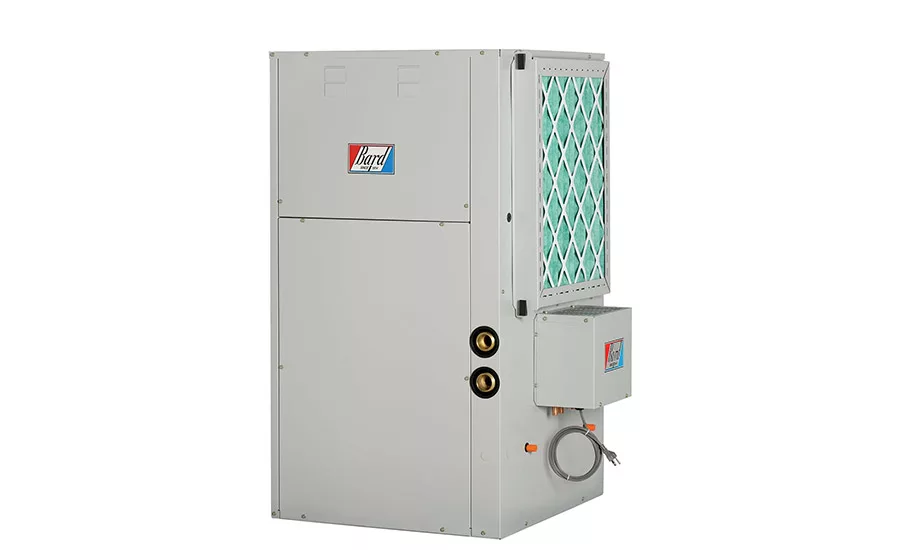

Model: GEOTEC geothermal heat pump

Footprint (in inches): 26-27 (length) by 27-32 (width) by 48-55 (height)

Serviceability features: The heat pump features a high-efficiency, two-stage, step-capacity scroll compressor; R-410A green refrigerant; and a variable-speed electronically commutated motor (ECM) for superior efficiency and quiet performance. Increased dealer-friendly installation and service features include left- or right-side water connections outside the cabinet, left- or right-hand access to the control panel, slide-in electric heat packages, and simplified wiring and troubleshooting.

Technical support: In-house and field training classes are available. Continuing education credits are offered, and service is provided through Bard’s distribution network.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A Copeland scroll step-capacity compressor, ECM blower motor, and an insulated service compartment help reduce noise levels.

IAQ equipment supported: The unit is compatible with field-installed electronic air cleaners (EACs) or high-efficiency media-type filters through installing dealers.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The system is suitable for ground-water or ground-loop applications. It features a multi-capacity, two-stage compressor; a variable-speed ECM blower motor; R-410A refrigerant; an Energy Star efficiency rating; a built-in domestic hot water heat exchanger; coefficient of performance (COP) ratings up to 5.1; and EER ratings up to 30.2.

Warranty information: A limited 10-year parts warranty is available.

Special installation requirements: None.

Contact: Bard Mfg. Co. Inc., 419-636-1194; www.bardhvac.com.

eProduct 167

Model: GEO-TRIO geothermal heat pump

Footprint (in inches): 30-65 (length) by 22-30 (width) by 22-65 (height)

Serviceability features: This multi-position system is suitable for upflow, downflow, horizontal left or right, split, and dual-fuel configurations. Additional features include a step-capacity, two-stage scroll compressor; R-410A refrigerant, a variable-speed, electronically commutated motor (ECM); a domestic hot water heat exchanger system; high- and low-pressure switches; and an insulated high-efficiency coaxial water coil. All water and refrigerant connections are located on the outside of the cabinet for ease of installation. The coil combination is certified for hybrid, dual-fuel use.

Technical support: Support is available through Bard’s local distribution network.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: The compressor/service compartment is insulated to reduce noise levels. A variable-speed electronically commutated motor (ECM) blower motor and step-capacity, two-stage compressor with a double-isolation mounting system is designed for quieter operation.

IAQ equipment supported: This heat pump is compatible with a field-installed electronic air cleaner (EAC) or high-efficiency media type filters.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: Three separate sections (A-coil, blower coil, and compressor) are each self-contained allowing for multiple configurations (upflow, downflow, horizontal left or right, and split-system and dual fuel). The line offers fewer SKUs with more product offerings.

Warranty information: Five-year parts and 10-year compressor warranties come standard. If registered, a 10-year all-parts warranty is available.

Special installation requirements: None.

Contact: Bard Mfg. Co. Inc., 419-636-1194; www.bardhvac.com.

eProduct 168

Bosch Thermotechnology Corp.

Model: Greensource SM036-1VT geothermal heat pump

Footprint (in inches): 25 (length) by 33 (width) by 54 (height)

Serviceability features: The vertical and counterflow cabinets have been redesigned with a focus on serviceability and reliability with front water connections and an all-aluminum air coil. Additional serviceability improvements have been made to include an internal redesign of the component layout, allowing easy access to components through the front panel when service or adjustments are required.

Technical support: Support is available 8 a.m. to 7 p.m. Eastern time, Monday to Friday, at 866-642-3198.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Closed-cell foam insulation and a compressor blanket come standard.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: The geothermal heat pump offers a high-efficiency, two-stage, geothermal, water-source heat pump in vertical, horizontal, and counterflow cabinets. A redesign — available soon — will improve serviceability and reliability with front water connections and an all-aluminum air coil. An internal redesign allows easy access to components through the front panel when service or adjustments are required.

Warranty information: Ten-year limited parts and labor warranties are available. Visit www.boschheatingandcooling.com for full warranty details.

Special installation requirements: The unit is designed for simple installation.

Contact: Bosch Thermotechnology Corp., 603-965-7445; www.boschheatingandcooling.com.

eProduct 169

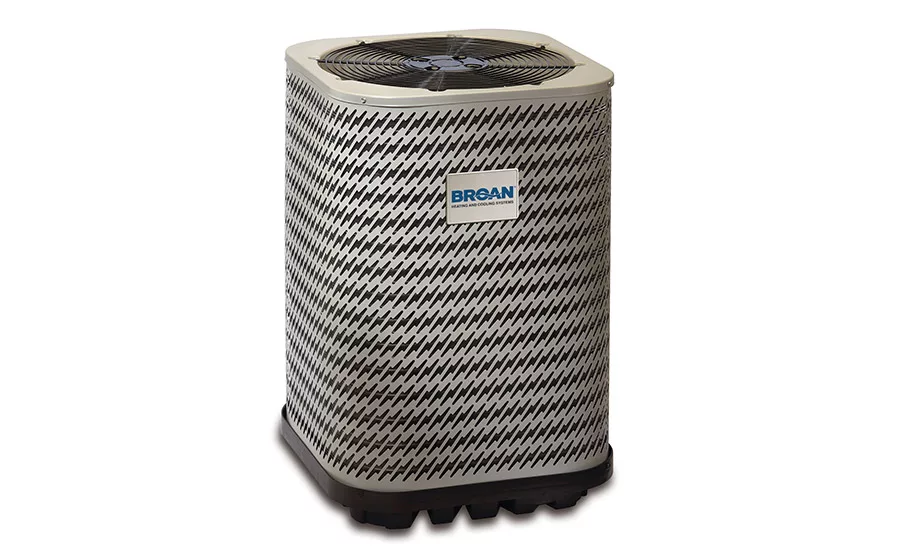

Broan

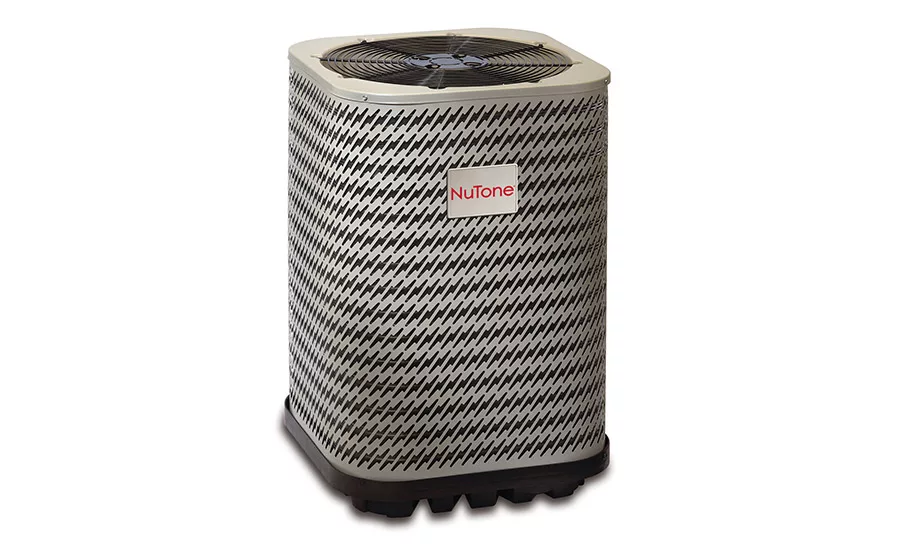

Model: JS6BE air conditioner

Footprint (in inches): 23 (length) by 23 (width) by 32 (height)

Serviceability features: This air conditioner’s access panel is designed to make servicing easier for the contractor. All controls and the compressor are accessible from the side of the unit. The top pan and fan-motor assembly can be removed without removing wires from the control panel.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A composite base pan absorbs sound and vibration from the compressor and fan motor.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: A full metal jacket protects all internal components from yard hazards and extreme weather. Microchannel coil technology offers exceptional performance with smaller size coils and utilizes less refrigerant than copper tube coils.

Warranty information: A 10-year limited parts warranty is available upon product registration.

Special installation requirements: No special requirements.

Contact: Nortek Global HVAC, 636-561-7300; www.broanhvac.net.

eProduct 170

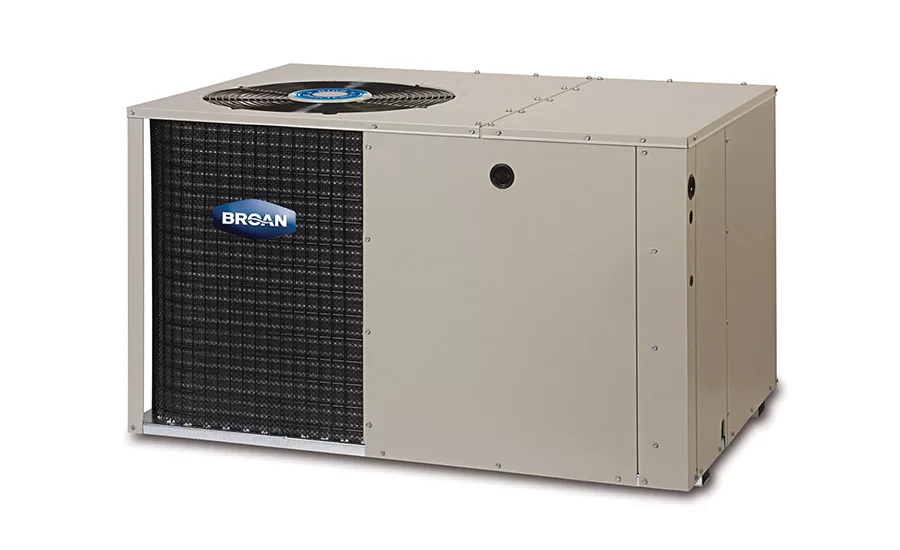

Model: P7RE packaged air conditioner

Footprint (in inches): 49 (length) by 35 (width) by 22 (height)

Serviceability features: Access for all electrical component troubleshooting is available through one door. All wires are color coded, which simplifies diagnostics. Refrigerant pressure switches are easily replaced without any refrigerant recovery or brazing. The blower plug is conveniently located and may be easily removed. The heater kit component is also conveniently mounted for easy troubleshooting.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A brushless dc (BLDC) electronically commutated motor (ECM) blower ramps up and operates quietly. A protected and permanently lubricated condenser fan motor offers quiet, low-maintenance performance.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: Microchannel condenser and evaporator coils allow for a light unit that uses minimal refrigerant, boasts exceptional heat transfer, and offers robust performance. Copeland compressors have the reliability and performance demanded by discerning contractors.

Warranty information: Ten-year limited parts and limited unit replacement warranties are available upon product registration.

Special installation requirements: The unit requires a flat slab when mounted on the ground or a curb/cage assembly when mounted on a rooftop.

Contact: Nortek Global HVAC, 636-561-7300; www.broanhvac.net.

eProduct 171

Bryant

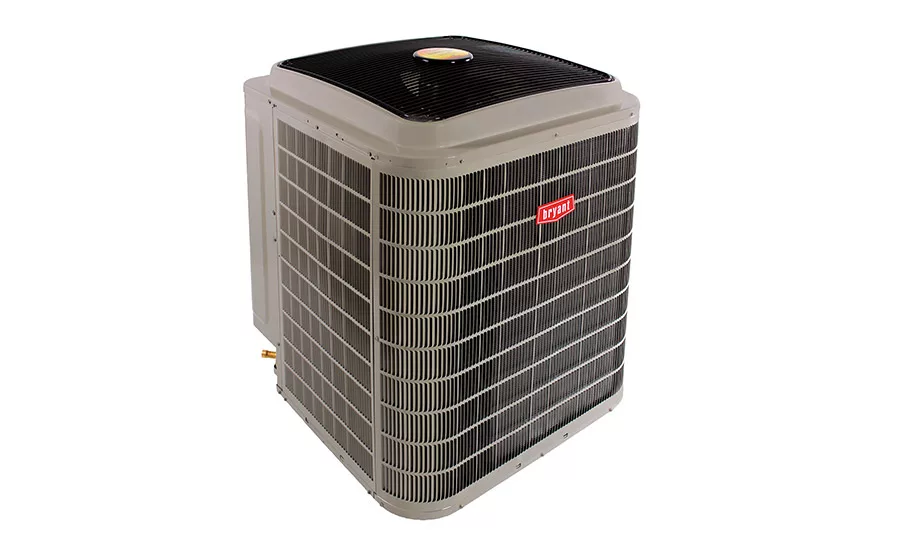

Model: Evolution^® V air conditioner

Footprint (in inches): 23 (length) by 23 (width) by 40 (height)

Serviceability features: Communication between system components allows the Evolution^® Connex control to display system history for faster diagnosis of the complete Evolution system. This allows a service technician to attach a second control to the outdoor unit for service without entering the home. The system may be accessed remotely via the Internet to prepare for a service call in advance, if the system is connected to a Wi-Fi network. Additionally, the unit includes automated refrigerant charge assistance technology.

Technical support: Support is provided through a nationwide network of local distributors.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: This air conditioner achieves low sound ratings with soft motor mounts, a compressor sound blanket, forward-swept fan blades, and a laminated sound-elimination compressor mounting plate. It also features a soft-starting inverter-driven compressor with a smooth ramp-up to operating speed, which minimizes overall sound during the beginning of operation. A variable-speed compressor and fan motor operate at quiet, low speeds most of the time.

IAQ equipment supported: As part of an installed system, the unit is compatible with Bryant IAQ system components, including humidifiers, ventilators, germicidal UV lamps, and the Evolution air purifier.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: This small-ducted air conditioner includes a variable-speed compressor. Only two communication wires are required to connect to the outdoor unit for full-system functionality when installed as part of a complete Evolution system including the Evolution Connex control. The unit also features Air-Conditioning, Heating, and Refrigeration Institute (AHRI) ratings combinations with both communicating and non-communicating multi-stage indoor products.

Warranty information: A 10-year limited parts warranty (including the compressor) is available if the unit is properly registered within 90 days (restrictions apply; see the warranty certificate for details).

Special installation requirements: The unit must be installed as part of a complete Evolution system, including an Evolution Connex control, for full functionality. It is compatible with most thermostats and existing indoor components, but with reduced functionality. A contractor-supplied surge protector is recommended, and a contractor-supplied muffler may be desired on some replacement applications.

Contact: Bryant, 317-847-6930; www.bryant.com.

eProduct 172

Carrier

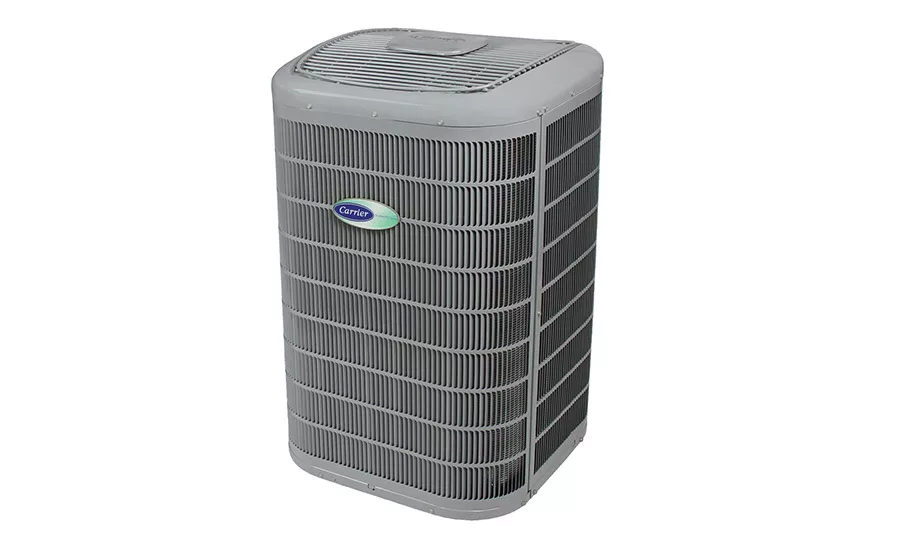

Model: Infinity 19VS air conditioner

Footprint (in inches): 23 (length) by 23 (width) by 40 (height)

Serviceability features: Communication between system components allows the Infinity Touch control to display system history for faster diagnosis of the complete Infinity system. This allows a service technician to attach a second control to the outdoor unit for service without entering the home. The system may be accessed remotely via the Internet to prepare for a service call in advance, if the system is connected to a Wi-Fi network. Automated refrigerant charge assistance technology is also included.

Technical support: Support is provided through a nationwide network of local distributors.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: This air conditioner achieves low sound ratings with soft motor mounts, a compressor sound blanket, forward-swept fan blades, and a laminated sound-elimination compressor mounting plate. It also features a soft-starting inverter-driven compressor with a smooth ramp-up to operating speed, which minimizes overall sound during beginning of operation. A variable-speed compressor and fan motor operate at quiet, low speeds most of the time.

IAQ equipment supported: As part of an installed system, the unit is compatible with Carrier IAQ system components, including humidifiers, ventilators, germicidal UV lamps, and the Infinity air purifier.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: This small-ducted air conditioner includes a variable-speed compressor. Only two communication wires are required to connect to the outdoor unit for full-system functionality when installed as part of a complete Evolution system including the Infinity Touch control. The unit also features Air-Conditioning, Heating, and Refrigeration Institute (AHRI) ratings combinations with both communicating and non-communicating multi-stage indoor products.

Warranty information: A 10-year limited parts (including the compressor) warranty is available if the unit is properly registered within 90 days (restrictions apply; see the warranty certificate for details).

Special installation requirements: The unit must be installed as part of a complete Infinity system, including Infinity Touch control, for full functionality. The unit is compatible with most thermostats and existing indoor components, but with reduced functionality. A contractor-supplied surge protector is recommended, and a contractor-supplied muffler may be desired on some replacement applications.

Contact: Carrier Corp., 317-847-6930; www.carrier.com.

eProduct 173

Century

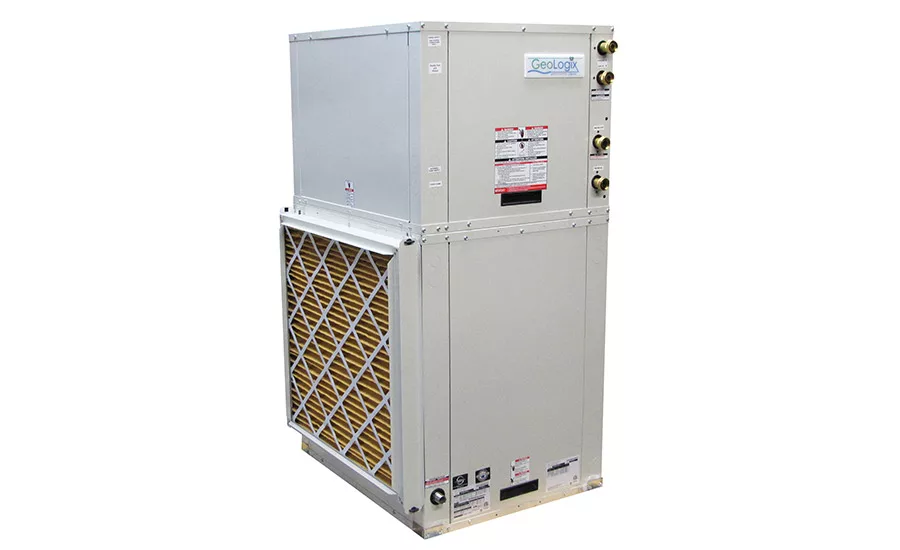

Model: HZD Series geothermal heat pump

Footprint (in inches): 26-31 (length) by 22-25 (width) by 48-58 (height)

Serviceability features: The intelligent gateway displays diagnostic data in plain English on the communicating thermostat or a separate diagnostic tool is available to access system data. Multiple access panels provide ready access to components, and a swing-out control board is a convenience most service techs will appreciate. A service warning on the communicating thermostat allows a homeowner to contact the contractor with fault information.

Technical support: Experienced technical advisors are available to answer questions about installation, operation, and service 8 a.m. to 5 p.m. Eastern time, weekdays, at 517-787-2100. Sales representatives throughout the U.S. and Canada can also provide assistance. Contact information for sales reps can be found on the website through the Where to Buy tab.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and an engineering design guide are available.

Noise-reduction features: The unit operates quietly due to a double-isolation compressor mounting system where the compressor is mounted on a heavy-gauge plate using grommets or spring vibration isolators. The plate is isolated from the cabinet with rubber grommets for sound attenuation. Also, the air-handler compartment is lined with foil-backed insulation, and an insulated divider separates the compressor and air-handler compartments.

IAQ equipment supported: The unit comes with an extra-large filter and can be customized with a high-efficiency MERV-rated air filter for enhanced IAQ.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: A communicating gateway control includes configuration, monitoring, and diagnostic capabilities with digital links to the electronically commutated motor (ECM) variable-speed communicating fan motor, variable-speed pump, and communicating thermostat for maximum efficiency and reliability. Built-in water circulation components (pump or modulating valve) eliminate the need for an external flow center. An extended-range refrigerant circuit is capable of ground-loop, ground-water, and boiler/tower installations.

Warranty information: Twelve-year limited express compressor and parts warranties are available. A five-year labor-allowance warranty is available from the date of purchase when the unit is properly commissioned and a geothermal startup certification form is submitted by the installing contractor. Some limitations apply; see the warranty information online for additional details.

Special installation requirements: If the unit is connected to existing ductwork, a previous check should have been made to ensure the ductwork has the capacity to handle the airflow required for the unit. To minimize vibration transmission to the building structure, the HZD should be mounted on an isolation pad. It’s the responsibility of the installing contractor to determine and comply with all applicable codes and regulations.

Contact: Century/MARS, 517-780-3217; www.century-hvac.com.

eProduct 174

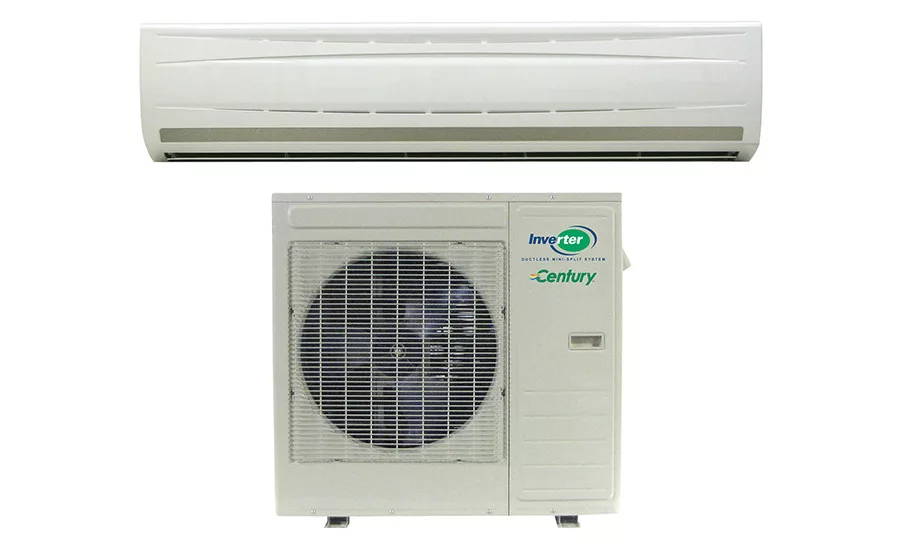

Model: VMH36SD-1 ductless mini-split heat pump

Footprint (in inches): 47 indoor/37 outdoor (length) by 10 indoor/17 outdoor (width) by 13 indoor/ 32 outdoor (height)

Serviceability features: The system monitors itself for abnormal operation and turns off automatically or continues to run in safety mode, when necessary. The unit may recover a fault on its own or display an error code to help troubleshoot the problem for a quick solution. On outdoor units, service ports are easily accessible, which helps speed up service.

Technical support: Experienced technical advisors are available to answer questions about installation, operation, and service from 8 a.m. to 5 p.m. Eastern time, weekdays, at 517-787-2100. Sales representatives throughout the U.S. and Canada can also provide assistance. Contact information for sales reps can be found online under the Where to Buy tab.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; an owner’s manual; and a service manual are available.

Noise-reduction features: This unit’s mini-split design keeps compressor sound outside, and it operates exceptionally quiet because the dc compressor runs mostly at low speed, which reduces any vibration and associated noise. Also, a high-tech indoor fan unit delivers balanced airflow that is so quiet a homeowner may not realize it’s operating.

IAQ equipment supported: Three air filters provide filtration for large air volumes the unit handles. Filters are washable and should be cleaned every two weeks during periods of constant use.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: A Follow function senses the conditions where the occupant is in the room and adjusts the temperature accordingly. The unit cools and heats when ambient temperature is as low as to 5°F. Refrigerant leak detection prevents the unit from freezing due to low charge and a defrost control automatically removes frost accumulation on the coil. Additionally, the unit’s auto swing louvers create a gentle breeze-like effect.

Warranty information: A limited express warranty covers the compressor for six years and other parts for two years from date of purchase by the original owner. Some limitations apply; see the printed warranty online for more information.

Special installation requirements: The outdoor location should be as close to indoor unit as possible, and the indoor unit should be mounted as high on exterior wall as possible, allowing 6 inches between the top of the unit and the ceiling. Installation directions are clearly spelled out in the installation, operation, and maintenance manual.

Contact: Century/MARS, 517-780-3222; www.century-hvac.com.

eProduct 175

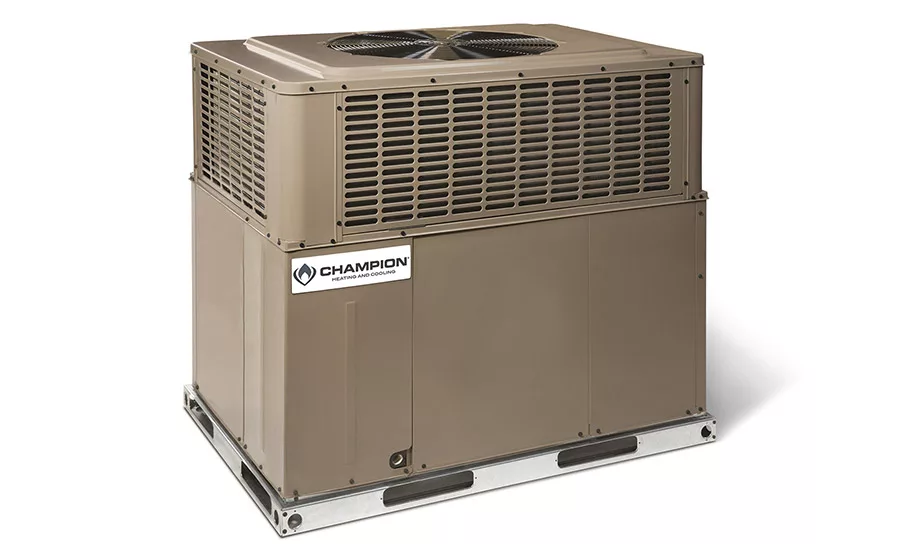

Champion

Model: LX Series PCG4 residential package equipment

Footprint (in inches): 49 (length) by 34-44 (width) by 47-53 (height)

Serviceability features: Front access to the compressor, refrigeration controls, and blower enhances serviceability, as does top access to the condenser fan and motor and side access to the compressor, coil, heat exchanger, and filters. The evaporator coil slides out for easier cleaning. A standardized design simplifies repairs and helps reduce necessary replacement parts inventory.

Technical support: The first level of support is provided by the distributor. Factory support is available to distributors and dealers 7 a.m. to 5 p.m. Central time at 877-874-7378.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and an owner’s manual are available. Additional information is available at www.upgnet.com or by request.

Noise-reduction features: A vibration-reducing chassis fan motor comes standard and contributes to quiet operation.

IAQ equipment supported: An internal filter rack accessory supports use of 1- or 2-inch-wide standard filters.

Thermostat compatibility: A wide selection of compatible thermostats is available to provide optimum performance and features for any installation.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: These units employ simplified control technology for easier setup and operation, improved reliability, and exceptional component protection. Tubular stainless steel gas heat exchangers and copper-tube/aluminum-fin condenser coils offer outstanding heat transfer rates and reliability.

Warranty information: Lifetime limited heat exchanger, 10-year limited parts and compressor, and 10-year electric heat warranties are available.

Special installation requirements: Exact-fit gas and electric hookups and a compact cabinet that fits most roof frames or slabs simplify installation. Strong, easily removable base rails use just two screws per corner, which also improves installation.

Contact: Johnson Controls Inc., 414-524-5487; www.championhomecomfort.com/lxpackagedunit.

eProduct 176

Model: LX Series residential split-system air conditioners, TW4

Footprint (in inches): Varies.

Serviceability features: This series features full corner access with diagonal base valves for open access for low-loss fittings. It also provides single panel access to power and control wiring and includes a removable fan guard. The air conditioners’ smaller footprint allows easy clearances to accommodate gates, hand trucks, vans, and site pads.

Technical support: The first level of support is provided by the distributor. Factory support is available to distributors and dealers 7 a.m. to 5 p.m. Central time at 877-874-7378.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and an owner’s manual are available. Additional Information is available at www.upgnet.com or by request.

Noise-reduction features: These units are designed to operate at sound levels of 77 dBA.

IAQ equipment supported: Matched air handlers and coils feature a positive-slope drain pan that removes coil condensate to ensure healthy indoor air.

Thermostat compatibility: A wide selection of compatible thermostats is available to provide optimum performance and features for any installation.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The new design is the outcome of 125,000 hours of research and testing. These units meet Johnson Controls’ manufacturing and quality standards. The result is a price-competitive line with verified quality, reliable technology, easy setup, and serviceability featuring convenient access and standardized parts.

Warranty information: Ten-year limited parts and compressor warranties are available.

Special installation requirements: Contractors can work faster with full corner access, diagonal base valves with open access for low-loss fittings, single-panel access to power and control wiring, and a removable fan guard.

Contact: Johnson Controls Inc., 414-524-5487; www.championhomecomfort.com/lxsplitsystems.

eProduct 177

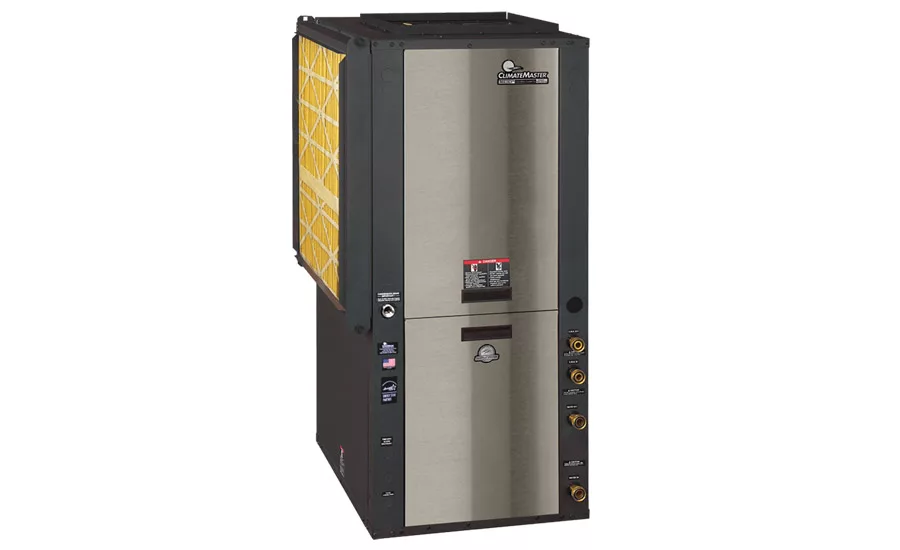

Climatemaster

Model: Trilogy^® 45 Q-Mode^® (QE) Series geothermal heat pump

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Manufacturer did not specify.

Technical support: Manufacturer did not specify.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; specification sheets; and an owner’s manual are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system does not share replacement parts with other models.

Additional features: Features include Q-Mode technology, full-time production of domestic hot water, vFlow^® internal variable water flow control, iGate^® Wi-Fi communicating controls, and the optional iGate ClimaZone™ offers zoning for total home comfort. The system is available in vertical, horizontal (field convertible discharge), and downflow configurations.

Warranty information: Ten-year parts and five-year labor allowance warranties come standard. Optional 10-year parts and labor allowance warranties are available.

Special installation requirements: The unit is only offered in a closed-loop configuration.

Contact: Climatemaster Inc., 405-200-8067; www.climatemaster.com.

eProduct 178

Coleman

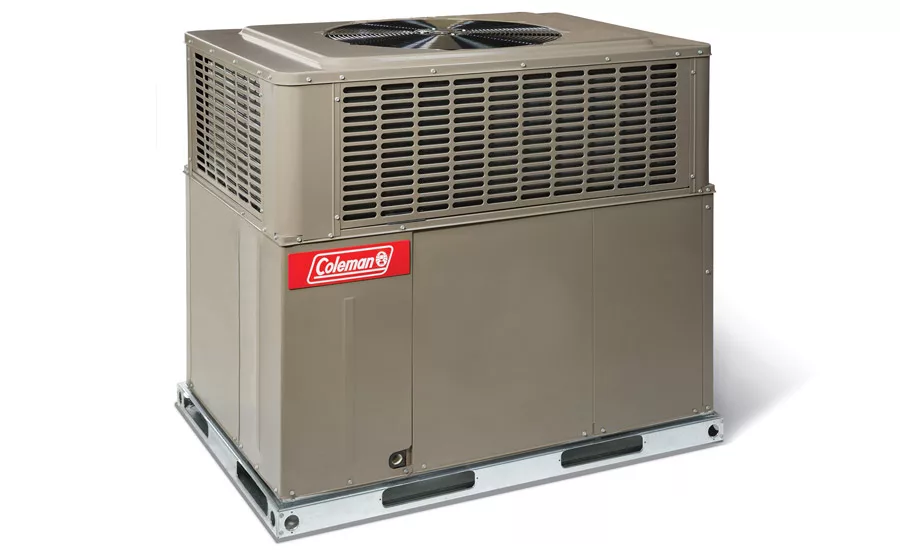

Model: LX Series PCG4 residential package equipment

Footprint (in inches): 49 (length) by 34-44 (width) by 47-53 (height)

Serviceability features: The unit offers front access to the compressor, refrigeration controls, and blower; top access to the condenser fan and motor; and side access to the compressor, coil, heat exchanger, and filters. The evaporator coil slides out for easier cleaning. A standardized design simplifies repairs and reduces replacement parts inventory.

Technical support: The first level of support is provided by the distributor. Factory support is available to distributors and dealers 7 a.m. to 5 p.m. Central time at 877-874-7378.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and an owner’s manual are available. Additional information is available at www.upgnet.com or by request.

Noise-reduction features: A vibration-reducing chassis fan motor comes standard and contributes to quiet operation.

IAQ equipment supported: An internal filter rack accessory supports use of 1- or 2-inch-wide standard filters.

Thermostat compatibility: A wide selection of compatible thermostats is available to provide optimum performance and features for any installation.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: These package units employ simplified control technology for easier setup and operation, improved reliability, and exceptional component protection. The units also feature tubular stainless steel gas heat exchangers and copper-tube/aluminum-fin condenser coils for outstanding heat transfer rates and reliability.

Warranty information: Lifetime limited heat exchanger, and 10-year limited parts, compressor, and electric heat warranties are available

Special installation requirements: Exact-fit gas and electric hookups and a compact cabinet that fits most roof frames or slabs simplify installation. Strong, easily removable base rails use just two screws per corner, which improves installation.

Contact: Johnson Controls Inc., 414-524-5487; www.colemanac.com/lxpackagedunit.

eProduct 179

Model: LX Series residential split-system air conditioners, TW4

Footprint (in inches): Varies.

Serviceability features: These air conditioners feature full corner access with diagonal base valves with open access for low-loss fittings, single-panel access to power and control wiring, and a removable fan guard. These air conditioners' small footprint allows easy clearances to accommodate gates, hand trucks, vans, and site pads.

Technical support: The first level of support is provided by the distributor. Factory support is available to distributors and dealers 7 a.m. and 5 p.m. Central time at 877-874-7378.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and an owner’s manual are available. Additional information is available at www.upgnet.com or by request.

Noise-reduction features: These air conditioners are designed to operate at sound levels of 77 dBA.

IAQ equipment supported: Matched air handlers and coils feature a positive-slope drain pan that removes coil condensate to ensure healthy indoor air.

Thermostat compatibility: A wide selection of compatible thermostats is available to provide optimum performance and features for any installation.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The new design is the outcome of 125,000 hours of research and testing. These units meet Johnson Controls’ manufacturing and quality standards. The result is a price-competitive line with verified quality, reliable technology, easy setup, and serviceability featuring convenient access and standardized parts.

Warranty information: Ten-year limited parts and compressor warranties are available.

Special installation requirements: Full corner access, diagonal base valves with open access for low-loss fittings, single-panel access to power and control wiring, and a removable fan guard simplify installation.

Contact: Johnson Controls Inc., 414-524-5487; www.colemanac.com/lxsplitsystems.

eProduct 180

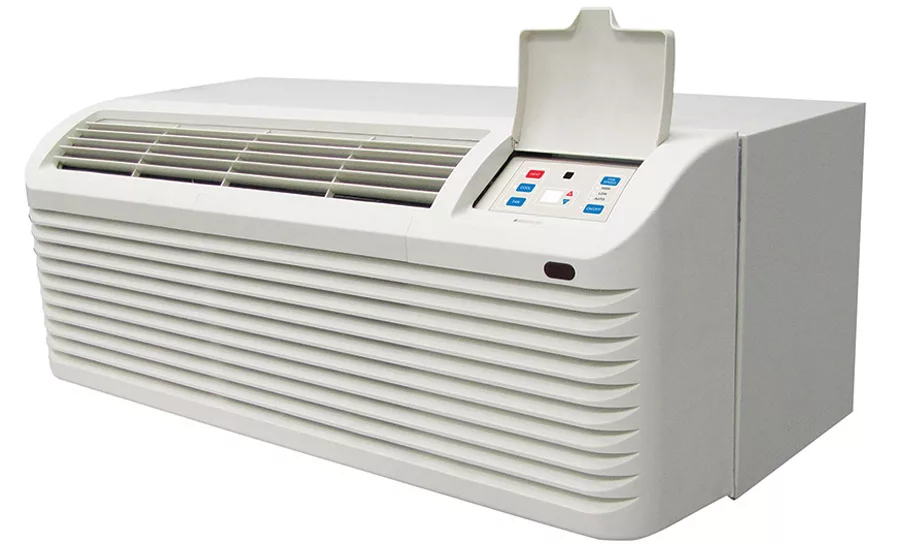

Comfort-Aire

Model: PTAC Seacoast Series packaged terminal air conditioner

Footprint (in inches): 42 (length) by 14 (width) by 16 (height)

Serviceability features: A slide-out chassis makes components easily accessible for service or maintenance. On-board computer diagnostics simplify service, and an LED indicator will flash error codes. The installation, operation, and maintenance manual contains a diagnostic code chart and further explanation.

Technical support: Experienced technical advisors are available to answer questions about installation, operation, and service 8 a.m. to 5 p.m. Eastern time, weekdays, at 517-787-2100. Sales representatives throughout the U.S. and Canada can also provide assistance. Contact information for sales reps can be found online under the Where to Buy tab.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; an owner’s manual; submittal data sheets; and a service manual are available.

Noise-reduction features: Two permanently lubricated fan motors are designed for quiet operation, and the compressor’s rubber-grommet mounting reduces operation vibration and related sound.

IAQ equipment supported: A fresh-air control arm allows outdoor air into the room through a filtered vent. Dual indoor filters are easily removed from the front of the unit for cleaning and reinstallation.

Thermostat compatibility: Wired and wireless thermostats are available.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: This packaged terminal air conditioner (PTAC) is ideal for installation in or near seacoast locations, as its components are treated with corrosion-resistant coating and it features stainless steel screws and aluminum end plates. Electric heat is standard at 3 or 5 kW. Microprocessor controls interface with temperature sensors, including on-board controls, a wired remote thermostat, or a wireless thermostat (front desk control). Features include an indoor coil frost control, a random restart delay, and high-pressure protection.

Warranty information: A limited express warranty covers parts and labor for one year with an additional four years (for a total of five years) on sealed system and functional parts only. The warranty begins on the date of purchase by the original owner. Limitations and restrictions apply; see the warranty certificate for additional information.

Special installation requirements: This unit is designed for through-the-wall installation, and a wall sleeve and outdoor grille are required. This PTAC can be optimized to a specific application through the use of dipswitches and a digital keypad. Selections include setpoint limiting, front desk control, wall thermostat controls, and more.

Contact: Comfort-Aire/MARS, 517-780-3222; www.comfort-aire.com.

eProduct 181

Comfort-Aire GeoLogix

Model: HEW Series water-to-water geothermal heat pump

Footprint (in inches): 25-53 (length) by 31 (width) by 33-37 (height)

Serviceability features: Three removable access panels provide easy access to all internal components. A DMX control with status lights and memory simplifies diagnostics, and factory testing creates a database for future service analysis and diagnostics.

Technical support: Experienced technical advisors are available to answer questions about installation, operation, and service 8 a.m. to 5 p.m. Eastern time, weekdays, at 517-787-2100. Sales representatives throughout the U.S. and Canada are also available to provide assistance. Contact information for sales reps can be found online under the Where to Buy tab.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and an engineering design guide are available.

Noise-reduction features: A dual-compressor isolation mounting system allows the compressor to be mounted on vibration-isolation grommets, isolating it from the cabinet base via rubber grommets for sound attenuation. The compressor compartment is fully insulated, and ½-inch coated glass fiber is used for interior cabinet insulation. A variable-speed fan helps make this unit exceptionally quiet.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The unit can be used for radiant floor heating, snow/ice melt, chilled water for fan coils, potable hot water generation, and many other HVAC applications. Features include a thermostatic expansion valve (TXV) metering device, extended 20º-120º F operation range, and epoxy powder-coated cabinets with stainless steel access panels. An optional hot water generator comes with an internal pump. A Performance Sentinel signals if the unit is not running at optimum performance.

Warranty information: A limited express warranty covers all parts of the unit, including the compressor, for 10 years from the date of purchase. Additionally, labor is allowed for warranty service when the unit is commissioned according to the installation, operation, and maintenance manual’s startup procedure and geothermal start-up certification is submitted. See limitations on the warranty card online.

Special installation requirements: Designed for closed-loop geothermal applications only.

Contact: Comfort-Aire/MARS, 517-780-3222; www.comfort-aire.com.

eProduct 182

Comfortmaker

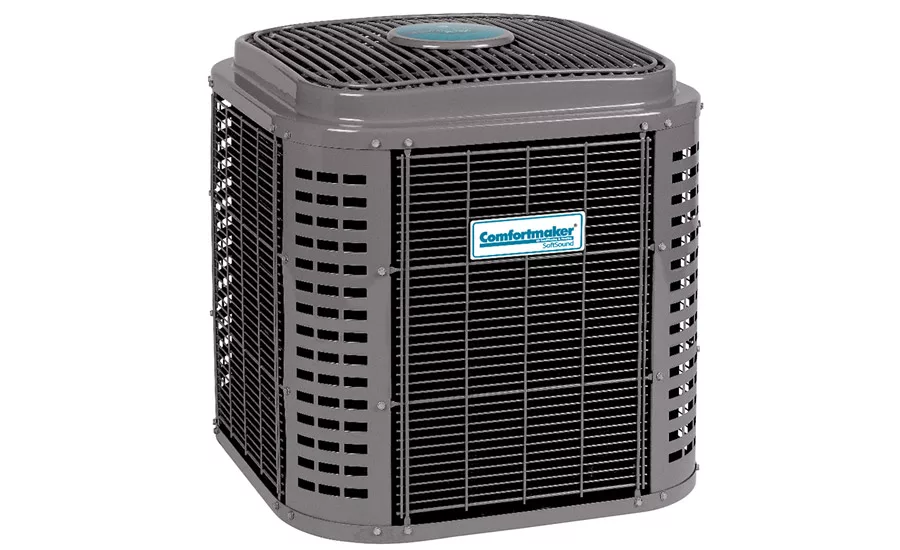

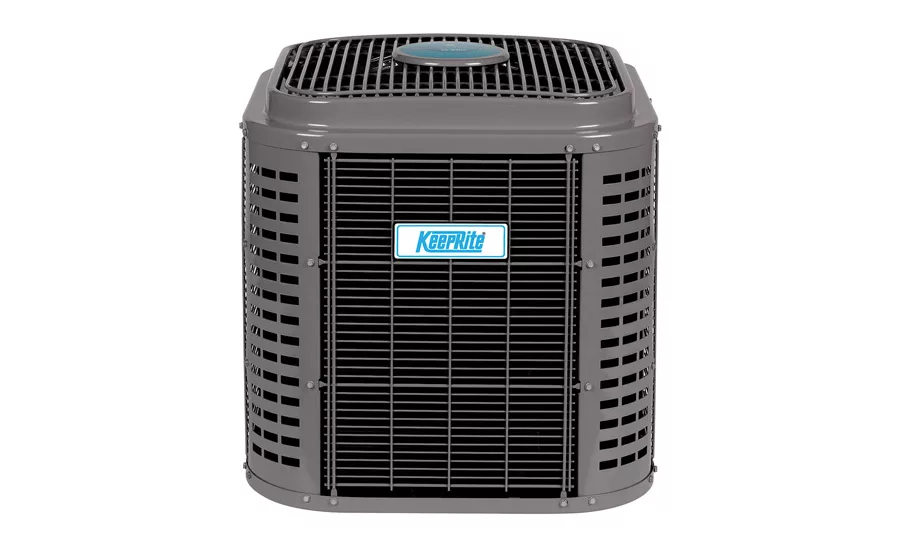

Model: CCA7 SoftSound^® Deluxe 17 split-system air conditioner

Footprint (in inches): 31-35 (length) by 31-35 (width) by 47 (height)

Serviceability features: This air conditioner is compatible with the Observer communicating control with Wi-Fi capability, which features system control with remote access when connected to the Internet and text-based diagnostics. Three-piece grille panels can be removed separately to view and clean. The service valves are easily accessible, and only two screws need to be removed to access the control panel. High- and low-pressure switches are also available.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.gocomfortmaker.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information are available online.

Noise-reduction features: Units are equipped with Copeland scroll UltraTech compressors, electronically commutated motor (ECM) fan motors, and isolation compressor grommets to minimize sound at maximum performance. A high-performance compressor sound shield comes standard.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products including filters, humidifiers, UV lights, and electronic air cleaners (EACs). The outdoor air temperature semsor comes factory installed.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: This air conditioner is compatible with the Observer communicating control with Wi-Fi capability, self-configuring capabilities, and easy-to-read diagnostics. The thermostat can be programmed to display a contractor’s name and contact information when the homeowners need service, routine maintenance, or cleaning. Additional features include two-stage comfort, efficiencies up to 17 SEER, and a tight-wire coil guard provides maximum protection with optimal airflow.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the certificate online for more information. This product qualifies for the Comfortmaker 10-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within 10 years from the installation date, ICP will provide a one-time replacement outdoor unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: Thermostatic expansion valve (TXV) expansion devices are recommended for maximum system reliability. The units must be installed with a fan coil or furnace capable of supporting two-stage cooling.

Contact: International Comfort Products, 615-777-8588; www.gocomfortmaker.com.

eProduct 183

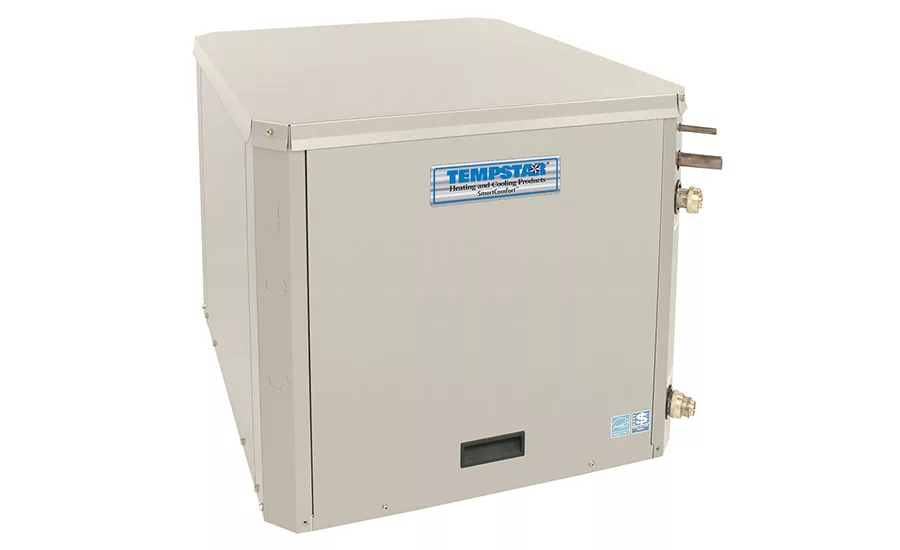

Model: HS024-060 geothermal heat pump

Footprint (in inches): 27-33 (length) by 24-27 (width) by 22-23 (height)

Serviceability features: Features include multiple access panels and easily accessible components and control box. No special controllers are necessary.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.gocomfortmaker.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information is available online.

Noise-reduction features: Compressor sound blankets, fully-insulated cabinets with closed-cell foam, and double isolation mounted compressors help keep the system quiet. The two-stage compressor operates on quiet, low speeds most of the time.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This geothermal heat pump is compatible with many three-stage-heat, two-stage-cooling programmable thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: HS Series geothermal heat pumps are Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-matched to Comfortmaker FVM4 fan coils and Comfortmaker EAM4 evaporator coils; offer superior energy efficiency with EERs up to 30.5 and COPs up to 5.1; and can provide supplemental water heating as well as indoor air cooling and heating.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate online for more information. This product qualifies for the Comfortmaker five-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within five years from the installation date, ICP will provide a one-time replacement unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: None.

Contact: International Comfort Products, 615-777-8588; www.gocomfortmaker.com.

eProduct 184

Daikin

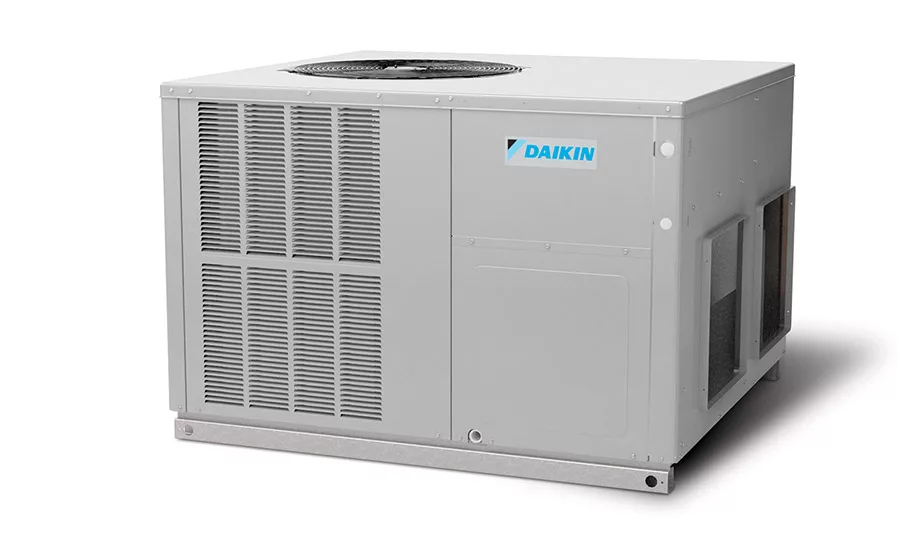

Model: DP16HM packaged heat pump

Footprint (in inches): 51 (length) by 47 (width) by 35 (height)

Serviceability features: This heat pump features a liquid-line filter drier; convertible airflow in horizontal or downflow configurations; and a totally enclosed, permanently lubricated condenser fan motor. A fully insulated air-handling compartment includes convenient access panels. An electric heat kit is available as a field-installed option. The heavy-gauge galvanized-steel cabinet features an attractive two-tone architectural-gray powder-paint finish. Additionally, the unit is available in two heights at one footprint.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988 — press 5 to go straight to tech support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and submittal data sheets are available.

Noise-reduction features: A fully insulated air-handling compartment includes convenient access panels. A compressor sound blanket and compressor grommets for vibration isolation help reduce noise levels.

IAQ equipment supported: Various IAQ products are supported.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The unit also features an energy-efficient compressor with internal relief valve, two-stage heating and cooling, a variable-speed electronically commutated motor (ECM) blower motor, a liquid-line filter drier, and refrigeration-grade premium copper tubing. Aluminum-fin condensing coil configuration delivers outstanding heat transfer properties with R-410A refrigerant.

Warranty information: Six-year limited unit replacement and 12-year limited parts warranties are available.

Special installation requirements: None.

Contact: Daikin, 281-536-6063; www.daikincomfort.com.

eProduct 185

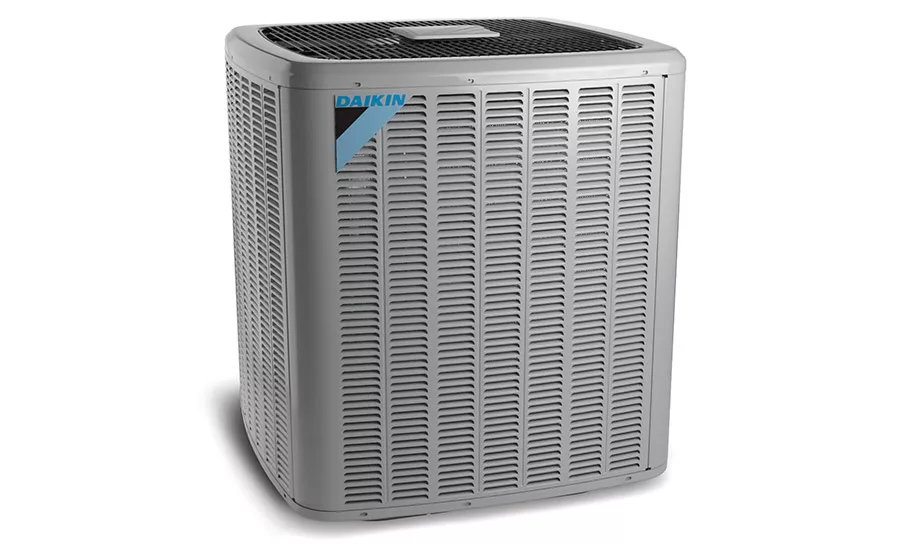

Model: Daikin DZ18VC heat pump

Footprint (in inches): 29 (length) by 29 (width) by 38 (height)

Serviceability features: Exclusive Daikin Inside™ diagnostics offer refined diagnostics and optimal performance routines, diagnostic indicator lights, a seven-segment LED display, and fault-code storage. In communicating mode, only two low-voltage wires are necessary to connect to the outdoor unit. Additional features include coil/ambient temperature sensors, a suction pressure transducer, sweat connection service valves, easy access to gauge ports, top/side maintenance access, and single-panel access to controls.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988 — press 5 to go straight to tech support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and submittal data sheets
are available.

Noise-reduction features: The unit boasts quiet operation with sound levels down to 56 dB. A high-density foam compressor sound blanket limits operational volumes. A high-efficiency electronically commutated motor (ECM) fan motor with advanced fan design moves air quickly and quietly, and a variable-speed compressor gently and quietly ramps up or down depending upon demands.

IAQ equipment supported: The heat pump supports a wide range of IAQ products.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Daikin Inside variable-speed compressor is designed to provide years of reliable indoor comfort. Additional features include a three-speed quiet condenser fan motor, superheat automatic electronic expansion valve (EEV) control, a boost mode that ramps up the compressor’s speed to increase cooling capacity, and ComfortNet™ communications system compatibility that continuously optimizes and monitors performance with wireless indoor comfort control.

Warranty information: Twelve-year limited unit replacement and limited parts warranties are available.

Special installation requirements: None.

Contact: Daikin, 281-536-6063; www.daikincomfort.com.

eProduct 186

Daikin Applied

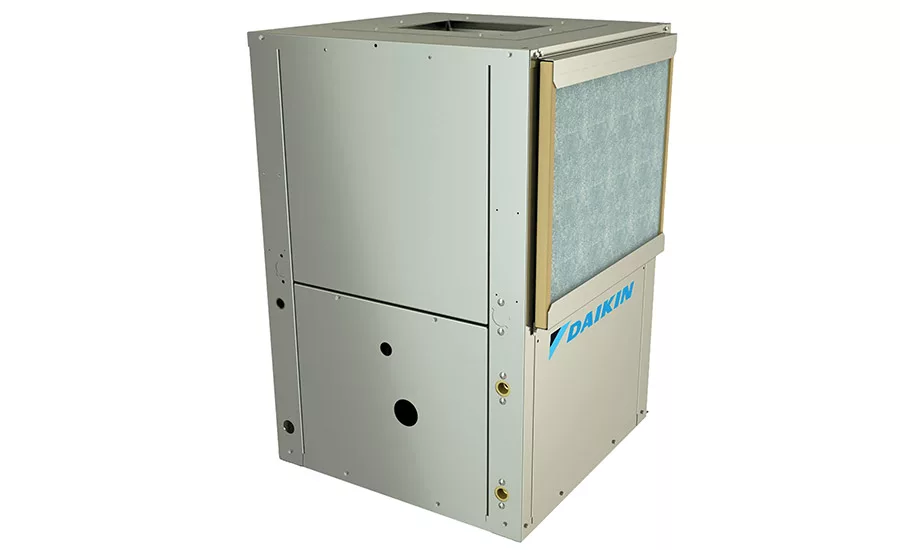

Model: SmartSource GCV compact water-source heat pump

Footprint (in inches): 19 (length) by 19 (width) by 24 (height)

Serviceability features: A swing-out removable control box offers easy access to control terminal connections and fast service access. An LED status sight glass allows an instant visual of operation status and quick troubleshooting diagnosis. A slide-out fan motor/housing assembly provides easy removal and service access. A non-fused disconnect extends convenient power shut-off/lock-out at the unit.

Technical support: Customized maintenance and repair services, including 24/7 emergency repair, planned and comprehensive maintenance agreements, system upgrades, and chiller rental for temporary solutions and emergencies, are available. Contact www.daikinapplied.com to find the nearest service office.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: A quiet and efficient electronically commutated motor (ECM) and four-position, factory-mounted ECM fan control deliver optimized airflow for reduced sound levels. A factory-installed isolation blanket reduces audible compressor noise. A sound package option consisting of dual-layer foil-faced fiberglass insulation is available.

IAQ equipment supported: Smart dehumidification uses hot gas reheat, a humidistat, a two-stage thermostat, and smart airflow management for precise humidity and comfort control. Closed-cell foam insulation allows for fiber-free airflow.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: Hydronic heat reduces energy consumption by using warm-loop water temperatures to condition a space without energizing mechanical heating. A waterside economizer reduces compressor energy consumption by using a cold water coil for cooling under suitable conditions. Four-position electronically commutated motor (ECM) fan control and MicroTech III controls allow for easy open-protocol integration with LonWorks^® or BACnet^®.

Warranty information: A five-year extended parts warranty is available.

Special installation requirements: None needed.

Contact: Daikin Applied, 763-553-5157; www.daikinapplied.com.

eProduct 187

Daikin Ductless

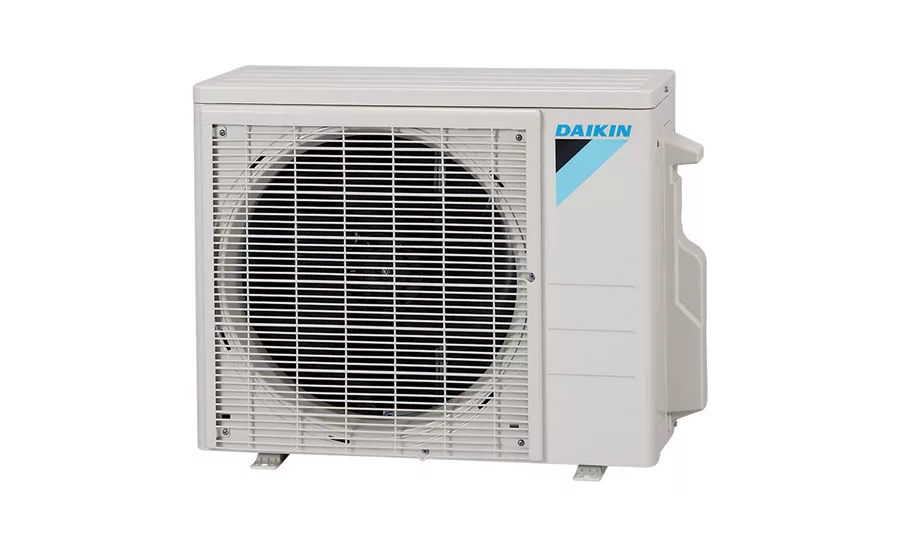

Model: RXL enhanced capacity ductless heat pump

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Ductless products are easy to install and service and are built for reliability. The unit includes self-diagnostics with a digital display. It is pre-charged for up to 33 feet of liquid line and includes a washable air filter and anti-corrosion treatment on the heat exchanger.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988 — press 5 to go straight to tech support.

Technical support materials: Manufacturer did not specify.

Noise-reduction features: The heat pump offers extremely quiet operation with indoor sound pressure as low as 19 dBA and outdoor sound pressures as low as 46 dBA. When the indoor unit’s Quiet Operation Mode is activated, the indoor unit’s sound levels drop by 2-3 dB for gentler heating and cooling operation.

IAQ equipment supported: A Titanium Apatite photocatalytic air filter offers advanced filtration. Durable, washable filters help trap microscopic particles; decompose odors; and reduce bacteria, viruses, and mold.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Indoor and outdoor units featuring Daikin inverter technology offer exceptionally low sound levels and minimize temperature fluctuations – helping to deliver undisturbed comfort. The new units can produce 100 percent of rated capacity at 5°F. A hand-held remote with backlit display features Econo Mode, Powerful Mode, and more. A Daikin ENVi intelligent thermostat offers an advanced solution designed for energy savings performance.

Warranty information: A 12-year limited parts warranty is available.

Special installation requirements: None.

Contact: Daikin, 281-536-6063; www.daikincomfort.com.

eProduct 188

Day & Night

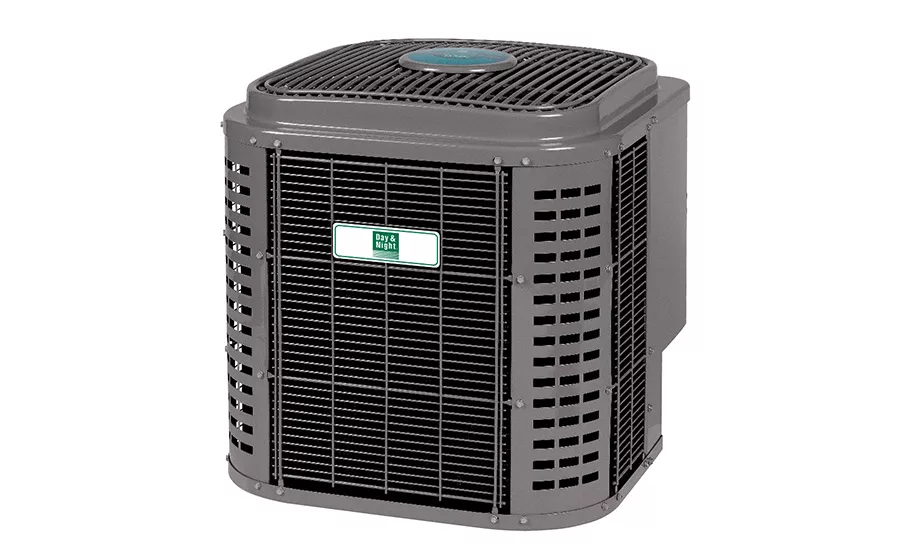

Model: CCA9 Constant Comfort™ Deluxe 19 split-system air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 47 (height)

Serviceability features: The air conditioner is compatible with the Observer communicating control with Wi-Fi capability, which features system control with remote access when it’s connected to the Internet and text-based diagnostics. Three-piece grille panels can be removed separately to view and clean. The service valves are easily accessible, and only two screws need to be removed to access the control panel. High- and low-pressure switches are also available.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.godayandnight.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information is available online.

Noise-reduction features: Units are equipped with Copeland scroll UltraTech compressors, electronically commutated motor (ECM) fan motors, and isolation compressor grommets to minimize sound at maximum performance. A high-performance compressor sound shield comes standard.

IAQ equipment supported: This air conditioner includes a factory-installed outdoor air temperature sensor. As part of an installed system, this unit is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs).

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: This unit is compatible with the Observer communicating control with Wi-Fi capability, self-configuring capabilities, and easy-to-read diagnostics. The thermostat can be programmed to display a contractor’s name and contact information when homeowners need service, routine maintenance, or cleaning. Additional features include two-stage comfort, efficiencies up to 19 SEER, and a tight-wire coil guard provides maximum protection with optimal airflow.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate online for more information. This product qualifies for the Day & Night 10-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within 10 years from the installation date, ICP will provide a one-time replacement outdoor unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: Thermostatic expansion valve (TXV) devices are recommended for maximum system reliability. The units must be installed with a fan coil or a furnace capable of supporting two-stage cooling.

Contact: International Comfort Products, 615-777-8588; www.godayandnight.com.

eProduct 189

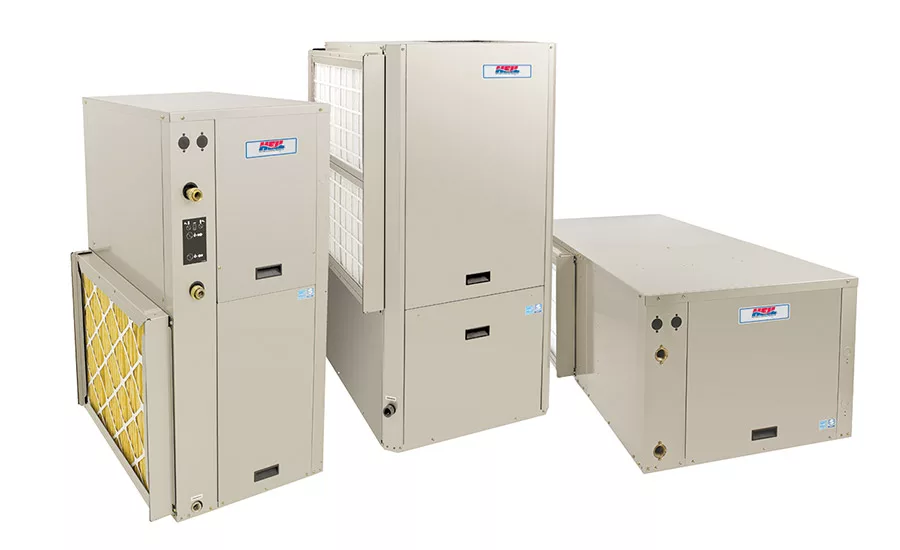

Model: HP024-072 geothermal heat pump

Footprint (in inches): 26-33 (length) by 22-26 (width) by 47-58 (height)

Serviceability features: Features include multiple access panels and easily accessible components and control box; no special controllers are necessary.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 online and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information are available online.

Noise-reduction features: These geothermal units are built for quiet operation and feature compressor sound blankets, fully insulated cabinets with closed-cell foam, and double-isolation-mounted compressors. A two-stage compressor and variable-speed blower operate on quiet, low speeds most of the time.

IAQ equipment supported: This heat pump is compatible with a wide range of IAQ products, including filters, humidifiers, and ventilators.

Thermostat compatibility: The unit is compatible with many three-stage-heat, two-stage-cooling programmable thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: The unit features EERs up to 30 and coefficients of performance (COPs) up to 4.6 and can provide supplemental water heating as well as indoor air cooling and heating. The unit is available in vertical upflow or downflow configurations as well as a horizontal model. Additionally, the heat pump includes tin-plated copper-tubing coils.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate for more information. This product qualifies for the Day & Night five-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within five years from the installation date, ICP will provide a one-time replacement unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: None.

Contact: International Comfort Products, 615-777-8588; www.godayandnight.com.

eProduct 190

EMI

Model: I-verter ductless heat pump, single and multi zone

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Manufacturer did not specify.

Technical support: Support is available 8 a.m. to 5 p.m. Eastern time, Monday to Friday, at 800-228-9364.

Technical support materials: Installation, operation, and maintenance manuals; a parts list; specification sheets; and submittal data sheets are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: This ductless heat pump does not share replacement parts with other models.

Additional features: Standard 208-230 V, 1/60-Hz; 115 V, 1/60-Hz available for 9K and 12K sizes. Inverter compressor technology continuously adjusts its speed to match a desired comfort level. Turbo mode is capable of boosting output 115 percent for brief periods. Low-ambient cooling and heating is available on most models (minus 13°F). When activated, Follow Me technology will read the sensor inside of the infrared hand-held remote control to condition the space where occupants are. The unit offers both wall- and ceiling-mounted air handlers. Multi-zone units may serve up to five individual zones.

Warranty information: Limited two-year parts and six-year compressor warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: ECR Intl., 315-797-1310; www.enviromaster.com.

eProduct 191

First Co.

Model: SPXA/SPXA-HP vertical package unit (VTAC)

Footprint (in inches): 20 (length) by 20 (width) by 66 (height)

Serviceability features: Most all major components are accessible from the back panel of the unit including the filter access.

Technical support: Support is available 8 a.m. to 5 p.m. Central time, Monday to Friday, at 214-388-5751 — press 5 for tech support.

Technical support materials: Installation, operation, and maintenance manuals; a parts list; specification sheets; and an owner’s manual are available.

Noise-reduction features: An insulated cabinet with an option for an insulated wrapper for the back of the unit helps reduce operational volume.

IAQ equipment supported: The standard filter may be upgraded to a MERV-5 filter depending on the duct static.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: A small, space-saving design makes this unit appropriate for smaller dwellings that require duct distribution. Standard features include a fresh-air intake with a manual damper.

Warranty information: One-year parts and five-year compressor warranties are available.

Special installation requirements: The unit needs a framed opening to the outside. A self-supporting sleeve and architectural louver grille are required for proper operation.

Contact: First Co., 214-388-5751; www.firstco.com.

eProduct 192

Friedrich Air Conditioning

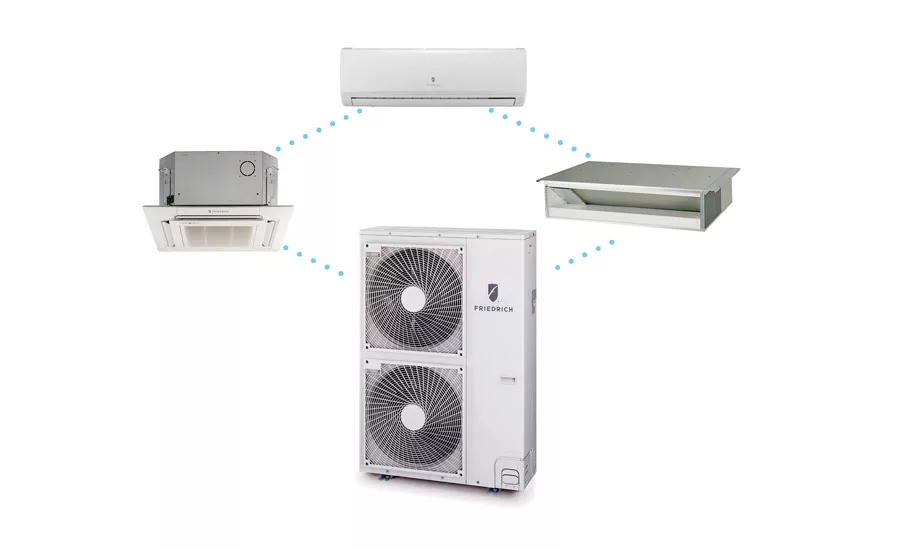

Model: MR48DEY3JM heat pump

Footprint (in inches): 37 (length) by 13 (width) by 54 (height)

Serviceability features: This heat pump is compatible with the DWTST wireless ductless troubleshooting tool from Friedrich, which allows technicians to see real-time data, including error codes, various temperatures, electronic expansion valve (EEV) positions, and more, as the system operates.

Technical support: Support is available 8 a.m. to 5 p.m. Central time, Monday to Friday, at 800-541-6645.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: This heat pump features several refrigeration system vibration dampeners as well as a compressor blanket to reduce overall sound.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Friedrich has a line of remote and wall controllers. Other thermostats may be used with the addition of control accessories.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The system allows up to eight individual indoor zones to be connected to one outdoor unit. Multiple indoor units are connected to branch boxes. All systems come precharged with refrigerant, so there are no complicated calculations required for charging for most installations.

Warranty information: Five-year parts and seven-year compressor warranties come standard. If the unit is installed by an Advantage program dealer, the warranty is extended to 10 years, including one year of labor allowance.

Special installation requirements: Manufacturer did not specify.

Contact: Friedrich Air Conditioning; www.friedrich.com.

eProduct 193

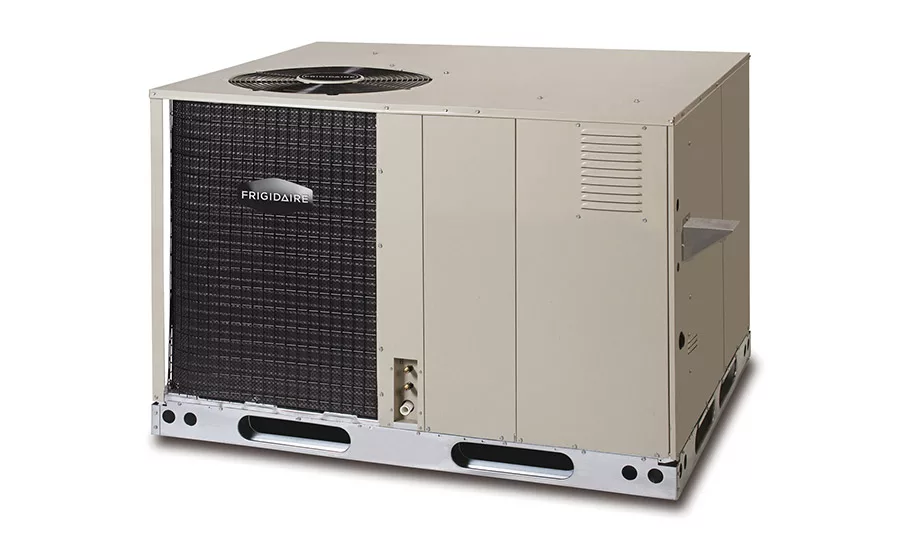

Frigidaire

Model: R6GI iQ Drive packaged gas-electric unit

Footprint (in inches): 56 (length) by 48 (width) by 56 (height)

Serviceability features: Features include on-board diagnostics and a simple two-digit LED display. Separate service areas include electrical, refrigeration, gas heat, and blower. Sensors and an inverter motherboard are easily accessible. A variable-speed blower control board is front facing. A convenient wash-out section is provided to efficiently clean the condensate pan.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: Inverter technology featuring a rotary compressor with increased shell thickness and a compressor blanket help reduce operational volume. A swept-wing condenser fan blade on a pulse-width modulated condenser fan motor is included, and a variable-speed blower motor can be programmed to provide reduced noise levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: This 20-SEER gas-electric packaged unit is applicable for residential/light commercial applications. SmartLite technology in the furnace control board reduces any unneeded hot surface igniter time. Sixteen different blower speeds for heating and cooling modes provide better performance, even in challenging duct systems.

Warranty information: Ten-year limited parts and limited unit replacement warranties are available upon product registration.

Special installation requirements: Manufacturer did not specify.

Contact: Nortek Global HVAC, 636-561-7300; www.frigidaire.net.

eProduct 194

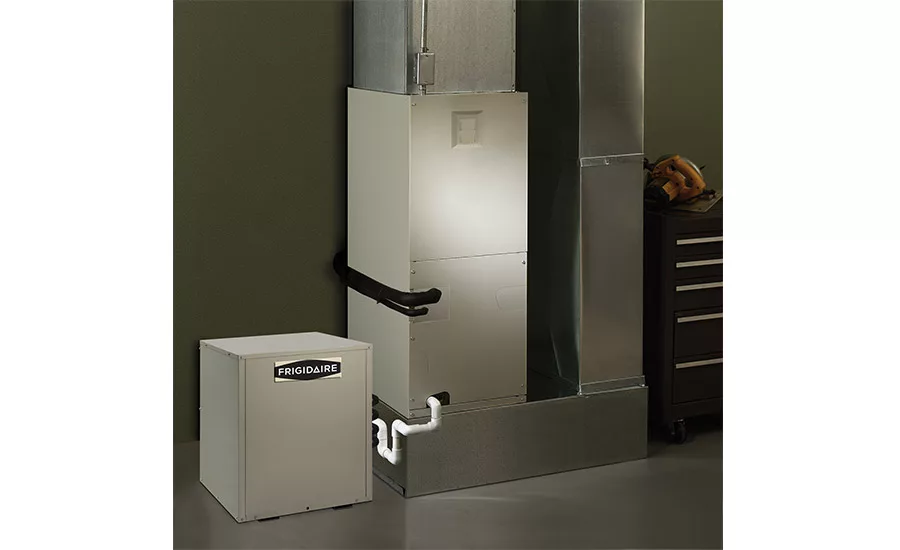

Model: Y1SA EarthDirEX geothermal heat pump

Footprint (in inches): 25 (length) by 25 (width) by 31 (height)

Serviceability features: The compressor section can be located inside next to the air handler. An interface control board with a two-digit LED provides system operational mode and diagnostic information.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A compressor sound blanket comes standard.

IAQ equipment supported: Matching indoor equipment supports plug-in heater kits. The unit includes a built-in filter rack, and dehumidification capabilities are accessible from the thermostat or duct-mounted humidistat.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: A bi-flow electronic expansion valve (EEV), microchannel indoor coil, oil separator, accumulator, and a sight glass designed to simplify refrigerant charging are included.

Warranty information: Ten-year limited parts and limited unit replacement warranties are available upon product registration.

Special installation requirements: A geothermal direct geoexchange heat pump is designed to require less drilling and fewer boreholes for the earth loops.

Contact: Nortek Global HVAC, 636-561-7300; www.frigidaire.net.

eProduct 195

GeoComfort

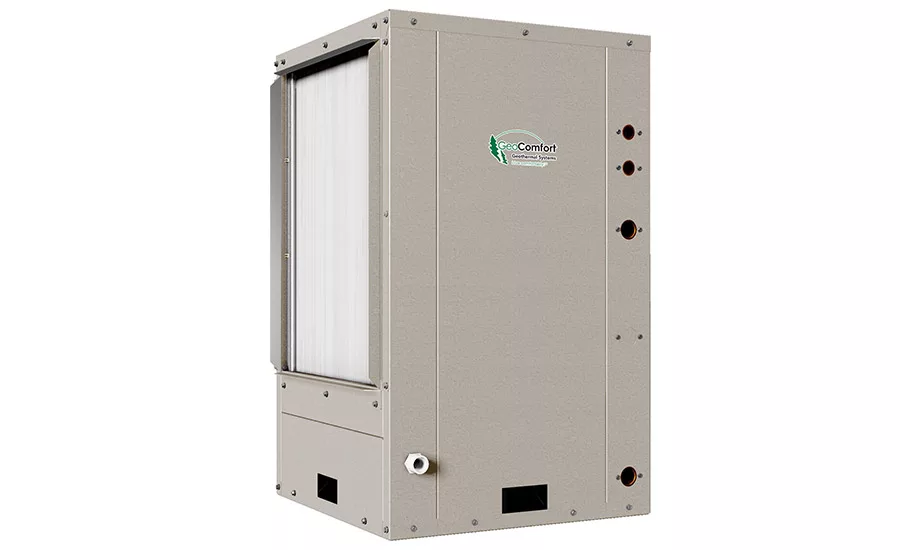

Model: Element Series, GVT 024 - 072 Models, vertical package ground-source heat pumps

Footprint (in inches): 28 (length) by 25 (width) by 41 (height)

Serviceability features: Most commonly accessed components can be reached via the front cabinet, including a desuperheater, reversing valve, blower motor, refrigerant ports, thermostatic expansion valve (TXV), and filter drier. A hinged control box easily tilts out of the way for access to internal components. An inner front panel allows for refrigerant and electrical service work while the unit is operational.

Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or www.geothermaluniversity.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Elastomeric compressor isolation pads separate the Copeland UltraTech two-stage scroll compressor from the unit. Internal copper tubing employs an enhanced shock-loop design, which also prevents compressor vibration from transmitting through other internal components. High-density, Greenguard-certified, closed-cell foam insulation is used throughout the unit to absorb sound.

IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Most other air filtration, humidification, or purification systems are compatible with most Enertech products.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: An all-aluminum microchannel air coil improves efficiency while eliminating air coil failure caused by formicary corrosion. A foam-insulated, flat-wound, enhanced-surface coaxial heat exchanger improves heat transfer, improving efficiency. A standard permanent split capacitor (PSC) blower motor (single-stage) or electronically commutated motor (ECM) blower (two-stage) offer highly efficient performance. ECMs are optional on single-stage units.

Warranty information: Standard residential units include 10-year component and select accessory warranties and five-year labor-allowance warranties. Labor-allowance warranties are upgradable to 10 years upon registration. Optional limited lifetime microchannel air coil and compressor warranties are available.

Special installation requirements: Its small footprint, front-mounted plumbing, and side-entry electrical connections are ideal for retrofit or new-build applications. The purpose-build model uses many of the design innovations found throughout the product line and incorporates them into a compact, efficient, and technician-friendly package.

Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.

eProduct 196

Model: GZT 024 - 072 horizontal package ground-source heat pump

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: A hinged control box swings open and is removable, granting access to internal components. Electrical and water connections are located on the front corner post. A refrigerant test port is accessible through a front panel. All exterior service panels are removable. A sealed air-handling compartment facilitates setup and service during unit operation. A desuperheater switch is mounted externally.

Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or www.geothermaluniversity.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Elastomeric compressor vibration absorption pads provide superior sound and vibration insulation. High-density, closed-cell foam insulation helps absorb sound. A heavy-gauge compressor mounting plate with multiple durometer rubber and elastomeric vibration absorption pads provide superior compressor and blower motor isolation. High-density, Greenguard-certified, closed-cell foam insulation helps absorb sound. A heavy-gauge galvanized or pre-painted sheet metal cabinet is engineered and built to meet industry leakage guidelines.

IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Most other air filtration, humidification, or purification systems are compatible with Enertech products.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: ZS/ZT models are field-configurable for side or end discharge and feature a compact design with highly efficient performance. An all-aluminum microchannel air coil improves efficiency. A protected sensor and flow switch and foam-enclosed, brazed-plate heat exchanger (BPHE) reduce weight and refrigerant charge while increasing performance. A compact design allows 24-inch-on-center attic truss pass-through installation.

Warranty information: Standard residential units include 10-year component and select accessory warranties and five-year labor-allowance warranties. Labor allowance warranties are upgradable to 10 years upon registration. Optional limited lifetime microchannel air coil and compressor warranties are available.

Special installation requirements: Its small footprint, front-corner post-mounted plumbing and electrical connections, and field-selectable discharge air pattern are ideal for retrofit or new-build applications. The unique application of brazed-plate and microchannel heat exchangers in a compact, efficient, and technician-friendly package provides excellent performance and reliability.

Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.

eProduct 197

Gibson

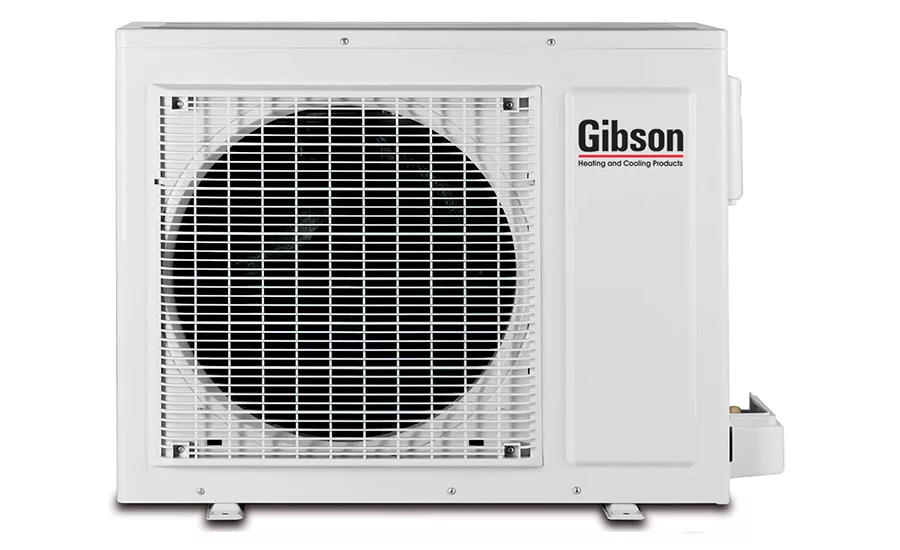

Model: GXH_FMK4DH multi-zone heat pump

Footprint (in inches): 43 (length) by 17 (width) by 43 (height)

Serviceability features: Up to five indoor units can be directly connected to the outdoor unit at pipe lengths up to 262 feet. Connectable capacity is offered in 50-135 percent of nominal capacity. Low-ambient heating is available to minus 4°F. Self-diagnostic error codes are also accessible.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: The inverter compressor and optimized outdoor fan blade and motor deliver quiet operation.

IAQ equipment supported: High-wall units feature sleep mode. The unit also boasts a four-speed blower, turbo cooling and heating modes, and a dry, anti-mildew design.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: Five different indoor units are available to choose from, including high-wall, ducted, four-way cassette, console, and floor/ceiling units. The indoor units may be mixed and matched to create 124 different system combinations.

Warranty information: Five-year limited parts and seven-year compressor warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Nortek Global HVAC, 636-561-7300; www.gibsonhvac.com.

eProduct 198

Goodman

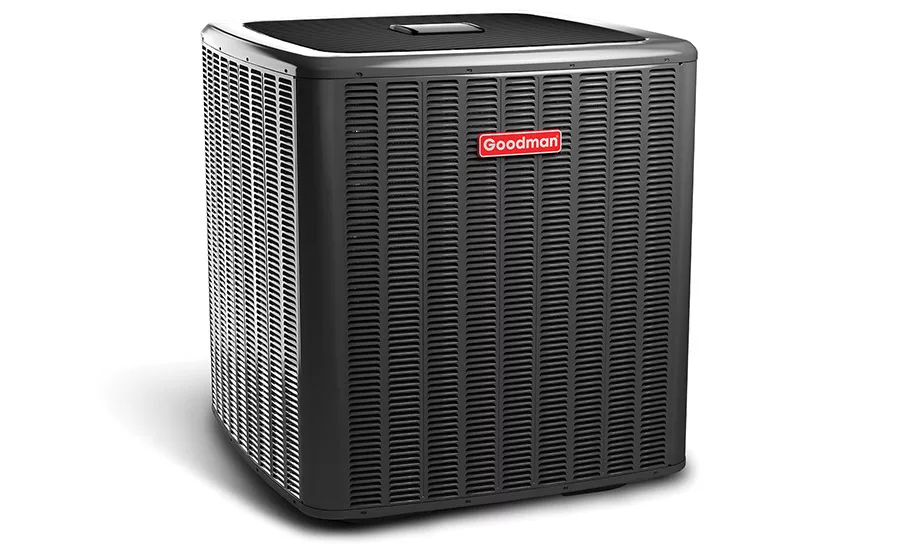

Model: DSXC16 air conditioner

Footprint (in inches): 29 (length) by 29 (width) by 38 (height)

Serviceability features: Features include coil and ambient temperature sensors, built-in expanded ComfortAlert diagnostics with indicator lights, and fault-code storage. ComfortNet communications system compatibility simplifies installation and setup. The air conditioner may be setup with two low-voltage wires to the outdoor unit. A color-coded terminal is provided for non-communicating setup. Additional features include high- and low-pressure switches, top and side maintenance access, single-panel access to controls, and space for field-installed accessories.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988 — press 5 to go straight to tech support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; and specification sheets are available.

Noise-reduction features: The unit includes an acoustically engineered design, which features a high-density-foam, sound-reduction compressor blanket and a specially designed wire-discharge grille. Additionally, the two-speed operation of the condenser fan motor allows the outdoor fan to run more often at low, quiet speeds.

IAQ equipment supported: A variety of IAQ products are supported.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: ComfortNet communications system compatibility simplifies installation, optimizes performance routines, and provides wireless indoor comfort control. The unit also features a two-stage Copeland UltraTech scroll compressor and a factory-installed filter drier.

Warranty information: A limited lifetime compressor warranty is available. If the compressor ever fails, a new one will be provided to the original purchaser of the central air conditioning system as long as they live in the same single-family residence. Ten-year limited unit replacement and limited parts warranties are available.

Special installation requirements: None.

Contact: Goodman Air Conditioning & Heating, 281-536-2815; www.goodmanmfg.com.

eProduct 199

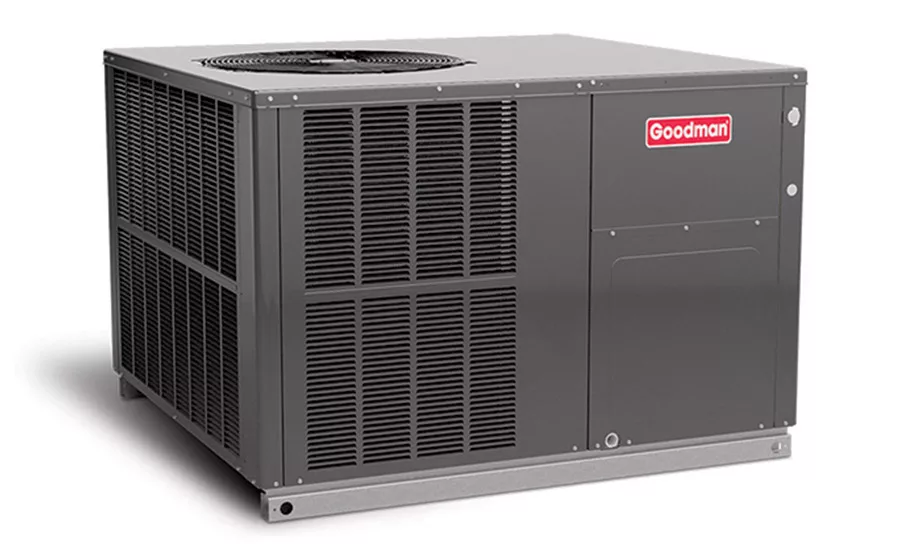

Model: GPH16M packaged heat pump

Footprint (in inches): 51 (length) by 47 (width) by 35 (height)

Serviceability features: The unit features a totally enclosed, permanently lubricated condenser fan motor and offers convertible horizontal or downflow airflow configurations. An electric heat kit is available as a field-installed option. A fully insulated blower compartment includes convenient access panels, and a heavy-gauge galvanized steel cabinet boasts a powder-paint finish. Thoroughly tested, these packaged heat pumps are manufactured on strict, quality-driven processes to ensure trouble-free installation and longevity.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988 — press 5 to go straight to tech support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and submittal data sheets are available.

Noise-reduction features: A fully insulated blower compartment offers quiet operation. A horizontal discharge configuration also provides quiet performance.

IAQ equipment supported: A wide range of IAQ product options are supported.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: An all-aluminum evaporator coil resists corrosion. Additional features include a copper-tube/aluminum-fin coil, two-stage heating and cooling, an energy-efficient compressor with an internal relief valve, a multi-speed EEM blower motor, a liquid-line filter drier, and a quality powder-paint finish that resists fading and corrosion. The unit is available in two heights through one footprint.

Warranty information: A 10-year limited parts warranty is available.

Special installation requirements: None.

Contact: Goodman Air Conditioning & Heating, 281-536-6063; www.goodmanmfg.com.

eProduct 200

Haier

Model: Arctic Series ductless heat pump

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Features include an alphanumeric fault-code readout, an outdoor display, and a state-of-the-art diagnostic board interface tool with monitoring software. A smartphone/tablet mobile app and a charging calculator kickstand for an indoor, high-wall, programmable thermostat complete with a fault code readout are also offered.

Technical support: Support is available 8 a.m. to 8 p.m. weekdays (no holidays) at 866-814-3633.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: The insulated compressor features an advanced aerodynamic blower wheel design. A multispeed indoor fan, variable-speed motor, and compressor Quiet Mode for nighttime operation all help reduce operational volume.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: With the innovative inverter technology heat pump, homeowners can effectively reduce their energy bills and maintain ideal comfort levels. With the integration of HaierHeat+ technology, the Arctic Series provides an exceptional experience for year-round comfort. The system keeps 100 percent heating capacity at 5°F and comfortable warm air at minus 15°.

Warranty information: Five-year parts and seven-year compressor warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Haier America, 973-617-1800; www.haierductless.com.

eProduct 201

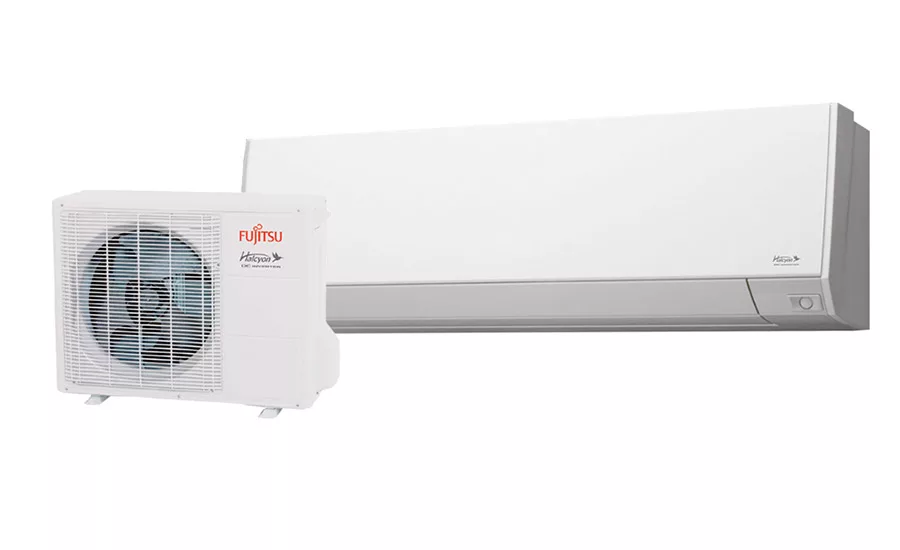

Halcyon

Model: System 9RLS3Y heat pump

Footprint (in inches): 11 (length) by 37 (width) by 12 (height)

Serviceability features: This heat pump includes a self-diagnostic system with easy-to-read LED error codes that can be looked up in Fujitsu’s Mobile Technician App for step-by-step troubleshooting. The system’s washable filters are easily accessible.

Technical support: From mobile devices, contractors can download Fujitsu’s Mobile Technician App, where they can view error codes and determine which troubleshooting steps to take. Through a password-protected website, contractors can download design and technical manuals; installation, service, and operation manuals; and submittal drawings. Toll-free service is available 8 a.m. to 8 p.m. Eastern time at 866-952-8324.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: The heat pump features an indoor unit as quiet as 23 dB — the volume of a soft whisper. The outdoor unit operates at 41 dB.

IAQ equipment supported: Ion-deodorization filters decompose absorbed odors using the oxidizing/reducing effects of ions generated by the ultra-fine-particle ceramic and apple-catechin filters, which absorb fine dust, invisible mold spores, and harmful microorganisms onto the filter by static electricity, which inhibits and deactivates further growth. The filters boast a three-year life expectancy and can be washed to restore surface action.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The heat pump is smartphone-enabled, which allows users to remotely manage their mini-split-system using a mobile device or computer via the Internet. This system also features a SEER of 33, heating at outdoor temperatures down to minus 5°F, a programmable remote control, and inverter technology.

Warranty information: Five-year parts and seven-year compressor warranties are available. Systems that have been installed by a licensed contractor and have been properly registered online are eligible for 10-year parts and compressor warranties. Systems that have been installed by an Elite contractor and registered online are eligible for 12-year parts and compressor warranties. See the warranty statement for full details.

Special installation requirements: Units have to be installed within 66 feet of each other.

Contact: Fujitsu General America Inc., 973-575-0380; www.fujitsugeneral.com.

eProduct 202

Heil

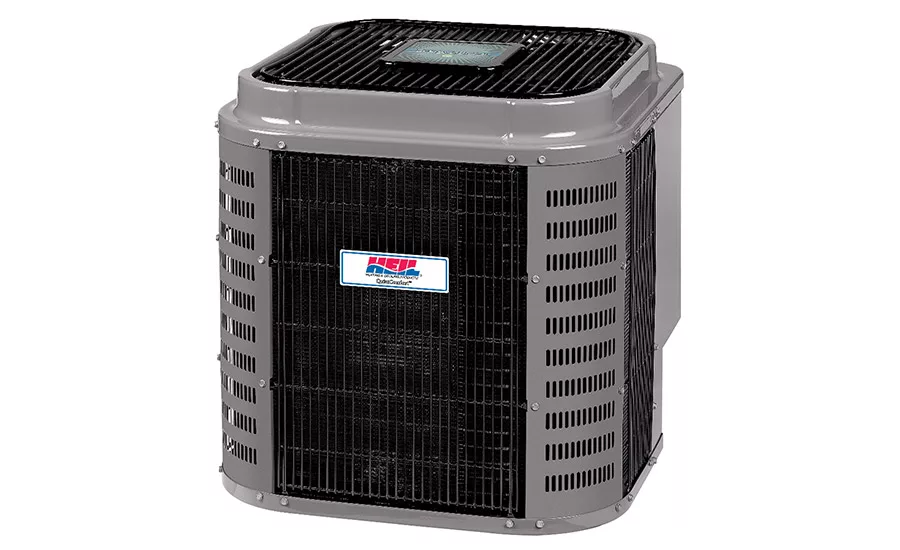

Model: HCA9 QuietComfort^® Deluxe 19 split-system air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 47 (height)

Serviceability features: This air conditioner is compatible with the Observer communicating control with Wi-Fi capability, featuring system control with remote access when connected to the Internet and text-based diagnostics. Three-piece grille panels can be removed separately to view and clean. The service valves are easily accessible, and only two screws need to be removed to access the control panel. High- and low-pressure switches are also available.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.goheil.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: Units are equipped with Copeland scroll UltraTech compressors, electronically commutated motor (ECM) fan motors, and isolation compressor grommets to minimize sound at maximum performance. A high-performance compressor sound shield comes standard.

IAQ equipment supported: An outdoor air temperature sensor comes standard. As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs).

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: This air conditioner is compatible with the Observer communicating control, which features Wi-Fi capability, self-configuring capabilities, and easy-to-read diagnostics. The thermostat can be programmed to display a contractor’s name and contact information when homeowners need service, routine maintenance, or cleaning. The unit also features two-stage comfort, efficiencies up to 19 SEER, and a tight-wire coil guard that provides maximum protection with optimal airflow.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate for more information. This product qualifies for the Heil 10-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within 10 years from the installation date, ICP will provide a one-time replacement outdoor unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: Thermostatic expansion valve (TXV) devices are recommended for maximum system reliability. The units must be installed with a fan coil or furnace capable of supporting two-stage cooling.

Contact: International Comfort Products, 615-777-8588; www.goheil.com.

eProduct 203

Model: HP024-072 packaged geothermal heat pump

Footprint (in inches): 26-33 (length) by 22-26 (width) by 47-58 (height)

Serviceability features: The heat pump includes multiple access panels, and the control box and all components are easily accessible with no special controllers.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.goheil.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information are available online.

Noise-reduction features: The units are built for quiet operation with compressor sound blankets and fully insulated cabinets with closed-cell foam and double-isolation-mounted compressors. A two-stage compressor and variable-speed blower operate on quiet, low speeds most of the time.

IAQ equipment supported: This heat pump is compatible with a wide range of IAQ products, including filters, humidifiers, and ventilators.

Thermostat compatibility: The system is compatible with many three-stage-heat, two-stage-cooling programmable thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: The geothermal heat pump offers EERs up to 30 and coefficients of performance (COPs) up to 4.6 and can provide supplemental water heating as well as indoor air cooling and heating. The unit is available in vertical upflow or downflow configurations, and a horizontal model is available, as well. The unit also features tin-plated copper-tubing coils.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate for more information. This product qualifies for the Heil five-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within five years from the installation date, ICP will provide a one-time replacement unit at no charge. Some restrictions apply; see the warranty certificate for details.

Special installation requirements: None.

Contact: International Comfort Products, 615-777-8588; www.goheil.com.

eProduct 204

Hydron Module

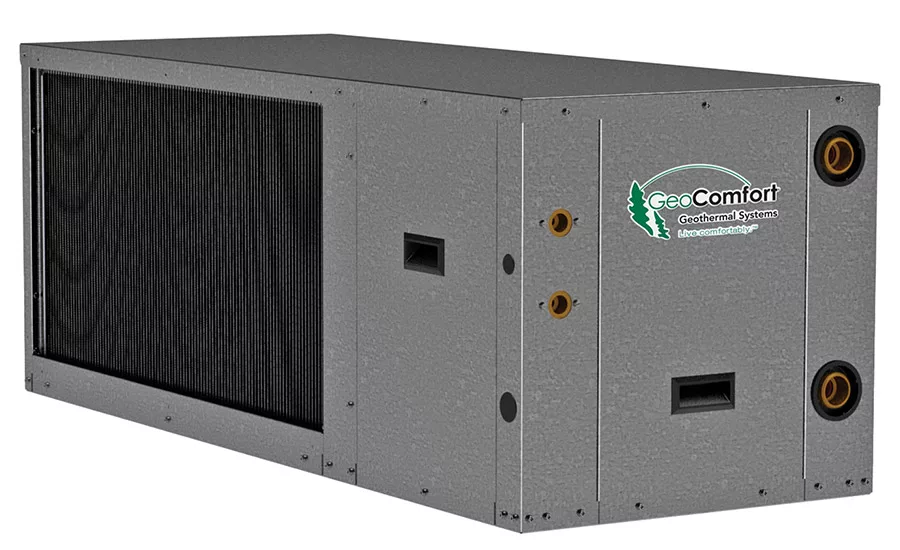

Model: HZT 024 - 072 horizontal package ground-source heat pump

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: A hinged control box swings open and is removable for access to internal components. Electrical and water connections are located on the front corner post. A refrigerant test port is accessible through a front panel. All exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation. A desuperheater switch is mounted externally.

Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or www.geothermaluniversity.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: A double-mount compressor system featuring elastomeric compressor vibration absorption pads and rubber grommets provides superior sound and vibration insulation. High-density, UL Greenguard-certified, closed-cell foam insulation protects against mold and improves sound absorption. An enhanced shock-loop refrigerant piping design also helps to reduce vibration.

IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Enertech products are compatible with most other air filtration, humidification, or purification systems.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: ZS/ZT models are field-configurable for side or end discharge and feature a compact design with higher efficiencies. An all-aluminum microchannel air coil improves efficiency. A protected sensor and flow switch and foam-enclosed, brazed-plate heat exchanger (BPHE) reduce weight and refrigerant charge while increasing performance and reliability. A compact design allows 24-inch-on-center attic truss pass-through installation.

Warranty information: Standard residential units include 10-year component and select accessory warranties and five-year labor-allowance warranties. Free limited lifetime microchannel air coil and compressor warranties are available, and a labor-allowance upgrade of up to 10 years is available, upon registration.

Special installation requirements: Its small footprint, front-corner post-mounted plumbing and electrical connections, and field-selectable discharge air pattern are ideal for retrofit or new-build applications. The unique application of braze-plate and microchannel heat exchangers in a compact, efficient, and technician-friendly package provides excellent performance and reliability.

Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.

eProduct 205

Model: Origin Series, HVT 024 - 072, vertical package ground-source heat pump

Footprint (in inches): 28 (length) by 25 (width) by 41 (height)

Serviceability features: Most commonly accessed components can be reached via a front cabinet, including the desuperheater, reversing valve, blower motor, refrigerant ports, thermostatic expansion valve (TXV), and filter drier. A hinged control box easily tilts out of the way for access to internal components, and an inner front panel allows for refrigerant and electrical service work while the unit is operational.

Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or www.geothermaluniversity.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Elastomeric compressor isolation pads separate the Copeland UltraTech two-stage scroll compressor from the unit. Internal copper tubing employs an enhanced shock-loop design, which also prevents compressor vibration from transmitting through other internal components. High-density, Greenguard-certified, closed-cell foam insulation is used throughout the unit to absorb sound.

IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Most other air filtration, humidification, or purification systems are compatible with Enertech products.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: An all-aluminum microchannel air coil improves efficiency while eliminating air coil failure caused by formicary corrosion. A foam-insulated, flat-wound, enhanced-surface, coaxial heat exchanger improves heat transfer, which, in turn, improves efficiency. A standard permanent split capacitor (PSC) blower motor (single stage) or electronically commutated motor (ECM) blower (two stage) offers highly efficient performance. ECM motors are optional on single-stage units.

Warranty information: Standard residential units include 10-year component and select-accessory warranties and five-year labor-allowance warranties. Free limited lifetime microchannel air coil and compressor warranties and labor-allowance warranties are upgradable to 10 years upon warranty registration.

Special installation requirements: Its small footprint, front-mounted plumbing, and side-entry electrical connections are ideal for retrofit or new-build applications. The purpose-build model uses many of the design innovations found throughout the product line and incorporates them into a compact, efficient, and technician-friendly package.

Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.

eProduct 206

KeepRite

Model: CCA7 ProComfort™ Deluxe 17 split-system air conditioner

Footprint (in inches): 31-35 (length) by 31-35 (width) by 39-47 (height)

Serviceability features: This air conditioner is compatible with the Observer communicating control with Wi-Fi capability, which features system control with remote access when connected to the Internet and text-based diagnostics. Three-piece grille panels can be removed separately to view and clean. The service valves are easily accessible, and only two screws need to be removed to access the control panel. High- and low-pressure switches are also available.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.gokeeprite.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information are available online.

Noise-reduction features: Units are equipped with Copeland scroll UltraTech compressors and isolation compressor grommets to minimize sound at maximum performance. A high-performance compressor sound shield comes standard.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). An outdoor air temperature sensor comes factory-installed.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The system shares replacement parts with other models.

Additional features: This air conditioner is compatible with the Observer communicating control, which features Wi-Fi capability, self-configuring capabilities, and easy-to-read diagnostics. A thermostat can be programmed to display a contractor’s name and contact information when homeowners need service, routine maintenance, or cleaning. The unit provides two-stage comfort, boasts efficiencies up to 17 SEER, and includes a tight-wire coil guard that provides maximum protection with optimal airflow.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate for more information. This product qualifies for the KeepRite 10-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within 10 years from the installation date, ICP will provide a one-time replacement outdoor unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: Thermostatic expansion valve (TXV) expansion devices are recommended for maximum system reliability. The units must be installed with a fan coil or furnace capable of supporting two-stage cooling.

Contact: International Comfort Products, 615-777-8588; www.gokeeprite.com.

eProduct 207

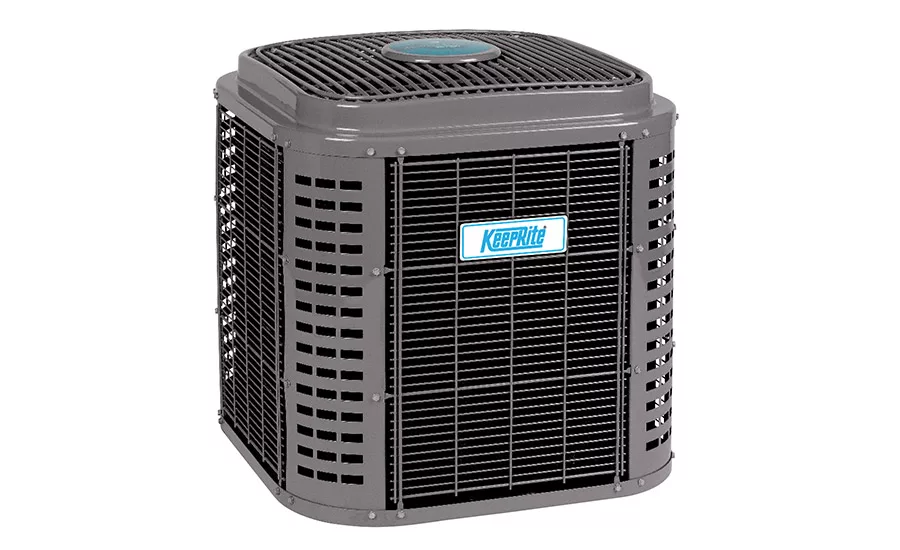

Model: CCA9 ProComfort™ Deluxe 19 split-system air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 47 (height)

Serviceability features: This air conditioner is compatible with the Observer communicating control with Wi-Fi capability, which features system control with remote access when connected to the Internet and text-based diagnostics. Three-piece grille panels can be removed separately to view and clean. The service valves are easily accessible, and only two screws need to be removed to access the control panel. High- and low-pressure switches are also available.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.gokeeprite.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information are available online.

Noise-reduction features: Units are equipped with Copeland scroll UltraTech compressors, electronically commutated motor (ECM) fan motors, and isolation compressor grommets that minimize sound at maximum performance. A high-performance compressor sound shield comes standard.

IAQ equipment supported: An outdoor air temperature sensor comes factory-installed. As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs).

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: This air conditioner is compatible with the Observer communicating control with Wi-Fi capability, self-configuring capabilities, and easy-to-read diagnostics. A thermostat can be programmed to display a contractor’s name and contact information when homeowners need service, routine maintenance, or cleaning. The unit provides two-stage comfort, boasts efficiencies up to 19 SEER, and includes a tight-wire coil guard that provides maximum protection with optimal airflow.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate for more information. This product qualifies for the KeepRite 10-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within 10 years from the installation date, ICP will provide a one-time replacement outdoor unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: Thermostatic expansion valve (TXV) devices are recommended for maximum system reliability. The units must be installed with a fan coil or furnace capable of supporting two-stage cooling.

Contact: International Comfort Products, 615-777-8588; www.gokeeprite.com.

eProduct 208

Lennox

Model: MS8H ductless heat pump

Footprint (in inches): 18 (length) by 40 (width) by 54 (height)

Serviceability features: The unit offers refrigerant leak detection and diagnostics.

Technical support: Support is available 9 a.m. to 7 p.m. Eastern time at 800-953-6669.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Noise reduction comes in the form of a dc variable-speed electronically commutated motor (ECM), which ramps up slowly and quietly during operation. Advanced motor technology and quiet variable-speed capacity ECM fan motors along with inverter-driven compressors help reduce operational volume.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The unit does not share replacement parts with other models.

Additional features: This ductless system has a unique ability to serve an extremely broad range of operation. The cross-compatibility, mixed with the convenient features, offers a unique ability to meet any heating and cooling need in any space, regardless of architectural design.

Warranty information: Seven-year compressor and five-year parts warranties are available.

Special installation requirements: All that is needed for unit operation is thermostat wiring, refrigerant tubing, and condensate lines from the indoor unit to the outdoor unit. This means much less demolition, an easier time fitting into specified spaces, and the elimination of energy loss through leaky ductwork.

Contact: Lennox Industries, www.lennox.com/residential.

eProduct 209

Model: XC16 air conditioner

Footprint (in inches): 36 (length) by 40 (width) by 35 (height)

Serviceability features: The unit provides the same installation experience that dealers are used to, and, because of the aluminum coil, the air conditioner is easy to transport because of its lighter weight. Additionally, the thicker coil tube walls provide a better material base for repair brazing and making service calls simpler.

Technical support: Support is available 9 a.m. to 7 p.m. Eastern time at 800-953-6669.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: The unit comes equipped with a compressor noise-suppression blanket. The fan design and vertical air discharge work together to minimize non-compressor-related sound.

IAQ equipment supported: The system works with communicating Lennox indoor equipment and IAQ systems like the PureAir system and Healthy Climate Carbon Clean 16 filter.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The air conditioner is equipped with a Quantum Coil, which is a proprietary aluminum alloy coil with zinc compound coating designed to extend the durability of the unit, enhance performance, and make it easier to handle during installation.

Warranty information: Ten-year limited compressor and component warranties are available. Online equipment registration is encouraged within 60 days of installation (except in California or Quebec, Canada), otherwise Lennox’s base warranty will apply.

Special installation requirements: The unit must be accompanied by a communicating Lennox furnace and an iComfort S30 thermostat.

Contact: Lennox Industries; www.lennox.com/residential.

eProduct 210

LG Electronics USA

Model: Multi F MAX inverter heat pump outdoor unit (LMU600HV)

Footprint (in inches): 37 (length) by 16 (width) by 54 (height)

Serviceability features: This heat pump can be used with the SIMs 2.0 wireless module and smartphone application. The module connects to the outdoor unit and the app displays real-time data that offers system measurements and a troubleshooting guide, which provides contractors with solutions for this unit and other LG systems.

Technical support: Support is available 8 a.m. to 6 p.m. Central time, Monday to Friday, at 888-865-3026.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: The system uses a quiet, efficient, variable-speed compressor. Additionally, the compressor is mounted on vibration-attenuating rubber grommets to avoid transmission of vibrations and ensure quiet operation.

IAQ equipment supported: Outdoor units can support two to eight indoor units, and most indoor units feature a primary removable, washable filter and a secondary 3M air filter. During cooling and dehumidifying operations, the auto-clean operation mode removes the moisture generated inside the indoor unit to enhance air quality.

Thermostat compatibility: The unit is compatible with most thermostats if used with the LG dry contact.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The outdoor unit features low-ambient cooling operation down to minus 4°F with a low-ambient wind baffle kit to ensure continuous operation and efficient performance. The outdoor unit also has long refrigerant piping lengths for easy and flexible installation.

Warranty information: Standard five-year parts and seven-year compressor warranties are available. Extended warranties are available and provide an additional five years on parts and three years on compressors. These extended warranties enable LG Excellence contractors to offer consumers a 10/10 limited warranty on this model and other qualifying LG duct-free systems.

Special installation requirements: A branch distribution unit is required, because the electronic expansion valves (EEVs) are housed in the branch distribution unit.

Contact: LG Electronics, www.lghvac.com/.

eProduct 211

Luxaire

Model: LX Series PCG4 residential package equipment

Footprint (in inches): 49 (length) by 34-44 (width) by 47-53 (height)

Serviceability features: Front access to the compressor, refrigeration controls, and blower enhances serviceability, as does top access to the condenser fan and motor and side access to the compressor, coil, heat exchanger, and filters. The evaporator coil slides out to simplify cleaning. A standardized design reduces replacement parts inventory.

Technical support: The first level of support is provided by the distributor. Factory support is available to distributors and dealers 7 a.m. to 5 p.m. Central time at 877-874-7378.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and an owner’s manual are available. Additional information is available at www.upgnet.com or by request.

Noise-reduction features: A vibration-reducing chassis fan motor comes standard and contributes to the unit’s quiet operation.

IAQ equipment supported: An internal filter rack accessory supports use of 1- or 2-inch-wide standard filters.

Thermostat compatibility: A wide selection of compatible thermostats is available to provide optimum performance.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The units employ simplified control technology for easier setup and operation, improved reliability, and exceptional component protection. They also feature tubular stainless steel gas heat exchangers and copper-tube/aluminum-fin condenser coils for outstanding heat transfer rates and reliability.

Warranty information: Ten-year limited parts, compressor, and electric-heat warranties are available. A lifetime limited heat exchanger warranty is also available.

Special installation requirements: Exact-fit gas and electric hookups and a compact cabinet that fits most roof frames or slabs simplify installation. Strong, easily removable base rails use just two screws per corner, which also eases installation.

Contact: Johnson Controls Inc., 414-524-5487; www.luxaire.com/lxpackagedunit.

eProduct 212

Model: LX Series residential split-system air conditioners, TW4

Footprint (in inches): Varies.

Serviceability features: These air conditioners feature full-corner access and diagonal base valves with open access for low-loss fittings. They also provide single-panel access to power and control wiring and a removable fan guard. The smaller footprint allows easy clearances to accommodate gates, hand trucks, vans, and site pads.

Technical support: The first level of support is provided by the distributor. Factory support is available to distributors and dealers 7 a.m. to 5 p.m. Central time at 877-874-7378.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and an owner’s manual are available. For additional information, visit www.upgnet.com.

Noise-reduction features: These units are designed to operate at 77 dBA.

IAQ equipment supported: Matched air handlers and coils with a positive-slope drain pan help remove coil condensate to ensure healthy indoor air.

Thermostat compatibility: A wide selection of compatible thermostats is available to provide optimum performance and features for any installation.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The units’ design is the outcome of 125,000 hours of research and testing. The air conditioners meet Johnson Controls’ manufacturing and quality standards. The result is a price-competitive line with verified quality, reliable technology, and easy setup and serviceability featuring convenient access and standardized parts.

Warranty information: Ten-year limited parts and compressor warranties are available.

Special installation requirements: Full corner access, diagonal base valves with open access for low-loss fittings, single-panel access to power and control wiring, and a removable fan guard help contractors work quickly and efficiently.

Contact: Johnson Controls Inc., 414-524-5487; www.luxaire.com/lxsplitsystems.

eProduct 213

Mammoth

Model: R8HE packaged gas/electric unit

Footprint (in inches): 56 (length) by 48 (width) by 31 (height)

Serviceability features: Access panels are included for all controls, the compressor, and blower. The thermostatic expansion valve (TXV) and sensing bulb are easily accessible within 18 inches of an access panel. The entire burner train may be removed via four screws and the gas union. Simple two-LED status and one-flame strength lights are located on the furnace board. Blower removal is simplified through two screws and a connector plug.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A variable-speed blower motor can be programmed to provide reduced noise levels. A swept-wing condenser fan blade on a protected and permanently lubricated condenser fan motor will perform more quietly than most motors that need maintenance and are not protected.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: This condensing gas/electric packaged unit is applicable for residential/light commercial applications. The robust design of the microchannel condenser and evaporator coils reduces unit weight and needed refrigerant charge. SmartLite technology in the furnace control board reduces an unneeded hot surface igniter on time. Sixteen different blower speeds for heating and cooling modes provide exceptional performance, even in challenging duct systems. Available in 208/230 vac and 460 vac three-phase.

Warranty information: Five-year limited parts and one-year limited compressor warranties are available upon product registration.

Special installation requirements: The unit must have a condensate drain from the furnace run to the conditioned space if it’s mounted on a rooftop. If mounted at the ground level, the furnace condensate drain must terminate below Earth's frost line.

Contact: Nortek Global HVAC, 636-561-7300; www.mammothlc.com.

eProduct 214

Maytag

Model: PPG2GI iQ Drive packaged gas/electric unit

Footprint (in inches): 56 (length) by 48 (width) by 56 (height)

Serviceability features: Features include on-board diagnostics; a simple, two-digit LED display; separate service areas for electrical, refrigeration, gas heat, and the blower; and easily accessible sensors and inverter motherboard. The packaged unit also includes face-fronting variable-speed blower control board, and a convenient wash-out section is included to simplify condensate pan cleaning.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: Inverter technology featuring a rotary compressor with increased shell thickness and a compressor blanket helps reduce operational volume. Additionally, a swept-wing condenser fan blade on a pulse-width modulated condenser fan motor helps quiet the unit’s performance, and a variable-speed blower motor can be programmed to provide reduced noise levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: This 20-SEER gas/electric packaged unit is appropriate for residential and light commercial applications. SmartStart technology in the furnace control board reduces unneeded hot surface igniter time. Sixteen different blower speeds for heating and cooling modes provide better performance, even in challenging duct systems.

Warranty information: The Dependability Promise replaces the unit if the compressor or heat exchanger fail within the first 12 years, when registered. Twelve-year limited parts and lifetime heat exchanger warranties are available, when registered.

Special installation requirements: Manufacturer did not specify.

Contact: Nortek Global HVAC, 636-561-7300; www.maytaghvac.com.

eProduct 215

Model: PSA4BG iQ Drive air conditioner

Footprint (in inches): 31 (length) by 31 (width) by 37 (height)

Serviceability features: A two-digit LED provides system operation, status, and diagnostic troubleshooting information. A common suction service port allows a contractor to read suction pressure in all modes of operation without removing any panels. A removable top-grille assembly provides service access from the top without disconnecting fan motor leads, and a hinged access panel is provided for easy access to all controls and the compressor.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A swept-wing fan blade, compressor sound blanket, discharge muffler, and variable-speed condenser fan motor help reduce noise.

IAQ equipment supported: Matching indoor equipment supports plug-in heater kits, a built-in filter rack, and dehumidification capabilities from a thermostat or duct-mounted humidistat.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: Five stages of modulation are available with a standard two-stage thermostat, and 29 diagnostic codes for fault and warning conditions are provided through a two-character LED display. This equipment provides modulating inverter rotary technology without the use of a dedicated controller thermostat or communication cable.

Warranty information: The Dependability Promise replaces the unit if the compressor fails within the first 12 years, when registered. A 12-year limited parts warranty is available when the product is registered.

Special installation requirements: The a/c has no special installation requirements.

Contact: Nortek Global HVAC, 636-561-7300; www.maytaghvac.com.

eProduct 216

Midea

Model: Premier Hyper MEHSU-24PHH2 evaporator

Footprint (in inches): 32 (length) by 8 (width) by 12 (height)

Serviceability features: A self-diagnostic portal helps identify and display error codes. An accessory electronic diagnostic tool grants the machine improved serviceability.

Technical support: Technical support is available at 866-646-4332.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: The unit’s average noise level is 40 dB, which meets or exceeds standards for outdoor and indoor sound.

IAQ equipment supported: None.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The Premier Series utilizes completely refined inverter ductless system technology. While the majority of these provide 100 percent heating output at 5°F ambient temperatures, most offer 100 percent of the stated cooling capacity at minus 4°F with a few attaining 100 percent cooling at minus 22°. Seventy percent of the series has attained Energy Star status and offers universality with interchangeable components.

Warranty information: Seven-year compressor and five-year parts warranties are available.

Special installation requirements: Training for installation and after service is available for contractors.

Contact: Midea America Corp, 973-539-5330; www.midea.com.

eProduct 217

Mitsubishi Electric Cooling & Heating

Model: Altios™ PVA multi-position air handler (PVA-A36AA4)

Footprint (in inches): 22 (length) by 25 (width) by 60 (height)

Serviceability features: System service is simplified as the coil may be cleaned when the fan is removed. Additionally, the PVA system can be fully disassembled and reassembled to fit into tight spaces, such as closets, attics, equipment rooms, and other space-limited installations.

Technical support: Diamond contractors are supported by a broad network of Diamond Service Group (DSG) distributors.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A highly efficient dc motor and forward-curved blower allow the PVA to operate quietly.

IAQ equipment supported: Humidifier control is supported, and the air quality is controlled by third-party ductwork/fresh-air intake.

Thermostat compatibility: The new kumo cloud™ smartphone app is recommended for operation.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: The air handler connects with a Mitsubishi Electric Hyper-Heating INVERTER™ (H2i^®) PUZ-HA outdoor unit, providing multi-positional, individualized zone control to an entire home. The unit also pairs with the kumo cloud app and Web service to enable wireless control from a smartphone.

Warranty information: Five-year parts and seven-year compressor warranties are available to the original owner of the system from the date of installation. The warranty period is extended to 12-year parts and compressor if the unit is installed and registered by a Diamond Contractor.

Special installation requirements: Diamond Contractors are independent dealers with the highest level of Mitsubishi Electric accreditation, training, and hands-on experience. These companies have invested time to professionally develop their craft at one of Mitsubishi Electric’s approved training centers. By purchasing a Mitsubishi Electric system from an authorized dealer, full warranty protection and unmatched performance is guaranteed.

Contact: Mitsubishi Electric Cooling & Heating, 202-625-2515; www.mitsubishicomfort.com.

eProduct 218

Modine

Model: Cased/uncased A-coil and air handler ground-source heat pump

Footprint (in inches): Manufacturer did not specify.

Serviceability features: The all-aluminum A-coil has recently been added to improve the company’s geothermal solutions package. The air handler features 4-inch-thick MERV-13 filters. The A-coil is factory-installed and offered as cased or uncased. Additionally, the thermal expansion valves are set. Integrated condensate pans with overflow switches are also offered.

Technical support: Support is available at 800-828-4328.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: On the compressor section/matching split section, a vibration-isolated compressor with a fully insulated cabinet is provided.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: A very popular feature with installers is the equipment’s ease of startup and commissioning.

Warranty information: Ten-year parts and five-year labor warranties are available. An optional five-year labor-extension warranty is also available.

Special installation requirements: None.

Contact: Modine Mfg. Co., 262-636-1241; www.modinehvac.com.

eProduct 219

NuTone

Model: JS6BE air conditioner

Footprint (in inches): 23 (length) by 23 (width) by 32 (height)

Serviceability features: The access panel is designed to make servicing easier for the contractor. All controls and the compressor are accessible from the side of the unit. The top pan and fan-motor assembly can be removed without removing wires from the control panel.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A composite base pan absorbs sound and vibration from the compressor and fan motor.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: A full metal jacket protects all internal components from yard hazards and extreme weather. Microchannel coil technology offers exceptional performance with smaller coils and utilizes reduced amounts of refrigerant.

Warranty information: A 10-year limited parts warranty is available upon product registration.

Special installation requirements: None.

Contact: Nortek Global HVAC, 636-561-7300; www.nutonehvac.com.

eProduct 220

Model: Y1SA EarthDirEX geothermal heat pump

Footprint (in inches): 25 (length) by 25 (width) by 31 (height)

Serviceability features: The compressor section can be located on the inside, next to the air handler. An interface control board with two-digit LED provides system operational and diagnostic information.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A compressor sound blanket comes standard.

IAQ equipment supported: Matching indoor equipment supports applicable plug-in heater kits. The unit includes a built-in filter rack, and dehumidification capabilities are accessible from the thermostat or duct-mounted humidistat.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: The unit features a bi-flow electronic expansion valve (EEV), microchannel indoor coil, an oil separator, accumulator, and a sight glass designed to simplify refrigerant charging.

Warranty information: Ten-year limited parts and unit replacement warranties are available upon product registration.

Special installation requirements: This geothermal direct geoexchange heat pump is designed to require minimal earth-loop boreholes.

Contact: Nortek Global HVAC, 636-561-7300; www.nutonehvac.com.

eProduct 221

Panasonic

Model: XE-12SKUA heat pump

Footprint (in inches): 13 (length) by 35 (width) by 28 (height)

Serviceability features: For service issues, an error code can be retrieved from the controller. Web access is available if the unit is connected through a Wi-Fi network.

Technical support: Support is available at 800-851-1235.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Indoor and outdoor unit fan blades and the compressor’s core are designed for quiet operation. The outdoor unit incorporates sound insulation, and a pulse amplitude modulation (PAM) control is used to reduce electric noise.

IAQ equipment supported: A 3M microbial filter is included.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The heat pump's low-ambient operating temperature reaches minus 15°F. A base pan heater is included, and auxiliary and emergency heater connections are included.

Warranty information: Seven-year compressor and five-year parts warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Panasonic, 908-723-6297; http://business.panasonic.com/products-hvac-heatingairconditioning.

eProduct 222

Model: XE-9SKUA heat pump

Footprint (in inches): 13 (length) by 35 (width) by 28 (height)

Serviceability features: If service issues arise, an error code can be retrieved from the controller. The unit offers Web access if it’s connected to a Wi-Fi network.

Technical support: Support is available at 800-851-1235.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Indoor and outdoor unit fan blades and the compressor’s core are designed for quiet operation. The outdoor unit incorporates sound insulation, and a pulse amplitude modulation (PAM) control is used to reduce electric noise.

IAQ equipment supported: A 3M microbial filter is included

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: Low-ambient operating temperature reaches minus 15°F. A base pan heater is included. Auxiliary and emergency heater connections are also included.

Warranty information: Seven-year compressor and five-year parts warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Panasonic, 908-723-6297; http://business.panasonic.com/products-hvac-heatingairconditioning.

eProduct 223

Rheem

Model: Prestige™ Series air conditioners, RA20

Footprint (in inches): 36 (length) by 36 (width) by 51 (height)

Serviceability features: This line is exceptionally serviceable, thanks to Triple Service Access. The first access point is the 15-inch control box; the second, a two-fastener removable corner, which allows ideal access to internal components; and, finally, the units feature single-fastener, quick-release louver panels.

Technical support: Support is available with authorized Rheem distributors’ district service coordinator (DSC) personnel. Additional factory support is accessible through a network of district technical representatives (DTR), who are assigned to cover a geographic territory and provide field tech support, as needed, to DSCs and contractors at a job site. More information is available 24/7 at www.myrheem.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and a training manual are available.

Noise-reduction features: These units feature a composite base pan, which not only adds durability, but helps with sound reduction. These units also include an optimized fan orifice, which improves sound characteristics. Swept-wing fan blades and a compressor enclosure also help reduce sound.

IAQ equipment supported: Inverter technology helps with moisture removal. These models are also EcoNet™-enabled, which offers homeowners control over their air via a mobile app. The fully variable-speed RA20 modulates as low as 900 rpm to as high as 7,000 rpm. The variable-speed aspect increases run time, which improves temperature, humidity, and filtration.

Thermostat compatibility: The unit requires the EcoNet Control Center.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: Designed by contractors for contractors, the unit includes unique features designed to significantly speed up service calls and installations. Plus, these products include inverter-driven technology, which employs a variable-speed compressor to deliver cooling demands up to 110°F.

Warranty information: Ten-year conditional unit replacement and parts warranties are available when the unit is properly registered and installed with a new Rheem air handler or an indoor coil with a Rheem gas furnace.

Special installation requirements: This unit follows standard installation procedures.

Contact: Rheem Mfg. Co.; www.rheem.com.

eProduct 224

Ruud

Model: Ultra Series air conditioners, UA20

Footprint (in inches): 36 (length) by 36 (width) by 51 (height)

Serviceability features: This line is exceptionally serviceable, thanks to Triple Service Access. The first access point is the 15-inch control box; the second, a two-fastener removable corner, which allows ideal access to internal components; and, finally, the units feature single-fastener, quick-release louver panels.

Technical support: Support is available with authorized Rheem distributors’ district service coordinator (DSC) personnel. Additional factory support is accessible through a network of district technical representatives (DTR), who are assigned to cover a geographic territory and provide field tech support, as needed, to DSCs and contractors at a job site. More information is available 24/7 at www.myruud.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and a training manual are available.

Noise-reduction features: These units feature a composite base pan, which adds durability and helps with sound reduction. These units also include an optimized fan orifice, which improves sound characteristics. Swept-wing fan blades and a compressor enclosure also help reduce sound.

IAQ equipment supported: The inverter technology helps with moisture removal. These models are also EcoNet™-enabled, which offers homeowners control over their air via a mobile app. The fully variable-speed UA20 modulates as low as 900 rpm to as high as 7,000 rpm. The variable-speed aspect increases run time, which improves temperature, humidity, and filtration.

Thermostat compatibility: Requires the EcoNet Control Center.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Designed by contractors for contractors, the unit includes unique features designed to significantly speed up service calls and installations. Plus, these products include inverter-driven technology, which employs a variable-speed compressor to deliver cooling demands up to 110°F.

Warranty information: Ten-year conditional unit replacement and parts warranties are available when the unit is properly registered and installed with a new Ruud air handler or an indoor coil with a Ruud gas furnace.

Special installation requirements: This unit follows standard installation procedures.

Contact: Ruud, 770-351-3018; www.ruud.com.

eProduct 225

Samsung

Model: CAC 360 Cassette AC0**KN4DCH/AA heat pump

Footprint (in inches): 37 (length) by 37 (width) by 11 (height)

Serviceability features: Condensers feature four different pipe directions for easy front, side, back, and bottom installation. Indoor unit and wired controller option settings are done digitally with no dials or dip switches. System information and option settings are saved to a removable, electrically erasable programmable read-only memory (EEPROM) chip on the outdoor and indoor units.

Technical support: Support is available 7 a.m. to 7 p.m. Central time at 817-838-6066.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Outdoor units feature a nighttime quiet mode option to reduce operating sound during the night. The indoor units feature three booster fans placed around the supply outlet to provide even airflow while keeping wind noise to a minimum from the evaporator fan.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit utilizes Samsung’s NASA controls.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: The round design of the 360 Cassette delivers comfortable airflow, even cooling, and exceptional cooling speeds. The design is both functional and cosmetically appealing, and round and square panels are offered to meet the needs of flush-mount or open-ceiling installations.

Warranty information: Ten-year compressor, 10-year parts, and one-year limited labor warranties are available when the product is registered.

Special installation requirements: Manufacturer did not specify.

Contact: Samsung HVAC, 817-838-6066; www.samsunghvac.com.

eProduct 226

Sharp

Model: AY-XP12THU ductless mini-split heat pump

Footprint (in inches): 12 (length) by 32 (width) by 25 (height)

Serviceability features: A self-diagnostic mode assists when it comes to troubleshooting. The fan motor is easily replaced without touching the evaporator. A special anti-corrosion coating is applied not only to the heat exchanger, but also to the control board, fan bracket, and other key components to promote a longer product life, especially in coastal regions.

Technical support: Support is available by contacting a local Sharp distributor at 800-201-3447 9 a.m. to 7 p.m. Eastern time.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: An inverter-driven compressor and variable-speed fan provide quiet operation. Silent mode on the indoor unit allows it to operate library-quiet. The outdoor unit also has a silent mode that limits the sound of the condenser, which is beneficial, especially at night.

IAQ equipment supported: A filter can only clean the air that passes through it, but the Plasmacluster air-purifying system actively sends both positive and negative ions into the space, sanitizing the air, and destroying mold, bacteria, and odors. This technology helps restore balance and moisture to skin and neutralizes static. The heat pump is certified by the California Air Resource Board.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: A patented hot gas pipe system utilizes unused heat generated from heating to keep the condenser from freezing. The unit can be operated as low as minus 13°F without using a base pan heater. The pre-charged outdoor units allows for 49 feet of refrigerant piping.

Warranty information: Seven-year compressor and six-year parts warranties are available.

Special installation requirements: This heap pump featutes no special installation requirements.

Contact: Sharp Electronics Corp., www.sharp-world.com/products/minisplit.

eProduct 227

Model: AY-XP18THU ductless mini-split heat pump

Footprint (in inches): 12 (length) by 32 (width) by 25 (height)

Serviceability features: A self-diagnostic mode simplifies troubleshooting. The fan motor can be replaced without touching the evaporator. A special anti-corrosion coating is applied to the heat exchanger and the control board, fan bracket, and other key components to promote a longer product life, especially in coastal regions.

Technical support: Support is available by contacting a local Sharp distributor at 800-201-3447 9 a.m. to 7 p.m. Eastern time.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: An inverter-driven compressor and variable-speed fan provide quiet operation. Silent mode on the indoor unit allows it to operate library-quiet. The outdoor unit also features a silent mode that limits the sound of the condenser, which is beneficial, especially at night.

IAQ equipment supported: A filter can only clean the air that passes through it, but the Plasmacluster air-purifying system actively sends both positive and negative ions into the space, which sanitizes the air in the entire space by destroying mold, bacteria, and odors. This technology helps restore balance and moisture to skin and neutralizes static. The heat pump is certified by the California Air Resource Board.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: A patented hot gas pipe system utilizes unused heat generated from heating to keep the condenser from freezing. The unit can be operated as low as minus 13°F without using a base pan heater. The pre-charged outdoor units allows for 49 feet of refrigerant piping.

Warranty information: Seven-year compressor and six-year parts warranties are available.

Special installation requirements: No special installation requirements.

Contact: Sharp Electronics Corp., www.sharp-world.com/products/minisplit.

eProduct 228

SpacePak

Model: ESP-J Series air handler

Footprint (in inches): Manufacturer did not specify.

Serviceability features: This air handler is designed specifically for ease of installation and service. Components are easily accessed through a removable panel.

Technical support: Support is available 8 a.m. to 5 p.m. Eastern time, Monday to Friday. A network of manufacturer’s representatives is available across North America for regional service.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Units are fully insulated with 1 ½ pounds batt. The motor and blower are factory balanced for vibration-free operation.

IAQ equipment supported: The unit is designed to work with SpacePak’s PurePak electrostatic air filtration system to provide protection from airborne allergens, bacteria, molds, pollen, smoke, fine dust particles, and volatile organic compounds (VOCs) at a fraction of the cost of other filtration systems on the market. The PurePak air cleaner has been engineered to effectively clean the air as it is circulated through the high-velocity air conditioning system.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: Small-duct, high-velocity central heating and air conditioning systems make it possible to install central heating and cooling in any home or small business, regardless of structure design, age, size, or type of construction. The air distribution system uses a principle known as aspiration — as the airstream enters the room, it creates a gentle mixing of air in the room to provide thorough, comfortable, draft-free air circulation. The system eliminates stratification with a minimum floor-to-ceiling temperature difference.

Warranty information: A one-year parts warranty is available. Factory-trained installers receive an extended five-year warranty on installed systems.

Special installation requirements: Manufacturer did not specify.

Contact: SpacePak, 413-564-5779; www.spacepak.com.

eProduct 229

Model: Solstice Extreme heat pump

Footprint (in inches): 54 (length) by 18 (width) by 49 (height)

Serviceability features: This heat pump is designed for ease of service, as a removable front panel provides easy access to all mechanical components.

Technical support: Support is available 8 a.m. to 5 p.m. Eastern time, Monday to Friday. A network of manufacturer’s representatives is available across North America for regional service.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Heat pumps feature an electronically commutated motor (ECM) condenser fan for quiet operation. Their dual-fan, horizontal-discharge configuration and soft-start activation provide quiet operation.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: This low-ambient heat pump provides primary heating and cooling, even in severe weather climates, by utilizing EVI technology and a high-efficiency compressor to increase heating capacity by more than 30 percent. The environmentally friendly design uses the clean, efficient characteristics of hydronics as its primary energy source to deliver perfectly conditioned air to any occupied space.

Warranty information: A one-year parts warranty is available. Factory-trained installers receive an extended five-year warranty on installed systems.

Special installation requirements: Manufacturer did not specify.

Contact: SpacePak, 413-564-5779; www.spacepak.com.

eProduct 230

Tempstar

Model: HS024-060 geothermal heat pump

Footprint (in inches): 27-33 (length) by 24-27 (width) by 22-23 (height)

Serviceability features: Features include multiple access panels, and an easily accessible control box and components. The heat pump requires no special controllers.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.gotempstar.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information is available online.

Noise-reduction features: Units are built for quiet operation with compressor sound blankets, fully-insulated cabinets with closed-cell foam, and double-isolation-mounted compressors. A two-stage compressor operates on quiet, low speeds most of the time.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with many three-stage-heat, two-stage-cooling programmable thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: These heat pumps are Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-matched to Tempstar FVM4 fan coils and EAM4 evaporator coils; offer EERs up to 30.5 and coefficients of performance (COPs) up to 5.1; and can provide supplemental water heating as well as indoor air cooling and heating.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate for more information. This product qualifies for the Tempstar five-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within five years from the installation date, ICP will provide a one-time replacement unit at no charge. Some restrictions apply; see the warranty certificate for details.

Special installation requirements: None.

Contact: International Comfort Products, 615-777-8588; www.gotempstar.com.

eProduct 231

Model: TCA9 SmartComfort^® Deluxe 19 split-system air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 47 (height)

Serviceability features: This air conditioner is compatible with the Observer^® communicating control with Wi-Fi capability, which features system control with remote access when connected to the Internet and text-based diagnostics. Three-piece grille panels can be removed separately to view and clean. The service valves are easily accessible, and only two screws need to be removed to access the control panel. High- and low-pressure switches are also available.

Technical support: A technical service advisor on staff at local distributors is available with technical assistance and troubleshooting advice. Technical training is available 24/7/365 at www.gotempstar.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information are available online.

Noise-reduction features: Units are equipped with Copeland scroll UltraTech™ compressors, electronically commutated motor (ECM) fan motors, and isolation compressor grommets to minimize sound at maximum performance. A high-performance compressor sound shield comes standard.

IAQ equipment supported: An outdoor air temperature sensor comes factory-installed. As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs).

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The air conditioner is compatible with the Observer communicating control with Wi-Fi capability, self-configuring capabilities, and easy-to-read diagnostics. The thermostat can be programmed to display a contractor’s name and contact information when homeowners need service, routine maintenance, or cleaning. Additional features include two-stage comfort, efficiencies up to 19 SEER, and a tight-wire coil guard that provides maximum protection with optimal airflow.

Warranty information: A 10-year limited parts warranty, including compressor and coils, is available to the original homeowner upon timely registration. A limited five-year warranty covers parts that are not registered within 90 days of installation. Restrictions apply; see the warranty certificate for more information. This product qualifies for the Tempstar 10-year No Hassle Replacement limited warranty — if the compressor or covered coil fails within 10 years from the installation date, ICP will provide a one-time replacement outdoor unit at no charge. Some restrictions apply; see the warranty certificate for more information.

Special installation requirements: Thermostatic expansion valve (TXV) expansion devices are recommended for maximum system reliability. The units must be installed with a fan coil or furnace capable of supporting two-stage cooling.

Contact: International Comfort Products, 615-777-8588; www.gotempstar.com.

eProduct 232

TETCO

Model: ION Series, TVT 024 - 072, vertical package ground-source heat pump

Footprint (in inches): 28 (length) by 25 (width) by 41 (height)

Serviceability features: Most commonly accessed components can be reached via the front cabinet, including a desuperheater, reversing valve, blower motor, refrigerant ports, thermostatic expansion valve (TXV), and filter drier. A hinged control box easily tilts out of the way for access to internal components. An inner front panel allows for refrigerant and electrical service work while the unit is operational.

Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or www.geothermaluniversity.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Elastomeric compressor isolation pads separate the Copeland UltraTech two-stage scroll compressor from the unit. Internal copper tubing employs an enhanced shock-loop design, which also prevents compressor vibration from transmitting through other internal components. High-density, Greenguard-certified, closed-cell foam insulation is used throughout the unit to absorb sound.

IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Most other air filtration, humidification, or purification systems are compatible with Enertech products.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: An all-aluminum microchannel air coil improves efficiency while eliminating air coil failure caused by formicary corrosion. A foam-insulated, flat-wound, enhanced-surface, coaxial heat exchanger improves heat transfer, thus improving efficiency. Standard permanent split capacitor (PSC) blower motor (single stage) or electronically commutate motor (ECM) blower (two stage) offer exceptional efficiency. ECM motors are optional on single-stage units.

Warranty information: Standard residential five-year all unit components, five-year select accessory items, and five-year labor-allowance warranties are available on all of the above, including select accessories. A free compressor warranty upgrade to 10 years is available upon registration. Optional 10-year is available parts and labor-extended warranties are available.

Special installation requirements: Its small footprint, front-mounted plumbing, and side-entry electrical connections are ideal for retrofit or new-build applications. The purpose-build model uses many of the design innovations found throughout the product line and incorporates them into a compact, efficient, and technician-friendly package.

Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.

eProduct 233

Model: TZT 024 - 072, horizontal ground-source heat pump

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: A hinged control box swings open and is removable for access to internal components. Electrical and water connections are located on the front corner post. Refrigerant test ports are accessible through a front panel. All exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation. The desuperheater switch is mounted externally.

Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or www.geothermaluniversity.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: A double-mount compressor system featuring elastomeric compressor vibration absorption pads and rubber grommets provide superior sound and vibration isolation. High-density, UL Greenguard-certified, closed-cell foam insulation protects against mold and improves sound absorption. An enhanced shock-loop refrigerant piping design reduces vibration transfer to the cabinet and increases reliability.

IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Most other air filtration, humidification, or purification systems are compatible with Enertech products.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: ZS/ZT models are field-configurable for side or end discharge and feature a compact design with higher efficiencies. An all-aluminum microchannel air coil improves efficiency. A protected sensor, flow switch, and foam-enclosed brazed-plate heat exchanger (BPHE) reduce weight and refrigerant charge while increasing performance and reliability. A compact design allows 24-inch-on-center attic truss pass-through installation.

Warranty information: Standard residential units include 10-year component and select accessory warranties and five-year labor-allowance warranties. Labor-allowance warranties are upgradable to 10 years upon registration. Optional limited lifetime microchannel air coil and compressor warranties are available.

Special installation requirements: Its small footprint, front-mounted plumbing, side-entry electrical connections, and field-selectable discharge air pattern are ideal for retrofit or new-build applications. The purpose-build model uses many of the design innovations found throughout the product line and incorporates them into a compact, efficient, and technician-friendly package.

Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.

eProduct 234

Trane

Model: XR16 air conditioner

Footprint (in inches): 29 to 45 (length) by 33 to 37 (width) by 30 to 34 (height)

Serviceability features: Quick-Sess cabinet, service access, and refrigerant connections with full coil protection.

Technical support: Contact the local Trane comfort specialist for support.

Technical support materials: Installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; and specification sheets are available.

Noise-reduction features: A compressor sound insulator helps reduce operational volume.

IAQ equipment supported: A Trane CleanEffects™ air cleaner removes up to 99.98 percent of allergens from the filtered air and catches particles down to 0.1 micron in size. A reusable filter can be cleaned by vacuuming.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: With ratings up to 17 SEER, this unit has the reliability and energy efficiency to provide superior home comfort year-round. The unit features a Climatuff^® compressor and a patented, leak-and-corrosion-resistant Spine Fin™ coil to deliver years of trouble-free comfort. When installed as part of a qualifying system, most models are Energy Star-qualified.

Warranty information: Registered limited terms include 10-year limited compressor, 10-year limited outdoor coil, and 10-year limited internal functional parts warranties.

Special installation requirements: Manufacturer did not specify.

Contact: Trane; trane.com/residential.

eProduct 235

Unico System

Model: IS18G050 iSeries G-50 heat pump

Footprint (in inches): 35 (length) by 14 (width) by 25 (height)

Serviceability features: This small-capacity (1-1.5 ton), high-efficiency unit, when paired with the iSeries high wall unit, is ideal for low-ambient cooling applications, such as a server room or wine cellar. Indoor units can achieve 100 percent of rated capacity at outdoor temperatures down to 5°F and at least 65 percent of rated capacity down to minus 15°F. At more moderate temperatures, the system can achieve greater than 100 percent of rated capacity.

Technical support: Support is available 7 a.m. to 5 p.m. Central time at 800-527-0896.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; and startup instructions are available.

Noise-reduction features: Due to its inverter technology, the outdoor unit is inherently quiet. Sound output is just 47 dB. The high-wall indoor units operate at the equivalent of a soft whisper — 23 dB — while running.

IAQ equipment supported: The permanent filter in the high-wall unit is easily removed for cleaning. No replacement filters are needed.

Thermostat compatibility: This heat pump can use most heat pump thermostats when paired with a Unico ducted system. If using Unico high-wall units, it does require the iSeries remote control.

Replacement parts compatibility: This heat pump does not share replacement parts with other models.

Additional features: This high-SEER units connects to multiple indoor units, both ducted and non-ducted. It operates at a broad range of outdoor temperatures, from minus 25° to 122°. Indoor units come with a thermostat remote control that can also be mounted on a wall. The remote can control up to four units at once.

Warranty information: One- and five-year parts warranties are available for dealers certified through field or online training.

Special installation requirements: The multi-split outdoor unit comes with two accessible refrigerant ports to operate multiple ducted or ductless units at the same time. Installation of the indoor high-wall units is made easy by the compact design and light weight. The larger of the two indoor units measures 9 by 39 by 11 inches and weighs 26 pounds. The units are easy to mount on a wall, and refrigerant lines are easily connected to the outdoor unit.

Contact: Unico Inc., 800-527-0896; www.unicosystem.com.

eProduct 236

WaterFurnace

Model: 5 Series 504W11 with OptiHeat high-temperature hydronic heat pump

Footprint (in inches): 31 (length) by 22 (width) by 26 (height)

Serviceability features: Removable compressor access panels and quick-attach wiring harnesses are used throughout for fast servicing. A field-switchable control box allows the unit to be oriented in two different ways. An installer can move the control box to the opposite end if that is the most accessible side of the system in a home.

Technical support: Support is available at 800-257-5667.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: A vapor-injected, single-speed scroll compressor mounted on a double-isolation system and Super Quiet sound package help reduce operational volume.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: The unit is capable of delivering up to 150°F leaving hot water. The vapor-injection technology is ideal for high-temperature applications, such as baseboard radiator systems, underfloor radiant applications, overfloor radiant applications, and fan coils. This system has been designed specifically to meet above-average temperature requirements, and its compact size allows for installation in confined spaces.

Warranty information: Ten-year parts and labor-allowance warranties are available.

Special installation requirements: None.

Contact: WaterFurnace Intl. Inc., 260-478-5667; www.waterfurnace.com.

eProduct 237

Westinghouse

Model: P7RE packaged air conditioner

Footprint (in inches): 49 (length) by 35 (width) by 22 (height)

Serviceability features: All electrical components are accessible from one door. All wires are color coded, which simplifies diagnostics. Refrigerant pressure switches are easily replaced without any refrigerant recovery or brazing. The blower plug is conveniently located for quick removability. The heater kit component is mounted in an advantageous area for troubleshooting.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; startup instructions; and an owner’s manual are available.

Noise-reduction features: A brushless dc (BLDC) electronically commutated motor (ECM) blower offers quiet ramping and running properties. A protected and permanently lubricated condenser fan motor performs quietly.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The system shares replacement parts with other models.

Additional features: Microchannel condenser and evaporator coils allow for a lighter unit with less refrigerant, better heat transfer, and more robust performance than copper coils. Copeland compressors have the reliability and performance demanded by discerning contractors.

Warranty information: Ten-year limited parts and unit replacement warranties are available upon product
registration.

Special installation requirements: The unit needs a flat slab when mounted on the ground or a curb/cage assembly when mounted on a rooftop.

Contact: Nortek Global HVAC, 636-561-7300; www.westinghousehvac.com.

eProduct 238

Model: Y1SA EarthDirEX geothermal heat pump

Footprint (in inches): 25 (length) by 25 (width) by 31 (height)

Serviceability features: The compressor section can be located inside the unit next to the air handler. An interface control board with two-digit LED provides system operational mode and diagnostic information.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328. Support documents are available at www.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.

Noise-reduction features: A compressor sound blanket comes standard.

IAQ equipment supported: Matching indoor equipment supports plug-in heater kits. The unit includes a built-in filter rack, and dehumidification capabilities are accessible from a thermostat or duct-mounted humidistat.

Thermostat compatibility: The unit is compatible with most thermostats.

Replacement parts compatibility: The equipment features some shared parts and some unique parts.

Additional features: A bi-flow electronic expansion valve (EEV), microchannel indoor coil, an oil separator, an accumulator, and a sight glass are included to help simplify refrigerant charging.

Warranty information: Ten-year limited parts and limited unit replacement warranties are available upon product registration.

Special installation requirements: This geothermal direct geoexchange heat pump is designed to require fewer boreholes for the earth loops.

Contact: Nortek Global HVAC, 636-561-7300; www.westinghousehvac.com.

eProduct 239

York

Model: LX Series PCG4 residential package equipment

Footprint (in inches): 49 (length) by 34-44 (width) by 47-53 (height)

Serviceability features: Front access to the compressor, refrigeration controls, and blower enhances serviceability, as does top access to the condenser fan and motor and side access to the compressor, coil, heat exchanger, and filters. The evaporator coil slides out to make cleaning easier. A standardized design simplifies repairs and reduces replacement parts inventory.

Technical support: The first level of support is provided by the distributor. Factory support is available to distributors and dealers 7 a.m. to 5 p.m. Central time at 877-874-7378.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; specification sheets; and an owner’s manual are available. For additional information, visit www.upgnet.com.

Noise-reduction features: A vibration-reducing chassis fan motor comes standard and contributes to quiet operation.

IAQ equipment supported: An internal filter rack accessory supports use of 1- or 2-inch-wide standard filters.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Units employ simplified control technology for easier setup and operation, improved reliability, and exceptional component protection, as well as tubular stainless steel gas heat exchangers and copper-tube/aluminum-fin condenser coils for outstanding heat transfer rates and reliability.

Warranty information: Ten-year limited parts, compressor, and electric heat warranties are available. A limited lifetime heat exchanger warranty is also available.

Special installation requirements: Exact-fit gas and electric hookups and a compact cabinet that fits most roof frames or slabs simplify installation. Strong, easily removable base rails that use just two screws per corner also improve installation.

Contact: Johnson Controls Inc., 414-524-5487; www.york.com/lxpackagedunit.

eProduct 240

Model: LX Series residential split-system air conditioners, YCS

Footprint (in inches): Varies.

Serviceability features: These air conditioners feature full corner access and diagonal base valves with open access for low-loss fittings. The units also provide single-panel access to power and control wiring and a removable fan guard. This line’s smaller footprint allows easy clearances to accommodate gates, hand trucks, vans, and site pads.

Technical support: The first level of support is provided by the distributor. Factory support is available to distributors and dealers 7 a.m. to 5 p.m. Central time at 877-874-7378.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and an owner’s manual are available. Additional information is available at www.upgnet.com.

Noise-reduction features: These air conditioners to operate at sound levels of 77 dBA.

IAQ equipment supported: Matched air handlers and coils with positive-slope drain pans remove coil condensate to ensure healthy indoor air.

Thermostat compatibility: A wide selection of compatible thermostats is available to provide optimum performance and features for any installation.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The new design is the outcome of 125,000 hours of research and testing. The units meet Johnson Controls’ manufacturing and quality standards. The result is a price-competitive line with verified quality, reliable technology, and easy setup and serviceability featuring convenient access and standardized parts.

Warranty information: Ten-year limited parts and compressor warranties are available.

Special installation requirements: Contractors can work faster with full corner access, diagonal base valves with open access for low-loss fittings, single-panel access to power and control wiring, and a removable fan guard.

Contact: Johnson Controls Inc., 414-524-5487; www.york.com/lxsplitsystems.

eProduct 241

Publication date: 4/11/2016

Want more HVAC industry news and information? Join The NEWS on Facebook, Twitter, and LinkedIn today!
