Residential Cooling Showcase 2017

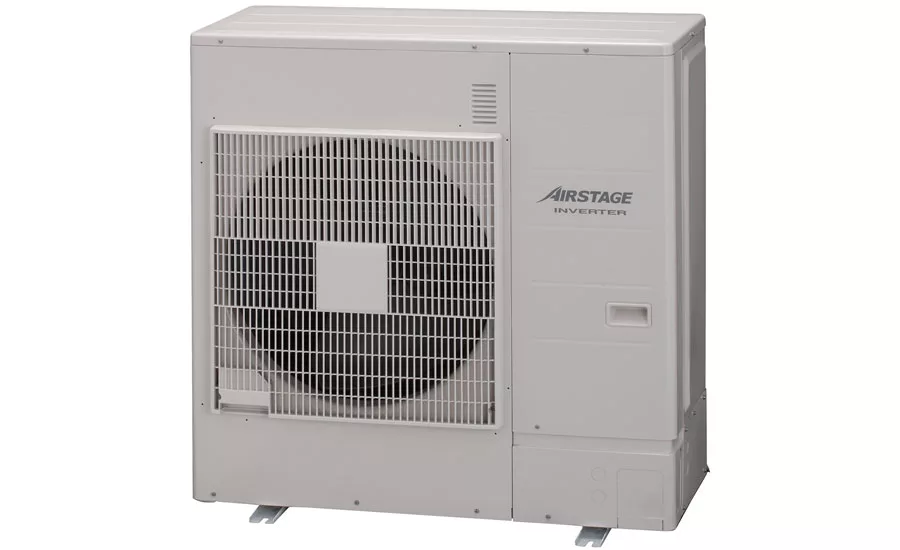

Airstage

Model: J-IIS Series heat pump

Footprint (in inches): 15 (length) by 38 (width) by 39 (height)

Serviceability features: Commissioning, troubleshooting, and serviceability are significantly simplified with the use of the Airstage Service Tool software and the easy-to-read seven-segment LED display. Furthermore, communication wiring verification using the Connection Check function further guarantees easy installation.

Technical support: Support is available 8 a.m. to 8 p.m. Eastern time at 888-888-3424. Through a password-protected website, contractors can download a design and technical manual, an installation manual, a service manual, an operation manual, and submittal drawings.

Technical support materials: Installation, operation, and maintenance manuals are included. An owner’s manual, submittal data sheets, and CAD and REVIT drawings are available.

Noise-reduction features: The J-IIS offers two low-noise modes. Using these modes can lower the outdoor unit sound rating by 5-6 dB.

IAQ equipment supported: Indoor wall-mounted units feature ion deodorization filters, which decompose absorbed odors using the oxidizing/reducing effects of ions generated by the ultra-fine-particle ceramic. The Apple-Catechin filter, which absorbs fine dust, invisible mold spores, and harmful microorganisms onto the filter by static electricity, inhibits and deactivates further growth. In addition, affiliated third-party partners provide economizer and filter boxes for ducted indoor units.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The heat pump’s compact size provides easy installation in smaller spaces or when condensing units are stacked vertically. The J-IIS is designed to provide exceptional energy efficiency, supplies year-round comfort, and is easily installed.

Warranty information: For systems that are installed and commissioned by a qualified contractor, a 10-year parts and compressor warranty is available; see the warranty statement for full details.

Special installation requirements: Installing contractors are required to take the Airstage JSIT training class to guarantee trouble-free installation and long equipment life.

Contact: Fujitsu General America Inc., 973-575-0380; fujitsugeneral.com.

eProduct 160

Amana

Model: ASXC18 air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 38 (height)

Serviceability features: Expanded ComfortAlert™ diagnostics are built in to this air conditioner. The unit may be setup using two low-voltage wires to the outdoor unit. Features include diagnostic indicator lights with the ability to store six fault codes, a factory-installed filter drier, coil and ambient temperature sensors, a compact footprint, rust-resistant coated screws, and top/side maintenance access. The unit is compatible with ComfortNet communications systems, its controls are accessible via a single panel, and space is provided for field-installed accessories.

Technical support: Support is available 7 a.m. to 7 p.m., Monday to Friday, at 888-593-9988; press 5 to go directly to tech support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; and specification sheets are available.

Noise-reduction features: A high-density foam compressor sound blanket and a heavy-gauge, galvanized, steel cabinet with a grille-style sound-control top help reduce operational noise levels. A high-efficiency, two-speed, electronically commutated motor (ECM) condenser fan with advanced fan design provides dependable, quiet airflow across the condensing coil.

IAQ equipment supported: A variety of IAQ equipment is supported, including Clean Comfort™ Indoor Air Essentials.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: The unit’s high-efficiency, two-stage Copeland UltraTech scroll compressor is designed to provide years of reliable cooling comfort. Its 5-mm, refrigeration-grade, premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A refrigerant. Additional features include Copeland CoreSense Diagnostics and a factory-installed in-line filter drier. The unit is compatible with the ComfortNet communications system.

Warranty information: A lifetime unit replacement limited warranty is available. If the compressor fails in use at the original registered homeowner’s residence, a new condenser will be provided at no charge. All remaining functional parts are covered by a limited 10-year parts warranty.

Special installation requirements: None.

Contact: Goodman Mfg. Co. LP, 281-536-6063; amana-hac.com.

eProduct 161

Model: AVXC20 air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 38 (height)

Serviceability features: Maintenance may be completed via the top and side of this air conditioner. Its sweat connection valves provide easy access to gauge ports, its controls are accessible via a single panel, and space is provided for field-installed accessories. In communicating mode, only two low-voltage wires to the outdoor unit are required. Additional features include diagnostic indicator lights, a seven-segment LED display, and fault code storage. A field-selectable boost mode increases the compressor’s speed during unusually high loads.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988; press 5 to go directly to tech support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; and specification sheets are available.

Noise-reduction features: Systems are acoustically engineered with enhancements that include a compressor sound-reduction cover made of high-density foam and a specially designed sound-control top. Variable-speed technology allows the outdoor condenser fan motor to run more often at a lower speed, thus providing quieter performance.

IAQ equipment supported: A variety of IAQ equipment and enhancements are supported.

Thermostat compatibility: The system is compatible with most thermostats, including the ComfortNet communication system.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: The AVXC20 with inverter technology was awarded the 2017 Energy Star Most Efficient mark. Additional features include variable-speed swing and scroll compressors; a variable-speed electronically commutated motor (ECM) outdoor fan; compatibility with the ComfortNet communications system, which simplifies installation, optimizes performance, and provides continuous monitoring; automated maintenance alerts; and easy-to-use, wireless, comfort-enhancing control. The air conditioner’s baked-on powder-paint finish is 500-hour salt-spray tested.

Warranty information: A lifetime limited unit replacement warranty is available. If the compressor fails in use at the original registered homeowner’s residence, a new condenser will be provided at no charge. All remaining functional parts are covered by a limited 10-year parts warranty. For a full description of all warranties, visit a local Amana dealer.

Special installation requirements: None.

Contact: Goodman Mfg. Co. LP, 281-536-6063; goodmanmfg.com.

eProduct 162

American Standard

Model: Silver 16 low-profile air conditioner

Footprint (in inches): 15-18 (length) by 40-47 (width) by 36-42 (height)

Serviceability features: Removal of a single service panel provides access to the compressor and controls. External refrigerant service valves provide easy access to suction and liquid pressure ports.

Technical support: Support is available via a local American Standard distributor.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Remote Dealer Diagnostics are available via Nexia Control.

Noise-reduction features: The air conditioner’s enclosed compressor compartment and swept-blade design helps reduce operating sound levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The low-profile horizontal discharge design is ideal for any space-constrained installation, such as zero-lot-line, wall-mount, or roof-mount applications. The unique draw-through design discharges away from the structure, which reduces the potential for staining of the property as well as recirculation of discharge air.

Warranty information: Ten-year registered compressor, outdoor coil, and internal functional parts warranties are available.

Special installation requirements: There are no special installation requirements other than having a 6-inch clearance between the unit and any wall or structure. The low-profile horizontal discharge air conditioners will be matched with the same American Standard air handlers, evaporator coils, and furnaces as the Silver 16 vertical discharge air conditioners.

Contact: Trane, an Ingersoll Rand brand, www.trane.com.

eProduct 163

Arcoaire

Model: HS024-060 split system geothermal heat pump

Footprint (in inches): 27-33 (length) by 24-27 (width) by 22-23 (height)

Serviceability features: This geothermal heat pump is available with four durable loop systems to choose from. It includes multiple access panels, easily accessible components, and requires no special controllers.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.goarcoaire.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: Geothermal units are built for quiet operation with compressor sound blankets, fully insulated cabinets with closed-cell foam, and double isolation mounted compressors. Its two-stage compressor operates on the quiet, low speed most of the time.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit is compatible with many three-stage-heat and two-stage-cooling programmable thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The system is Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-matched to Arcoaire FVM4 fan coils and EAM4 evaporator coils; offers superior energy efficiency with EERs up to 30.5 and coefficients of performance (COPs) up to 5.1; and can provide supplemental water heating. A unique LoopLink® design software package is available to assist with system installation and ensure optimal performance.

Warranty information: Limited five-year No Hassle Replacement™ and 10-year parts, including compressor and coils, warranties are available to the original purchaser upon timely registration. The limited parts warranty is reduced to five years if the unit is not registered within 90 days of installation. For details and restrictions, see the warranty certificate.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goarcoaire.com.

eProduct 164

Model: HSA5 DuraComfort™ 15 split system air conditioner

Footprint (in inches): 31 (length) by 31 (width) by 29-35 (height)

Serviceability features: This air conditioner offers communicating, self-configuring operation when utilized with the Observer® communicating control with Wi-Fi capability. Additional features include an innovative control box design, easily accessible service valves, a control panel that’s accessible via only two screws, and high- and low-pressure switches.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: To minimize sound at maximum performance, units are equipped with Copeland scroll compressors, isolation compressor grommets, and a standard compressor sound blanket.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). A factory-installed outdoor air temperature sensor is also supported.

Thermostat compatibility: The system is compatible with most thermostats. Communicating and self-configuring function is available only when used with the new Arcoaire Observer communicating wall control (thermostat).

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: The unit features efficiency ratings up to 15 SEER and is compatible with the Observer communicating control with Wi-Fi capability, which features self-configuring capabilities, easy-to-read diagnostics, and an efficient single-stage scroll compressor.

Warranty information: A limited three-year No Hassle Replacement™ warranty is available. A limited 10-year parts warranty, which includes the compressor and coils, is available to the original purchaser upon timely registration. The limited parts warranty period is reduced to five years if the unit is not registered within 90 days of installation. See the warranty certificate for details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goarcoaire.com.

eProduct 165

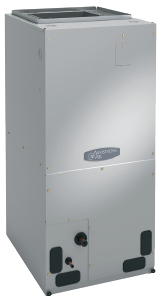

Armstrong Air

Model: BCE3V air handler

Footprint (in inches): 22-26 (length) by 15-22 (width) by 38-53 (height)

Serviceability features: This air handler’s Precision Service™ technology provides thoughtful design and precise part location of each component. Tinnerman clips are included to prevent screw stripping, and its high- and low-voltage knockouts were redesigned to allow easier removal. The unit’s knockouts on condensate drains were converted to rubber, snap-in grommets to simplify maintenance. Its electric heat cover plate is used to allow easier installation of optional heat strips.

Technical support: Support is available at 800-515-3501.

Noise-reduction features: The insulated cabinet uses extra-thick insulation and a tight seal along panels and doors to help prevent the loss of conditioned air and ensure quiet operation.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: MHT™ technology, a proprietary heat transfer system, uses internal rifling and lanced coil fins to increase heat transfer. A redesigned manifold makes the thermostatic expansion valve (TXV) easily accessible inside the cabinet. Rigid bracing makes the entire cabinet stronger and stiffer, and its double-hemmed sides offer additional structural integrity.

Warranty information: A limited 10-year parts warranty is available.

Special installation requirements: This air handler is designed with the contractor in mind and requires no additional equipment in standard installations. Horizontal support kits are available for horizontal applications and are designed to provide ease of installation and precision service.

Contact: Allied Air Enterprises, 803-738-4138; www.armstrongair.com/products/air-handlers/

eProduct 166

Model: PRP16 gas/electric packaged unit, dual fuel, heat pump, air conditioner models

Footprint (in inches): 47 (length) by 47-55 (width) by 37-41 (height)

Serviceability features: Precision Service technology provides thoughtful design and precise part location to troubleshoot, diagnose, and repair faster than ever. Three forward-facing screws make the inducer motor easily removable for fast change-out and service. Its gas valve access ports are positioned to measure inlet and outlet gas pressure quickly.

Technical support: Support is available at 800-515-3501.

Noise-reduction features: Each compressor is constructed with rubber pads to reduce vibration during operation, which reduces sound. Swept-wing fan blades on the condenser fan pull air over the coil surface for efficient heat transfer. This unique design allows models to operate with sound levels as low as 68 dB — sound ratings vary by product type and capacity.

IAQ equipment supported: Optional UVA lamp and catalyst provide enhanced air purification and destroy microorganisms, like mold and bacteria, which prevents them from circulating through the air. The unit is easily integrated and pre-wired for plug-and-play installation and features drain pans with Microban® protection (antibacterial) that disrupt the cellular function of odor-causing mold and bacteria.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: MHT technology enhances refrigerant flow while lanced coil fins increase surface contact between metal and air for maximum heat transfer and efficiency. Its Tri-Diamond™ design increases the heat exchanger’s surface area, making heat transfer more efficient. Multi-stage, variable-speed technology keeps temperatures remarkably even, and dedicated air purification helps manage air pollutants.

Warranty information: A limited lifetime warranty is available for the unit’s aluminized steel heat exchanger and a limited 10-year parts warranty is also available.

Special installation requirements: Manufacturer did not specify.

Contact: Allied Air Enterprises, 803-738-4209; www.armstrongair.com/products/package-units/

eProduct 167

Bard

Model: GeoTec geothermal heat pump

Footprint (in inches): 26-27 (length) by 27-32 (width) by 48-55 (height)

Serviceability features: A high-efficiency, two-stage step capacity scroll compressor; R-410A green refrigerant; and variable-speed electronically commutated motor (ECM) provide exceptional efficiencies and quiet performance. Additional features include left- or right-side water connections outside of the cabinet, left- or right-hand access to control panel, slide-in electric heat packages, and simplified wiring and troubleshooting. The unit’s Geothermal Logic control with diagnostic lights was added to simplify troubleshooting.

Technical support: In-house and field training classes are available, and state continuing education credits are offered. Service is provided through a distribution network.

Noise-reduction features: Copeland scroll step-capacity compressor, ECM blower, and an insulated service compartment are included to reduce noise levels. Additionally, a double compressor isolation base and discharge muffler help dampen sound.

IAQ equipment supported: The unit is compatible with field-installed electronic air cleaners (EACs) or high-efficiency media-type filters through installing dealers.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: This geothermal heat pump is suitable for ground-water or ground-loop applications. Features include a multi-capacity, two-stage compressor; variable-speed ECM blower; R-410A refrigerant; an Energy Star efficiency rating; a built-in domestic hot water heat exchanger; coefficient of performance (COP) ratings up to 5.1; and EER ratings up to 30.2.

Warranty information: A limited 10-year parts warranty is available.

Special installation requirements: None.

Contact: Bard Mfg. Co., 419-636-1194; www.bardhvac.com.

eProduct 168

Bosch

Model: Climate 5000 mini-split heat pumps

Footprint (in inches): 52 (length) by 37 (width) by 16 (height)

Serviceability features: This mini-split heat pump’s indoor air handler is simple to access, and its filters are easy to clean and maintain. The system comes equipped with a self-cleaning mode to help remove additional particles internally as well as moisture via water-wicking blue fin technology, which is designed to eliminate mildew. The fan motor is designed for quick removal and replacement. Its universal internal control design reduces maintenance time and component complexity. An easy-to-detach air handler includes a simple, pull-out feature, offering quick access to system components.

Technical support: Support is available at 800-283-3787.

Noise-reduction features: This unit’s outdoor condensing section and separate indoor unit provide sound levels as low as 20 dBA. Silent mode is exceptionally quiet with sound levels as low as 20 dBA for quiet and comfortable sleep.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat. The indoor unit’s thermostat is provided.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The system is designed to create a comfortable environment in any room. With performance up to 22 SEER, it is designed to save energy. Its power cooling uses turbo mode to quickly create a comfortable temperature. The unit’s multi-zone system allows each area of a home to be set to a different level of comfort based on individual preference, and a Follow Me feature provides individualized comfort. The fan motor is designed for quick removal and replacement. Its universal internal control design reduces maintenance time and component complexity. An easy-to-detach air handler features a simple pull-out feature, which provides quick and easy access to system components.

Warranty information: A limited seven-year residential compressor warranty is available. Visit www.boschheatingandcooling.com for full details.

Special installation requirements: Designed for easy installation, this unit requires no ductwork and is perfect for tight spaces. It requires an opening of 3 inches or less in diameter to run lines. The built-in self-cleaning mode removes moisture and additional particles to ensure fresh, breathable air. Multi-zone system installation features include an auto-correction function, which verifies and automatically compensates for wiring/piping errors between indoor units and the outdoor section of the system.

Contact: Bosch Thermotechnology Corp., 603-552-1100; www.boschheatingandcooling.com.

eProduct 169

Model: Inverter, ducted, split system, air-source heat pump

Footprint (in inches): 22 (length) by 24 (width) by 55 (height)

Serviceability features: The high-efficiency variable-capacity inverter compressor can adjust output to any level between 25-110 percent to perfectly cool and heat a home using minimal energy for maximum comfort. A standard electronic expansion valve (EEV) ensures proper refrigerant flow during all conditions in order to optimize the unit’s process to the highest efficiency possible.

Technical support: Support is available at 800-283-3787.

Noise-reduction features: The direct-drive fan blades provide vortex suppression to reduce the sound of airflow exiting the condensing section, thereby retaining relatively low noise at high speeds with sound levels as low as 56 dBA. An intuitive electronically commutated motor (ECM) delivers comfortable airflow at quiet sound levels.

IAQ equipment supported: When paired with a furnace or a Bosch hydronic air handler along with an IDS outdoor condensing section, the unit will efficiently deliver exceptional comfort. Bosch offers a complete range of cased evaporator coils.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: Bosch offers a complete range of 10 evaporator coil models from 2- to 5-ton sizes in all orientations to fit all duct sizes. Its efficient inverter drive system delivers up to 18-SEER performance. Variable-capacity control precisely matches cooling/heating load. This compact air-to-air system operates with outdoor sound levels as low as 56 dBA and delivers stable room temperature using a choice of thermostats.

Warranty information: A limited residential warranty is available up to 10 years. The standard offering covers all components incorporated into the heat pump system at the time of manufacture. All other components or parts purchased from Bosch and installed in the field have a one-year parts warranty. Visit boschheatingandcooling.com.

Special installation requirements: Condensing units come standard with an EEV to ensure proper refrigerant flow during all conditions. When paired with a furnace or a Bosch hydronic air handler and an IDS outdoor condensing section, these units efficiently deliver exceptional comfort. Bosch offers a complete range of cased evaporator coils. Electric heat can be added to the air handler for additional heat on demand.

Contact: Bosch Thermotechnology Corp., 603-552-1100; www.boschheatingandcooling.com.

eProduct 170

Broan

Model: P7RF packaged air conditioner

Footprint (in inches): 73-77 (length) by 49-63 (width) by 35 (height)

Serviceability features: All major components of this packaged air conditioner, including the compressor, blower assembly, thermostatic expansion valve (TXV), and electrical components, are contractor-friendly and located at the perimeter of the unit. Blower motor operation is a simple, constant high-voltage in and low-voltage input control, which simplifies troubleshooting. The two-stage compressor (mechanically loaded) is controlled by low voltage, as the voltage and amperage spikes determine the diagnosis. The TXV is easily accessible for operational confirmation.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4328. Technical literature is available 24/7 at literature.nortekhvac.com.

Noise-reduction features: A swept-wing fan blade on the condenser fan motor assembly, seamless two-stage switchover, and a closed-cell blanket surrounding the entire compressor helps reduce objectionable outdoor noise. A five-speed blower and fully insulated supply and return sections provide low vibration and help dampen noise levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats. A two-stage thermostat is recommended for full savings capability.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: This unit is built around the Copeland UltraTech II two-stage compressor — the heart of the refrigeration system. The system runs in first stage most of the time, which helps save a homeowner money while keeping the home comfortable. The contractor will love the microchannel coils, which are light in weight and contain minimal refrigerant. A lack of copper transfer tubes translates to a durable coil.

Warranty information: A limited five-year parts warranty is available. A one-year Quality Pledge will replace the unit if the compressor fails within the first year. If the product is registered within 60 days of purchase, the coverage increases to a limited 10-year parts and 10-year Quality Pledge. Extended warranties are available through the Contractors’ Preferred Protection Plan.

Special installation requirements: There are no special installation requirements for this product.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 171

Bryant

Model: Evolution® V air conditioner

Footprint (in inches): 23 (length) by 23 (width) by 40 (height)

Serviceability features: Communication between system components allows the Evolution Connex control to display system history for faster diagnosis of the complete Evolution system. This allows a service technician to attach a second control to the outdoor unit for service without entering the home and to access the system remotely via the internet to prepare for a service call in advance, if its connected to a Wi-Fi network. The air conditioner also includes automated refrigerant charge assistance technology.

Technical support: Support is provided through a nationwide network of local distributors.

Noise-reduction features: Soft motor mounts, a compressor sound blanket, forward-swept fan blades, and a laminated sound-elimination compressor mounting plate help the unit achieve low sound ratings. A soft-starting inverter-driven compressor smoothly ramps-up to operating speed, which helps minimize the overall sound during the beginning of operation. The unit’s variable-speed compressor and fan motor operate at quieter, lower speeds most of the time.

IAQ equipment supported: As part of an installed system, the unit is compatible with Bryant IAQ system components, including humidifiers, ventilators, germicidal UV lamps, and the Evolution air purifier.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts. The unit shares replacement parts with other models.

Additional features: One of the smallest ducted air conditioners on the market with a variable-speed compressor, the Evolution V offers numerous features and benefits. Only two communication wires are required to the outdoor unit for full system functionality when installed as part of a complete Evolution system, including the Evolution Connex Control. The unit also features Air-Conditioning, Heating, and Refrigeration Institute (AHRI) rating combinations with both communicating and noncommunicating multi-stage indoor products.

Warranty information: A limited 10-year parts warranty, including the compressor, is available if properly registered within 90 days. Restrictions apply; see the warranty certificate for more information.

Special installation requirements: The unit must be installed as part of a complete Evolution system, including Evolution Connex control, for full functionality. It is compatible with most thermostats and existing indoor components, but with reduced functionality. A contractor-supplied surge protector is recommended, and a contractor-supplied muffler may be desired on some replacement applications.

Contact: Bryant, 317-847-6930; www.carrier.com.

eProduct 172

Carrier

Model: Infinity 19VS split system air conditioner

Footprint (in inches): 23 (length) by 23 (width) by 40 (height)

Serviceability features: Communication between system components allows the Infinity® Touch control to display system history for faster diagnosis of the complete Infinity system. This allows a service technician to attach a second control to the outdoor unit for service without entering the home and to access the system remotely via the internet to prepare for a service call in advance if it is connected to a Wi-Fi network. The unit also includes automated refrigerant charge assistance technology.

Technical support: Support is provided through a nationwide network of local distributors.

Noise-reduction features: Soft motor mounts, a compressor sound blanket, forward-swept fan blades, and a laminated sound-elimination compressor mounting plate help it achieve low sound ratings. A soft-starting, inverter-driven compressor smoothly ramps-up to operating speed, which minimizes overall sound during the beginning of operation. The variable-speed compressor and fan motor operate at quieter, lower speeds most of the time.

IAQ equipment supported: As part of an installed system, the unit is compatible with Carrier IAQ system components, including humidifiers, ventilators, germicidal UV lamps, and the Infinity air purifier.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts. The unit shares replacement parts with other models.

Additional features: One of the smallest ducted air conditioner on the market with a variable-speed compressor, the Infinity 19VS has numerous features and benefits. The unit also features Air-Conditioning, Heating, and Refrigeration Institute (AHRI) ratings combinations with both communicating and noncommunicating multi-stage indoor products.

Warranty information: A limited 10-year parts warranty, including the compressor, is available if it is properly registered within 90 days. Restrictions apply; see the warranty certificate for more information.

Special installation requirements: The unit must be installed as part of a complete Infinity system, including Infinity Touch control, for full functionality. It is compatible with most thermostats and existing indoor components but with reduced functionality. A contractor-supplied surge protector is recommended, and a contractor-supplied muffler may be desired on some replacement applications.

Contact: Carrier, 317-847-6930; www.carrier.com.

eProduct 173

Champion

Model: Momentum™ AL21 air conditioner

Footprint (in inches): 3-ton unit: 36 (length) by 32 (width) by 40 (height)

Serviceability features: This air conditioner offers built-in Charge Guard™ monitoring, which provides a direct readout of high- and low-system pressures and suction and liquid line temperatures while also calculating system superheat and system subcooling. This information is available without ever adding a manifold gauge set or temperature gauge — simply remove two screws to expose the capacitive touchscreen display. Charge Guard helps ensure the system is properly optimized for faster installation and service and helps maximize the system’s service life.

Technical support: Support is available through the distributor where the product was purchased. Technical information is available on UPGnet, including product-specific, self-directed training. Technical support can also be obtained for the certified contractor 8 a.m. to 5 p.m. Central time, Monday to Friday, at 877-874-7378.

Noise-reduction features: The ShadowDrive™ sound-reduction system includes a swept-wing fan, composite base pan, flat-wire grille guard, and sound-containment cloak that reduces sound levels to no more than a typical residential dishwasher.

IAQ equipment supported: The system is designed to seamlessly interface with various, optional, field-installed and system-matched humidifiers, dehumidifiers, germ-killing UVC lighting, and high-efficiency MERV-16 air filtration to provide multiple system options to address specific IAQ challenges. The variable-capacity nature of the product allows it to be fine-tuned using the Climate Mark™ feature to address specific humidity challenges that can adversely impact IAQ.

Thermostat compatibility: This air conditioner requires the Wi-Fi-enabled Momentum Hx touchscreen communicating thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The unit’s variable capacity provides more consistent comfort, exclusive Charge Guard charge monitoring, Climate Mark preconfigured operating profiles, ShadowDrive sound-reduction technology, and the Wi-Fi-enabled Momentum Hx touch-screen thermostat.

Warranty information: Limited one-year labor, lifetime compressor, and 10-year parts warranties are available on registered products.

Special installation requirements: The outdoor unit must be installed as a complete system, which includes the AL21 outdoor unit. If using a Momentum gas furnace, a CM coil with factory-mounted electronic expansion valve (EEV) is necessary. If using an air handler, it must be matched with the AVV Momentum variable-speed communicating air handler with a factory-mounted EEV. Either system combination must be controlled by the Wi-Fi-enabled Momentum Hx touch-screen thermostat.

Contact: Johnson Controls Inc., 405-419-6545; www.championhomecomfort.com/momentum.

eProduct 174

Coleman

Model: Echelon™ AC21 air conditioner

Footprint (in inches): 3-ton unit: 36 (length) by 32 (width) by 40 (height)

Serviceability features: This air conditioner offers built-in Charge View™ monitoring, which provides a direct readout of high and low system pressures and suction and liquid line temperatures while also calculating system superheat and system subcooling. This information is available without ever adding a manifold gauge set or temperature gauge — simply remove two screws to expose the capacitive touchscreen display. Charge View helps ensure the system is properly optimized for faster installation and service and helps maximize the system’s service life.

Noise-reduction features: This air conditioner features an innovative WhisperDrive™ sound-reduction system that includes a swept-wing fan, composite base pan, flat-wire grille guard, and sound-containment cloak that reduces sound levels to no more than a typical residential dishwasher.

IAQ equipment supported: The system is designed to seamlessly interface with various, optional, field-installed, system-matched humidifiers; dehumidifiers; germ-killing UVC lighting; and high-efficiency MERV-16 air filtration to provide multiple system options to address specific IAQ challenges. The variable-capacity nature of the product allows it to be fine-tuned using the Climate Connect™ feature to address specific humidity challenges that can adversely impact IAQ.

Thermostat compatibility: The unit requires the Wi-Fi-enabled Echelon Hx™ touch-screen communicating thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: Additional features include variable capacity, which provides consistent comfort; exclusive Charge View charge monitoring; Climate Connect preconfigured operating profiles; WhisperDrive sound-reduction technology; and the Wi-Fi-enabled Hx touch-screen thermostat.

Warranty information: Limited one-year labor, lifetime compressor, and limited 10-year parts warranties are available on registered products.

Special installation requirements: The outdoor unit must be installed as a complete system, which includes the AC21 outdoor unit. If using an Echelon gas furnace, a CM coil with factory-mounted electronic expansion valve (EEV) is required. If using an air handler, it must be matched with the AVV Echelon variable-speed communicating air handler with a factory-mounted EEV. Either system combination must be controlled by the Wi-Fi-enabled Echelon Hx touch-screen thermostat.

Contact: Johnson Controls Inc., 405-419-6545; www.colemanac.com/echelon.

eProduct 175

Comfort-Aire/Century

Model: HZS Series (HZS024 through HZS060) geothermal systems

Footprint (in inches): 26-31 (length) by 22-25 (width) by 24-26 (height)

Serviceability features: This highly serviceable unit includes multiple doors that can be removed to make accessing all parts an easy task. Standard tools are all that is needed to complete service. A service tool that communicates all fault codes and diagnostics to troubleshoot any problems is available, and fault codes are stored for up to 15 days.

Technical support: Manuals, including wiring diagrams and step-by-step installation instructions, are available for all products at www.marsdelivers.com. Service parts are stocked at the facility and are ready for shipment at any time. Technical support staff is highly trained to help solve any task.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are included.

Noise-reduction features: Compressors are mounted on a rubber grommet system to reduce noise, and the unit also incorporates a muffler system.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: This digital, indoor, split geothermal heat pump delivers efficient performance for homeowners. It features a two-way communicating control, two-stage compressor, and internal variable water flow components.

Warranty information: For residential use, a warranty covers the unit 12 years from the date of purchase by the original consumer for the original installation. A five-year labor-allowance warranty is available if the installing contractor turns in a startup certification form.

Special installation requirements: Manufacturer did not specify.

Contact: MARS/Comfort-Aire/Century, 877-442-4482; marsdelivers.com.

eProduct 176

Comfortmaker

Model: CSA5 SoftSound® 15 split system air conditioner

Footprint (in inches): 31 (length) by 31 (width) by 29-35 (height)

Serviceability features: Communicating, self-configuring operation is available when utilized with the Observer communicating control with Wi-Fi capability. It also features an innovative control box design. The service valves are easily accessible as the control panel is accessible via only two screws. It also includes high- and low-pressure switches.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.gocomfortmaker.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: Units are equipped with Copeland scroll compressors, isolation compressor grommets, and standard compressor sound blanket.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). An outdoor air temperature sensor comes factory-installed.

Thermostat compatibility: The system is compatible with most thermostats. The communicating and self-configuring function is available only when it’s used with the new Comfortmaker Observer communicating wall control (thermostat).

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: The unit performs up to 15 SEER. The unit is also compatible with the Observer communicating control with Wi-Fi capability, features self-configuring capabilities, and offers easy-to-read diagnostics. The air conditioner also includes an efficient single-stage scroll compressor.

Warranty information: A limited three-year No Hassle Replacement warranty is available. A limited 10-year parts warranty, including the compressor and coils, is available to the original purchaser upon timely registration. The limited parts warranty period is reduced to five-years if the unit is not registered within 90 days of installation. See the warranty certificate for additional details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gocomfortmaker.com.

eProduct 177

Model: HS024-060 split system geothermal heat pump

Footprint (in inches): 27-33 (length) by 24-27 (width) by 22-23 (height)

Serviceability features: This geothermal heat pump offers four durable loop systems to choose from for installation flexibility. It includes multiple access panels, easily accessible control box and components, and requires no special controllers.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.gocomfortmaker.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: Geothermal units are built for quiet operation with compressor sound blankets, fully-insulated cabinets with closed-cell foam, and double isolation mounted compressors. The two-stage compressor operates on the quiet, low speed most of the time.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with many three-stage-heat and two-stage-cooling programmable thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The unit is Air-Conditioning, Heating, and Refrigeration Institute (AHRI)- matched to Comfortmaker FVM4 fan coils and EAM4 evaporator coils. It offers exceptional energy efficiency with EERs up to 30.5, coefficients of performance (COPs) up to 5.1, and can provide supplemental water heating. The unique LoopLink design software package is available to assist with system installation and ensure optimal performance.

Warranty information: A limited five-year No Hassle Replacement warranty is available. A limited 10-year parts warranty, including the compressor and coils, is available to the original purchaser upon timely registration. The limited parts warranty period is reduced to five years if it is not registered within 90 days of installation. See the warranty certificate for additional details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gocomfortmaker.com.

eProduct 178

Daikin Applied

Model: SmartSource® Compact GCV water-source heat pump

Footprint (in inches): 19 (length) by 19 (width) by 24 (height)

Serviceability features: This water-source heat pump is compact and fits into tight spaces. Features include a swing-out/removable control box for quick component access, LED sight glass for fast diagnostics, slide-out fan and motor assembly, MicroTech III controls for easy integration into a building automation system, a reliable and low-maintenance electronically commutated motor (ECM), and a non-fused disconnect for convenient shut-off and lockout at the unit.

Technical support: Contact a local Daikin Applied service representative for complete startup services with comprehensive maintenance agreements and repair services. Daikin’s Technical Response Center provides answers to operational and technical questions and can troubleshoot any Daikin Applied equipment. Emergency service and 24/7 repairs are also available.

Noise-reduction features: Double compressor isolation, 1-inch closed-cell insulation and/or compressor sound blanket options, a quiet scroll compressor, and an ECM help reduce operational noise levels.

IAQ equipment supported: Closed-cell foam insulation, a double-sloped drain pan, and dehumidification options are supported.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: Options include a geothermal selection, six cabinet sizes, three ECM fan choices, hot gas reheat, a waterside economizer, hydronic heat, an LED diagnostics viewport, a slide-out fan assembly, double compressor isolation, a disconnect switch, 2- or 4-inch MERV filters, a MicroTech® III swing-out control box, a four-position fan switch, and epoxy coated coils.

Warranty information: A one-year standard parts warranty is available from startup. A free one-year labor warranty covers labor costs concurrent with Daikin’s standard parts warranty. A four-year extended parts warranty with a labor-allowance plan covers labor costs concurrent with Daikin’s standard parts warranty plus 48 additional months of parts and labor-allowance coverage.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin Applied, 763-553-5157; www.daikinapplied.com.

eProduct 179

Model: ThinLine® fan coils

Footprint (in inches): 15 (length) by 24 (width) by 9 (height)

Serviceability features: Features include a low-maintenance electronically commutated motor (ECM), factory-installed valve/piping packages that eliminate field coordination, factory-installed MicroTech® III controls or controls by others that provide easy integration into a building automation system, removable primary and secondary drain pans, same- or opposite-end coil connections, spacious end pockets, multi-directional grilles, a remote or unit-mounted thermostat, a slide-out fan/motor assembly, and detachable motor connection plugs.

Noise-reduction features: Four quiet, variable-speed ECM fan options are available, and the unit offers ¼- and ½-inch closed-cell insulation

IAQ equipment supported: One- and 2-inch MERV-8 and -13 filter choices, a stainless steel sloped drain pan, and a fresh-air damper are supported.

Thermostat compatibility: The system is compatible with most thermostats, and controls by others are easily integrated.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: A user may choose from seven cabinet sizes, five configurations, custom colors, and four ECM fan selections. Additional features include an economizer and fresh-air damper; a slide-out fan assembly; factory-installed MicroTech III controls or controls by others; 100-plus factory-installed valve/piping packages; 2-, 3,- or 4-row coils with multiple circuits; a three-position fan switch; and spacious extended end pockets.

Warranty information: A one-year standard warranty is available from startup, and a five-year extended parts-only warranty is available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin Applied, 763-553-5157; www.daikinapplied.com.

eProduct 180

Daikin Ductless

Model: AURORA single- and multi-zone heat pump systems

Footprint (in inches): Single Zone Outdoor: 26-34 (length) by 11-13 (width) by 22-29 (height)

Serviceability features: These multi-zone heat pump systems offer self diagnostics with digital display, long-life washable air filters, and an anti-corrosion treatment on the heat exchanger. Outdoor multi-zone units in cold climates gain higher efficiency in some cases where drain pan heaters are typical but may not be required due to the efficient drainage design of our outdoor unit.

Technical support: Support is available 7 a.m. to 7 p.m., Monday to Friday, at 866-432-4546 or by contacting a local distributor.

Noise-reduction features: The system’s quiet mode feature allows the outdoor unit to drop 3 dB.

IAQ equipment supported: The unit includes long-life, washable filters. Titanium apatite photo-catalytic air purification is available in some indoor models.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: AURORA’s lineup incorporates extreme ambient technology, which is designed to maintain high performance in extreme cold or hot climates, without the need for upsizing the condensing unit. Performance is maximized in both high and low ambient conditions with enhanced capacities of up to 100 percent heating capacity at 5°F (minus 15°C) and up to 100 percent cooling capacity at 104°F (40°C). Temperature fluctuations are minimized while providing continuous cooling and heating comfort in extreme environments.

Warranty information: A standard 12-year limited parts warranty is available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 713-861-2500; www.daikincomfort.com.

eProduct 181

Model: EMURA multi-zone indoor heat pump

Footprint (in inches): 39 (length) by 8 (width) by 12 (height)

Serviceability features: This heat pump includes washable, long-life filters.

Technical support: Support is available 7 a.m. to 7 p.m., Monday to Friday, at 866-432-4546 or by contacting a local distributor.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: The system includes a long-life, washable filter and titanium apatite photo-catalytic air purification.

Thermostat compatibility: The unit requires a special thermostat. The Daikin Comfort Control and app is optional.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: Inside the modern white or silver exterior is a highly intelligent system that can be controlled with a standard wireless (infrared) remote. The unit may also be controlled via the Daikin Comfort Adapter and mobile app. This system provides a wide operating range from minus 14° to 115°F for cooling and minus 4° to 75° for heating. An intelligent-eye sensor monitors the room for occupancy and can adjust to an energy-savings mode and also monitors movement in the room to direct airflow.

Warranty information: A standard 12-year limited parts warranty is available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 713-861-2500; www.daikincomfort.com.

eProduct 182

Daikin Unitary

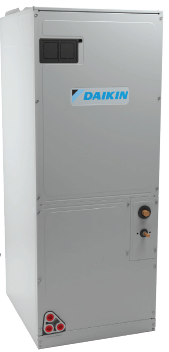

Model: DVPEC multi-position variable-speed air handler

Footprint (in inches): 21 (length) by 18-15 (width) by 53-58 (height)

Serviceability features: A factory-installed electronic expansion valve (EEV) simplifies installation and precisely controls refrigerant flow for efficient cooling. ComfortNet control comparability allows the use of convenient, specially designed LCD thermostats with an option for wireless system access, which provides setting changes and system monitoring via an internet connection. ComfortNet features include dual fuel, outdoor temperature display, dehumidification, advanced diagnostics, a programmable continuous fan control, and more. Other features include 21-inch depth, the ability to recall the six most recent faults, a cfm indicator, and tool-less filter access.

Technical support: Support is available 7 a.m. to 7 p.m., Monday to Friday, at 866-432-4546 or by contacting a local distributor.

Noise-reduction features: A variable-speed electronically commutated motor (ECM) fan provides gradual startup and shutdown for unobtrusive operation. A fully insulated cabinet provides additional sound-reduction.

IAQ equipment supported: The variable-speed ECM blower motor provides additional dehumidification control and comfort when combined with the ComfortNet control system. The air handler can be matched with a full line of Clean Comfort-branded IAQ products, including air filters, UV purifiers, heat recovery ventilators (HRVs), energy recovery ventilators (ERVs), and humidifiers.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: This variable-speed air handler boasts high-end features, including horizontal or vertical installation, a factory-installed electronic expansion valve (EEV), variable-speed ECM blower, an all-aluminum evaporator coil, less than 2 percent cabinet leakage at 1-inch H2O and less than 1.4 percent at 0.5 inch H2O (per ASHRAE standard 193), 3- to 25-kW electric heater kits, a DecaBDE-free thermoplastic drain pan with secondary drain, a screw-less side and back cabinet with foil-faced insulation for reduced condensation, and tool-less filter access.

Warranty information: A standard 12-year limited parts warranty is available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 713-861-2500; www.daikincomfort.com.

eProduct 183

Model: DX20VC inverter split system air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 38 (height)

Serviceability features: The ComfortNet communications system with the CTK04 ComfortNet thermostat provides quick and easy setup and installation. The unit continuously monitors system performance and offers optional remote system control. Additional features include simple low-voltage wiring to the outdoor unit, sophisticated diagnostics that constantly monitor the air conditioner system and pinpoint trouble spots for a fast fix, diagnostic indicator lights, storage of the last six fault codes, a color-coded terminal strip for noncommunicating setup, and high- and low-pressure switches. The controls are accessible via a single panel.

Technical support: Support is available 7 a.m. to 7 p.m., Monday to Friday, at 888-593-9988, option No. 5 or by contacting a local distributor.

Noise-reduction features: A factory-installed, acoustically engineered, heavy-duty sound control blanket helps reduce operational noise levels. An electronically commutated motor (ECM) condenser fan provides dependable, quiet airflow across the condensing coil.

IAQ equipment supported: The outdoor air conditioner can be matched with a full line of Clean Comfort-branded IAQ products, including air filters, UV purifiers, heat recovery ventilators (HRVs), energy recovery ventilators (ERVs), and humidifiers.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: This unit provides the latest Daikin Inside technology for exceptional air conditioning performance and comfort with an inverter compressor, which achieves up to 24.5 SEER. The DX20VC uses the CTK04 ComfortNet control system, which simplifies installation and setup and provides remote access for the homeowner.

Warranty information: Standard 12-year unit replacement and 12-year limited parts warranties are available.

Special installation requirements: The system requires a thermostatic expansion valve (TXV).

Contact: Daikin North America LLC, 713-861-2500; www.daikincomfort.com.

eProduct 184

Day & Night

Model: CVA9 Constant Comfort™ Deluxe 19 variable-speed air conditioner with SmartSense™ technology

Footprint (in inches): 23-35 (length) by 23-35 (width) by 32-43 (height)

Serviceability features: This variable-speed air conditioner offers precise system control with remote access and text-based diagnostics. A contractor’s name/information is displayed (when installed as part of a complete Observer communicating system including the Observer wall control with Wi-Fi capability).

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.godayandnight.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: Its variable-speed compressor and compact electronically commutated motor (ECM) fan operate at quieter, lower speeds most of the time and provide a soft start and smooth ramp-up to operating speeds. The cabinet includes isolation compressor grommets and a high-performance compressor sound shield for lower noise, better airflow, and higher efficiency.

IAQ equipment supported: As part of an installed system, the unit is compatible with Day & Night IAQ system components, including humidifiers, ventilators, UV lamps, and germicidal air purifiers.

Thermostat compatibility: The system is compatible with most thermostats. The communicating and self-configuring functions only work when used with the new Day & Night Observer communicating wall control (thermostat).

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: When installed as part of a complete Observer communicating system, including the Observer wall control with Wi-Fi capability, the CVA9 Constant Comfort Deluxe 19 provides five-stage variable-speed technology in a compact design and boasts efficiencies up to 19 SEER.

Warranty information: A limited 10-year No Hassle Replacement warranty is available. A 10-year limited parts warranty, including the compressor and coils, is available to the original purchaser upon timely registration. The limited parts warranty period is reduced to five-years if it is not registered within 90 days of installation. See the warranty certificate for additional details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.godayandnight.com.

eProduct 185

Model: HP024-072 packaged geothermal heat pump

Footprint (in inches): 26-33 (length) by 22-26 (width) by 47-58 (height)

Serviceability features: This packaged geothermal heat pump offers four durable loop systems to choose from. Additional features include multiple access panels, an easily accessible control box, and it requires no special controllers. The system is available in vertical, horizontal, and downflow installation options.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.godayandnight.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: Geothermal units are built for quiet operation with compressor sound blankets and fully insulated cabinets with closed-cell foam and double isolation mounted compressors. The two-stage compressor and variable-speed blower operate on the quiet, low speed most of the time.

IAQ equipment supported: The unit is compatible with a wide range of IAQ products, including filters, humidifiers, and ventilators.

Thermostat compatibility: This heat pump is compatible with many three-stage-heat and two-stage-cooling programmable thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The unit offers exceptional energy efficiency with EERs up to 30, coefficients of performance (COPs) up to 4.6, and can provide supplemental water heating. Additional features include vertical upflow, downflow, or horizontal configuration; tin-plated copper tubing coils; an efficient two-stage compressor; a heavy-duty sheet metal cabinet; high-density insulation; and double isolation mounted compressors for quiet operation.

Warranty information: A limited five-year No Hassle Replacement warranty is available. A 10-year limited parts warranty, including the compressor and coils, is available to the original purchaser upon timely registration. The limited parts warranty period is reduced to five years if it is not registered within 90 days of installation. See the warranty certificate for additional details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.godayandnight.com.

eProduct 186

EMI

Model: I-verter variable-speed ductless heat pump

Footprint (in inches): Varies.

Serviceability features: This unit is easy to install as it requires no ductwork. A small hole for running power wiring and refrigerant lines is all that is needed to connect indoor and outdoor sections. Its simple design makes it easy to remove and clean the washable filters.

Technical support: Support is available 8 a.m. to 6 p.m. Eastern time, Monday to Friday, at 800-253-7900 or by emailing technical.support@ecrinternational.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; an owner’s manual; and submittal data sheets are included.

Noise-reduction features: These systems provide low cost and energy-efficient heating and cooling exactly where needed without the need for expensive ductwork and noisy machinery.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: This heat pump does not share replacement parts with other models.

Additional features: These systems intelligently heat and cool without wasting energy. I-verter systems are equipped with inverter technology that enables the compressor to continuously adjust its speed to match the desired comfort level. This technology allows for energy efficiency and savings. It also features the Follow Me technology. When activated, the system will read the sensor inside of the infrared hand-held remote control to condition the space where you are.

Warranty information: Limited two-year parts and six-year compressor warranties are available. Extended coverage may be purchased at the time of product warranty registration at www.ecr.trinitywarranty.com.

Special installation requirements: This simple, quiet system is made up of an indoor air handler and a compact outdoor condenser connected through a small opening in the wall.

Contact: ECR Intl., 315-797-1310; www.ecrinternational.com.

eProduct 187

First Co.

Model: SPXB (-hp or -HW) single vertical packaged unit

Footprint (in inches): Hot water unit: 20 (length) by 20 (width) by 66-72 (height)

Serviceability features: Major components of this packaged unit are accessed from the rear of the unit through the access panel. The unit will also come out of the sleeve to facilitate all sides or replacement

Technical support: Support is available 8 a.m. to 5 p.m. Central time, Monday to Friday, at 214-388-5751, ext. 5.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and an owner’s manual are available.

Noise-reduction features: A fully insulated cabinet with optional wraparound insulation jacket helps reduce operational noise levels.

IAQ equipment supported: Depending on ductwork, the unit is capable of utilizing MERV-rated filters.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The unit is compatible with some shared replacement parts and some unique parts.

Additional features: The unit is more efficient than the previous version to meet ASHRAE Standard 90.1-2013.

Warranty information: One-year parts and five-year compressor warranties are available.

Special installation requirements: The unit requires a wall sleeve (thickness of wall to be determined) and an outdoor architectural louvered grille. This grille can be sent out as anodized aluminum or paint ready for field painting. It can also be ordered with a custom color, but the minimum order is 20 units.

Contact: First Co., 972-898-1804; www.firstco.com.

eProduct 188

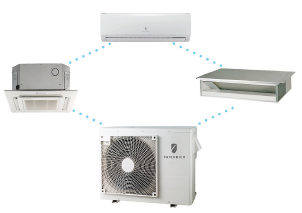

Friedrich Air Conditioning

Model: MR24DY3JMA ductless heat pump

Footprint (in inches): 13 (length) by 34 (width) by 26 (height)

Serviceability features: This heat pump is compatible with the DWTST wireless ductless troubleshooting tool from Friedrich, which allows technicians to see real-time data as the system operates, including error codes, various temperatures, electronic expansion valve (EEV) positions, and more.

Technical support: Support is available 8 a.m. to 5 p.m. Central time, Monday to Friday, at 800-541-6645 or by emailing ductless@friedrich.com.

Noise-reduction features: The indoor unit includes a crossflow fan on the indoor head that provides extremely low noise levels, and a brushless DC (BLDC) fan motor provides quiet operation. The outdoor unit includes a propeller-style fan that provides even air distribution across the condenser coil, which provides low air noise. The inverter compressor runs at variable speeds, which provides quiet operation and a blanketed compressor aids in sound attenuation from the inverter compressor.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: Three individual zones may be connected to one outdoor unit. The system features High-Efficiency Precision Inverter™ performance, and preheating keeps cold air from blowing in the room until heating capacity is provided. Its smart defrost feature actively senses the system temperatures to eliminate unnecessary defrosting.

Warranty information: Five-year parts and seven-year compressor warranties come standard. If installed by an Advantage program dealer, the warranty is extended to 10 years, including one-year labor allowance.

Special installation requirements: The unit may be installed using basic hand tools, including a 3-inch hole saw, orbital flaring tool, torque wrench, nitrogen tank with a regulator with a 600-psi limit, a micron gauge and 5 hp vacuum pump, a refrigerant scale, and a Schrader core remover.

Contact: Friedrich Air Conditioning, 210-546-0518; www.friedrich.com.

eProduct 189

Frigidaire

Model: FSA1BG air conditioner

Footprint (in inches): 30 (length) by 30 (width) by 37 (height)

Serviceability features: Removable jacket panels grant easy access to the coil for cleaning and routine maintenance. A removable access panel simplifies maintenance for the compressor or pressure switch, external service valves offer easy charging, and the fan top assembly may be removed without removing any wiring.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4328. For 24/7 access to technical documents, FAQs, and troubleshooting videos, visit literature.nortekhvac.com.

Noise-reduction features: A composite base pan absorbs sound and vibration, and a compressor sound blanket is designed to reduce any excess noise.

IAQ equipment supported: The unit supports all standard IAQ products, including zoning components, air cleaners, UV lights, and humidity controls.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts. The unit shares replacement parts with other models.

Additional features: The all-aluminum, microchannel coil technology includes a corrosion-resistant coil. Inverter technology allows the unit to modulate between five compressor speeds both below and above nominal capacity. The system may be paired with most two-stage thermostats and does not require a special proprietary controller. The indoor unit utilizes the same family of coils and air handlers/furnaces as the two-stage product.

Warranty information: A five-year limited parts warranty is available. A one-year Quality Pledge will replace the unit if the compressor fails within the first year. If the product is registered within 60 days of purchase, the coverage increases to 10-year limited parts and a 10-year Quality Pledge. Extended warranties are also available through the Contractors’ Preferred Protection Plan.

Special installation requirements: The unit must be installed with the microchannel evaporator coil.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 190

Model: P7RF packaged air conditioner

Footprint (in inches): 49-63 (length) by 35 (width) by 30-38 (height)

Serviceability features: All major components of this packaged air conditioner are contractor-friendly at the perimeter of the unit, including the compressor, blower assembly, thermostatic expansion valve (TXV), and electrical parts. The blower motor operation is a simple, constant high-voltage in and low-voltage input control, which simplifies troubleshooting. A two-stage compressor (mechanically loaded) is controlled by low voltage — voltage and amperage spikes determine diagnosis. The TXV is easily accessible for operational confirmation.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4328. Technical literature is available 24/7 at literature.nortekhvac.com.

Noise-reduction features: A swept-wing fan blade on the condenser fan motor assembly, seamless two-stage switchover, and closed-cell blanket surrounding the entire compressor reduce objectionable outdoor noise. A five-speed blower and fully insulated supply and return sections provide low vibration and noise-dampening features on the inside of this packaged product.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats. A two-stage thermostat is recommended for full energy saving capability.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts. The unit shares replacement parts with other models.

Additional features: This unit is built around the Copeland UltraTech II, two-stage compressor — the heart of the refrigeration system. Great cost savings is achieved with this unit, because it runs in first stage most of the time, saving the homeowner money while keeping the home comfortable. The microchannel coils are light in weight, utilize minimal refrigerant, and its transfer tubes include no copper, which means a more durable coil.

Warranty information: A limited five-year parts warranty is available. A one-year Quality Pledge to replace the unit if the compressor fails within the first year is also available. If the product is registered within 60 days of purchase, the coverage increases to 10-year limited parts and a 10-year Quality Pledge. Extended warranties are available through the Contractors’ Preferred Protection Plan.

Special installation requirements: There are no special installation requirements for this product.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 191

GeoComfort

Model: Single-stage, compact, horizontal, ground-source, packaged unit, GZS 018-072

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: This unit boasts a hinged control box that swings open or is removable for access to internal components. Electrical and water connections are located on the front corner post. A refrigerant test port is accessible via a front panel. All exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation. The unit also includes an externally mounted desuperheater switch.

Technical support: Support is available 24/7 at 618-664-9010 or by emailing technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or by visiting www.geothermaluniversity.com.

Noise-reduction features: Elastomeric compressor vibration absorption pads provide superior sound and vibration insulation and high-density closed-cell foam insulation helps absorb sound. A heavy-gauge compressor mounting plate with multiple durometer rubber and elastomeric vibration absorption pads provides superior compressor and blower motor isolation. Additionally, high-density, UL Greenguard Gold-certified, closed-cell foam insulation helps absorb sound, and a heavy-gauge galvanized or prepainted sheet metal cabinet is engineered and built to meet industry leakage guidelines.

IAQ equipment supported: An Enertech field-installed accessory filter rack that accepts a 1- or 2-inch disposable pleated filter is supported. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Most other air filtration, humidification, or purification systems are compatible with all Enertech products.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: Models are field configurable for side or end discharge and feature a compact design with higher efficiencies. The unit’s all-aluminum, microchannel air coil improves efficiency. A sensor and flow-switch-protected, foam-enclosed, brazed-plate heat exchanger reduces weight and refrigerant charge while increasing performance. Its compact design allows 24-inch-on-center attic truss pass-through installation.

Warranty information: Standard residential 10-year all unit component and 10-year select accessory item warranties are available. A five-year labor-allowance warranty is available on all of the above including select accessories. A free labor-allowance upgrade to 10 years is available upon registration. Optional limited lifetime microchannel air coil and compressor warranties are also available.

Special installation requirements: Its small footprint; front-corner, post-mounted plumbing and electrical connections; and field-selectable discharge air pattern are ideal for retrofit or new construction applications. The unique application of brazed-plate and microchannel heat exchangers in a compact, efficient, and installer/technician-friendly package provides excellent performance and reliability.

Contact: Enertech Global, 618-664-9010; www.enertechgeo.com.

eProduct 192

Goodman

Model: DSXC18 air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 38 (height)

Serviceability features: A filter drier comes factory-installed, and expanded ComfortAlert diagnostics are built in. Additional features include coil and ambient temperature sensors, sweat connection service valves with easy access to gauge ports, top and side maintenance access, and controls that are accessible via a single panel with space for field-installed accessories. Diagnostic indicator lights are included with six fault codes storage, and the unit is setup capable with two low-voltage wires to the outdoor unit.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988, press 5 to go directly to tech support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; and specification sheets are available.

Noise-reduction features: A high-efficiency, two-speed, super-quiet electronically commutated motor (ECM) outdoor fan with advanced fan design provides dependable, quiet airflow across the condensing coil. An acoustically engineered sound control blanket helps reduce noise levels, and a heavy-gauge galvanized-steel cabinet includes a sound control top.

IAQ equipment supported: A variety of IAQ equipment is supported, including Clean Comfort™ Indoor Air Essentials products.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: A factory-installed in-line filter drier protects the refrigerant system from dirt and moisture, and it includes a Copeland two-stage UltraTech scroll compressor. The system is compatible with the ComfortNet communicating system, which continuously monitors system performance and allows remote control of the system. It boasts a heavy-gauge, galvanized steel enclosure cabinet and includes a baked-on powder-paint finish with 500-hour salt-spray approval.

Warranty information: A 10-year limited unit-replacement warranty is available. A limited lifetime compressor warranty is also available. If the compressor ever fails, a new one will be provided to the original purchaser of the central air conditioning system as long as he or she lives in the same single-family residence. All functional parts are covered by a 10-year limited parts warranty.

Special installation requirements: None.

Contact: Goodman Mfg. Co. LP, 281-536-6063; goodmanmfg.com.

eProduct 193

Haier

Model: FlexFit Pro heat pump

Footprint (in inches): 52 (length) by 14 (width) by 37 (height)

Serviceability features: The heat pump provides exceptional cooling and heating experiences under a wide temperature range from low ambient cooling at 0°F to low ambient heating at minus 4°. It has multiple indoor types of choices, including highwall, cassette, and duct. The long-distance piping, up to 230 feet, makes it applicable for many applications, including office buildings, server rooms or equipment rooms, retail shops, restaurants and kitchens, day care facilities, classrooms, and historical buildings.

Technical support: Manufacturer did not specify.

Noise-reduction features: The night noise-reduction mode can lower the nighttime noise by 10~12 dBA when compared to normal mode.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The unit uses long-distance indoor and outdoor refrigerant piping up to 230 feet. Operates up to 0° cooling and minus 4° heating. Different indoor units may be mixed and matched into the same outdoor unit.

Warranty information: Seven-year compressor and five-year parts warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Haier America, 973-617-1800; www.haierductless.com.

eProduct 194

Halcyon

Model: System 9RLS3Y heat pump

Footprint (in inches): 10 (length) by 37 (width) by 11 (height)

Serviceability features: This heat pump includes a self-diagnostic system with easy-to-read LED error codes, which can be looked up in Fujitsu’s Mobile Technician app for step-by-step troubleshooting. The unit’s filters are washable and easily accessible.

Technical support: Support is available 8 a.m. to 8 p.m. Eastern time at 866-952-8324. From mobile devices, contractors can download the Fujitsu Mobile Technician app, where they can view error codes and determine the proper troubleshooting steps. Through a password-protected website, contractors can download design and technical manuals; installation, service, and operation manuals; and submittal drawings.

Noise-reduction features: This unit features an indoor unit as quiet as a soft whisper. The outdoor unit operates at 42 dB.

IAQ equipment supported: Ion deodorization filters decompose absorbed odors using the oxidizing/reducing effects of ions generated by the ultra-fine-particle ceramic and Apple-Catechin filters to absorb fine dust, invisible mold spores, and harmful microorganisms onto the filter by static electricity. Further growth is inhibited and deactivated. The unit’s filters boast a three-year life expectancy and may be washed to restore surface action.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: Through the free FGLair app, this high-efficiency system can be controlled remotely from anywhere using a smartphone or tablet. FGLair app is user-friendly for easy operation and can control on/off, fan speed, temperature control, a weekly timer, and more. The system features a SEER of 33, extra low temperature heating at outdoor temperatures down to minus 15°F, a programmable remote control, and inverter technology. The outdoor unit features a base heater that prevents condensate from freezing.

Warranty information: Standard five-year parts and seven-year compressor warranties are available. Systems that have been installed by a licensed contractor with online product registration submitted include a 10-year parts and compressor warranty. Systems that have been installed by an Elite contractor with online product registration submitted have a 12-year parts and compressor warranty. See the warranty statement for full details.

Special installation requirements: Units have to be installed within 66 feet of each other.

Contact: Fujitsu General America Inc., 973-575-0380; fujitsugeneral.com.

eProduct 195

Heil

Model: HSA5 QuietComfort® 15 split system air conditioner

Footprint (in inches): 31 (length) by 31 (width) by 29-35 (height)

Serviceability features: This split system air conditioner boasts communicating, self-configuring operation when utilized with the Observer communicating control with Wi-Fi capability. It features an innovative control box design, and the service valves are easily accessible as only two screws need to be removed to access the control panel. The system also boasts high and low pressure switches.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.goheil.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: To minimize sound at maximum performance, units are equipped with Copeland scroll compressors, isolation compressor grommets, and a standard compressor sound blanket.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). An outdoor air temperature sensor comes factory-installed.

Thermostat compatibility: The system is compatible with most thermostats. The communicating and self-configuring function is only available when used with the new Heil Observer communicating wall control (thermostat).

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: This air conditioner boasts up to a 15-SEER efficiency rating. The unit is compatible with the Observer communicating control with Wi-Fi capability, features self-configuring capabilities, and offers easy-to-read diagnostics. The unit also includes an efficient, single-stage scroll compressor.

Warranty information: A limited three-year No Hassle Replacement warranty is available. A 10-year limited parts warranty, including the compressor and coils, is available to the original purchaser upon timely registration. The limited parts warranty period is reduced to five years if it is not registered within 90 days of installation. See the warranty certificate for additional details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goheil.com.

eProduct 196

Model: HVA9 QuietComfort Deluxe 19 variable-speed air conditioner with SmartSense technology

Footprint (in inches): 23-35 (length) by 23-35 (width) by 32-43 (height)

Serviceability features: This variable-speed air conditioner offers precise system control with remote access and text-based diagnostics. A contractor’s name and information may be displayed when installed as part of a complete Observer communicating system, including the Observer wall control with Wi-Fi capability.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.goheil.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

IAQ equipment supported: The unit is compatible with Heil IAQ system components, including humidifiers, ventilators, UV lamps, and the Heil germicidal air purifier.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: When installed as part of a complete Observer communicating system, including the Observer wall control with Wi-Fi capability, the system provides five-stage variable-speed technology in a compact design and boasts efficiencies up to 19 SEER.

Warranty information: A limited 10-year No Hassle Replacement warranty is available. A limited 10-year parts warranty, including the compressor and coils, is available to the original purchaser upon timely registration. The limited parts warranty period is reduced to five years if it is not registered within 90 days of installation. See the warranty certificate for additional details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goheil.com.

eProduct 197

Hydron Module

Model: Single-stage, compact, horizontal, ground-source, packaged unit, HZS 018-072

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: This ground-source, packaged unit includes a hinged control box that swings open or is removable for access to internal components. Electrical and water connections are located on the front corner post, and a refrigerant test port is accessible via a front panel. All exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation. The unit also includes an externally mounted desuperheater switch.

Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or by visiting www.geothermaluniversity.com.

Noise-reduction features: Elastomeric compressor vibration absorption pads provide superior sound and vibration insulation, high-density closed-cell foam insulation helps absorb sound, and a heavy-gauge compressor mounting plate with multiple durometer rubber and elastomeric vibration absorption pads provide exceptional compressor and blower motor isolation. Additionally, high-density UL Greenguard Gold-certified closed-cell foam insulation helps absorb sound.

IAQ equipment supported: Enertech offers a field-installed accessory filter rack that accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Most other air filtration, humidification, or purification systems are compatible with all Enertech products.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: Models are field-configurable for side or end discharge and feature a compact design with higher efficiencies. The unit’s all-aluminum, microchannel air coil improves efficiency and a sensor-and-flow-switch-protected, foam-enclosed, brazed-plate heat exchanger reduces weight and refrigerant charge while increasing performance. Its compact design allows 24-inch-on-center attic truss pass-through installation.

Warranty information: A standard residential 10/10/5+5 warranty includes 10-year all unit components, 10-year select accessory items, and five-year labor allowance on all of the above, including select accessories. Five additional years of free labor-allowance coverage are available as an upgrade upon registration. Optional limited lifetime microchannel air coil and compressor warranties are also available.

Special installation requirements: Its small footprint; front-corner, post-mounted plumbing and electrical connections; and field-selectable discharge air pattern are ideal for retrofit or new construction applications. The unique application of brazed-plate and microchannel heat exchangers in a compact, efficient, and installer-/technician-friendly package provides excellent performance and reliability.

Contact: Enertech Global, 618-664-9010; www.enertechgeo.com.

eProduct 198

KeepRite

Model: CSA5 ProComfort™ 15 split system air conditioner

Footprint (in inches): 31 (length) by 31 (width) by 29-35 (height)

Serviceability features: This air conditioner offers communicating, self-configuring operation when utilized with the Observer communicating control with Wi-Fi capability. In addition to its innovative control box design, the service valves are easily accessible as only two screws need to be removed to access the control panel. High- and low-pressure switches are also included.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.gokeeprite.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: To minimize sound at maximum performance, units are equipped with Copeland scroll compressors, isolation compressor grommets, and a standard compressor sound blanket.

IAQ equipment supported: The system is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). An outdoor air temperature sensor comes factory-installed.

Thermostat compatibility: The system is compatible with most thermostats. The communicating and self-configuring function is only available when used with the new KeepRite Observer communicating wall control (thermostat).

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: The system is compatible with the Observer communicating control with Wi-Fi capability, features self-configuring capabilities, and includes easy-to-read diagnostics. The air conditioner boasts an efficient single-stage scroll compressor and an efficiency rating up 15 SEER.

Warranty information: A limited three-year No Hassle Replacement warranty is available. A limited 10-year parts warranty, including the compressor and coils, is available to the original purchaser upon timely registration. The limited parts warranty period is reduced to five years if it is not registered within 90 days of installation. See the warranty certificate for additional details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gokeeprite.com.

eProduct 199

Model: CVA9 ProComfort™ Deluxe 19 variable-speed air conditioner with SmartSense technology

Footprint (in inches): 23-35 (length) by 23-35 (width) by 32-43 (height)

Serviceability features: This air conditioner offers precise system control with remote access and text-based diagnostics. A contractor’s name and information may be displayed when it’s installed as part of a complete Observer communicating system, including the Observer wall control with Wi-Fi capability.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.gokeeprite.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Product information posted online includes product specification sheets and installation and operation manuals.

IAQ equipment supported: The unit is compatible with KeepRite IAQ system components, including humidifiers, ventilators, UV lamps, and the KeepRite germicidal air purifier.

Thermostat compatibility: The system is compatible with most thermostats. The communicating and self-configuring functions are only available when used with the new KeepRite Observer communicating wall control (thermostat).

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gokeeprite.com.

eProduct 200

Lennox

Model: MS8Z multi-zone mini-split heat pump

Footprint (in inches): 16 (length) by 35 (width) by 28 (height)

Serviceability features: This mini-split heat pump offers leak detection and diagnostics.

Technical support: Support is available 9 a.m. to 7 p.m. Eastern time at 800-953-6669.

Noise-reduction features: Noise reduction comes in the form of a DC variable-speed electronically commutated motor (ECM), which ramps-up slowly and quietly during operation. Advanced motor technology and a quiet variable-speed-capacity ECM fan along with inverter-driven compressors help reduce operational noise levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The unit does not share replacement parts with other models.

Additional features: This multi-zone ductless system is powerful enough to manage heating and cooling in more than one room, regardless of architectural design. An advanced inverter meets the immediate comfort demands of a consumer and keeps heated or cooled air flowing consistently.

Warranty information: A five-year limited compressor warranty is available in residential installations. A one-year non-residential installation warranty is also available. A five-year warranty is available for all other covered components in residential installations, and a one-year non-residential installation warranty is also available.

Special installation requirements: Thermostat wiring, refrigerant tubing, and condensate lines from the indoor units to the outdoor unit are all that is needed for unit operation. This means much less demolition, an easier time fitting into specified spaces, and the elimination of energy loss through leaky ductwork.

Contact: Lennox Intl. Inc., 800-953-6669; www.lennox.com/residential.

eProduct 201

LG Electronics

Model: Multi V S (ARUB060GSS4) heat pump

Footprint (in inches): 13 (length) by 37 (width) by 54 (height)

Serviceability features: This heat pump’s outdoor unit is easy to service and requires little maintenance.

Technical support: Support is available 8 a.m. to 6 p.m. Central time, Monday to Friday, at 888-865-3026.

Noise-reduction features: The unit uses a variable-speed compressor, which is quiet to operate and uses minimal energy.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The unit is compatible with some shared replacement parts and some unique parts.

Additional features: Appropriate for light commercial installations, this 5-ton heat recovery system is designed to provide energy-efficient and flexible simultaneous heating and cooling down to minus 13°F. Coupled with automatic changeover between heating and cooling modes, comfort control is now effortless for property owners.

Warranty information: Standard five-year parts and seven-year compressor warranties are available. The LG extended warranty provides an additional five years for parts and three years for compressors and enables LG Excellence contractors to offer consumers a 10/10 limited warranty on this model and other qualifying LG duct-free systems in 2017.

Special installation requirements: A heat recovery unit is required for simultaneous heating and cooling operation.

Contact: LG Electronics USA Inc., 888-865-3026; www.lghvac.com.

eProduct 202

Luxaire

Model: Acclimate™ AL21 air conditioner

Footprint (in inches): 3-ton unit: 36 (length) by 32 (width) by 40 (height)

Serviceability features: This air conditioner offers built-in Charge Smart™ monitoring, which provides a direct readout of high and low system pressures and suction and liquid line temperatures while also calculating system superheat and system subcooling. This information is available without ever adding a manifold gauge set or temperature gauge — simply remove two screws to expose the capacitive touchscreen display. Charge Smart helps ensure the system is properly optimized for faster installation, service, and maximized service life.

Technical support: Support is available through the distributor where the product was purchased. Technical information is available on UPGnet, including product-specific, self-directed training. Technical support can also be obtained by a certified contractor 8 a.m. to 5 p.m. Central time, Monday to Friday, at 877-874-7378.

Noise-reduction features: The unit features an innovative SilentDrive™ sound-reduction system that includes a swept-wing fan, composite base pan, flat-wire grille guard, and sound-containment cloak that reduces sound levels to no more than a typical residential dishwasher.

IAQ equipment supported: The Wi-Fi-enabled Acclimate Hx touch-screen thermostat and variable capacity system are designed to seamlessly interface with the various optional field-installed and system-matched humidifiers, dehumidifiers, germ-killing UVC lighting, and high-efficiency MERV-16 air filtration to provide multiple system options to address specific IAQ challenges. The variable-capacity nature of the product allows it to be fine-tuned using the Climate Sync™ feature to address specific humidity challenges that can adversely impact IAQ.

Thermostat compatibility: This unit requires the Wi-Fi-enabled Acclimate Hx touch-screen communicating thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The system’s variable capacity provides more consistent comfort, exclusive Charge Smart charge monitoring, Climate Sync preconfigured operating profiles, Silent Drive sound-reduction technology, and the Wi-Fi-enabled Acclimate Hx touch-screen thermostat.

Warranty information: Limited one-year labor, lifetime compressor, and 10-year parts warranties are available on registered products.

Special installation requirements: The product must be installed as a complete system, which includes the AL21 outdoor unit. If using an Acclimate gas furnace, it must be matched with a CM coil with factory-mounted electronic expansion valve (EEV). If using an air handler, it must be matched with the AVV Acclimate variable-speed communicating air handler with factory-mounted EEV. Either system combination must be controlled by the Wi-Fi-enabled Acclimate Hx touch-screen thermostat.

Contact: Johnson Controls Inc., 405-419-6545; www.luxaire.com/acclimate.

eProduct 203

Maytag

Model: PSA1BF air conditioner

Footprint (in inches): 31 (length) by 31 (width) by 37 (height)

Serviceability features: This air conditioner features removable jacket panels that allow easy access to the coil for cleaning and routine maintenance. The compressor or pressure switch may be maintained via a removable access panel. External service valves allow for easy charging, and the fan top assembly is removable without removing any wiring.

Noise-reduction features: A composite base pan absorbs sound and vibration, and a compressor sound blanket helps reduce excess noise.

IAQ equipment supported: The unit supports all standard IAQ products, including zoning components, air cleaners, UV lights, and humidity controls.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts. The unit shares replacement parts with other models.

Additional features: The all-aluminum, microchannel coil technology includes a corrosion-resistant coil. The system’s two-stage capability allows it to shift between full and partial loads. It may be paired with most two-stage thermostats and does not require a special proprietary controller.

Warranty information: The unit includes a limited five-year parts warranty. A one-year Quality Pledge is available to replace the unit if the compressor fails within the first year. If the product is registered within 60 days of purchase, the coverage increases to a 10-year limited parts and a 10-year Quality Pledge. Extended warranties are available through the Contractors’ Preferred Protection Plan.

Special installation requirements: The unit must be installed with the microchannel evaporator coil.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 204

Model: PSA1BG air conditioner

Footprint (in inches): 31 (length) by 31 (width) by 37 (height)

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are included. A Quick Reference Data guide with extra charging instructions is also available.

Noise-reduction features: A composite base pan absorbs sound and vibration, and a compressor sound blanket helps reduce excess noise.

IAQ equipment supported: The unit supports all standard IAQ products, including zoning components, air cleaners, UV lights, and humidity controls.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts. The unit shares replacement parts with other models.

Additional features: The all-aluminum, microchannel coil technology includes a corrosion-resistant coil. Inverter technology allows the unit to modulate between five compressor speeds both below and above nominal capacity. It may be paired with most two-stage thermostats and does not require a special proprietary controller. The indoor unit utilizes the same family of coils and air handlers/furnaces as the two-stage product.

Special installation requirements: The unit must be installed with the microchannel evaporator coil.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 205

Midea

Model: Premier MEHSU2-24PHH2 ductless system

Footprint (in inches): 17 (length) by 37 (width) by 32 (height)

Serviceability features: Manufacturer did not specify.

Technical support: Support is available at 973-539-5330, ext. 2, or by visiting us.midea.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are included.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat. The system is Wi-Fi-compatible with the Midea Air app.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: This Energy Star-rated product has been designed for maximum efficiency, which helps end users save on bills. Universal matching and modular install allows up to five indoor units to be included for every one outdoor unit, which allows end users to set different temperatures in each room for ultimate comfort. Hyper heating and low ambient cooling offer a broad coverage range from minus 22°F.

Warranty information: Five-year parts and seven-year compressor warranties are available.

Special installation requirements: The unit must be installed by a certified installer.

Contact: Midea, 973-539-5330; us.midea.com.

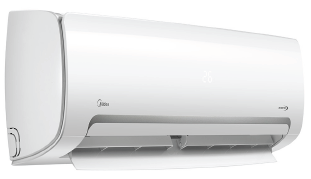

eProduct 206

Model: Premier Quattro Hyper High-Wall (MEU-09WQH2) ductless system

Footprint (in inches): 13 (length) by 32 (width) by 22 (height)

Serviceability features: Manufacturer did not specify.

Technical support: Support is provided during normal business hours via the exclusive HVAC support call-in number, 888-960-4749. The consumer call-in number is 866-646-4332.

Technical support materials: Installation, operation, and maintenance manuals; specification sheets; an owner’s manual; and submittal data sheets are included.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat. The unit becomes Wi-Fi-compatible via the Midea Air app.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: This ductless unit’s genetic algorithm step-less inverter improves comfort and efficiency with seamless temperature control. Hyper heating and low ambient cooling provides a broad coverage range from minus 22°F at 90 percent capacity to minus 13°F. Flash cooling and heating with cold and hot air accommodates in less than 30 seconds.

Warranty information: Five-year parts and seven-year compressor warranties are available.

Special installation requirements: The unit must be installed by a certified installer.

Contact: Midea, 973-539-5330; us.midea.com.

eProduct 207

Mitsubishi Electric

Model: MXZ-8C60NA multi-zone heat pump

Footprint (in inches): 13 (length) by 41 (width) by 52 (height)

Serviceability features: The coils in this multi-zone heat pump are cleanable, like other standard outdoor units. Contractors and installers can troubleshoot the system from the control boards and review maintenance data through downloadable software called Maintenance Tool. MXZ’s narrow body also fits close to an exterior wall, freeing up space for landscaping.

Technical support: Diamond Contractors™ are located nationwide and supported by the industry’s broadest network of Diamond Service Group (DSG) distributors. Technical experts are available 8 a.m. to 7 p.m. Eastern time, Monday to Friday, at 800-433-4822.

Noise-reduction features: A highly efficient and totally enclosed DC motor ensures whisper-quiet operation year-round.

IAQ equipment supported: The use of the inverter-driven compressor allows for tight temperature control and the ability to ramp down to a lower speed if the indoor unit is calling for lower humidity.

Thermostat compatibility: The system is compatible with most thermostats. There are many control options, including the thermostat interface and the new kumo cloud™ programmable controller app, which offers compatibility with any smart device and standard Mitsubishi Electric controllers. Kumo cloud provides the ability to control a system from anywhere with an internet connection.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: As a multi-zone, 5-ton outdoor unit, it can connect up to eight indoor units, offering whole-home comfort and individualized zone control to occupants. The inverter-driven compressor technology uses the precise amount of energy needed to maintain comfort conditions. The MXZ is also compatible with most styles of indoor units, presenting homeowners with the option to choose the style that fits their homes.

Warranty information: Five-year parts and seven-year compressor warranties are available to the original owner of the system from the date of installation. These warranty periods are extended to 12 years for parts and 12 years for the compressor if the unit’s installed and registered by a Diamond Contractor.

Special installation requirements: Manufacturer did not specify.

Contact: Mitsubishi Electric US Inc. Cooling and Heating Division, 800-687-1966; www.mitsubishicomfort.com.

eProduct 208

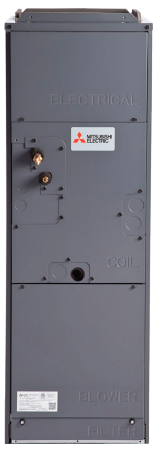

Model: PVA multi-position air handler series (PVA-A12AA7; PVA-18AA7; PVA-A24AA7; PVA-A30AA7; PVA-A36AA7; PVA-A42AA7)

Footprint (in inches): 17, 21, 22 (length) by 22, 22, 25 (width) by 50, 54, 60 (height)

Serviceability features: Shipped with a washable, standard-size filter, the PVA system offers easy maintenance for homeowners and building owners/facility managers. Additional filtration can be used, as well. All components are on slide-out drawers for easy access to fans and coils for cleaning. The system can be fully disassembled to fit through tight openings, such as closet doors, attic doors, or equipment room openings, and reassembled, which allows for an easy installation anywhere.

Technical support: Diamond Contractors are available nationwide and are supported by a broad network of Diamond Service Group (DSG) distributors. Technical experts are available 8 a.m. to 7 p.m. Eastern time, Monday to Friday, at 800-433-4822.

Noise-reduction features: A highly efficient and totally enclosed DC motor prevents sound from traveling through the ductwork, which ensures whisper-quiet operation year-round.

IAQ equipment supported: Several filtration options are available. Humidity and air quality is supported and controlled by third-party ductwork and fresh-air intake.

Thermostat compatibility: The system is compatible with most thermostats. The new kumo cloud programmable controller app allows compatibility with any smart device. Kumo cloud provides the ability to control a system from anywhere with an internet connection.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The PVA air handler connects with a Mitsubishi Electric PUY/PUZ heat pump and the Hyper-Heating Inverter™ (H2i®) PUZ-HA outdoor unit. This multi-position, air-handling unit provides conditioning to a variety of space sizes. The air handler also pairs with the kumo cloud programmable controller app to enable temperature control from a smartphone.

Special installation requirements: Manufacturer did not specify.

Contact: Mitsubishi Electric US Inc. Cooling and Heating Division, 800-687-1966; www.mitsubishicomfort.com.

eProduct 209

Modine

Model: GeoSync P-Series water-source heat pump

Footprint (in inches): 31 (length) by 26 (width) by 53 (height)

Serviceability features: This vertical water-to-air heat pump features a patent pending vertical control panel on the corner of the unit that keeps installers on their feet. No tools are required to replace the standard-size 4-inch-thick filters. Seven removable access panels provide access to all sides of unit. The unit’s thermostatic expansion valve (TXV) is serviceable.

Technical support: Support is available at 877-679-4436.

Noise-reduction features: Closed-cell foam-insulated cabinet, compressor vibration isolation, and a DecStar® integrated electronically commutated motor (ECM) and blower help reduce operational noise levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: Additional features include a Modine CF 2-row microchannel air coil, patent pending vertical control panel and casing design, robust controls system with effortless setup, a DecStar-integrated ECM and blower, and standard-size 4-inch deep filters.

Warranty information: Ten-year parts and five-year labor warranties come standard on residential units. An optional five-year labor extension is also available. A one-year parts-only warranty is available on commercial units.

Special installation requirements: Manufacturer did not specify.

Contact: Modine Mfg. Co., 800-828-4328; www.modinehvac.com.

eProduct 210

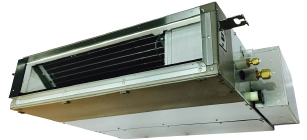

Panasonic

Model: Low-profile ducted heat pump, E12SD3UA

Footprint (in inches): 29 (length) by 25 (width) by 8 (height)

Serviceability features: This heat pump’s self-diagnostic mode allows the service provider to retrieve error codes for quick serviceability.

Technical support: Support is available at hvac.service@us.panasonic.com.

Noise-reduction features: The unit’s high-efficiency compressors include anti-vibration rubber mounts on the compressor legs to absorb impact, improve durability, and reduce noise.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: The unit includes a dip switch setting for higher static pressure.

Warranty information: Five-year parts and seven-year compressor warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Panasonic Corp., 201-348-7507; http://business.panasonic.com/products-hvac-heatingairconditioning

eProduct 211

Reznor

Model: R6GI gas/electric packaged unit

Footprint (in inches): 56-64 (length) by 48 (width) by 39-47 (height)

Serviceability features: This packaged unit features on-board diagnostics with an easy-to-read, two-digit LED display for 29 possible faults. The inverter mounts on a pull-out bracket, which provides convenient access to the compressor and expansion valve. The furnace board includes a simple two-light LED fault display, and a single light indicates flame signal strength.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4328. Technical literature is available 24/7 at literature.nortekhvac.com.

Noise-reduction features: A swept-wing fan blade on the variable-speed condenser fan motor assembly, seamless electric expansion valve (EXV) operation, and a closed-cell blanket surrounding the entire compressor reduces objectionable outdoor noise. A variable-speed blower motor and fully insulated supply and return sections provide low vibration and noise-dampening features on the inside of this packaged product.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats. A two-stage thermostat is recommended for full operational savings.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The cooling portion of this weatherized unit is very special as all motors (condenser fan, blower, and compressor) are all variable speed. Inverter technology starts, runs, and stops the compressor with complete accuracy during normal and abnormal operation. The R6GI offers full protection, operation, and comfort.

Warranty information: A one-year warranty is available from the date of the original installation (regardless of operation) or 18 months from date of shipment. Optional extended warranties are also available.

Special installation requirements: There are no special installation requirements for this product.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 212

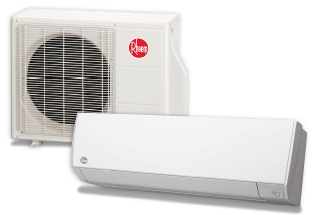

Rheem

Model: ROSH09AHWJ (outdoor) and RIWH09AHWJ (indoor) residential mini-split heat pump

Footprint (in inches): Outdoor: 25 (length) by 37 (width) by 28 (height); Indoor: 11 (length) by 37 (width) by 12 (height)

Serviceability features: This mini-split heat pump offers hassle-free filter access for periodical cleaning — no tools are required to access, clean, and replace its filters. An easy-to-read diagnostic display at the indoor unit assists in troubleshooting and servicing the system.

Technical support: Support is available via authorized Rheem distributors’ District Service Coordinator (DSC) personnel. Additional factory support is accessible through a network of Rheem District Technical Representatives (DTR) assigned to cover a geographic territory and provide field tech support as needed to DSC and contractors at the job site. More information is available 24/7 at myrheem.com.

Noise-reduction features: This indoor mini-split unit has a quiet mode that reduces fan speed and decreases the sound to whisper-quiet levels while maintaining comfort within the space. The outdoor unit regulates the compressor and fan speed during high-speed operation for a 3-dB noise reduction.

IAQ equipment supported: The included Apple-Catechin filter absorbs the dust, mold spores, and microorganisms onto the filter by static electricity, and growth is inhibited and deactivated. The ion deodorizing filter (also included) deodorizes by decomposing absorbed odors using the oxidizing and reducing effects of ions generated by fine ceramic particles.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: These units are the highest efficiency systems in Rheem’s new residential mini-split heat pump product line. Additional features include an energy-saving program that adjusts the temperature when there’s no activity in the room. The system also boasts high heating capacities at low ambient temperatures.

Warranty information: Standard five-year parts and seven-year compressor warranties are available. It also has a 10-year extended warranty for parts and the compressor upon online registration.

Special installation requirements: Compared to traditional ducted systems, there are some unique installation requirements to be considered for Rheem ductless mini-splits. For example, a flare tool and nut and torque wrench are required to make the braze-free refrigerant line connections. For more information, consult the installation manual.

Contact: Rheem Mfg. Co., 770-351-3000; www.rheem.com.

eProduct 213

Ruud

Model: UOSH09AHWJ (outdoor) and UIWH09AHWJ (indoor) residential mini-split heat pump

Footprint (in inches): Outdoor: 25 (length) by 37 (width) by 28 (height); Indoor: 11 (length) by 37 (width) by 12 (height)

Serviceability features: This residential mini-split heat pump includes hassle-free filter access for periodical cleaning. No tools are required to access, clean, and replace filters. An easy-to-read diagnostic display at the indoor unit assists in troubleshooting and servicing the system.

Technical support: Support is available via authorized Ruud distributors’ District Service Coordinator (DSC) personnel. Additional factory support is accessible through a network of Ruud District Technical Representatives (DTR) assigned to cover a geographic territory, which provides field tech support as needed to DSC and contractors at the job site. More information is available 24/7 at myruud.com.

Noise-reduction features: The indoor mini-split unit has a quiet mode that reduces fan speed and decreases the sound to whisper-quiet levels while maintaining comfort within the space. The outdoor unit regulates the compressor and fan speed during high-speed operation for a 3-dB noise reduction.

IAQ equipment supported: The included Apple-Catechin filter absorbs dust, mold spores, and microorganisms onto the filter by static electricity and inhibits and deactivates growth. The ion deodorizing filter (also included) deodorizes by decomposing absorbed odors and reduces the effects of ions generated by fine ceramic particles.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: These are the highest efficiency units in Ruud’s residential mini-split heat pump product line. Additional features of this premium system include an energy-saving program that adjusts the temperature when there’s no activity in the room. The system boasts high heating capacities at low ambient temperatures.

Warranty information: Standard five-year parts and seven-year compressor warranties are available. It also has a 10-year extended warranty for parts and the compressor upon online registration.

Special installation requirements: Compared to traditional ducted systems, there are some unique installation requirements to be considered for Ruud ductless mini splits. For example, a flare tool and nut and torque wrench are required for make the braze-free refrigerant line connections. For a detailed list of installation requirements, consult the installation manual.

Contact: Ruud, 770-351-3000; www.ruud.com.

eProduct 214

Samsung HVAC

Model: Wind-Free™ RAC heat pump, AR09MSWXCWK and AR12MSWXCWK

Footprint (in inches): Manufacturer did not specify.

Serviceability features: This heat pump’s refrigerant pipes, drain pipe, and high- and low-voltage connections are accessible from the bottom of the unit, which provides optimal installation and service access. Units also feature a digital display, which provides comprehensive error codes for simple troubleshooting. A Wi-Fi control comes standard with these units. In addition to remote control and monitoring using Samsung’s Smart Home mobile app, service codes and explanations can also be viewed if errors are present.

Technical support: Support is available 7 a.m. to 7 p.m. Central time at 888-699-6067. Local support is also available through Samsung’s dealer network.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; guide specs; and DWG files are available.

Noise-reduction features: Noise-reduction features include Wind-Free mode, an eight-pole compressor, a compressor jacket, and an optimal fan design.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat. An accessory thermostat adapter allows most 24-vac thermostats to connect.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: These systems provide ideal conditions by maintaining the desired room temperature using Wind-Free cooling to gently disperse cold air through 21,000 micro-holes on the front of the indoor unit. A two-step cooling system first lowers temperatures in fast cooling mode and then switches to Wind-Free cooling mode, which creates still air as defined by ASHRAE as air currents at speeds below 0.15 meters per second. This approach can reduce energy consumption and increase overall comfort by removing direct cold air drafts.

Warranty information: Ten-year compressor, 10-year parts, and one-year limited labor warranties are available upon registration.

Special installation requirements: Manufacturer did not specify.

Contact: Samsung HVAC, 888-699-6067 ext. 283; www.samsunghvac.com.

eProduct 215

SpacePak

Model: J Series air handler

Footprint (in inches): 34 (length) by 24, 33, or 43 (width) by 14 (height)

Serviceability features: All components, including the controls, are easily accessible for service and maintenance.

Technical support: Service is available 8 a.m. to 5 p.m. Eastern time, Monday to Friday. A network of manufacturer’s representatives is available across North America to provide regional service.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Yes.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: This mini-duct, central air conditioning solution is for homes not equipped for traditional ducted systems. From classic Victorians to simple Capes to modern custom homes, SpacePak brings cooling and heating comfort while preserving the design and aesthetic integrity of a home. The many benefits include ease of installation without major remodeling, removal of up to 30 percent more moisture from the air for less humidity, high energy efficiency, and whisper-quiet operation.

Warranty information: A one-year warranty is available. An extended five-year warranty is offered to certified installers.

Special installation requirements: SpacePak is an engineered system requiring specific installation methods.

Contact: SpacePak, 413-564-5779; www.spacepak.com.

eProduct 216

Tempstar

Model: TSA6 SmartComfort™ 16 split system air conditioner

Footprint (in inches): 31-35 (length) by 31-35 (width) by 29-47 (height)

Serviceability features: This air conditioner is compatible with the Observer communicating control with Wi-Fi capability, which features system control with remote access (when connected to the internet) and text-based diagnostics. Its three-piece grille panels can be removed separately to view or clean. The service valves are easily accessible as only two screws need to be removed to access the control panel. The unit also includes high- and low-pressure switches.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.gotempstar.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

Noise-reduction features: Units are equipped with Copeland scroll compressors and isolation compressor grommets to minimize sound at maximum performance. A compressor sound blanket comes standard.

IAQ equipment supported: This air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). An outdoor air temperature sensor comes factory-installed.

Thermostat compatibility: The system is compatible with most thermostats. The communicating and self-configuring function is only available when used with the Tempstar Observer communicating wall control (thermostat).

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: This unit comes equipped with Energy Star ratings with selected coil-only combinations in every size and features efficiency ratings up to 16 SEER. The unit is compatible with the Observer communicating control with Wi-Fi capability, features self-configuring capabilities, and offers easy-to-read diagnostics. The thermostat can be programmed to display a contractor’s name and contact information.

Warranty information: A limited five-year No Hassle Replacement warranty is available. A 10-year limited parts warranty, including the compressor and coils, is available to the original purchaser upon timely registration. The limited parts warranty period is reduced to five years if the unit’s not registered within 90 days of installation. See the warranty certificate for additional details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gotempstar.com.

eProduct 217

Model: TVA9 SmartComfort® Deluxe 19 variable-speed air conditioner with SmartSense technology

Footprint (in inches): 23-35 (length) by 23-35 (width) by 32-43 (height)

Serviceability features: This variable-speed air conditioner offers precise system control with remote access and text-based diagnostics. A contractor’s name and information is displayed when installed as part of a complete Observer communicating system, including the Observer wall control with Wi-Fi capability.

Technical support: Technical service advisors available at local distributors can provide technical assistance and troubleshooting. Technical training is available 24/7/365 online at www.gotempstar.com and at field schools held at participating distributor locations nationwide.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Additional product information is available online.

IAQ equipment supported: Compatible with Tempstar IAQ system components, including humidifiers, ventilators, UV lamps, and the Tempstar germicidal air purifier.

Thermostat compatibility: The system is compatible with most thermostats. The communicating and self-configuring function is only available when used with the new Tempstar Observer communicating wall control (thermostat).

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gotempstar.com.

eProduct 218

Tetco

Model: Single-stage, compact, horizontal, ground-source packaged unit, TZS 018-072

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: This horizontal ground-source packaged unit’s hinged control box swings open or is removable to access internal components. Electrical and water connections are located on the front-corner post, and the refrigerant test port is accessible via a front panel. All exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation, and its desuperheater switch is externally mounted.

Technical support: Support is available 24/7 at 618-664-9010 and technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or by visiting www.geothermaluniversity.com.

Noise-reduction features: Elastomeric compressor vibration absorption pads provide exceptional sound and vibration insulation. High-density closed-cell foam insulation helps absorb sound, and a heavy-gauge compressor mounting plate with multiple durometer rubber and elastomeric vibration absorption pads provide superior compressor and blower motor isolation. High-density, UL Greenguard Gold-certified, closed-cell foam insulation also helps absorb sound.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: Models are field-configurable for side or end discharge and feature a compact design with higher efficiencies. Its all-aluminum, microchannel air coil improves efficiency. A sensor and flow-switch-protected, foam-enclosed, brazed-plate heat exchanger reduces weight and refrigerant charge while increasing performance. Its compact design allows 24-inch-on-center attic truss pass-through installation.

Warranty information: A standard five-year residential warranty includes all unit components and select accessory items. A five-year labor allowance warranty covers all unit components and select acessory items. A free compressor-only warranty upgrade of up to 10 years is available upon registration. An optional 10-year parts and labor extended warranty is also available.

Special installation requirements: Its small footprint; front-corner, post-mounted plumbing and electrical connections; and field-selectable discharge air pattern are ideal for retrofit or new construction applications. The unique application of brazed-plate and microchannel heat exchangers in a compact, efficient, and installer-/technician-friendly package provides excellent performance and reliability.

Contact: Enertech Global, 618-664-9010; enertechgeo.com.

eProduct 219

Thermo Pride

Model: TC4 Series air conditioner

Footprint (in inches): 29-38 (length) by 29-34 (width) by 30-36 (height)

Serviceability features: This air conditioner’s small footprint provides easy handling, transport, and installation. The coated, steel-wire fan guard; coated external fasteners; and pretreated galvanized steel chassis components resist corrosion and rust. The compressor is protected by a pressure-relief valve and a temperature sensor. It features low operating sound levels, a factory-installed filter drier, and a factory charge for a 15-foot line set, which equates to less time spent brazing and charging the system.

Technical support: Support is available 8 a.m. to 5 p.m. Eastern time at 800-348-5130.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; specification sheets; and an owner’s manual are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The unit shares replacement parts with other models. 

Additional features: Manufacturer did not specify.

Warranty information: Ten-year compressor and parts warranties are available. If for any reason the compressor fails within the first five years, Thermo Products will replace the entire unit. The warranty must be registered within 90 days to activate full coverage. Otherwise, it reverts to a five-year parts and coil and standard 10-year compressor warranty.

Special installation requirements: Manufacturer did not specify.

Contact: Thermo Products LLC, 800-348-5130; www.thermopride.com.

eProduct 220

Trane

Model: 38 SEER single-zone mini-split ductless system

Footprint (in inches): Indoor: 39-43 (length) by 9-10 (width) by 12-13 (height); Outdoor: 35-39 (length) by 15-17 (width) by 23-31 (height)

Serviceability features: Manufacturer did not specify.

Technical support: Local and national support is available by calling a field service representative.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; and an owner’s manual are available. Check with a local distributor or comfortsite.com for additional information.

Noise-reduction features: These mini-splits offer extremely quiet indoor and outdoor noise levels, indoor sound pressure levels as low as 19 dB, and outdoor sound pressure levels as low as 53 dB.

IAQ equipment supported: No additional factory-installed IAQ equipment is available at this time. Third-party IAQ products are available. Check with a local distribution partner for more information.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: This new low-ambient unit provides 100 percent cooling capacity at 0°F. It features a stylish design with exceptional SEER, EER, HSPF, and coefficient of performance (COP). The indoor air handler has 3-D motion, allowing all areas of the room to be cooled with a hand-held remote control.

Warranty information: When registered, a 10-year warranty is available. This includes the exclusive unit replacement if a coil or compressor fails.

Special installation requirements: Follow industry standard practices for mini-split installations. No additional components are needed for a typical installation.

Contact: Trane, an Ingersoll Rand brand, www.trane.com.

eProduct 221

WaterFurnace

Model: 5 Series 500W11 single hydronic heat pump

Footprint (in inches): 24 (length) by 20 (width) by 26 (height)

Serviceability features: This single hydronic heat pump includes removable compressor access panels. Quick-attach wiring harnesses are used throughout for fast servicing. High- and low-pressure refrigerant service ports are included, as well. Additional features include a field-switchable control box, an external diagnostic AID tool port, and flush-mount water lines.

Technical support: Support is available at 800-257-5667.

Noise-reduction features: A single-speed scroll compressor is mounted on a double isolation system, and a Super Quiet Sound Package reduces operational noise levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The unit shares replacement parts with other models.

Additional features: The wide range of operating temperatures, compact size, reversible control box, and piping enable the 5 Series 500W11 to be used in a variety of applications, including pool/spa heating, radiant floor, snow melt, aquaculture, and process water installations. Units can be used for heating-only or heating and cooling applications.

Warranty information: A 10-year parts and labor-allowance warranty is available.

Special installation requirements: Manufacturer did not specify.

Contact: WaterFurnace Intl. Inc., 260-478-5667; www.waterfurnace.com.

eProduct 222

Westinghouse

Model: FSA1BF air conditioner

Footprint (in inches): 31 (length) by 31 (width) by 37 (height)

Serviceability features: This air conditioner’s removable jacket panels allow easy access to the coil for cleaning and routine maintenance. Compressor or pressure switch maintenance may be achieved via a removable access panel. External service valves provide easy charging, and the fan top assembly may be removed without removing any wiring.

Noise-reduction features: A composite base pan absorbs sound and vibration, and a compressor sound blanket helps reduce excess noise.

IAQ equipment supported: The unit supports all standard IAQ products, including zoning components, air cleaners, UV lights, and humidity controls.

Thermostat compatibility: The system is compatible with most thermostats.

Replacement parts compatibility: The unit is compatible with some shared replacement parts and some unique parts.

Additional features: The all-aluminum, microchannel coil technology includes a corrosion-resistant coil. Its two-stage abilities allow the unit to shift between full- and partial-load performance. The system may be paired with most two-stage thermostats and does not require a special proprietary controller.

Warranty information: A limited five-year parts warranty is included. A one-year Quality Pledge to replace the unit if the compressor fails within the first year is available. If the product is registered within 60 days of purchase, the coverage increases to a 10-year limited parts and a 10-year Quality Pledge. Extended warranties are available through the Contractors’ Preferred Protection Plan.

Special installation requirements: The system must be installed with a microchannel evaporator coil.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 223

Model: R6GI gas/electric packaged unit

Footprint (in inches): 56-64 (length) by 48 (width) by 39-47 (height)

Serviceability features: This packaged unit features on-board diagnostics with an easy-to-read, two-digit LED display for 29 possible faults. The inverter mounts on a pull-out bracket for convenient compressor and expansion valve access. The furnace board features a simple two-light LED fault display, and a single light provides flame signal strength.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4328. Technical literature is available 24/7 at literature.nortekhvac.com.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The system is compatible with most thermostats. A two-stage thermostat is recommended for full operational savings. 

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts. The unit shares replacement parts with other models.

Additional features: The cooling portion of this weatherized unit is very special as all motors (condenser fan, blower, and compressor) are variable speed. Inverter technology starts, runs, and stops the compressor with complete accuracy during normal and abnormal operation. The R6GI offers full protection, operation, and comfort.

Warranty information: A one-year warranty is available from the date of the original installation (regardless of operation) or 18 months from the shipment date. Optional extended warranties are available, as well.

Special installation requirements: There are no special installation requirements for this product.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 224

York

Model: Affinity™ YXV air conditioner

Footprint (in inches): 3-ton unit: 36 (length) by 32 (width) by 40 (height)

Serviceability features: Built-in Charge Assurance™ monitoring provides a direct readout of high- and low-system pressures and suction and liquid line temperatures while also calculating system superheat and system subcooling. This information is available without ever adding a manifold gauge set or temperature gauge — simply remove two screws to expose the capacitive touchscreen display. Charge Assurance helps ensure the system is properly optimized for faster installation and service and helps maximize the system’s service life.

Technical support: Support is available through the distributor where the product was purchased. Technical information is available on UPGnet, including product-specific, self-directed training. Technical support can also be obtained by a certified contractor 8 a.m. to 5 p.m. Central time, Monday to Friday, at 877-874-7378.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; an owner’s manual; and submittal data sheets are available. Self-directed online training is also available.

Noise-reduction features: This unit features an innovative QuietDrive™ sound-reduction system that includes a swept-wing fan, composite base pan, flat-wire grille guard, and sound-containment cloak that reduces sound levels to no more than a typical residential dishwasher.

IAQ equipment supported: The Wi-Fi-enabled Affinity Hx touch-screen thermostat and variable-capacity system are designed to seamlessly interface with the various optional field-installed and system-matched humidifiers, dehumidifiers, germ-killing UVC lighting, and high-efficiency MERV-16 air filtration to provide multiple system options to address specific IAQ challenges. The variable-capacity nature of the product allows it to be fine-tuned using the ClimateSet™ feature to address specific humidity challenges that can adversely impact IAQ.

Thermostat compatibility: The unit requires the Wi-Fi-enabled Affinity Hx touch-screen communicating thermostat.

Replacement parts compatibility: The system is compatible with some shared replacement parts and some unique parts.

Additional features: The system features variable capacity for more consistent comfort, exclusive Charge Assurance charge monitoring, ClimateSet preconfigured operating profiles, QuietDrive sound-reduction technology, and the Wi-Fi-enabled Affinity Hx touch-screen thermostat.

Warranty information: Limited one-year labor, lifetime compressor, and 10-year parts warranties are available on registered products.

Special installation requirements: The outdoor unit must be installed as a complete system, which includes the YXV outdoor unit. If using an Affinity gas furnace, a CM coil with a factory-mounted electronic expansion valve (EEV) is required. If using an air handler, it must be matched with the AVV Affinity variable-speed communicating air handler with factory-mounted EEV. Either system combination must be controlled by the Wi-Fi-enabled Affinity Hx touch-screen thermostat.

Contact: Johnson Controls Inc., 405-419-6545; www.york.com/affinity.

eProduct 225

Click here to view the 2017 New HVAC Residential Product Grid.

Return to the top

During this webinar, we will discuss what acidic condensate is, how it’s formed, and the damage it can cause if not properly treated—while hitting on the latest regulations that are driving the adoption of condensing technology.

On Demand Use the power of AI to your advantage to book more jobs and gain more operational efficiencies during busy season this year! See how an AI Employee can help you save time by qualifying every lead for you, automatically responding to incoming leads, and working overtime so you don’t have to.

Residential Cooling Showcase 2017

Heat pumps, air handlers, fan coils, geothermal units, and more

Airstage

Amana

American Standard

Arcoaire

Armstrong Air

Bard

Bosch

Broan

Bryant

Carrier

Champion

Coleman

Comfort-Aire/Century

Comfortmaker

Daikin Applied

Daikin Ductless

Daikin Unitary

Day & Night

EMI

First Co.

Friedrich Air Conditioning

Frigidaire

GeoComfort

Goodman

Haier

Halcyon

Heil

Hydron Module

KeepRite

Lennox

LG Electronics

Luxaire

Maytag

Midea

Mitsubishi Electric

Modine

Panasonic

Reznor

Rheem

Ruud

Samsung HVAC

SpacePak

Tempstar

Tetco

Thermo Pride

Trane

WaterFurnace

Westinghouse

York

Share This Story

Report Abusive Comment

Related Articles

Sign Up. Stay Informed.

The #1 trusted source for the HVACR industry since 1926
