Commercial Heating Showcase 2017

In addition to the product grid, The NEWS spotlights the industry’s latest commercial heating products in the following photo feature. The manufacturers provided us with brief descriptions of the features included with each product. For more information, please contact the manufacturers or their distributors.

Aaon

Model: H3 Series furnace

Footprint (in inches): 111 (length) by 66 (width) by 27 (height)

Serviceability features: This furnace has hinged component service access doors. The gas heater operating instruction label is located inside the heater cabinet. Its ignition device automatically lights the burner. A labeled terminal block has a color-coded wiring and wiring diagram, a factory-provided potentiometer dial provides simple supply airflow adjustments, and direct-drive fans do not require belt maintenance.

Technical support: Support is available through local Aaon representatives at www.aaon.com/repsearch. Factory product support is available at productsupport@aaon.com or 903-236-4403. Installation, operation, and maintenance manuals are shipped with every unit.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; start-up instructions; and submittal data sheets are available.

Noise-reduction features: Its double-wall, rigid-polyurethane, foam-injected panel construction dampens any radiated fan sound. Supply fans include vibration isolation, and standard direct-drive fans do not have belt noise. Electronically commutated motors (ECMs) offer variable airflow control and reduced fan sound at lower speeds.

IAQ equipment supported: High-efficiency (up to 93 percent) gas heating air-handling units provide up to 100 percent outside air capabilities, which provide building occupants fresh, conditioned air. In addition, incoming air can be filtered using up to 4-inch MERV-14 filtration. Double-wall panel construction inhibits microbial growth and UV lights are available to inhibit microbial growth.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This high-efficiency (up to 93 percent) condensing gas furnace features factory-installed 5:1 turndown in the air-handling unit. It can be matched with high-efficiency DX or chilled water cooling systems. Units can be selected with factory-installed controls for single-zone variable air volume (VAV), VAV, constant air volume (CAV), or 100 percent outside air application.

Warranty information: One-year parts and standard extended 10-year gas-fired heat exchanger warranties are available.

Special installation requirements: This unit’s factory-installed options simplify installation. It is designed to fit through 36-by-80-inch doors for ease of installation and retrofit applications. Low-voltage quick connects make wiring between sections as easy as plugging two parts together. Field-installed furnaces require Category II or IV venting and a field-installed condensate drain system.

Contact: Aaon Heating and Cooling Products, 918-382-6337; www.aaon.com.

eProduct:160

Aaon

Model: WH/WV Series water-source/geothermal heat pump

Footprint (in inches): Manufacturer did not specify.

Serviceability features: This unit has tool-less service access panels for quick and easy maintenance. Horizontal units include integrated hanging brackets with rubber vibration isolation and bottom service access to the expansion valve, reversing valve, filter drier, supply fan, and filters. Vertical units include an internal condensate trap, and most components are accessible via single side service access.

Technical support: Support is available through local Aaon representatives at www.aaon.com/repsearch. Factory product support is available at techsupport@aaon.com or 918-382-6450. Installation, operation, and maintenance manuals are shipped with every unit.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; start-up instructions; and submittal data sheets are available.

Noise-reduction features: Standard closed-cell neoprene foam insulation reduces sound transmission. Standard direct-drive fans do not have belt noise. Compressors are mounted with rubber-in-shear on an isolation plate mounted with rubber-in-shear isolation for reduced vibration. A low-sound package is available and includes an insulated fan housing and a compressor sound suppression blanket for even quieter operation.

IAQ equipment supported: The unit comes standard with MERV-8 filtration. Optional 4-inch filter racks feature high-efficiency filters up to MERV 14. Stainless steel drain pans come standard and help prevent corrosion and microbial growth, and closed-cell neoprene foam insulation provides a clean, fiber-free airstream.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This heat pump’s aluminum microchannel air coil with large face area offers improved efficiency, reduced air pressure drop, reduced refrigerant charge, and reduced weight. Its all-aluminum cabinet construction significantly reduces weight and offers superior corrosion resistance. The factory-installed waterside economizer is available for high-efficiency operation. Vertical units include an internal condensate trap, which eliminates the need for a housekeeping pad. Horizontal units feature bottom service access to most components, which simplifies maintenance. High-efficiency MERV-14 filtration is available up to 4 inches.

Warranty information: A five-year parts warranty is available.

Special installation requirements: Aaon factory-installed options simplify installation.

Contact: Aaon Heating and Cooling Products, 918-583-2266; www.aaon.com.

eProduct:161

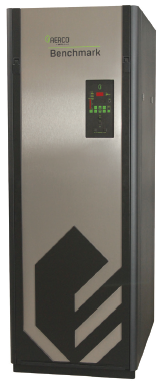

Aerco

Model: Benchmark Platinum boiler

Footprint (in inches): 34-108 (length) by 28-34 (width) by 78 (height)

Serviceability features: This boiler’s panels may be removed without any tools. Service may be completed via front and side access. It offers fully annunciated faults and messages (no codes). This unit features AERtrim and onAER diagnostic services. AERtrim is Aerco’s patented technology, which self-adjusts the combustion process to ensure optimal O2 levels and keeps systems operating at peak performance. Aerco’s onAER is a predictive maintenance tool that details system performance, which helps reduce costly unscheduled maintenance.

Technical support: Support is available 8 a.m. to 5 p.m. Eastern time at 845-580-8000, ext. 1. After-hours support is also available, simply follow the instructions on the phone.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; start-up instructions; an owner’s manual; submittal data sheets; and onAER materials are available.

Noise-reduction features: Boilers operate at less than 75 dBA (at full fire). These boilers feature high turndown (up to 20:1), which means the boilers will typically operate at much lower fire rates throughout the heating season, which translates to better seasonal efficiency and quieter operation.

IAQ equipment supported: Boilers can be installed and operated with additional equipment, such as carbon monoxide detectors and refrigerant leak detectors. Likewise, BMK Platinum boilers offer very low emissions (ultra-low NOx capable) and onboard combustion control, such as the AERtrim system, helps ensure emissions remain low despite any site condition changes that may be detrimental to efficient combustion.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: These boilers optimize hydronic systems for maximum efficiency and savings. AERtrim self-adjusts the combustion process to ensure optimal O2 levels, which keeps systems operating at peak performance. Dual returns enable design and application flexibility, which increases efficiency up to an additional 7 percent. Aerco’s onAER predictive maintenance tool details system performance, which helps reduce costly unscheduled maintenance.

Warranty information: A 15-year non-prorated heat exchanger warranty protects against condensate corrosion, thermal shock, and workmanship. Five-year burner, three-year C-More controller, and two-year parts warranties are available.

Special installation requirements: Its stainless steel firetube design allows for greater application and installation flexibility, such as primary variable piping (recommended for maximum efficiency); dual return connections (enables design and application flexibility, increasing efficiency up to an additional 7 percent); up to 140 equivalent feet of venting; and common venting of different size models possible.

Contact: Aerco Intl. Inc., 845-580-8047; www.aerco.com.

eProduct:162

Allied Commercial

Model: K-Series high-efficiency heat pump or dual fuel, KHB and KDB

Footprint (in inches): 83-101 (length) by 45-60 (width) by 37-47 (height)

Serviceability features: Features include a slide-out blower compartment, hinged access panel, easily accessible gas compartment, and marked and color-coded wiring.

Technical support: Support is available at 800-448-5872.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; specification sheets; start-up instructions; an owner’s manual; and technical support materials are available.

Noise-reduction features: This unit’s isolated compressor is easily serviceable and provides quiet operation.

IAQ equipment supported: This heat pump supports high-MERV filtration and a UV lamp.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: It is dual-fuel and BACnet-compatible. The Eco-Last™ coil system uses minimal refrigerant, is extremely light, and features minimal brazed joints (standard on KC and KG models). Single-zone variable air volume (VAV)-equipped units precisely coordinate fan speed with the current demand for cooling, which reduces energy demand.

Warranty information: Fifteen-year limited stainless steel gas heat exchanger; 10-year limited aluminized gas and heat exchanger; five-year limited compressor; three-year limited Eco-Last coil system; and one-year limited components warranties are available.

Special installation requirements: No special requirements are required.

Contact: Allied Commercial, 803-738-4000; www.allied-commercial.com.

eProduct:163

Arcoaire

Model: RGS090-150 packaged gas/electric unit

Footprint (in inches): 88 (length) by 60 (width) by 41-49 (height)

Serviceability features: All connections and troubleshooting points are conveniently accessible via the master terminal board. Its IGC solid-state control provides on-board diagnostics with an LED error code designation, burner control logic, and energy-saving indoor fan motor delay. It features through-the-base utility connection capabilities, and its access panels have easy-grip handles and a no-strip screw feature.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. Technical training is available at field schools held at participating distributor locations.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

IAQ equipment supported: It features 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Units feature field-convertible airflow, high- and low-pressure switches, two-stage cooling, and two-stage gas heat. Factory-installed options include three heat options (high, medium, low) and medium- and high-static indoor fan options. Other market-driven options, such as liquid propane/high altitude kits, are available.

Warranty information: Fifteen-year limited optional stainless steel heat exchanger; 10-year limited aluminized stainless steel heat exchanger; five-year limited compressor; and one-year parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goarcoaire.com.

eProduct:164

Arcoaire

Model: RGX036-060 packaged gas/electric unit

Footprint (in inches): 74 (length) by 47 (width) by 33-41 (height)

Serviceability features: Its IGC solid-state control provides on-board diagnostics with an LED error code designation, burner control logic, and energy-saving indoor fan motor delay. All connections and troubleshooting points are conveniently located on the easily accessible master terminal board. Units feature through-the-base utility connections capabilities, and its access panels have easy-grip handles and a no-strip screw feature.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

IAQ equipment supported: This unit features 2-inch return air filters, an optional economizer control that accepts a CO2 sensor for IAQ capability, and a duct-mounted CO2 sensor accessory is available for field installation to provide outdoor air for ventilation capability on demand.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Units feature field-convertible airflow, high- and low-pressure switches, single-stage cooling, and two-stage gas heat. Factory-installed options include three heat options (high, medium, low) and medium- and high-static indoor fan options. Other market-driven options, such as liquid propane/high altitude kits, are available.

Warranty information: Fifteen-year limited optional stainless steel heat exchanger, 10-year limited aluminized heat exchanger, five-year limited compressor, and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goarcoaire.com.

eProduct:165

Arctic

Model: ARC-1000, -1500, -2000, -2500 and -3000 boiler

Footprint (in inches): Manufacturer did not specify.

Serviceability features: This boiler’s heat exchanger is fully accessible from the side. Tubes can be replaced with simple hand tools if repairs are ever needed. The front door opens up for access to service the burner/blower/gas train assembly, and all electrical components are located inside.

Technical support: Support is available 8 a.m. to 5 p.m., Monday to Friday, at 717-239-7642.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The unit’s heat exchanger uses a unique, flexible watertube design that naturally moves with the expansion and contraction of heating. A swedged mechanical fit, free of welds, seals the tube to header in a proven assembly method used for a century. Low waterside pressure drop makes it ideal for variable primary installations.

Warranty information: Standard lifetime thermal shock; 10-year heat exchanger; 10-year flue gas corrosion on the pressure vessel headers; five-year flue gas corrosion on the boiler tubes and flue collector sides, top, and bottom; and one-year parts warranties are available. Extended warranties are also available.

Special installation requirements: This boiler is packaged and ready for installation or available in various knockdown configurations that are best suited to gain access into a building that a packaged boiler will not. Individual components easily fit through a standard door opening and can be reassembled without requiring the services of an ASME welder.

Contact: Thermal Solutions Sales Co., 717-239-7640; www.thermalsolutions.com.

eProduct:166

Bard

Model: I-TEC heat pump

Footprint (in inches): 31 (length) by 47 (width) by 94 (height)

Serviceability features: This heat pump is designed for over-the-window sill wall penetrations. A front and center control panel allows easy access to components. It features hinged, lockable, removable doors. Modularized construction allows it to be transported through standard doors or in elevators. It can be installed in left or right corners with no modifications. Additional service features include indoor and outdoor electronically commutated motors (ECMs), high- and low-pressure switches, and noncorrosive drain pans.

Technical support: Support is available through Bard’s local distribution network.

Noise-reduction features: Its two-stage scroll compressor features a discharge muffler, double floating isolation mounting system, and sound-muffling cover. Its eco-friendly, high-performance insulation is made from recycled denim. Acoustical sound accessories can be added for even lower operating sound levels as requirements and budgets dictate.

IAQ equipment supported: Energy recovery ventilator (ERV) and commercial room ventilator options are available.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This unit is designed for classroom and other similar applications that demand high efficiency and low sound levels. It provides exceptional IAQ and quiet operation. Vented above the sill at the window level, the unit is designed to be aesthetically pleasing both indoors and out.

Warranty information: Five-year parts and five-year compressor warranties come standard.

Special installation requirements: None.

Contact: Bard Mfg. Co., 419-636-1194; www.bardhvac.com.

eProduct:167

Bosch

Bosch Thermotechnology

Model: Buderus SSB255 stainless steel boiler

Footprint (in inches): 22 (length) by 24 (width) by 62 (height)

Serviceability features: The boiler has been designed so that all critical components are easily serviced directly from the front of the unit.

Technical support: Support is available 8 a.m. to 6 p.m. Eastern time, Monday to Thursday, and 8 a.m. to 5 p.m. Eastern time Friday, at 800-283-3787, 603-965-7567 (fax), or 603-965-7581 (tech support fax).

Noise-reduction features: Special insulation has been installed around the heat exchanger and boiler jacket to ensure ultra-quiet operation.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: With an efficiency of 96 percent, the Buderus SSB Series is loaded with standard features, including 5:1 turndown ratio and on-board control that features weather compensation, Modbus connectivity, and a two-wire cascades link. It offers practical control solutions for any application, push terminal wiring, and a host of venting options. Boilers are CSD1-compliant, thanks to built-in low water cutoff and an adjustable manual reset high limit.

Warranty information: Bosch Thermotechnology Corp. (BTC) warrants that the heat exchanger will remain free of leaks for 10 years from the date of original installation or date of manufacture if proof of installation is not available, provided that the boiler is properly installed and maintained by a certified, licensed contractor and the other conditions of the warranty are met.

Special installation requirements: It is designed for ease of installation and features an automatic control unit for gas-fired appliances with a premix burner, pneumatic air-gas system, factory built-in low water cutoff, and safety temperature high limiter with manual reset.

Contact: Bosch Thermotechnology Corp., 312-673-6063; http://bit.ly/BOSCHSSB255.

eProduct:168

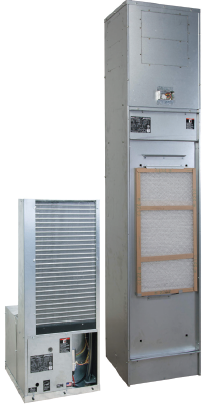

Bosch

Model: Climate 6000 AH semi-custom commercial air handlers

Footprint (in inches): Varies (length) by 24 (width) by 14 (height)

Serviceability features: All model AH air handlers have service availability from either the left- or right-hand side of the unit. Access to the interior of the unit is provided by quick-release, smart latches and hinged or completely removable door panels, which allow easy access to all the unit’s components for servicing. Water coils have air vents located on the outside of the unit for fast, convenient bleeding of any air trapped in the system.

Technical support materials: Manufacturer did not specify.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: The most defining feature is its innovative cabinet design. Double-wall panels sit on a framework of aluminum supports, and its galvanized steel base is unique due to its dual suitability for both indoor or outdoor installations. The Model AH has a unique, folded-panel design with sections joined using a double tongue-and-groove joint along with complex gasketing, which ensures maximum air tightness and thermal break.

Warranty information: Bosch Thermotechnology Corp. (BTC) warrants that all internal components incorporated into the air handler at the time of shipment by BTC shall remain free from defects in workmanship and materials for all internal functional parts two years following shipment date of the product for the unit casing and five years from the shipment date provided it is installed and properly maintained by a qualified and trained HVAC contractor.

Special installation requirements: These units are built with contractors’ installation needs in mind. They can be configured for different inlet and outlet locations for easy duct connection and can be delivered fully assembled or in sections to accommodate space restrictions.

Contact: Bosch Thermotechnology Corp., 312-673-6063; http://bit.ly/CLIMATE6000.

eProduct:169

Bryan

Bryan Boilers

Model: Free Flex condensing boiler

Footprint (in inches): Manufacturer did not specify.

Serviceability features: The Free Flex gives unprecedented access to the heat exchanger. A weld-free seal of tube to the header permits field servicing, cleaning, and tube replacement without going to the factory. This feature is unique and desirable to the condensing industry as field-repairable equipment avoids costly repairs.

Technical support: Support is available from 7:30 a.m. to 4:30 p.m. at 765-473-6651.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Its concert boiler control features intuitive icon navigation that allows users to effortlessly touch and move through the control menu. Commissioning is simple with quick setup, which allows a user to pinpoint fault codes with corrective actions at their fingertips. Extensive data archives are available to evaluate boiler performance and make value-added adjustments to maximize efficiency. A USB data port allows a user to upload and download data common for commissioning or share parameters with the factory. It features up to eight-boiler peer-to-peer sequencing with dual RJ45 connections. With no limiting welds from the tube to the header, the Free Flex is available fully packaged or as a knock down. Low waterside requirements make it ideal for variable-primary or primary-secondary applications.

Warranty information: A lifetime seal of pressure vessel protects against thermal shock, and a 10-year flue gas corrosion warranty for the upper and lower headers is available.

Special installation requirements: The unit utilizes common venting of Category 2 and Category 4 vent systems with properly engineered vent systems.

Contact: Bryan Boilers, 765-472-0961; www.bryanboilers.com.

eProduct:170

Bryant

Model: 575J Legacy split system heat pump

Footprint (in inches): 59 (length) by 46 (width) by 42-50 (height)

Serviceability features: The Legacy Series has a similar design as other Bryant rooftops and split systems for easy familiarization. Units have controls for troubleshooting and diagnostics. They also feature large organized control boxes; standardized components; a central control command center that centralizes wiring into one convenient location; handled, easy-access panels; and no-strip screw technology.

Technical support: Support is available via local Bryant sales offices.

Noise-reduction features: Rigid base rails, prop condenser fans, and isolated scroll compressors help reduce operational volumes.

IAQ equipment supported: A matching air handler has integrated the economizer’s capability with multiple sensor options. It also boasts 2-inch filters and multiple fan performance capabilities.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: An expansive offering of sizes, operation, and options make the Legacy line of heat pumps an ideal solution for both replacement and new construction applications. Units come standard with dependable time/temperature defrost controls and a refrigerant suction line accumulator.

Warranty information: Standard limited five-year parts and compressor and one-year other parts warranties are available. Optional extended warranties are also available.

Special installation requirements: None. The thermostatic expansion valve (TXV) and suction line accumulator come standard on each unit and require no field installation.

Contact: Bryant, 1-800-428-4326; www.bryant.com.

eProduct:171

Bryant

Model: 580J Legacy packaged rooftop

Footprint (in inches): 128-158 (length) by 87 (width) by 49-57 (height)

Serviceability features: This unit’s standardized components and controls make service easier. Fast access and handles on normally accessed service panels provide easy access. Its no-strip screw system guides screws into panels and captures them tightly without stripping the screw, panel, or unit.

Technical support: Support is provided via local Bryant sales offices.

Noise-reduction features: An isolated compressor and fan assembly with a cabinet constructed of post, and its panel design provides structural rigidity and easily cleaned surfaces.

IAQ equipment supported: Its integrated economizer features CO2 demand control ventilation capabilities. An optional Perfect Humidity dehumidification system is also available.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Units are designed for dedicated, factory-supplied vertical or horizontal airflow configurations. The units’ two-speed indoor fan system is controlled by a variable frequency drive (VFD) controller. The cabinet design integrates a large control box that allows room to work and mount Bryant accessory controls.

Warranty information: Ten-year aluminized heat exchanger, 15-year stainless steel heat exchanger, five-year compressor, and one-year all other parts warranties are available. Extended warranty packages are also available.

Special installation requirements: None.

Contact: Bryant, 800-428-4326; www.bryant.com.

eProduct:172

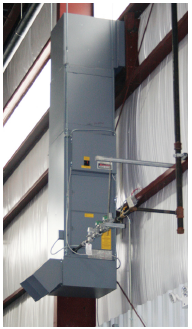

Cambridge

Cambridge Engineering

Model: Vertical S-1850, S-2200 and S-3200 high-temperature heating and ventilation (HTHV) direct-fired space heater

Footprint (in inches): 47 (length) by 38 (width) by 80 (height)

Serviceability features: Its hinged doors provide easy equipment access, but heaters require little maintenance and are built to last. Its Blow-Thru® design means the motor and other critical components are located in the cool airstream for extended life. Its patented low-fire start technology increases reliability and saves energy.

Technical support: Support is available 7:30 a.m. to 4:30 p.m. Central time, Monday to Friday, at 888-919-4779.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; start-up instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: The heater utilizes 100 percent outside air to dilute contaminants generated within the building. This virtually eliminates air quality problems associated with infrared heaters or conventional air heating systems that just recirculate indoor air.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Cambridge heaters are exceptionally efficient. HTHV technology offers the lowest overall cost because one piece of equipment will heat, ventilate, and destratify. In addition, fewer units are needed to heat the space. Blow-Thru technology allows a smaller, more energy-efficient design for space heating applications compared to a conventional draw-thru make-up air heater.

Warranty information: Two-year heater and five-year stainless Cambridge burner warranties are available.

Special installation requirements: To simplify installation, vertical stands are available in a variety of adjustable heights. Smaller, lightweight, pre-piped, and pre-wired S-Series heaters are available with five mounting options, including the popular thru-wall design for easier and faster installation. Every heater is tested as a fully assembled unit to minimize initial start-up problems.

Contact: Cambridge Engineering, 888-919-1887; www.cambridge-eng.com.

eProduct:173

Carrier

Model: 48/50LC WeatherExpert packaged VAV rooftop

Footprint (in inches): 88-158 (length) by 59-86 (width) by 49-57 (height)

Serviceability features: Full-sized panels feature handles and no-strip screw technology, which allow for easy unit access. Gas heat models use the exclusive IGC controller with on-board LED diagnostics, burner logic, and a fan control. Units have an internally sloped, self-draining composite condensate pan.

Technical support: Carrier’s widespread distribution network features on-site technical advisory staff and a training program. Additional training is available through Carrier University. Call 800-946-2930 or visit www.commercial.carrier.com for more information.

Noise-reduction features: Its fully insulated cabinet, isolated scroll compressors, prop condenser fan, and rigid base rails help reduce operational noise. Its indoor motor speed is controlled by a variable frequency drive (VFD), which allows the fan to operate at the optimum speed.

IAQ equipment supported: This rooftop unit’s factory-furnished filters and air economizer come with sensor options. Its supply air temperature sensor provides optimum comfort to the remote multi zones. Units come with heating capability for morning warm-up or occupied heating on demand.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This unit provides multi-zone variable air volume (VAV) operation down to 6 ton and also provides linkage to the remote zone terminals. The unit has the ability to provide both morning warm-up and occupied heating plus supply air tempering logic and operation. Additional features include a factory-furnished VFD with a duct static sensor and supply air temperature sensor.

Warranty information: Ten-year aluminum heat exchanger, 15-year stainless steel heat exchanger, five-year compressor and electric heat, and one-year all other parts warranties are available. Optional extended protection programs are also available.

Special installation requirements: The unit requires the use of Carrier zone terminal controls to provide optimum comfort control.

Contact: Carrier Corp., 800-227-7437; www.carrier.com/commercial.

eProduct:174

Carrier

Model: 50HCQ WeatherMaster packaged rooftop unit

Footprint (in inches): 74-116 (length) by 47-63 (width) by 33-57 (height)

Serviceability features: This unit’s handles provide easy access to all normally serviced components. Its no-strip screw system has superior holding power and guides screws into position while preventing the screw from stripping the unit’s metal. Accurate pressure readings are available to provide condenser pressure with the panels on. Refrigeration system pressure readings can be taken without affecting the condenser’s airflow.

Noise-reduction features: Its isolated compressor and fan assembly include a cabinet constructed of post, and its panel design provides structural rigidity and easily cleanable surfaces.

IAQ equipment supported: Foil-faced insulation through the entire airstream and integrated fresh-air economizers with CO2 demand control ventilation capability are supported. Its noncorrosive condensate pan is internally sloped per ASHRAE standards to prevent standing water from accumulating.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: These rooftop units were designed to be easy to install, maintain, and operate with customer-requested features, including a centralized terminal board, no-strip screw collars, and handled access panels. Units are also field-convertible to horizontal airflow, and refrigerant accumulators come standard in every unit.

Warranty information: Five-year electric heater and compressor, and one-year all other parts warranties are available. Extended warranty packages are also available.

Special installation requirements: None. The system’s expansion valve is factory-installed and tested.

Contact: Carrier Corp., 800-227-7437; www.carrier.com/commercial.

eProduct:175

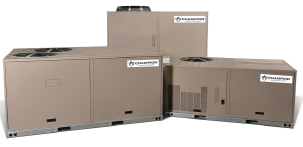

Champion

Model: XQE04-06 and XXEA7-12 Direct-Replacement, standard efficiency, packaged heat pumps

Footprint (in inches): 74-87 (length) by 49-62 (width)

Serviceability features: Setup, optimization, and monitoring is easy with standard Smart Equipment controls — a next-generation control system that offers an optional mobile access portal (MAP) gateway for access via a smartphone, tablet, laptop, or remote PC. Optional fault detection and diagnostics (FDD) saves contractors time by providing detailed alerts.

Technical support: Support is available via Champion distributors.

Noise-reduction features: This unit is designed for lower outdoor operating sound levels as low as 79 dBA.

IAQ equipment supported: Units are available with economizers as well as fresh-air and relief damper options. Three static drive options allow for airflow versatility up to 2-inch external static pressure (ESP). Two- or 4-inch field-convertible air filters and epoxy coil-coating options are available.

Thermostat compatibility: These heat pumps are compatible with five- and seven-wire thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Heat pumps feature an exact-fit replacement design that matches the footprints of other manufacturers’ units to reduce installation time, cost, and complexity. They are available with adjustable defrost, three heat capacities, two cabinet heights and footprint sizes, and a choice of cooling or electric heat configurations.

Warranty information: One-year limited complete unit and five-year limited compressor and electric heater element warranties are available.

Special installation requirements: Heat pumps are designed to provide a trouble-free match to the footprints of other manufacturers’ units without the need for a curb adapter.

Contact: Johnson Controls Inc., 405-419-6545; www.championhomecomfort.com/replacement/

eProduct:176

Climate

ClimateMaster 

Model: TSM water-source heat pump

Footprint (in inches): 19 (length) by 19 (width) by 88 (height)

Serviceability features: This heat pump’s removable chassis allows for staged installation and ease of maintenance. The iGate® communications hub is the DXM2 intelligent controller and analyzes the status of sensors and smart components, which are also two-way communicating, to determine how best to operate the system for optimal comfort, efficiency, and long-term reliability. All of this information is passed to the iGate thermostat or diagnostic tool, where it can be displayed in plain English.

Technical support: Support is available at 405-745-6000.

Noise-reduction features: Its UltraQuiet package consists of the standard double isolation of the compressor plus a sound-attenuating compressor blanket. All sheet metal surrounding the compressor has high-density sound-attenuating material.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system features some shared parts and some unique parts.

Additional features: It includes a modulating water valve depending on the water delta T. The DXM2 sends a voltage signal to the valve, which correlates to a percentage open to achieve the water flow needed. As conditions change, the voltage signal will readjust the valve for the needed water flow. By controlling the water flow, the system will always operate at its optimal capacity and efficiency.

Warranty information: An 18-month warranty is available from the ship date, and a 12-month warranty is available from start-up.

Special installation requirements: See the installation manual for more information.

Contact: ClimateMaster Inc., 405-745-6000; climatemaster.com.

eProduct:177

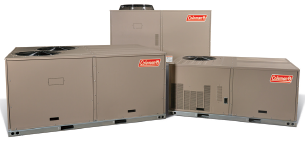

Coleman

Model: Peak™ XQE04-06 XXEA7-12 standard efficiency packaged heat pumps

Footprint (in inches): 74-87 (length) by 49-62 (width)

Technical support: Support is available via Coleman distributors.

Noise-reduction features: These heat pumps are designed for lower outdoor operating sound levels as low as 79 dBA.

IAQ equipment supported: Peak rooftop units are available with an economizer and fresh-air and relief damper options. Three static drive options allow for airflow versatility up to 2 inches of external static pressure (ESP). Two- or 4-inch field-convertible air filters and epoxy coil coating options are also available.

Thermostat compatibility: These units are compatible with five- and seven-wire thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Heat pumps feature an exact-fit replacement design that matches the footprints of other manufacturers’ units to reduce installation time, cost, and complexity. They are available with adjustable defrost and three heat capacities as well as two cabinet heights and footprint sizes. They also offer a choice of cooling or electric heat configurations.

Warranty information: One-year limited complete unit and five-year compressor and electric heater element warranties are available.

Special installation requirements: Heat pumps are designed to provide a trouble-free match to the footprints of other manufacturers’ units without the need for a curb adapter.

Contact: Johnson Controls Inc., 405-419-6545; www.colemanac.com/peak/.

eProduct:178

Comfortmaker

Model: PHR5 packaged heat pump

Footprint (in inches): 33-44 (length) by 48-49 (width) by 44-55 (height)

Serviceability features: This unit installs easily on a rooftop or on the ground level. Three panels allow easy access for maintenance and installation, and it easily converts to down-discharge applications.

Noise-reduction features: This heat pump includes a two-stage Copeland Scroll compressor, which operates most of the time in the quieter, lower stage. The outdoor fan is sized and optimized for minimal noise.

IAQ equipment supported: Enhanced dehumidification is available on high-stage cooling with use of a dehumidistat, and its accessory filter racks support 2-inch filters.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Two-stage Copeland Scroll compressors provide two-stage heating and cooling operation. Units include field-convertible airflow for ground level (horizontal) or rooftop (down) airflow and high-efficiency electronically commutated motor (ECM) indoor blowers. With cooling efficiencies up to 15.5 SEER and 12.5 EER, the PHR5 packaged heat pumps are Energy Star-qualified.

Warranty information: Five-year limited compressor and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gocomfortmaker.com.

eProduct:179

Comfortmaker

Model: RGH090-150 packaged gas/electric unit

Footprint (in inches): 88-116 (length) by 60-63 (width) by 49-57 (height)

Serviceability features: Its IGC solid-state control allows for on-board diagnostics with an LED error code designation, burner control logic, and energy-saving indoor fan motor delay. All connections and troubleshooting points are conveniently located on the easily accessible master terminal board. Units feature through-the-base utility connections capabilities, and its access panels have easy-grip handles and no-strip screws.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

IAQ equipment supported: It supports 2-inch return air filters. Its optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: These Energy Star-qualified units feature field-convertible airflow, high- and low-pressure switches, and dual scroll compressors. Their Scroll compressors have internal line-break overload protection. Factory-installed options include three heat options (high, medium, low) and medium- and high-static indoor fan options. Other market-driven options, such as liquid propane/high altitude kits, are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gocomfortmaker.com.

eProduct:180

Daikin

Daikin Applied

Model: DAH Rebel® air handler, heating only

Footprint (in inches): 95 (length) by 54 (width) by 41 (height)

Serviceability features: MicroTech® III or Intelligent Systems™ controls solutions provide easy building automation system (BAS) integration, diagnostics, and serviceability. It also features 2- or 4-inch slide-out filter racks; slide-out energy recovery wheel; low-maintenance plenum fans with direct-drive electronically commutated motors (ECMs); easily accessible hinged doors; and cleanable, double-wall, foam-injected panels.

Technical support: Contact a local Daikin Applied service representative for complete start-up services with comprehensive maintenance agreements and repair services. Daikin’s technical response center provides answers to operational and technical questions.

Noise-reduction features: Quiet variable-speed plenum fans with direct-drive ECM motors on all supply and exhaust fans and double-wall R-7 foam-injected panels help reduce operational noise levels.

IAQ equipment supported: Stainless steel double-sloped drain pan, 100-percent dedicated outdoor air system (DOAS) option, a combination 2- with 4-inch filter option, and cleanable double-wall construction are supported. Modulating or optional flow station outdoor damper control is available for ventilation air control.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: It offers heating options of 10:1 modulating gas heating, SCR electric heat, or modulating hot water heat. Direct-drive fans with variable-speed ECMs, integral energy recovery, and an outdoor air monitor are available.

Warranty information: Contact a local Daikin Applied service representative for complete start-up services with comprehensive maintenance agreements and repair services. The technical response center provides answers to operational and technical questions and can troubleshoot any Daikin Applied equipment. Emergency service and 24/7 repairs are also available.

Special installation requirements: All components are factory installed except the space sensor, humidity sensor, and optional static pressure sensing tubes. Rebel air handler rooftop systems are easily installed and maintained by capable service and mechanical contractors. Daikin recommends utilizing regional technical training sessions to maximize efficient installation.

Contact: Daikin Applied, 763-553-5157; www.daikinapplied.com.

eProduct:181

Daikin

Model: DPS020 Rebel packaged heat pump

Footprint (in inches): 186 (length) by 77 (width) by 71 (height)

Serviceability features: MicroTech III, Intelligent Systems, or Intelligent Equipment® controls provide easy stand-alone or building automation system (BAS) integration, diagnostics, and serviceability. It also offers 2- or 4-inch slide-out filter racks; modulating dehumidification control; integral energy recovery wheel options; dependable direct-drive plenum fan motors; variable-speed, inverter scroll compressor; quick-access hinged doors; and cleanable, double-wall, foam-injected panels.

Noise-reduction features: Variable-speed condenser fans; enclosed inverter compressor; quiet, variable-speed direct-drive plenums on all supply/exhaust fans; and double-wall, R-13, foam-injected panels help reduce operational noise.

IAQ equipment supported: A stainless steel, double-sloped drain pan; 100 percent dedicated outdoor air system (DOAS) option; modulating hot gas reheat dehumidification control; outdoor air monitor; a combination 2- with 4-inch filter option; optional energy recovery wheel; and cleanable, double-wall construction are supported

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-certified 19-IEER unit features a variable-speed inverter compressor and variable-speed heat pump. It also includes direct-drive fans with variable frequency drive (VFD) motors; integral energy recovery; modulating hot gas reheat; an outdoor air monitor; and MicroTech III, Intelligent Systems, and Intelligent Equipment® controls.

Warranty information: Contact a local Daikin Applied service representative for complete start-up services with comprehensive maintenance agreements and repair services. Daikin’s technical response center provides answers to operational and technical questions and can troubleshoot any Daikin Applied equipment. Emergency service and 24/7 repairs are also available.

Special installation requirements: All components are factory-installed except the space sensor, humidity sensor, and optional static pressure sensing tubes. Rebel commercial rooftop systems are easily installed and maintained by capable service and mechanical contractors. Daikin recommends utilizing regional technical training sessions to maximize efficient installation.

Contact: Daikin Applied, 763-553-5157; www.daikinapplied.com.

eProduct:182

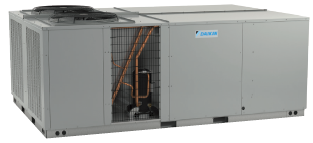

Daikin

Daikin Unitary

Model: DCG gas/electric rooftops

Footprint (in inches): 133 (length) by 88 (width) by 53 (height)

Serviceability features: Features include a full-perimeter base rail, a sloped drain pan, contactors with lugs, high- and low-pressure switches, high-capacity steel-cased filter driers, a crankcase heater, and a built-in filter rack for 2-inch filters that are convertible to 4-inch filters.

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988, option No. 5, or via a local distributor.

Noise-reduction features: High-efficiency scroll compressors help reduce noise levels.

IAQ equipment supported: Factory-installed economizers are available to provide and control fresh outside air.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Several factory-installed options include a direct digital control (DDC) with BACnet communication interface, hinged access panels, powered or non-powered convenience outlets, a non-fused disconnect switch, return and/or supply air smoke detectors, a stainless-steel heat exchanger, economizer, and phase monitor. Two high-efficiency scroll compressors and an aluminum microchannel evaporator coil provide high performance, efficiency, and reliability. Two-stage heating with an award-winning tubular heat exchanger design provides high heating performance and reliability.

Warranty information: Five-year limited parts and 20-year limited heat exchanger warranties are available.

Special installation requirements: Units are shipped with downflow orientation but are convertible to horizontal orientation. Units come with a full perimeter base rail and a sloped drain pan for easy installation.

Contact: Daikin North America LLC, 713-861-2500; www.daikinac.com.

eProduct:183

Daikin

Model: DTH/DTG heat pump and gas/electric rooftops

Footprint (in inches): 74 (length) by 48 (width) by 39 to 43 (height)

Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988, option No. 5, or via a local distributor.

Noise-reduction features: High-efficiency scroll compressors help reduce operational noise levels.

IAQ equipment supported: Factory-installed economizers are available to provide and control fresh outside air.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Several factory-installed options include a direct digital control (DDC) with BACnet communication interface; a hinged access panels; powered or non-powered convenience outlets; a non-fused disconnect switch; return and/or supply air smoke detectors; a stainless-steel heat exchanger; an economizer; and phase monitor.

Warranty information: Five-year limited parts and 20-year limited heat exchanger warranties are available.

Contact: Daikin North America LLC, 713-861-2500; www.daikinac.com.

eProduct:184

Daikin

Daikin VRV

Model: AURORA 230- and 460-v heat recovery heat pump

Footprint (in inches): 49 (length) by 30 (width) by 67 (height)

Serviceability features: The AURORA uses a hot gas base pan circuit to allow installation without the need of additional drain pan heaters. Auto changeover to back-up (auxiliary) heat comes standard. It includes long pipe lengths with up to a 295-foot allowable height difference between the outdoor and indoor units and offers continuous heating during defrost and oil return on multi-module systems. It also features Daikin’s PE Blue fin coil with 1,000 hours of salt spray test and ships factory standard with coil guards.

Technical support: Contact a local distributor or call 866-432-4546.

Noise-reduction features: Standard operating sound levels are minimized with Daikin’s inverter variable-speed vapor-injection compressors.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: It features up to 24.8 IEER. VRV AURORA is an air-cooled system that delivers heating down to minus 22°F (minus 30°C). It offers 100 percent of nominal heating capacity at 0°F (minus 18°C), up to 85 percent of nominal capacity at minus 13°F (minus 25°C), and up to 60 percent capacity at minus 22°F (minus 30°C). It is engineered with patented vapor-injection compressor technology for optimized part-load efficiency. Year-round comfort and efficiency is provided via automatic and customizable variable refrigerant technology (VRT).

Warranty information: Ten-year limited parts and limited replacement compressor warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 713-861-2500; www.daikinac.com.

eProduct:185

Daikin

Model: Water-source heat pump

Footprint (in inches): 30 (length) by 22 (width) by 39 (height)

Serviceability features: Its convenient drop-down electrical box provides easy access to internal components. Front or top refrigerant pipe connections provide additional application installation flexibility. An easy-to-read, seven-character-segmented display simplifies diagnostics and troubleshooting. A double-panel front cover provides easy access to compressor and heat exchanger sections.

Technical support: Contact a local distributor or call 866-432-4546.

Noise-reduction features: Standard operating sound levels are minimized with Daikin’s inverter variable-speed scroll compressors.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: It features up to 30.8 IEER and is engineered with patented heat rejection cancellation technology to simplify mechanical room cooling requirements. Its compact size allows triple stacking to form a 36-ton system with under 4.7 square feet of unit space and a 10.5-foot ceiling height. It offers flexible installation with up to 295-foot distance between first branch and indoor unit and is factory shipped as geothermal ready. Variable water flow control logic comes standard from 0-10 V to increase waterside system operational efficiency.

Warranty information: Ten-year limited parts and limited replacement compressor warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 713-861-2500; www.daikinac.com.

eProduct:186

Day & Night

Model: PHR5 packaged heat pump

Footprint (in inches): 33-44 (length) by 48-49 (width) by 44-55 (height)

Serviceability features: This heat pump installs easily on a rooftop or on the ground level. Three panels allow easy access for maintenance and installation, and it easily converts to down-discharge applications.

Noise-reduction features: It features a two-stage Copeland Scroll compressor, which operates most of the time in the quieter, lower stage, and its outdoor fan is sized and optimized for minimal noise.

IAQ equipment supported: Enhanced dehumidification is available on high-stage cooling with the use of a dehumidistat. The heat pump’s accessory filter racks support 2-inch filters.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Its two-stage Copeland Scroll compressors provide two-stage heating and cooling operation. Units include field-convertible airflow for either ground level (horizontal) or rooftop (down) airflow and high-efficiency electronically commutated motor (ECM) indoor blowers. With cooling efficiencies up to 15.5 SEER and 12.5 EER, the PHR5 packaged heat pumps are Energy Star-qualified.

Warranty information: Five-year limited compressor and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.godayandnight.com.

eProduct:187

>Day & Night

Model: RHH090-120 packaged rooftop heat pump

Footprint (in inches): 88-116 (length) by 60-63 (width) by 49-57 (height)

Serviceability features: Units feature through-the-base utility connection capabilities. All connections and troubleshooting points are conveniently located on the master terminal board. Access panels have easy-grip handles and a no-strip screw feature. Large laminated control/power wiring drawings are affixed to the unit to make troubleshooting easier.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans. The unit also boasts a fully insulated cabinet.

IAQ equipment supported: It includes 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Energy Star-qualified units are field-convertible for vertical or horizontal airflow duct configurations. It features high- and low-pressure switches. Its Scroll compressor has internal line-break overload protection, and factory-installed options include a high-static indoor fan and economizers.

Warranty information: Five-year limited compressor and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.godayandnight.com.

eProduct:188

>Dunkirk

Dunkirk

Model: DMG 380 boiler

Footprint (in inches): 25 (length) by 23 (width) by 50 (height)

Serviceability features: The unit is equipped with advanced electronics featuring an anti-wind function, which automatically adjusts the fan speed to prevent loss of flame, lockouts, and flame stabilization. This allows the flame to stabilize before modulating. These features prevent flame dropouts and recycling. Boiler components are easily accessible through the removable panels.

Technical support: Support is available 8 a.m. to 6 p.m. Eastern time, Monday to Friday, at 800-325-5479 or at www.ecrdealerportal.com/dunkirk.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; owner’s manual; and submittal data sheets are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: With a 10.5:1 modulation turndown ratio, this unit saves energy by reducing the amount of gas used. To ensure proper installation, a quick-connect primary/secondary manifold is included. This manifold has been designed with connection points for the gauge and pressure relief valve, which are also included. The DMG 380 features a built-in boiler loop pump and a low water pressure sensor. Plug-n-play CSD-1 kits are available. Its compact, floor-standing design features built-in leveling legs.

Warranty information: Fifteen-year limited heat exchanger, one-year limited parts in commercial applications, and two-year limited parts and labor warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: ECR Intl. Inc., 315-731-4185; www.ecrinternational.com.

eProduct:189

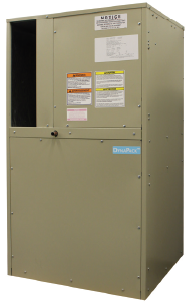

DynaPack

Model: DYXA12, DYXA18, DYXA24, DYXA30, DYXA36 vertical, packaged, self-contained heat pump

Footprint (in inches): 24 (length) by 28 (width) by 48 (height)

Serviceability features: All components are accessible from inside the building. A swing-out electrical panel allows easy access for blower and (optional) heater servicing.

Technical support: Support is available at 229-273-3636 (phone) or 229-273-5154 (fax). After-hours support is also available.

Noise-reduction features: The three-phase brushless DC (BLDC) indoor air mover motor construction results in a very low torque ripple, and the rotor construction effectively eliminates noise transmission through the shaft. Unlike a conventional induction motor that repeatedly cycles on and off, the electronically commutated motor (ECM) is always powered but cycled through an external low control voltage, which is programmed to slowly ramp-up to speed and eliminate any abrupt sound at start-up.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: This unit is ideal for multifamily applications and available as a heat pump or as an air conditioner with electric heat. All models are 10 EER. Its indoor air mover allows ducting for multi-room installations. The unit features no outside condensing unit, has a small footprint, features a fully ducted system, is prewired and precharged with R-410A, and allows individual units separate utility metering.

Warranty information: This Suburban product is warrantied to the original purchaser to be free from defects in material and workmanship under normal use and maintenance for a period of one year from the date of installation, whether or not actual use begins on that date.

Special installation requirements: The standard weight-bearing wall sleeve fits a 4-inch (102-mm) wall thickness, eliminates the need for a base stand, and includes the option to expand from 6 (152 mm) to 22 inches (559 mm).

Contact: Suburban Applied Products, a division of Airxcel Inc., 229-276-3636; www.suburbanhvacproducts.com.

eProduct:190

Friedrich

Friedrich Air Conditioning

Model: VRP12K/VRP12R VRP single package vertical heat pump

Footprint (in inches): 25 (length) by 26 (width) by 52 (height)

Serviceability features: This heat pump unit is easy to diagnose, repair, and replace. Typical troubleshooting and operational support can be accomplished without specialized training or certifications. Serviceability features include easily accessible control boards, single panel access to refrigeration components, same-size screws on all panels to make disassembly quick and easy, wall controller diagnostics (active diagnostic and historical diagnostic data), software that is upgradeable from the wall controller, and an easily removable indoor blower.

Technical support: Authorized Friedrich agencies offer technical service assistance and support, and a specialized VRP-dedicated support team is available. U.S.-based Support is available 8 a.m. to 5 p.m. Central time, Monday to Friday.

Noise-reduction features: Its Precision Inverter® technology eliminates noisy on-off cycles and operates very quietly. The closet-mounted unitary package design also conceals compressor noise. The unique free-floating chassis means no metal-to-metal contact and fully insulated panels provide improved sound characteristics.

IAQ equipment supported: An optional integrated FreshAire™ system delivers up to 70 cfm of conditioned fresh air into the space. The fresh air is filtered through a MERV-8 filter per ASHRAE 62.1-2013 and is then conditioned through the unit’s primary DX coils and a reheat coil that augments the unit’s dehumidification capability. This integrated fresh-air solution provides the ability to potentially downsize or eliminate additional make-up air and humidity control equipment.

Thermostat compatibility: Two thermostat options are available for the VRP, with or without energy management and occupancy sensors. There are additional thermostats on the market that will also work.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This unit offers variable refrigerant flow (VRF) performance in single package simplicity. Its Precision Inverter delivers efficiencies up to 17.5 SEER and 11 EER. It operates at 20-120 percent of rated capacity, features a humidity control system with on-board sensors and humidistats, includes a reheat coil that maintains desired RH levels on colder days, and is equipped with low-ambient heat pump operation down to 0˚F. An optional FreshAire system brings in up to 70 cfm of conditioned, MERV-8-filtered outside air, which helps building owners meet ASHRAE 62.1-2013, the building code for IAQ.

Warranty information: A one-year parts warranty is available. A five-year warranty is available on the sealed refrigeration system, which includes the compressor, indoor and outdoor coils, and tubing.

Special installation requirements: No special installation requirements. VRP is designed for simple in-closet installation and provides maximum design flexibility.

Contact: Friedrich Air Conditioning Co., 210-546-0500; www.friedrich.com.

eProduct:191

Fujitsu

Fujitsu General America Inc.

Model: System 9RLS3YH heat pump

Footprint (in inches): 11 (length) by 37 (width) by 12 (height)

Serviceability features: This heat pump features a self-diagnostic system with easy-to-read LED error codes that can be looked up in Fujitsu’s Mobile Technician app for step-by-step troubleshooting. Its washable filters are easily accessible.

Technical support: From mobile devices, contractors can download the Fujitsu Mobile Technician app, where they can view error codes and determine troubleshooting steps to take. Through a password-protected website, contractors can download design and technical manuals.

Noise-reduction features: The system features an indoor unit as quiet as a whisper, which operates at 23 dB. The outdoor unit operates at 42 dB.

IAQ equipment supported: Ion deodorization filters decompose absorbed odors using the oxidizing/reducing effects of ions generated by the ultra-fine-particle ceramic and Apple-Catechin filters. These measures absorb fine dust, invisible mold spores, and harmful microorganisms onto the filter by static electricity, which further inhibits and deactivates growth. The filters boast a three-year life expectancy. Simply wash the media to restore surface action.

Thermostat compatibility: The unit requires a special thermostat.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Through the free FGLair app, this high-efficiency system can be controlled remotely from anywhere using a smartphone or tablet. The FGLAair app is user-friendly for easy operation, including control of on-off, fan speed, temperature, weekly timer, and more. The system 9RLS3YH features a SEER of 33, extra low temperature heating at outdoor temperatures down to minus 15°F, a programmable remote control, and inverter technology. The outdoor unit features a base heater that prevents condensate from freezing.

Warranty information: Standard five-year parts and seven-year compressor warranties are available. Systems that have been installed by licensed contractors and have been registered online have a 10-year parts and compressor warranty. Systems that have been installed by Elite contractors and have been registered online have a 12-year parts and compressor warranty; see warranty statement for full details.

Special installation requirements: Units have to be installed within 66 feet of each other.

Contact: Fujitsu General. America Inc., 973-575-0380; www.fujitsugeneral.com.

eProduct:192

Fulton

Fulton Heating Solutions

Model: Endura+ EDR+6000 firetube condensing boiler

Footprint (in inches): 127 (length) by 34 (width) by 79 (height)

Serviceability features: This condensing boiler is optimized to occupy an ultra-compact footprint and fits through a standard door. Service and maintenance are simplified with quick-access, tool-less panels that detach in seconds.

Technical support: Technical support is provided through a global network of Fulton representatives who provide factory-trained-and-authorized sales and service. To find a local representative, visit fulton.com/representative-locator.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a troubleshooting guide; specification sheets; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: It includes a fully jacketed boiler cabinet enclosure with gasketed seams that keeps noise levels low.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: These firetube condensing boilers eliminate thermal expansion stresses with a stress reliever outside of the pressure vessel shell. Conventional designs sacrifice durability by transferring stresses directly onto the most critical components — the tubesheet and heat exchanger tubes. An advanced and intuitive lead/lag controller does not require a master boiler, and the O2 compensation automatically tunes combustion to maximize seasonal efficiencies.

Warranty information: The standard warranty on the heat exchanger and pressure vessel is 10 years non-prorated on flue gas corrosion, workmanship, and materials. Thermal shock is warrantied for the lifetime of the boiler. The burner head is warrantied for five years. All other parts are warrantied for one year, and extended parts warranties are available for up to five years.

Special installation requirements: Condensing boilers use a special gas vent, typically Al 29-4C, or approved alternates instead of conventional chimney materials. The Endura+ can save significant installation costs as it does not require dedicated boiler pumps nor primary-secondary piping. By eliminating all of the additional costs associated with primary-secondary, the boilers can be placed in a variable primary flow installation, which provides simpler installation and further enhances energy savings.

Contact: Fulton Heating Solutions, 315-298-7182; www.fulton.com.

eProduct:193

GeoComfort

GeoComfort, Hydron Module, Tetco

Model: ZS/ZT compact, horizontal, packaged, geothermal, water-source heat pump

Footprint (in inches): 40 (length) by 20 (width) by 12 (height)

Serviceability features: The all new ZS/ZT is designed for enhanced serviceability, superior efficiency, and quiet operation. The modular control board features status and diagnostic LEDs. The board monitors low/high pressure, flow, condensate overflow, over/under voltage, freeze protection, and more. The unit is field-convertible for side or end discharge, all models are available in 208/230/265 single phase and 208/230/460 three phase, and ZS/ZT hanger brackets are shipped with each unit. Optional filter rack and seismic hanger brackets are available.

Technical support: Support is available 7:30 a.m. to 5:30 p.m. Central time at 618-664-9010. Urgent after-hours support is also available.

Noise-reduction features: Its exclusive triple-isolation design features high-density elastomeric vibration pads, a heavy-gauge compressor isolation plate, and grommets to further reduce compressor sounds. Cabinet insulation is Greenguard Gold-certified, high-density, and consists of closed-cell foam, which greatly enhances sound absorption.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Designed for limited spaces, the new ZS/ZT commercial/residential compact, horizontal, packaged, water-source heat pump features a small footprint. The 006 cabinet is 20 by 40 by 12 inches in size while the largest is only 24 by 61 by 21 inches. Models 006 to 018 (ZS) are single stage only while models 024-072 are available in single- (ZS) or two-stage (ZT) configurations. All models feature an all-aluminum microchannel air coil and brazed-plate heat exchangers.

Warranty information: When registered, the residential ZS/ZT and select accessories come standard with a 10-year parts and labor allowance warranty. An optional lifetime compressor warranty is also available. The in-house warranty process is streamlined and quick with repair parts sent promptly without delays.

Special installation requirements: None

Contact: Enertech Global, 618-664-9010; enertechgeo.com.

eProduct:194

Heil

Model: PHR5 packaged heat pump

Footprint (in inches): 33-44 (length) by 48-49 (width) by 44-55 (height)

Noise-reduction features: This unit includes a two-stage Copeland Scroll compressor, which operates most of the time in the quieter, lower stage. The outdoor fan is sized and optimized for minimal noise.

IAQ equipment supported: Enhanced dehumidification is available on high-stage cooling with use of a dehumidistat. Its accessory filter racks support 2-inch filters.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Two-stage Copeland Scroll compressors provide two-stage heating and cooling operation. The units include field-convertible airflow for either ground level (horizontal) or rooftop (down) airflow and high-efficiency electronically commutated motor (ECM) indoor blowers. With cooling efficiencies up to 15.5 SEER and 12.5 EER, the PHR5 packaged heat pumps are Energy Star-qualified.

Warranty information: Five-year limited compressor and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goheil.com.

eProduct:195

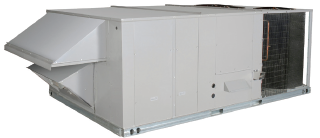

Heil

Model: RGH181-303 packaged gas/electric rooftop

Footprint (in inches): 128-158 (length) by 86 (width) by 49-57 (height)

Serviceability features: Its IGC solid-state control provides on-board diagnostics with LED error code designation, burner control logic, and an energy-saving indoor fan motor delay. All connections and troubleshooting points are conveniently located on the master terminal board. Units feature through-the-base utility connection capabilities. Access panels have easy-grip handles and a no-strip screw feature.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Energy Star-qualified units feature dedicated vertical or horizontal airflow duct configuration models, high- and low-pressure switches, and scroll compressors. Units feature two-stage cooling with independent circuits and control. Factory-installed options include medium- and high-static indoor fan and economizer options.

Warranty information: Fifteen-year limited stainless steel heat exchanger, 10-year limited aluminized stainless steel heat exchanger, five-year limited compressor, and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goheil.com.

eProduct:196

Hitachi

Model: HVAHR192B42S SmartFlex™ VRF Gen II heat recovery system

Footprint (in inches): 30 (length) by 64 (width) by 66 (height)

Serviceability features: These systems need little maintenance beyond filter changes and coil cleaning. Removing a single panel on the outdoor unit provides easy access to control boards, electrical connections, the compressor, and piping. Control options allow convenient management over a building automation system (BAS) or over the internet for remote tablets and phones.

Technical support: All applicable technical documentation is available on the VRFPro.com portal, a full suite of variable refrigerant flow (VRF) training courses, including instruction on installation and commissioning, service and troubleshooting, and controls commissioning, with expert trainers is available.

Noise-reduction features: The sound pressure of the compact high-speed compressor can be reduced by up to 24 dBA by using advanced sound-pressure covers. The air blower has a new structure where it is placed above the heat exchanger, which suppresses noise on the reverse side.

IAQ equipment supported: Multi-position air handlers include integrated internal filter racks for use with 1-inch-thick, standard-size filters. An antibacterial air filter comes standard on some indoor units and as an available option for most styles and sizes. Non-ducted indoor units include a mount box and an antibacterial air filter.

Thermostat compatibility: Extensive control options include wired and wireless zone controllers plus mini and large central stations. A web-enabled central controller interfaces with up to five PCs or tablets.

Replacement parts compatibility: The unit utilizes some shared parts and some unique parts.

Additional features: An advanced VRF inverter-controlled technology provides heating down to minus 13°F ambient. It integrates with an unprecedented range of wall-, ceiling-, and floor-mounted indoor units with multi-port changeover boxes for design flexibility. Multiple control options include wired and wireless unit control, central control stations, and gateways for integration with building automation systems and connectivity via the cloud.

Warranty information: Limited lifetime compressor; 10-year limited parts; and fee-free, one-year limited labor warranties are available. Extended warranties are also available to purchase.

Special installation requirements: Designed for easy installation, outdoor units can be transported through a freight elevator without the need for a crane or other heavy equipment for rooftop installations. Piping the indoor units can be done on the front, back, or underneath the housing. The H-LINK II communication system enables easy daisy-chain connections between the outdoor and indoor units.

Contact: Johnson Controls Inc., 414-524-5487; http://smartflex-hvac.com.

eProduct:197

ICP

ICP Commercial

Model: RGH060 packaged gas/electric unit

Footprint (in inches): 74 (length) by 47 (width) by 41 (height)

Serviceability features: Its IGC solid-state control provides on-board diagnostics with an LED error code designation, burner control logic, and energy-saving indoor fan motor delay. All connections and troubleshooting points are conveniently located on the easily accessible master terminal board. The units feature through-the-base utility connections capabilities, and its access panels have easy-grip handles and a no-strip screw feature.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Energy Star-qualified units feature field-convertible airflow, high- and low-pressure switches, single-stage cooling, and two-stage gas heat. Factory-installed options include three heat options (high, medium, low) as well as a medium- and high-static indoor fan option. Other market-driven options, such as liquid propane/high-altitude kits, are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.icpcommercial.com.

ICP

eProduct:198

Model: RGS210-336 packaged gas/electric rooftop

Footprint (in inches): 128-158 (length) by 87 (width) by 49-57 (height)

Serviceability features: Units have provisions for through-the-bottom power entry. All connections and troubleshooting points are conveniently located on the master terminal board. Access panels have easy-grip handles and no-strip screws. Its IGC solid-state control provides on-board diagnostics with an LED error code designation, burner control logic, and an energy-saving indoor fan motor delay.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: It is available in dedicated vertical or horizontal airflow duct configuration models. This ASHRAE 90.1-compliant unit features high- and low-pressure switches, and its Scroll compressor has internal line-break overload protection. The unit’s factory-installed options include three heat options (high, medium, low), stainless steel heat exchangers, and a high-static indoor fan option.

Warranty information: Fifteen-year limited stainless steel heat exchanger, 10-year limited aluminized heat exchanger, five-year limited compressor, and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.icpcommercial.com.

eProduct:199

Indeeco

Model: 233 Series explosion-proof, ultra-safe unit heater

Footprint (in inches): 27 (length) by 30 (width)

Serviceability features: This explosion-proof unit heater has a wet location construction feature, so it is ideally suited for applications where routine cleaning is performed, such as in coal processing facilities and wastewater treatment facilities. The wet location construction feature allows the heater to be washed per IP55 standards.

Technical support: Manufacturer did not specify.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: When the wet location construction feature is selected, the heater is suitable for IP55 wet locations.

Warranty information: An 18-month warranty is available from the factory shipment date, and a 12-month warranty is available from the date the product is first placed into service, whichever period lapses first.

Special installation requirements: Follow the provided installation, operation, and maintenance (IOM) manual.

Contact: Indeeco, 314-644-4300; www.indeeco.com.

eProduct:200

Interphase

Interphase Technologies

Model: ITHRC-AE-060-VS-01 heat pump

Footprint (in inches): 53 (length) by 34 (width) by 64 (height)

Serviceability features: Its patent pending refrigeration management system allows for 100 percent heat recovery while remaining serviceable and simple in design. Its brazed-, flat-plate HX provides high-efficiency energy transfer. An integrated islanding solar inverter allows for direct use of solar energy. It offers a sealed refrigerant circuit, and water/glycol connections on the heat pump transfer heat/cool energy to the conditioned space.

Technical support: Support is available 8 a.m. to 5 p.m. Eastern time at 207-370-2690.

Noise-reduction features: Its variable-speed compressor and variable-speed fans minimize noise.

IAQ equipment supported: Fan coils, dehumidification, UV treatment, filtration, fresh-air, and energy recovery ventilators (ERVs)/heat recovery ventilators (HRVs) are supported.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: It features an integrated islanding solar inverter, 380-vdc primary power input, 208-230/240-V 50-/60-Hz single-phase secondary, heat recovery, a variable refrigerant-to-water chiller system, and it converts solar electrical energy to thermal energy for storage and use for heating and cooling, which is typically the largest electrical load.

Warranty information: Manufacturer did not specify.

Special installation requirements: Manufacturer did not specify.

Contact: Interphase Technologies, 207-370-2690; www.interphasetechnologies.com.

eProduct:201

Johnson Controls

Model: XQE04-06 and XXEA7-12 Direct-Replacement, standard efficiency, packaged heat pumps

Footprint (in inches): 74-87 (length) by 49-62 (width)

Serviceability features: Setup, optimization, and monitoring are easy with standard Smart Equipment controls — a next-generation control system that offers an optional mobile access portal (MAP) gateway for access via a smartphone, tablet, laptop, or remote PC. Optional fault detection and diagnostics (FDD) saves contractors time by providing detailed alerts.

Technical support: Support is available via Johnson Controls distributors.

Noise-reduction features: This unit is designed for lower outdoor operating sound levels as low as 79 dBA.

IAQ equipment supported: Direct-replacement rooftop units are available with an economizer and fresh-air and relief-damper options, three static-drive options for airflow versatility up to 2 inches of external static pressure (ESP), and options for 2- or 4-inch field-convertible air filters and epoxy coil coating options.

Thermostat compatibility: This unit is compatible with five- and seven-wire thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: These heat pumps feature an exact-fit replacement design that matches the footprints of other manufacturers’ units to reduce installation time, cost, and complexity. They are available with adjustable defrost and three heat capacities, two cabinet heights and footprint sizes, and a choice of cooling or electric heat configurations.

Warranty information: A one-year limited warranty is available for the entire unit. Compressors and electric heater elements each carry five-year limited warranties.

Special installation requirements: Direct-replacement heat pumps are designed to provide a trouble-free match to the footprints of other manufacturers’ units without the need for a curb adapter.

Contact: Johnson Controls Inc., 405-419-6545; http://bit.ly/Series-12r.

eProduct:202

Laars

Model: MagnaTherm boiler

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Access to most components, including the controls, gas valves, blowers, burner, etc., is easily done via the front of the unit. All piping and venting come from the back of the boiler to help make installations neat and piping easily accessible.

Technical support: Support is available 8 a.m. to 8 p.m. Eastern time at 800-900-9276. Regional service managers are located across the U.S. and Canada.

Noise-reduction features: It features very quiet operation.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Its VARI-PRIME boiler pump control with fixed delta T control facilitates variable flow through the boiler. Its knock-down feature includes a removable top section for easy handling and installation in tight spaces, and its lead/lag function allows for the cascading of up to eight MagnaTherm units.

Warranty information: A 10-year limited warranty is available.

Special installation requirements: Manufacturer did not specify.

Contact: Laars Heating Systems, 603-335-6300; www.laars.com.

eProduct:203

Lennox

Lennox InTL. Inc.

Model: Raider rooftop unit

Footprint (in inches): 83 (length) by 47 (width) by 45 (height)

Serviceability features: A quick and easy retrofit means fast installation when it comes to the replacement of many existing rooftop units. It fits roof curbs commonly used in the industry. Its compressor access panel provides direct access to the compressor with only three screws, which allows pressures to be checked without disrupting unit operation. Labeled and color-coded wiring allows easy point-to-point troubleshooting. A heating access panel provides complete access to all heating components for service, and tool-less filter access offers quick and easy filter removal.

Technical support: Parts, applications, and technical support is available from 6 a.m. to 6 p.m. Central time at 800-453-6669.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Furnished, disposable 2-inch air filters come standard. An optional IAQ sensor monitors CO2 levels and adjusts economizer dampers as needed for demand control ventilation (DCV).

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: With the addition of the new 6-ton heat pump, the Raider family offers 3- to 12.5-ton gas/electric and electric/electric and 3- to 10-ton heat pump units. It fits roof curbs commonly used in the industry, which eliminates the need for adapter curbs.

Warranty information: Limited five-year compressors, limited five-year high-performance economizers, and limited one-year all other covered components warranties are available.

Special installation requirements: It matches existing electrical and plumbing connections, which reduces installation time and cost.

Contact: Lennox Industries Inc., 972-497-7802; www.lennoxcommercial.com.

eProduct:204

LG Electronics

Model: LA180HYV2 Art Cool™ Premier heat pump

Footprint (in inches): Outdoor: 13 (length) by 34 (width) by 32 (height); Indoor: 10 (length) by 43 (width) by 13 (height)

Serviceability features: This series is compatible with the LG Smart Inverter monitoring system, which makes it easier for HVAC professionals to monitor system performance and troubleshoot using factory guidelines, should the need arise.

Technical support: Support is available 7 a.m. to 6 p.m. Central time, Monday to Friday, at 888-865-3026.

Technical support materials: Installation, operation, and maintenance manuals; specification sheets; start-up instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Indoor units operate as low as 37 dBA, 29 dBA in sleep mode, so as not to disrupt occupants. To maintain a quiet, comfortable environment, all rotating components are soft-started by the controller using digitally controlled inverters, which helps reduce undesirable noise caused by fans and compressors cycling on and off.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with all LG wired controllers and through LG’s dry contact for third-party thermostats. The system may also be used with most other thermostats.

Replacement parts compatibility: It utilizes some shared parts and some unique parts.

Additional features: The unit features a wide heating capacity range (minus 13˚ to 65˚F), making it a suitable heating solution for a variety of climates. Its advanced heating technologies deliver heating exactly when it is needed most with minimal to no capacity losses (114 percent at 5˚ for LA120HYV1).

Warranty information: Standard five-year parts and seven-year compressor warranties are available. The LG extended warranty provides an additional five years on parts and three years on compressors and is available through LG Excellence contractors to offer consumers a 10/10 limited warranty on this model and other qualifying LG duct-free systems in 2017.

Special installation requirements: For optimum performance and service, installation should be performed by qualified HVAC professionals who have attended LG HVAC training. LG also provides technical support throughout the installation and commissioning process.

Contact: LG Electronics USA Inc., 888-865-3026; www.lghvac.com.

eProduct:205

Model: ARUB060GSS4 Multi V S heat recovery unit

Footprint (in inches): 13 (length) by 37 (width) by 54 (height)

Serviceability features: This heat recovery unit is easy to service and requires little maintenance.

Technical support: Support is available 8 a.m. to 6 p.m. Central time, Monday to Friday, at 888-865-3026.

Noise-reduction features: The Multi V S uses a variable-speed compressor, which is quiet and uses minimal energy.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This 5-ton heat recovery system is designed to provide energy-efficient and flexible simultaneous heating and cooling down to minus 13°F and is ideal for light commercial installations. Coupled with automatic changeover between heating and cooling modes, comfort control is now effortless for property owners.

Warranty information: Standard, limited five-year parts and seven-year compressor warranties are available. Qualifying systems registered through lg.com will receive 10-year parts and compressor warranties. LG Excellence contractors who register qualifying systems on lg.com will receive a 12-year warranty for parts and the compressor.

Special installation requirements: A heat recovery unit is required for simultaneous heating and cooling operation.

Contact: LG Electronics USA Inc., 888-865-3026; www.lghvac.com/.

eProduct:206

Luxaire

Model: Eclipse™ XQE04-06 XXEA7-12 standard efficiency, packaged heat pumps

Footprint (in inches): 74-87 (length) by 49-62 (width)

Serviceability features: Setup, optimization, and monitoring is easy with standard Smart Equipment controls — a next-generation control system that offers an optional mobile access portal (MAP) gateway for control via a smartphone, tablet, laptop, or remote PC. Optional fault detection and diagnostics (FDD) saves contractors time by providing detailed alerts.

Technical support: Support is provided through Luxaire distributors.

Noise-reduction features: It is designed for lower outdoor operating sound levels as low as 79 dBA.

IAQ equipment supported: Rooftop units are available with an economizer and fresh-air and relief damper options, three static drive options for airflow versatility up to 2 inches of external static pressure (ESP), and options for 2-inch or 4-inch field-convertible air filters and epoxy coil coating options.

Thermostat compatibility: This unit is compatible with five- and seven-wire thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Heat pumps feature an exact-fit replacement design that matches the footprints of other manufacturers’ units to reduce installation time, cost, and complexity. It is available with adjustable defrost, three heat capacities, two cabinet heights, multiple footprint sizes, and a choice of cooling or electric heat configurations.

Warranty information: One-year limited complete unit and five-year electric heater elements and compressor warranties are available.

Special installation requirements: This system is designed to provide a trouble-free match to the footprints of other manufacturers’ units without the need for a curb adapter.

Contact: Johnson Controls Inc., 405-419-6545; www.luxaire.com/eclipse.

eProduct:207

Mammoth

Model: P7TQ packaged electric/electric units

Footprint (in inches): 89 (length) by 60 (width) by 54 (height)

Serviceability features: It includes 1-inch foam-panel construction and offers no exposed fiberglass, which provides exceptional IAQ and makes it cleanable. Electrical mechanical controls in an extra-large control panel with a low-voltage terminal strip help simplify troubleshooting. Plug-in relays simplify service. It offers hinged door panels for controls, blower, and filter access and also provides easy access to the compressor(s) and heating elements. Bolt-on thermostatic expansion valves (TXVs) and many factory-installed options help reduce time on the roof.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4328. For additional product information, visit www.mammothlc.com.

Noise-reduction features: Foam-panel construction reduces noise.

IAQ equipment supported: MERV-8 filters are available for field installation. Sheet metal walls in the airstream provide for easy cleaning.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Standard features include hinged door panels and foam wall construction. Lightweight microchannel condenser and evaporator coils contribute to reduced refrigerant change. It meets the requirements of federal minimum efficiency standards of Jan. 1, 2018; ASHRAE 90.1-2013; and California Title 24-2013 and 2016.

Warranty information: The unit includes one-year limited parts and five-year compressor warranties.

Special installation requirements: In many replacement applications, the utilities line up and no curb adapter is required.

Contact: Nortek Global HVAC, 636-561-7300; www.nortekhvac.com.

eProduct:208

Mammoth

Model: R7TQ packaged gas/electric unit

Footprint (in inches): 88 (length) by 59 (width) by 50 (height)

Serviceability features: This unit’s 1-inch foam-panel construction (no exposed fiberglass) provides exceptional IAQ and is cleanable. Electrical mechanical controls in an extra-large control panel with a low-voltage terminal strip simplify troubleshooting. Plug-in relays provide ease of service, hinged door panels house the controls, and the blower and filter are accessible. The unit also features easily accessible compressor(s) and burners, features bolt-on thermostatic expansion valves (TXVs), and offers many factory-installed options, which reduce time on the roof.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4328. For additional product information, visit www.mammothlc.com.

Noise-reduction features: This unit’s foam-panel construction reduces noise.

IAQ equipment supported: MERV-8 filters are available for field-installed units. Sheet metal walls in the airstream provide for easy cleaning.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: Standard features include hinged door panels and foam wall construction. Lightweight microchannel condenser and evaporator coils help reduce the refrigerant charge. This unit meets the requirements of federal minimum-efficiency standards of Jan. 1, 2018; ASHRAE 90.1-2013; and California Title 24-2013 and 2016.

Warranty information: One-year limited parts, five-year compressor, and 10-year heat exchanger warranties are available.

Special installation requirements: In many replacement applications, the utilities line up and no curb adapter is required.

Contact: Nortek Global HVAC, 636-561-7300; www.nortekhvac.com.

eProduct:209

Mitsubishi

Mitsubishi Electric Cooling and Heating

Model: CITY MULTI® S-Series (PUMY) heat pump

Footprint (in inches): 13 (length) by 41 (width) by 53 (height)

Serviceability features: The convenient front panel allows for easy access to its serviceable components. It features minimal or no ductwork, and its simple wiring results in minimal maintenance over the lifetime of the system.

Technical support: Technical experts are available 8 a.m. to 7 p.m. Eastern time, Monday to Friday, at 800-433-4822. In addition, commercial contractors and Diamond Service Group (DSG) members attend three-day applications training sessions.

Noise-reduction features: S-Series (PUMY) systems are designed for quiet operation — 49 to 59 dBA. The inverter-driven compressor and variable-speed fan often run at partial speed, which results in lower sound levels.

IAQ equipment supported: The paired indoor units feature a washable or replaceable filter that’s optimal for IAQ. The use of the inverter-driven compressor allows for tight temperature control and the ability to ramp-down to a lower speed if the indoor units are calling for lower temperatures. Since reducing humidity is important for occupant health, the S-Series can also pair with ventilation products, for example, the Lossnay® energy recovery ventilator (ERV).

Thermostat compatibility: This unit is compatible with most thermostats with the addition of a thermostat adapter accessory.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: The S-Series can connect up to 12 indoor units, which allows for flexibility when zoning a space. Its new tube-in-tube heat interchanger offers improved energy efficiency during cooling operation, which decreases operational costs and increases performance. The S-Series’ extended operating range makes the system suitable for a range of applications, and all models are Energy Star-qualified.

Warranty information: Parts are warrantied for one year, and the compressor is warrantied for seven years from the installation date by a licensed HVAC contractor to the original system owner. An extended warranty of 10 years parts/compressor is available to the original owner, if designed by a Diamond Designer™ using Diamond System Builder™.

Special installation requirements: None.

Contact: Mitsubishi Electric Cooling and Heating US Division, 800-687-1966; www.mitsubishipro.com.

eProduct:210

Modine

Model: Atherion MPR furnace

Footprint (in inches): 180 (length) by 101 (width) by 101 (height)

Serviceability features: Features include hinged access doors, the Modine control system with digital display, and full unit diagnostics.

Technical support: Manufacturer did not specify.

Technical support materials: Installation, operation, and maintenance manuals and specification sheets are available.

Noise-reduction features: A variable-speed supply fan with neoprene vibration isolation comes standard. Variable-speed condenser fans, airfoil plenum fans, and its fully insulated cabinet help reduce operational volumes.

IAQ equipment supported: IAQ features include double-wall construction, an SS double-sloped drain pan, ultra-low leak dampers, high-efficiency primary and secondary filtration options, and a modulating hot gas reheat for exceptional dehumidification capability.

Thermostat compatibility: This furnace requires a special thermostat.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: This system features dual-tandem compressors with digital modulation capacity control, electronic expansion valves (EEVs), electronically commutated condenser fans, PF™ microchannel condenser coils, and isolated high- and low-voltage control compartments.

Warranty information: Two-year compressors, five-year gas furnace heat exchangers, and additional extended warranties are available.

Special installation requirements: Factory start-up options are available.

Contact: Modine, 865-977-1973; www.modinehvac.com.

eProduct:211

Multiaqua

Model: MHRC-AE heat recovery chiller

Footprint (in inches): 53 (length) by 34 (width) by 64 (height)

Serviceability features: Its maintenance-centered design enhances serviceability, which promotes optimal performance and long life. It features a hinged control service access door and pocket handles that facilitate access to the compressor and other components.

Technical support: Technical support and parts information are available 8:30 a.m. to 5 p.m. Eastern time, Monday to Friday, at 855-846-5987, ext. 113 or 864-850-8995 (fax). For technical assistance, call 855-846-5987 or email techsupport@aqua-part.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and submittal data sheets are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Its hydronic fan coils better address humidity with lower coil temperatures.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: The MHRC captures 100 percent of the refrigeration process waste heat that is normally rejected into the air. The unit will operate in dedicated cooling, heating, or water-to-water simultaneous heating and cooling modes. With this new innovative system, it is possible to cool rooms as well as heat showers, sinks, and a swimming pool with the same outdoor unit, thereby eliminating the need for and cost of traditional water heating methods.

Warranty information: Chiller parts are warrantied to be free from manufacturing defects for up to one year, and the compressor and heat exchangers are warrantied for five years from the date of installation.

Special installation requirements: All installations will require dedicated internet access for troubleshooting.

Contact: Multiaqua Inc., 864-624-7475; www.multiaqua.com.

eProduct:212

Panasonic

Model: U-96MF2U94 heat pump

Footprint (in inches): 39 (length) by 47 (width) by 73 (height)

Serviceability features: Contractor accessibility has been enhanced by moving the control boards and wiring terminal to eye level. The height of this unit is designed to fit in a typical elevator for transfer within a building. Programmable fault detection will automatically alert a contractor, facility personnel, etc., when issues arise.

Technical support: Support is available 8:30 a.m. to 8 p.m. Eastern time at 800-851-1235.

Noise-reduction features: A newly designed curved-air discharge bell mouth provides better aerodynamics. The new curved shape with integrated top and bottom ensure smooth air discharge flow. Minimal swirling equals an increased flow rate and less noise.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit requires a special thermostat and is capable of integrating with Schneider Electric SE 8000.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: It features dual large-capacity inverter compressors, an enlarged heat exchanger surface area with triple surface, gas-liquid separation plus oil separation for increased efficiency, and an increased capacity air discharge with a new flush surface top panel. It features a high 0.32-inch water column external static pressure (ESP) and a large diameter fan (27 ½-inch). Oil sensors are installed in each compressor.

Warranty information: Standard six-year compressor and one-year parts warranties are available. Extended 10-year compressor and 10-year parts warranties are also available.

Special installation requirements: Training is provided free of charge in four locations across the mainland U.S. and is mandatory for installation, commissioning, and service.

Contact: Panasonic Corp., 678-810-0262; http://bit.ly/U-96MF2U94.

eProduct:213

Reznor

Model: P7TQ packaged electric/electric units

Footprint (in inches): 89 (length) by 60 (width) by 54 (height)

Serviceability features: It features 1-inch foam-panel construction, which eliminates any exposed fiberglass, provides exceptional IAQ, and makes it cleanable. Electrical mechanical controls in an extra-large control panel with a low-voltage terminal strip simplify troubleshooting. Plug-in relays provide ease of service, and hinged door panels provide access to the controls, blower, and filter. The compressor(s) and heating elements are easily accessible. It features bolt-on thermostatic expansion valves (TXVs) and many factory-installed options help to reduce time on the roof.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4328. For additional product information, visit www.reznorhvac.com.

Noise-reduction features: Its foam-panel construction reduces noise.

IAQ equipment supported: MERV-8 filters are available for field-installed units. Sheet metal walls in the airstream make for easy cleaning.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Standard features include hinged door panels and foam wall construction. Its lightweight microchannel condenser and evaporator coils contribute to reduced refrigerant charge, and it meets the requirements of federal minimum efficiency standards of Jan. 1, 2018; ASHRAE 90.1-2013; and California Title 24-2013 and 2016.

Warranty information: It includes one-year limited parts and five-year compressor warranties.

Special installation requirements: In many replacement applications, the utilities line up and no curb adapter is required.

Contact: Nortek Global HVAC, 636-561-7300; www.nortekhvac.com.

eProduct:214

Reznor

Model: R7TQ packaged gas/electric unit

Footprint (in inches): 88 (length) by 59 (width) by 50 (height)

Serviceability features: Its 1-inch foam-panel construction (no exposed fiberglass) provides exceptional IAQ and makes it cleanable. Electrical mechanical controls in an extra-large control panel with a low-voltage terminal strip simplify troubleshooting. Plug-in relays provide ease of service, and the controls, blower, and filter are accessible via hinged door panels. The compressor(s) and burners are also easily accessible. It features bolt-on thermostatic expansion valves (TXVs), and many factory-installed options help reduce time on the roof.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4328. For additional product information, visit www.reznorhvac.com.

Noise-reduction features: Its foam-panel construction reduces noise.

IAQ equipment supported: MERV-8 filters are available for field-installed units. Sheet metal walls in the airstream provide for easy cleaning.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: Standard features include hinged door panels and foam wall construction. Lightweight microchannel condenser and evaporator coils contribute to reduce refrigerant charge. The unit meets the requirements of federal minimum-efficiency standards of Jan. 1, 2018; ASHRAE 90.1-2013; and California Title 24-2013 and 2016.

Warranty information: It includes one-year limited parts, five-year compressor, and 10-year heat exchanger warranties.

Special installation requirements: In many replacement applications, the utilities line up and no curb adapter is required.

Contact: Nortek Global HVAC, 636-561-7300; www.nortekhvac.com.

eProduct:215

Rheem

Model: Commercial Prestige® Series packaged heat pump, Renaissance line RHPDZT090AC*****A

Footprint (in inches): 90 (length) by 60 (width) by 51 (height)

Serviceability features: This heat pump includes several unique features, including a slide-out drain pan, slide-out blower assembly, changeable filter rack with standard size filters, and external gauge ports that make service a breeze every time. The dual, seven-segment LED display also greatly enhances serviceability and allows for quick diagnostics and problem solving.

Technical support: Customers can access myrheem.com 24/7 for technical support information, such as frequently asked questions (FAQs), literature, and spec sheets, or use the QR codes on the unit to access product information from a smartphone or tablet. Contractors can also contact their distributors for more information.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: This system supports economizers, outside air dampers, and 2- and 4-inch filters.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: The Renaissance line is loaded with innovative and improved technologies and exceeds the new U.S. Department of Energy (DOE) IEER requirements that are effective January 2018. The replacement process is simplified by elimination of the need for a new curb adapter and matching inlet. Also, outlet and electrical connections are the most common industry-standard configurations.

Warranty information: One-year parts and five-year compressor warranties are available.

Special installation requirements: For installation requirements, please refer to the manufacturer’s installation manual.

Contact: Rheem Mfg. Co., 770-351-3082; www.rheem.com.

eProduct:216

RUUD

Model: Commercial Achiever Plus® Series packaged heat pump, Renaissance line RHPDZT090AC*****A

Footprint (in inches): 90 (length) by 60 (width) by 51 (height)

Serviceability features: This heat pump offers several unique features, including a slide-out drain pan, slide-out blower assembly, changeable filter rack with standard size filters, and its external gauge ports make service a breeze every time. The dual, seven-segment LED display greatly enhances serviceability and allows for quick diagnostics and problem solving.

Technical support: Customers can access myruud.com 24/7 for technical support information, such as frequently asked questions (FAQs), literature, and spec sheets, or use the QR codes on the unit to access product information from a smartphone or tablet. Contractors can also contact their distributors.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: The system supports economizers, outside air dampers, and 2- and 4-inch filters.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: The Renaissance line is loaded with innovative and improved technologies and exceeds the new U.S. Department of Energy (DOE) IEER requirements that are effective January 2018. The replacement process is also simplified by elimination of the need for a new curb adapter and matching inlet. Also, outlet and electrical connections adhere to the most common industry-standard configurations.

Warranty information: One-year parts and five-year compressor warranties are available.

Special installation requirements: For installation requirements, please refer to the manufacturer’s installation manual.

Contact: Rheem Mfg. Co., 770-351-3082; www.ruud.com.

eProduct:217

HVAC Products

Model: Nexus® high-efficiency unit heater

Footprint (in inches): 100 Btuh unit: 43 (length) by 38 (width) by 16 (height)

Serviceability features: External LED diagnostic lights and its easily accessible control panel provide ease of service.

Technical support: Manufacturer did not specify.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Unit heaters offer leading-edge condensing heat exchanger technology in a durable, brushed stainless steel cabinet. With tri-metal stainless steel heat exchanger technology, a proprietary pre-mix burner design, and fully modulating configurations, the Nexus provides efficiencies up to 97 percent. It can be vented through polyvinyl chloride (PVC) and chlorinated polyvinyl chloride (CPVC) for application flexibility. All units are field-convertible to separated combustion and offer Modbus communication to a building automation system.

Warranty information: One-year unit and 10-year heat exchanger, flue collector, and burner warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Sterling HVAC Products, 413-564-5779; www.sterlinghvac.com.

eProduct:218

Tempstar

Model: PGR5 packaged gas/electric unit

Footprint (in inches): 31-43 (length) by 47 (width) by 44-53 (height)

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Noise-reduction features: This unit includes a two-stage Copeland Scroll compressor, which operates most of the time in the quieter, lower stage. It also includes a two-stage heating system that offers similar comfort benefits in the heating mode. The outdoor fan is sized and optimized for minimal noise.

IAQ equipment supported: Dehumidification mode (airflow reduction) comes standard on all models. The unit’s accessory filter racks support 2-inch filters.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: The units feature two-stage heating and cooling operation, stainless steel tubular heat exchangers, field-convertible airflow, and high-efficiency electronically commutated motor (ECM) indoor blowers. With cooling efficiencies up to 16 SEER and 12.5 EER, the PGR5 packaged units are Energy Star-qualified.

Warranty information: Ten-year limited heat exchanger, five-year limited compressor, and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gotempstar.com.

eProduct:219

Tempstar

Model: RHH036-072 packaged heat pump

Footprint (in inches): 74-88 (length) by 46-60 (width) by 33-41 (height)

Serviceability features: Access panels with easy-grip handles provide easy access to the blower and blower motor, control box, and compressors. Its no-strip screw feature offers superior holding power and guides screws into position while preventing the screw from stripping the unit’s metal. Its terminal board facilitates simple safety circuit troubleshooting and simplified control box arrangement.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Noise-reduction features: Its cabinet is fully insulated.

IAQ equipment supported: It features 2-inch return air filters. Its optional economizer control accepts a CO2 sensor for IAQ capability, and a duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Energy Star-qualified units are field-convertible for vertical or horizontal airflow duct configurations. It features high- and low-pressure switches, its Scroll compressor has internal line-break overload protection, and its factory-installed options include a high-static indoor fan and economizers.

Warranty information: Five-year limited compressor and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gotempstar.com.

eProduct:220

Utica Boilers

Model: UCS 380 boiler

Footprint (in inches): 25 (length) by 23 (width) by 50 (height)

Serviceability features: This boiler is equipped with advanced electronics, including an anti-wind function that automatically adjusts the fan speed to prevent loss of flame and lockouts. Flame stabilization allows the flame to stabilize before modulating, which prevents flame drop outs and recycling. The boiler components are easily accessible through the removable panels.

Technical support: Support is available 8 a.m. to 6 p.m. Eastern time, Monday to Friday, at 800-325-5479 or at www.ecrdealerportal.com/utica.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; and submittal data sheets are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: With a 10.5:1 modulation turndown ratio, this unit saves energy by reducing the amount of gas used. To ensure proper installation, a quick-connect primary/secondary manifold is included, which has been designed with connection points for the gauge and pressure relief valve that are also included. The UCS 380 features a built-in boiler loop pump and a low water pressure sensor. Plug-and-play CSD-1 kits are also available. Its compact, floor-standing design features built-in leveling legs.

Warranty information: Manufacturer did not specify.

Special installation requirements: Manufacturer did not specify.

Contact: ECR Intl. Inc., 315-731-4185; www.ecrinternational.com.

eProduct:221

WaterFurnace

Model: Envision2 Series NXW chiller

Footprint (in inches): 50 (length) by 24 (width) by 64 (height)

Serviceability features: Heavy-duty, removable hinged access doors with latches simplify service. Optional factory-installed pressure gauges aid service and diagnostics without removing a panel. A large control panel is provided with serviceability in mind.

Technical support: Support is available at 800-257-5667.

Noise-reduction features: Its heavy-gauge insulated sheet metal cabinet reduces noise.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: The chiller includes HydroLink Aurora controls and a 10-inch color touchscreen display. The new communicating controls combine field-proven Aurora compressor management with a HydroLink NiagaraAX-based system-level controller to manage setpoint, control, staging, and the new touchscreen display. The controls also communicate more than 200 points to the building automation system (BAS) network via BACnet, LonWorks, or the NiagaraAX bus.

Warranty information: An 18-month parts-only warranty is available.

Special installation requirements: Manufacturer did not specify.

Contact: WaterFurnace Intl. Inc., 260-478-5667; www.waterfurnace.com.

eProduct:222

WaterFurnace

Model: Versatec variable-speed water-source/geothermal heat pump

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Aurora controls and AID tool provide for advanced diagnostics, refrigeration service sensors, energy monitoring, and advanced communication to the variable-speed drive for quick diagnosis.

Technical support: Support is available at 800-257-5667.

Noise-reduction features: All models incorporate several noise-reduction technologies and are ARI 260 sound rated. Room noise criteria curves may be calculated using data from the ARI 260 ratings, which gives the engineer total flexibility in assuring a quiet environment. Its variable-speed compressor is automatically noise-reducing since it can operate at lower speeds for longer periods of time.

IAQ equipment supported: This unit’s corrosion-free, composite, double-sloped drain pan eliminates standing water and prevents bacterial growth. A washable surface on insulation in all air-handler compartments allows cleanability and inhibits bacteria growth. Optional non-fibrous closed-cell insulation is available for more sensitive applications. A standard 1-inch, MERV-4, pleated filter is supplied. An optional, low-static, high-efficiency, 2-inch, MERV-13 filter is also available.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This unit represents a significant improvement in the commercial water-source heat pump market. The R-410A product features high-efficiency, variable-capacity compressors with standard options in a compact cabinet suitable for both retrofit and new construction applications. The product is also targeted to provide optimum performance and flexibility in both water-loop and geothermal applications, which represents a new level of innovation and performance.

Warranty information: A standard 18-month parts-only warranty is included with buy-up options available for project flexibility.

Special installation requirements: Manufacturer did not specify.

Contact: WaterFurnace Intl. Inc., 260-478-5667; www.waterfurnace.com.

eProduct:223

Whalen

The Whalen Co.

Model: Intelli-line™ WRX vertical stack fan coil with slide-out chassis

Footprint (in inches): 18 (length) by 16 (width) by 88 (height)

Serviceability features: The chassis slides out easily by removing four screws, which reduces commissioning time, provides easier access to the drain pan and internal components, and eases maintenance with minimal tenant disruption.

Technical support: Support is available 8:30 a.m. to 5 p.m., Monday to Friday, at 443-258-2800.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; and specification sheets are available.

Noise-reduction features: Flush-mounted return air panels are lined with sound-absorbing insulation to help attenuate noise from the fan assembly. Vibration isolation pads attached to the bottom of the cabinet dampen vibration from the fan motor.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Its slide-out chassis can be shipped separately from the cabinet, which reduces risk of installation damage and keeps the coil clean during construction. With a very small footprint, the fan coil’s customization capabilities include cabinet height, riser locations, handing and discharge arrangements, and sizes, so it can be installed and operated in less time.

Warranty information: An 18-month warranty is available. A limited express warranty of 24 months is also available.

Special installation requirements: Manufacturer did not specify.

Contact: The Whalen Co., 410-822-9200; www.whalencompany.com.

eProduct:224

Whalen

Model: Whisperpack® Series water-source heat pump

Footprint (in inches): 21 (length) by 16 (width) by 88 (height)

Serviceability features: Supply openings are available in multiple locations. Its aluminum supply grille construction minimizes future maintenance and eliminates oxidation from condensation. Its inner service panel is removable, which allows access to control wiring and internal piping. The plug-in type fan/motor assembly is easily removed through return air opening, with electronically commutated motor (ECM) technology.

Technical support: Support is available 8:30 a.m. to 5 p.m. Monday to Friday, at 443-258-2800.

Noise-reduction features: Water hoses connect the chassis to the supply and return water piping, which isolates sound from the building piping system. An acoustical panel dampens sound while permitting filter removal without any tools. The refrigeration chassis uses an insulated compressor compartment and vibration isolation to further reduce noise.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: The system utilizes some shared parts and some unique parts.

Additional features: These hybrid heat pump units use a hydronic heating coil instead of reversing the refrigerant cycle to allow for energy savings by turning the compressor off and diverting the condenser water to a heating coil. The refrigeration chassis uses a versatile, removable-floating design with an insulated compressor compartment and vibration isolation.

Warranty information: The cabinet carries a 15-month warranty, chassis carries a one-year warranty, compressor carries a five-year warranty, and the refrigeration circuit carries a five-year warranty.

Special installation requirements: Manufacturer did not specify.

Contact: The Whalen Co., 410-822-9200; www.whalencompany.com.

eProduct:225

Williams

Model: DX cooling fan coils

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Manufacturer did not specify.

Technical support: Manufacturer did not specify.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; start-up instructions; and an owner’s manual are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system does not share replacement parts with other models.

Additional features: Its DX fan coil units are ideal for installation above drop ceilings or in tight spaces. The units operate with R-410A or R-22 and are available with hydronic heat and/or electric heat with options of 1-9 kW. The cooling coil has a piston-type metering device or an optional factory- or field-installed thermostatic expansion valve (TXV).

Warranty information: A limited, one-year warranty is available. Any part that proves to be defective in material or workmanship within one year from date of original purchase for use will be repaired or replaced at the manufacturer’s option, FOB, to its factory. No liability is assumed by the manufacturer for removal or installation labor costs nor for freight or delivery charges.

Special installation requirements: Manufacturer did not specify.

Contact: Williams Comfort Products, 909-825-0993; www.williamscomfortprod.com.

eProduct:226

Williams

Model: Integrated Piping System (IPS) furnace

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Manufacturer did not specify.

Technical support: Manufacturer did not specify.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; start-up instructions; and an owner’s manual are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system does not share replacement parts with other models.

Additional features: Constructing or updating a heating and cooling system in a new building or renovation can be a costly and time-consuming process, but this innovative solution makes heating and cooling easier than ever before.

Warranty information: A limited one-year warranty is available. Any part thereof which proves to be defective in material or workmanship within one year from date of original purchase for use will be repaired or replaced at the manufacturer’s option, free on board (FOB), to its factory. No liability is assumed by the manufacturer for removal or installation labor costs nor for freight or delivery charges.

Special installation requirements: Manufacturer did not specify.

Contact: Williams Comfort Products, 909-825-0993; www.williamscomfortprod.com.

eProduct:227

York

Model: Direct Fit™ XQE04-06 and XXEA7-12 standard efficiency, package heat pumps

Footprint (in inches): 74-87 (length) by 49-62 (width)

Technical support: Support is available through York distributors.

Noise-reduction features: This unit is designed for lower outdoor operating sound levels as low as 79 dBA.

IAQ equipment supported: Rooftop units are available with an economizer and fresh-air and relief damper options; three static drive options allow for airflow versatility up to 2 inches of external static pressure (ESP); and options for 2-inch or 4-inch field-convertible air filters and epoxy coil coating options are available.

Thermostat compatibility: This unit is compatible with five- and seven-wire thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: These heat pumps feature an exact-fit replacement design that matches the footprints of other manufacturers’ units to reduce installation time, cost, and complexity. They are available with adjustable defrost, three heat capacities, two cabinet heights and footprint sizes, and a choice of cooling or electric heat configurations.

Warranty information: One-year limited complete unit and five-year compressors and electric heater elements warranties are available.

Special installation requirements: Heat pumps are designed to provide a trouble-free match to the footprints of other manufacturers’ units without the need for a curb adapter.

Contact: Johnson Controls Inc., 405-419-6545; www.york.com/directfit.

eProduct:228

York

Model: Gen II heat recovery VRF (YVAHR192B32S)

Footprint (in inches): 30 (length) by 64 (width) by 66 (height)

Serviceability features: These systems need little maintenance beyond filter changes and coil cleaning. The unit’s control boards, electrical connections, compressor, and piping are accessible by removing a single panel on the outdoor unit. Control options allow convenient management over a building automation system (BAS) or over the internet for remote tablets and phones.

Technical support: Support for all applicable technical documentation is available on the VRFPro.com portal. A full suite of variable refrigerant flow (VRF) training courses with expert trainers focusing on installation and commissioning, service and troubleshooting, and controls commissioning is available.

Noise-reduction features: The sound pressure of the compact, high-speed compressor can be reduced by up to 24 dBA by using advanced sound-pressure covers. The air blower has a new structure where it is placed above the heat exchanger, which suppresses noise on the reverse side.

IAQ equipment supported: Its multi-position air handlers include integrated internal filter racks for use with 1-inch-thick, standard-sized filters. An antibacterial air filter comes standard on some indoor units and as an available option for most styles and sizes. Non-ducted indoor units include a mount box and antibacterial air filter.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Advanced VRF, inverter-controlled technology provides heating down to minus 13°F ambient. It integrates with an unprecedented range of wall, ceiling, and floor-mounted indoor units with multi-port changeover boxes for design flexibility. Multiple control options include wired and wireless unit control, central control stations and gateways for integration with building automation systems, and connectivity via the cloud.

Warranty information: Limited lifetime compressor; 10-year limited parts; and fee-free, one-year labor limited warranties are available. Extended warranties are also available to purchase.

Special installation requirements: Designed for easy installation, this system’s outdoor units can be transported through a freight elevator without the need for a crane or other heavy equipment for rooftop installations. Piping indoor units can be done in the front, back, or underneath the housing. The H-LINK II communication system enables easy daisy-chain connections between the outdoor and indoor units.

Contact: Johnson Controls Inc., 414-524-5487; http://bit.ly/NEXTGENYORK.

eProduct:229

Click here to view the 2017 New Commercial Heating Product Grid

During this webinar, we will discuss what acidic condensate is, how it’s formed, and the damage it can cause if not properly treated—while hitting on the latest regulations that are driving the adoption of condensing technology.

On Demand Use the power of AI to your advantage to book more jobs and gain more operational efficiencies during busy season this year! See how an AI Employee can help you save time by qualifying every lead for you, automatically responding to incoming leads, and working overtime so you don’t have to.

Commercial Heating Showcase 2017

Manufacturers introduce systems in time for cold weather

Aaon

Aerco

Allied Commercial

Arcoaire

Arctic

Bard

Bosch Thermotechnology

Bryan Boilers

Bryant

Cambridge Engineering

Carrier

Champion

ClimateMaster

Coleman

Comfortmaker

Daikin Applied

Daikin Unitary

Daikin VRV

Day & Night

Dunkirk

DynaPack

Friedrich Air Conditioning

Fujitsu General America Inc.

Fulton Heating Solutions

GeoComfort, Hydron Module, Tetco

Heil

Hitachi

ICP Commercial

Indeeco

Interphase Technologies

Johnson Controls

Laars

Lennox InTL. Inc.

LG Electronics

Luxaire

Mammoth

Mitsubishi Electric Cooling and Heating

Modine

Multiaqua

Panasonic

Reznor

Rheem

RUUD

HVAC Products

Tempstar

Utica Boilers

WaterFurnace

The Whalen Co.

Williams

York

Share This Story

Recommended Content

Report Abusive Comment

Related Articles

Related Products

Sign Up. Stay Informed.

The #1 trusted source for the HVACR industry since 1926

ClimateMaster 
