Residential Cooling Showcase 2018

Amana Heating & Air Conditioning

Model: AVXC20 air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 38 (height)

Serviceability features: This unit is ComfortNet® Communications System compatible, which allows entire system performance monitoring, automated maintenance alerts, and optional remote control of algorithmic logic. In communicating mode, two low-voltage wires to the outdoor unit are required. It features diagnostic indicator lights, seven-segment LED display, and fault code storage. Field-selectable boost mode increases compressor speed during unusually high loads. The unit has top and side maintenance access, sweat connection service valves, easy access to gauge ports, single-panel access to controls, and space for field-installed accessories.

Technical support: Available from 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988, option 5, or contact local distributor.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: This unit is acoustically engineered with enhancements that include a compressor sound-reduction cover made of high-density foam and a specially designed sound-control top. The electronically commutated motor (ECM) outdoor fan motor and the high-efficiency, variable-speed compressor minimize sound by ramping up slowly to provide just the right amount of cooling needed.

IAQ equipment supported: Compatible with Clean Comfort Indoor Air Essentials IAQ product line as well as other IAQ equipment.

Thermostat compatibility: Compatible with most thermostats. Also, ComfortNet Communications System compatible.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Advanced diagnostics constantly monitor the air conditioner system, reducing failures and pinpointing trouble spots. The unit has inverter-drive technology for energy-efficient performance; variable-speed swing and scroll compressors; a variable-speed ECM outdoor fan motor; a heavy-gauge, galvanized-steel cabinet; a baked-on powder-paint finish; and it is 500-hour salt-spray tested. It offers efficient cooling capacity, featuring 5 mm, refrigeration-grade, premium copper tubing and aluminum fin condenser coil configuration.

Warranty information: Lifetime unit replacement limited warranty (good for as long as homeowner owns home) and 10-year parts limited warranty when online registration is completed within 60 days of installation. Online registration is not required in California or Quebec. Complete warranty details available from local dealer or www.amana-hac.com.

Special installation requirements: Manufacturer did not specify.

Contact: Amana Heating & Air Conditioning, 281-536-6063; www.amana-hac.com.

eProduct: 160

Model: AVZC18 high-efficiency heat pump

Footprint (in inches): 29 (length) by 29 (width) by 38 (height)

Serviceability features: Advanced Amana Inside intelligence diagnostics constantly monitor the system, reducing failures and pinpointing trouble spots. In communicating mode, two low-voltage wires to the outdoor unit are required. It features diagnostic indicator lights, seven-segment LED display, coil/ambient temperature sensors, fully charged 15 feet of tubing, and fault code storage. Field-selectable boost mode increases compressor speed during high loads. The unit has top and side maintenance access, sweat connection service valves, easy access to gauge ports, single-panel access to controls, and space for field-installed accessories.

Technical support: Available from 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988 — press 5 for tech support — or contact local distributor.

Noise-reduction features: The high-efficiency, variable-speed ECM condenser fan motor provides dependable, quiet airflow across the condensing coil. It also features a heavy-gauge galvanized steel enclosure with sound-control top, and the acoustically engineered, high-density sound control blanket helps to reduce sound.

IAQ equipment supported: Compatible with Clean Comfort Indoor Air Essentials IAQ product line, as well as other IAQ products.

Thermostat compatibility: Compatible with most thermostats. Also, ComfortNet Communications System compatible.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: This unit is ComfortNet compatible, which allows continuous monitoring of system performance with optional remote control. Advanced diagnostics constantly monitor the heat pump system, reducing failures and pinpointing trouble spots. It features variable-speed swing and scroll compressors, a suction pressure transducer, a heavy-gauge galvanized-steel cabinet, custom two-tone gray powder-paint finish, and it is 500-hour salt-spray tested. It offers efficient cooling capacity, featuring 7-mm, refrigeration-grade, premium copper tubing and aluminum fin condenser coil configuration that delivers outstanding heat transfer properties with R-410A refrigerant. It is compatible with the ComfortHome™ suite of automation products.

Special installation requirements: Manufacturer did not specify.

Contact: Amana Heating & Air Conditioning, 281-536-6063; www.amana-hac.com.

eProduct: 161

American Standard

Model: Silver 16 low-profile air conditioner, 4TTL6

Footprint (in inches): 40 or 47 (length) by 15 or 18 (width) by 37 or 43 (height)

Serviceability features: Easy access service panel. Protective mesh coil cover.

Technical support: Installation guide and service guides available. Extensive field service representative network. Telephone support also available.

Noise-reduction features: The unit features a fully enclosed compressor compartment and swept fan blades.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The unique draw-through design reduces recirculation, does not stain the walls of the home, and makes cleaning easy. Available in 1.5- 5-ton sizes and delivering up to 17 SEER performance, the system features a single-stage Duration™ scroll compressor, copper tube and aluminum fin coil, and 70-73 dBA sound levels. It meets southwest region minimum 14 SEER and 12.2/11.7 EER in all sizes.

Warranty information: Limited warranty (registered): 10-year compressor, 10-year heat exchanger, and 10-year coil/parts. Limited Warranty (nonregistered): Five-year compressor, five-year heat exchanger, and five-year coil/parts. Extended warranty available.

Special installation requirements: None.

Contact: American Standard, 651-407-4086; www.americanstandard.com/residential.

eProduct: 162

Arcoaire

Model: HCA7 DuraComfort™ Deluxe 17 split system air conditioner

Footprint (in inches): 31 to 35 (length) by 31 to 35 (width) by 39 to 47 (height)

Serviceability features: This unit is compatible with the Observer® Communicating Control with Wi-Fi capability, featuring system control with remote access (when connected to the internet) and text-based diagnostics. The three-piece grille panels can be removed separately to view/clean. It also features easy access to service valves, two screws to access control panel, and high- and low-pressure switches.

Technical support: Technical service advisor on staff at local distributors is available with technical assistance and troubleshooting. Technical training is available at field schools held at participating distributor locations nationwide and online at www.GoArcoaire.com.

Noise-reduction features: Units are equipped with Copeland Scroll® UltraTech™ compressors and isolation compressor grommets to minimize sound at maximum performance. A high-performance compressor sound shield is standard.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). It comes equipped with a factory-installed outdoor air temperature sensor.

Thermostat compatibility: Compatible with most thermostats. Communicating and self-configuring function available only when used with Arcoaire® Observer communicating wall control (thermostat).

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: This air conditioner is compatible with the Observer Communicating Control with Wi-Fi capability. It features self-configuring capabilities and easy-to-read diagnostics. The thermostat can be programmed to display contractor name/contact information when homeowners need service or routine maintenance or cleaning. It provides two-stage comfort with efficiencies up to 17 SEER. The tight-wire coil guard provides maximum protection with optimal airflow.

Warranty information: Ten-year No Hassle Replacement™ limited warranty and 10-year parts limited warranty, including compressor and coils, to original purchaser with timely registration. Parts limited warranty period is five-year parts if not registered within 90 days of installation (see warranty certificate for details and restrictions).

Special installation requirements: Thermal expansion valve (TXV) expansion devices are recommended for maximum system reliability. The units must be installed with a fan coil or furnace capable of supporting two-stage cooling.

Contact: International Comfort Products, 317-847-6930; www.GoArcoaire.com.

eProduct: 163

Model: HSA6 DuraComfort™ 16 split system air conditioner

Footprint (in inches): 31 to 35 (length) by 31 to 35 (width) by 29 to 47 (height)

Noise-reduction features: Units are equipped with Copeland Scroll compressors and isolation compressor grommets to minimize sound at maximum performance. A compressor sound blanket is standard.

Thermostat compatibility: Compatible with most thermostats. Communicating and self-configuring function available only when used with Arcoaire Observer communicating wall control (thermostat).

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: This air conditioner is compatible with the Observer Communicating Control with Wi-Fi capability. It features self-configuring capabilities and easy-to-read diagnostics. The unit has Energy Star ratings with selected coil-only combinations in every size and up to 16-SEER efficiency rating. The thermostat can be programmed to display contractor name/contact information when homeowners need service or routine maintenance or cleaning.

Warranty information: Five-year No Hassle Replacement™ limited warranty and 10-year parts limited warranty, including compressor and coils, to original purchaser with timely registration. Parts limited warranty period is five-year parts if not registered within 90 days of installation (see warranty certificate for details and restrictions).

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoArcoaire.com.

eProduct: 164

Armstrong Air

Model: 4SCU16LE air conditioner

Footprint (in inches): 27 to 38 (length) by 25 to 36 (width) by 30 to 38 (height)

Serviceability features: Precision Service™ technology provides thoughtful design and precise part location of each component, allowing technicians to work efficiently and effectively on every job. Features include simplified fan removal, threaded pressure switches, fewer screws per panel, and corner-post-mounted access panels.

Technical support: Available at 800-515-3501.

Noise-reduction features: Noise-reduction features include a grommet-mounted compressor and heavy-duty sound blanket for quiet operation.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The proprietary heat transfer system, MHT™ technology, uses enhanced aluminum fins and copper tubing to maximize heat transfer and efficiency. The 4SCU16LE features a full metal louvered panel coil guard protection that is easily removed for cleaning. The controls are located in the corner for easy installation and service.

Warranty information: Ten-year limited warranty on compressor, 10-year limited warranty on all parts, and extended warranty available. Warranty provides for a total of 10 years of limited warranty coverage (standard five-year limited parts warranty plus an additional five-year limited extended parts warranty). Must be registered online within 60 days of installation.

Special installation requirements: The filter drier is shipped loose for installation flexibility, the unit is charged for 15 feet of line set, and high- and low-pressure switches are factory installed. Accessories include low ambient control, thermal expansion valve (TXV) kits, crankcase heater, hard start kits, and short cycle protection.

Contact: Allied Air Enterprises, 803-738-4138; www.armstrongair.com/products/air-conditioners.

eProduct: 165

Model: 4SHP15LE heat pump

Footprint (in inches): 31 to 38 (length) by 29 to 36 (width) by 38 to 44 (height)

Serviceability features: Precision Service technology provides thoughtful design and precise part location of each component, allowing technicians to work efficiently and effectively on every job. Features include simplified fan removal, threaded pressure switches, fewer screws per panel, and corner-post-mounted access panels.

Technical support: Available at 800-515-3501.

Noise-reduction features: Quiet Shift™ technology allows this unit to enter defrost mode without excessive noise. Additional features include a grommet-mounted compressor, heavy-duty sound blanket, and discharge muffler for quiet operation.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The proprietary heat transfer system, MHT™ technology, uses enhanced aluminum fins and copper tubing to maximize heat transfer and efficiency. The 4SHP15LE features a full metal louvered panel coil guard protection that is easily removed for cleaning. The defrost control features built-in diagnostics for easier service.

Warranty information: Ten-year limited warranty on compressor, 10-year limited warranty on all parts, extended warranty available. Warranty provides for a total of 10 years of limited warranty coverage (standard five-year limited parts warranty plus an additional five-year limited extended parts warranty). Must be registered online within 60 days of installation.

Special installation requirements: The filter drier is shipped loose for installation flexibility. It includes a high-pressure switch; low-pressure switch for loss of charge system protection; and reliable, solid state, time-initiated, temperature-terminated defrost system. Accessories include low ambient control, thermal expansion valve (TXV) kits, crankcase heater, hard start kits, and fossil fuel kit.

Contact: Allied Air Enterprises, 803-738-4138; www.armstrongair.com/products/heat-pumps.

eProduct: 166

Bard

Model: GEOTEC geothermal heat pump

Footprint (in inches): 26 to 27 (length) by 27 to 32 (width) by 48 to 55 (height)

Serviceability features: This heat pump features high-efficiency, two-stage, step capacity, scroll compressor, R-410A green refrigerant, and variable-speed electronically commutated motor (ECM) for superior efficiencies and quiet performance. Increased dealer-friendly installation and service features include left- or right-side water connections outside of cabinet, left- or right-hand access to control panel, slide-in electric heat packages, and simplified wiring and troubleshooting.

Technical support: In-house and field training classes available. State continuing education credits offered. Service provided through distribution network.

Noise-reduction features: This unit has a Copeland Scroll step-capacity compressor on a floating base, ECM blower motor, and discharge muffler. The service compartment is also insulated to reduce noise levels.

IAQ equipment supported: The unit is compatible with field-installed electronic air cleaners or high-efficiency media-type filters through installing dealers.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: This heat pump is suitable for ground water or ground loop applications. It features a multi-capacity two-stage compressor, variable-speed ECM blower motor, R-410A refrigerant, built-in domestic hot water heat exchanger, coefficient of performance (COP) ratings up to 5.1, and EER ratings up to 30.2.

Warranty information: Limited 10-year parts warranty.

Special installation requirements: None.

Contact: Bard Mfg. Co. Inc., 419-636-1194; www.bardhvac.com.

eProduct: 167

Bosch Thermotechnology Corp.

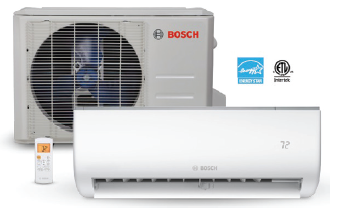

Model: Climate 6000 ductless mini-split system

Footprint (in inches): 52 (length) by 37 (width) by 16 (height)

Serviceability features: The unit’s built-in self-cleaning mode removes moisture and additional particles to ensure fresh, breathable air. Its universal internal control design reduces maintenance time and component complexity, while a detachable air handler with a pull-out feature provides easy access to system components. The unit also features a fan motor that enables quick removal and replacement.

Technical support: Available at 800-283-3787.

Noise-reduction features: This unit’s outdoor condensing section and separate indoor unit provide sound levels as low as 20 dBA with its silent mode feature.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit requires a special thermostat. The indoor unit’s thermostat is provided.

Replacement parts compatibility: Some shared parts and some unique parts. Shares replacement parts with other models.

Additional features: With performance up to 22 SEER, Bosch designed the Climate 5000 to save energy. The unit’s multi-zone system allows each area of a home to be set to different levels of comfort based on individual preference, and a “follow me” feature provides individualized comfort. The unit also features a turbo mode that quickly creates a comfortable temperature and a silent mode, where the unit operates quietly at sound levels as low as 20 dBA.

Warranty information: A limited seven-year residential compressor warranty is available. Visit www.boschheatingandcooling.com for full details.

Special installation requirements: Designed for easy installation, this unit requires no ductwork and an opening of 3 inches or less in diameter to run lines. The multi-zone system installation features include an auto-correction function, which verifies and automatically compensates for wiring/piping errors between indoor units and the outdoor section of the system.

Contact: Bosch Thermotechnology Corp., 603-552-1100; www.bosch-climate.us/.

eProduct: 168

Broan

Model: FSA1BG air conditioner

Footprint (in inches): 32 (length) by 32 (width) by 37 (height)

Serviceability features: Removable jacket panels allow easy access to coil for cleaning and routine maintenance. It also features removable access panel for compressor or pressure switch maintenance, external service valves for easy charging, and removable fan top assembly without removing wiring.

Technical support: Available from 8 a.m. to 4:30 p.m. Central time, Monday to Friday at 800-422-4328. Technical literature is available at literature.nortekhvac.com.

Noise-reduction features: This unit has a composite base pan for sound and vibration absorption and a compressor sound blanket to reduce any excess noise.

IAQ equipment supported: The unit supports all standard IAQ products, including zoning components, air cleaners, UV lights, and humidity controls.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Inverter technology allows the unit to modulate between five compressor speeds, both below and above nominal capacity. Most off-the-shelf two-stage thermostats will work — it does not require a special proprietary controller. The indoor unit features the same all-aluminum family of condenser coils and air handlers/furnaces as the two-stage product.

Warranty information: Five-year limited parts warranty and a one-year Quality Pledge to replace the unit if the compressor fails within the first year. If the product is registered within 60 days of purchase, the coverage increases to a 10-year limited parts warranty and a 10-year Quality Pledge. Extended warranties are available through the Contractors’ Preferred Protection Plan.

Special installation requirements: Must be installed with microchannel evaporator coil.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct: 169

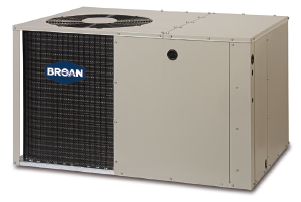

Model: Q7RF small packaged heat pump

Footprint (in inches): 49 or 63 (length) by 35 (width) by 30 (height)

Serviceability features: All major components are contractor-friendly at the perimeter of the unit: compressor, blower assembly, thermal expansion valve (TXV), and electrical. Blower motor operation is a simple, constant, high voltage in and low-voltage input control, which makes troubleshooting easy. The two-stage compressor (mechanically loaded) is controlled by low voltage and voltage and amperage spikes that determine diagnosis. It also features easy access to TXV for operational confirmation.

Technical support: Available from 8 a.m. to 4:30 p.m. Central time, Monday to Friday at 800-422-4328. Technical literature is available at literature.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; specification sheets; startup instructions; and owner’s manual.

Noise-reduction features: The swept-wing fan blade on the condenser fan motor assembly, seamless two-stage switchover, and closed cell blanket that surrounds the compressor reduce objectionable outdoor noise. Additionally, the five-speed blower and fully insulated supply and return sections provide low vibration and noise dampening features on the inside of this packaged product.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: This unit is built around the Copeland UltraTech II two-stage compressor, which is the heart of the refrigeration system. Cost savings can be achieved with this unit because it runs most of the time in first stage, saving the homeowner money while keeping the home comfortable. The all-aluminum coils are lightweight and use less refrigerant. No copper transfer tubes means a more durable coil.

Special installation requirements: None.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct: 170

Bryant

Model: 126CNA air conditioner

Footprint (in inches): 26 to 35 (length) by 26 to 35 (width) by 29 to 46 (height)

Serviceability features: This unit has a control box access panel for easy component access and top access for fan motor and fan assembly components. It also shares common parts and design as other Carrier models for familiarization and training.

Technical support: Available at 800-946-2930 or HVACPartners.com. Additional training available through the widespread distribution network and Carrier University.

Noise-reduction features: This unit features a scroll compressor sound blanket and prop condenser fan to reduce noise.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: This 5-ton, 16-SEER/13-EER air conditioner, when paired with a 21-inch indoor unit, boasts single-stage sound levels as low as 68 dBA and provides average cooling capacity of 98 percent nominal cooling capacity.

Warranty information: Ten-year limited parts only warranty with registration. Optional extended protection programs are available.

Special installation requirements: Manufacturer did not specify.

Contact: Bryant, 317-847-6930; www.bryant.com.

eProduct: 171

Model: Evolution® Series 180CNV air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 44 (height)

Serviceability features: For improved serviceability, communication between system components allows the Evolution Connex control to display system history for quick diagnosis of the complete Infinity system. Service technicians can attach a second control to the outdoor unit, which allows for on-site service without entering the home and remote access when connected to a Wi-Fi network.

Technical support: Manufacturer did not specify.

Noise-reduction features: The unit features a soft-starting, inverter-driven compressor and fan motor, which operate at quiet, low speeds most of the time while providing enhanced dehumidification capabilities when paired with an Evolution fan coil or furnace. The Evolution Extreme air conditioner achieves low sound ratings with a robust compressor sound blanket, double studded grommets, a laminated sound elimination compressor mounting plate, and forward-swept fan blades.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The Evolution Extreme air conditioner seamlessly combines high-efficiency, fully variable-speed operation with the feature-rich Evolution Connex Control to deliver comfort all year long. This new air conditioner comes in capacities from 2 to 5 ton and operates at up to 20.5 SEER/15.5 EER.

Warranty information: Three-year limited labor warranty as well as 10-year limited parts warranty with registration.

Special installation requirements: Manufacturer did not specify.

Contact: Bryant, 317-847-6930; www.bryant.com.

eProduct: 172

Carrier

Model: Infinity Series 24VNA0 air conditioner

Footprint (in inches): 35 (length) by 35 (width) by 44 (height)

Serviceability features: Communication between system components allows the Infinity® Touch control to display system history for fast diagnosis of the Infinity system. Service technicians can attach a second control to the outdoor unit, which allows for on-site service without entering the home and remote access when connected to a Wi-Fi network to prepare for service calls in advance. This unit has a control box access panel for easy component access and top access for fan motor and fan assembly components. It also shares common parts and design as other Carrier models for familiarization and training.

Technical support: Available at 800-946-2930 or visit www.carrier.com/HVACPartners.com. Additional training available through the widespread distribution network and Carrier University.

Noise-reduction features: The Infinity 20 with Greenspeed Intelligence achieves low sound ratings with a robust compressor sound blanket, double studded grommets, a laminated sound elimination compressor mounting plate, and forward-swept fan blades.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Requires the Infinity System Control.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: All sizes meet 18 SEER/13 EER ratings. This product has the lowest max sound ratings among competitive variable-speed units.

Warranty information: Three-year limited labor warranty and 10-year limited parts only warranty with registration. Optional extended protection programs are available.

Special installation requirements: Communicating system requires the Infinity System Control.

Contact: Carrier, 317-8476-930; carrier.com.

eProduct: 173

Model: Performance Series 24APB6 air conditioner

Footprint (in inches): 26 to 35 (length) by 26 to 35 (width) by 29 to 46 (height)

Technical support: Available at 800-946-2930 or visit www.carrier.com/HVACPartners.com. Additional training available through the widespread distribution network and Carrier University.

Noise-reduction features: This unit is equipped with a scroll compressor sound blanket and prop condenser fan to reduce noise.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: This indoor unit is 21 inches wide with a 5-ton a/c that meets the 16-SEER/13-EER efficiency point. It produces 98 percent of nominal capacity.

Warranty information: Ten-year limited parts only warranty with registration. Optional extended protection programs are available.

Special installation requirements: None.

Contact: Carrier, 317-847-6930; www.carrier.com.

eProduct: 174

Champion

Model: Momentum™ AL21 air conditioner

Footprint (in inches): 3-ton unit: 40 (height) by 32 (width) by 36 (depth)

Serviceability features: The built-in Charge Guard™ provides an instant indicator of system condition, direct readout of high and low system pressures, and suction and liquid line temperatures while also calculating system superheat and subcooling. This information is available without adding a manifold gauge set or temperature gauge — simply remove two screws to expose the captive touch screen display. Charge Guard ensures the system is properly optimized for fast installation and service and maximized service life.

Technical support: Available from the distributor that sold the product. Technical information is available on UPGnet, including product-specific self-directed training. Certified contractors can also obtain technical support from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378.

Noise-reduction features: This unit features an innovative ShadowDrive™ sound reduction system that includes an electronically commutated motor (ECM) fan motor, swept-wing fan, composite base pan, flat wire grille guard, and high-density compressor blanket, which all work together to reduce sound levels to no more than a typical residential dishwasher.

IAQ equipment supported: The Wi-Fi-enabled Momentum Hx™ touchscreen thermostat and variable-capacity system are designed to seamlessly interface with optional field-installed and system-matched energy recovery ventilators (ERVs), heat recovery ventilators (HRVs), humidifiers, dehumidifiers, and germ-killing UVC lighting.

Thermostat compatibility: Requires the Wi-Fi-enabled Momentum Hx touchscreen communicating thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: This product features variable capacity for more consistent comfort, exclusive Charge Guard charge monitoring, Climate Mark™ pre-configured operating profiles, ShadowDrive sound-reduction technology, and the Wi-Fi-enabled Momentum Hx touchscreen thermostat.

Warranty information: Limited one-year labor warranty, lifetime compressor, and a 10-year parts limited warranty on registered products.

Special installation requirements: The AL21 outdoor unit must be installed as a complete system, which includes the AL21 outdoor unit, a communicating Champion gas furnace, and a CM coil with factory-mounted electronic expansion valve (EEV). If using with an air handler, it must be matched with the AVV Momentum variable-speed communicating air handler with factory mounted EEV. Either system combination requires the Wi-Fi-enabled Momentum Hx touchscreen thermostat.

Contact: Johnson Controls, 414-344-8594; www.ChampionHomeComfort.com/Momentum.

eProduct: 175

Click here to view the 2018 New HVAC Residential Product Grid.

During this webinar, we will discuss what acidic condensate is, how it’s formed, and the damage it can cause if not properly treated—while hitting on the latest regulations that are driving the adoption of condensing technology.

On Demand Use the power of AI to your advantage to book more jobs and gain more operational efficiencies during busy season this year! See how an AI Employee can help you save time by qualifying every lead for you, automatically responding to incoming leads, and working overtime so you don’t have to.
