NIBCO Inc.: Bronze Ball Valves

Company: NIBCO Inc.

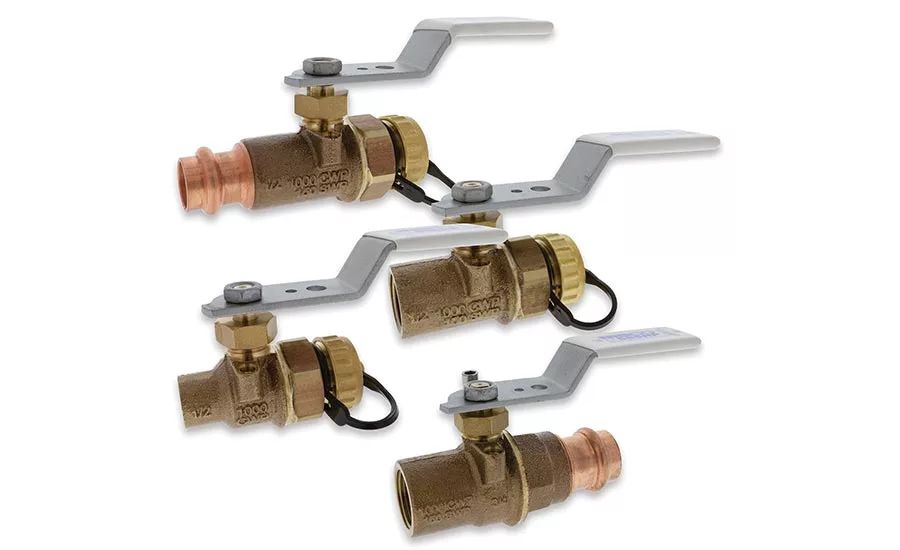

Product: 585HP Bronze Ball Valves line

Description: Designed for commercial and industrial applications, this lead-free line allows for easier installation, adjustability, and long service life. New configurations in this phase include thread x press end connections for sizes ½ to 2 inch and hose cap and chain for sizes ½ and ¾ inch for solder, press, and threaded end connections. All 585HP valves are North American-made and have the following listings and certifications: MSS-SP110/145; IAPMO/ANSI Z1157; NSF/ANSI/CAN 61-8 Commercial Hot 180° F; NSF/ANSI 372; ICC-ES PMG-1558 and ASME A112.4.14/CSA B125.14. The new configurations feature the same design as the original 585HP including the patented laser-welded construction, which eliminates the threaded body to body-end connection allowing for a higher operating pressure up to 1,000 CWP and 150 SWP, and operating temperature up to 250° F. The patent-pending top works features an easily reversible handle providing flexibility for on-site modifications, large accessible packing nut, and triple-sealed stem.

Contact: 800-234-0227, www.nibco.com, eProduct 184
