Sensiron: Humidity Sensor

Company: Sensiron

Product: SHT40

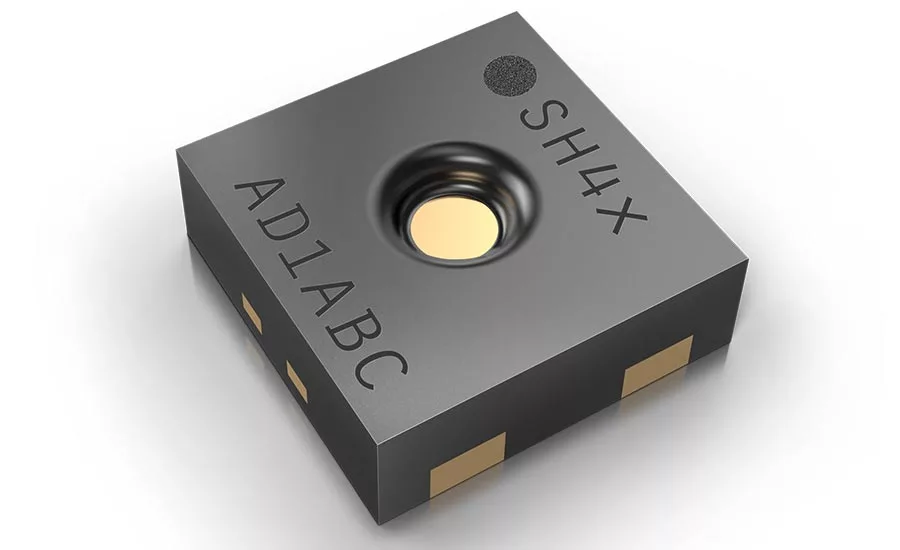

Description: The SHT40 builds on a CMOSens chip offering low power consumption. Sensirion’s CMOSens Technology provides a complete sensor system on a single chip, with a fully calibrated digital I2C fast-mode plus interface. The sensor covers operating ranges from 0 to 100% RH and from -40°C to 125°C with accuracies of ±1.8% RH and ±0.2°C. With the extended supply voltage range from 1.08 V to 3.6 V and 400 nA average current, the SHT40 is suited for mobile and battery-driven applications. The small size in a robust DFN housing enables integration into challenging designs while meeting the highest reliability demands, as demonstrated by the JEDEC JESD47 qualification.

Contact: 41-44-306-40-00, www.sensirion.com, eProduct 183
