Company: Asahi/America
Product: Series 19 MAV MultiPack

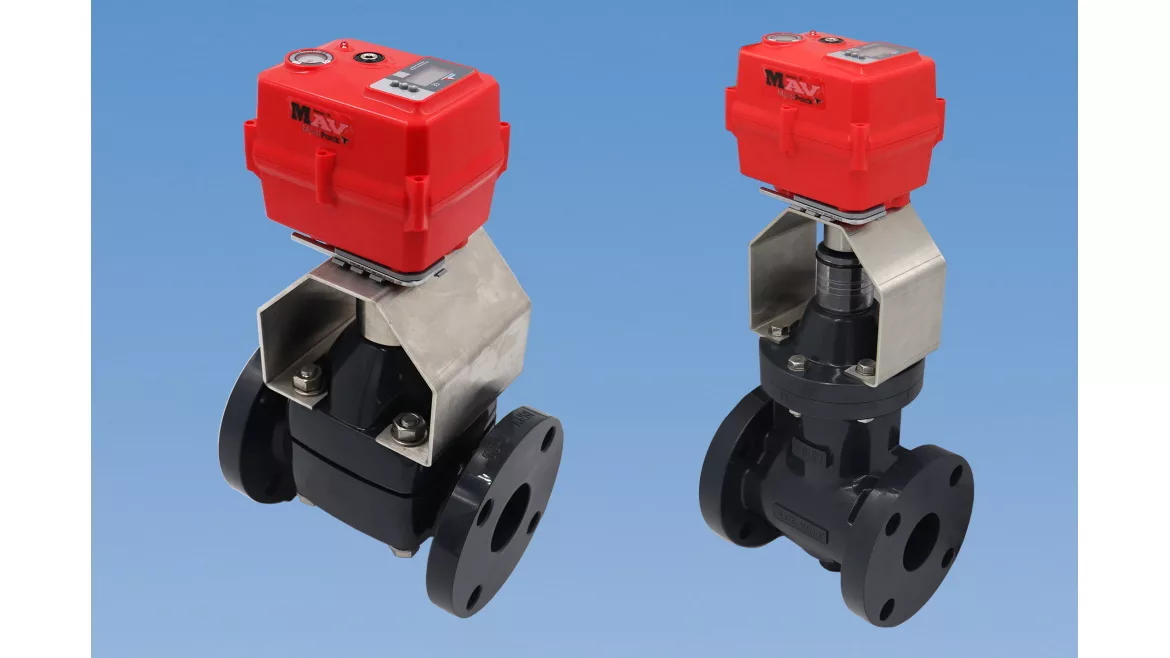

Description: Asahi/America’s Series 19 electric actuation line has expanded to include a multiturn unit capable of operating on diaphragm and gate valves up to 4”. The Series 19 MAV MultiPack multiturn actuator, features accelerated cycle times ranging from 13 to 100 seconds and a smart feature that tracks the number of completed cycles. Like all Series 19 actuators, The Series 19 MAV MultiPack comes standard with multi-voltage capability, a visual position indicator, an LED light to indicate valve position or fault, and auxiliary contacts. Controlled by firmware, the Series 19 MAV MultiPack is available in two packages as on/off or modulating unit. The MAV MultiPack mounts on Asahi/America Type-14 diaphragm valves and gate valves up to 4”. It includes a heater, one set of dry contacts for PLC confirmation and one for alarm reporting, OLED screen with push buttons, local controls and a QR code for easy and instant access to user manuals.
Contact: (800) 343-3618; www.asahi-america.com
