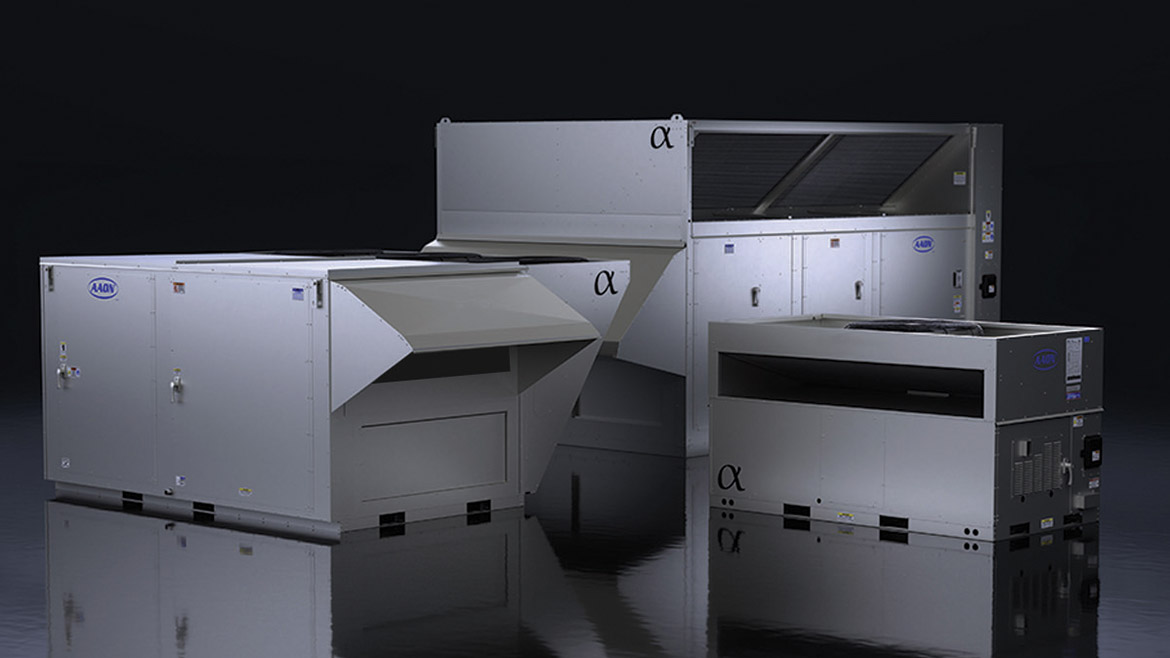

Serviceability features: Alpha Class equipment is designed with serviceability in mind, featuring color-coded wiring diagrams and clearly labeled components. This intentional design, combined with easily accessible hinged service doors, streamlines the evaluation of service issues, reducing delays, and maximizing efficiency. Each Alpha Class unit is accompanied by comprehensive documentation, including run test reports, wiring diagrams, and installation, operation, and maintenance manuals, to ensure easy diagnostics and troubleshooting of the unit.

Noise-reduction features: Heavy-duty access doors reduce noise while maintaining ease of service. Cabinet construction features standard 2-inch, rigid polyurethane, foam-injected panels with a thermal resistance R-value exceeding that of a cabinet with 4-inch fiberglass construction. This effectively retains valuable heating within the building while minimizing noise transmission and optimizing energy efficiency.

IAQ equipment supported: Up to 100% airflow economizer dampers provide energy-saving, free conditioning when conditions meet setpoint values. This feature ensures ventilation with fresh outside air meets indoor air quality requirements under all conditions. High-efficiency filtration up to MERV 14 is available with pleated air filters and optional metal mesh pre-filters to prevent moisture carryover.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Optional supplemental gas heater alongside the 100% electric configuration. This addition provides heat in extremely low ambient temperatures, reducing overall fossil fuel usage while maintaining comfort in all conditions. Variable-speed supply and outdoor fans enable high-performance airflow for heat pump heating and cooling, allowing for energy savings through variable-speed control. Additionally, modulating hot gas reheat humidity controls efficiently manage dehumidification without the temperature swings common in on/off reheat systems.

Warranty information: Standard five-year, non-prorated, compressor warranty, 15-year non-prorated, aluminized steel gas heat exchanger warranty, and 25-year non-prorated stainless steel gas heat exchanger warranty.

Special installation requirements: Easy installation with AAON factory-installed options.

Website: www.aaon.com.

Serviceability features: Hinged access doors provide easy access to the inner components. Finger-Save electrical connections and components. Optional 4-, 7-, and 10-inch touchscreen equipment interface.

Noise-reduction features: Two-inch double-wall foam insulated construction.

IAQ equipment supported: Provides fresh air ventilation.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The all-new AK1 Series cabinet features an even more compact footprint with new capacities and efficiencies. Additionally, the compact footprint is a drop-in for many competitor footprints. For even more flexibility, the addition of an energy recovery wheel and exhaust does not change the curb footprint of the cabinet. The AK1 also comes with a variable-speed compressor and an option for a horizontal supply and return.

Warranty information: One-year all parts, five-year compressor. Optional extended warranties available.

Special installation requirements: Manufacturer did not specify.

Website: www.addison-hvac.com.

Serviceability features: Hinged access doors provide easy access to the inner components. Finger-Save electrical connections and components. Optional 4-, 7-, and 10-inch touchscreen equipment interface.

Noise-reduction features: Two-inch double-wall foam insulated construction.

IAQ equipment supported: Provides fresh air ventilation.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

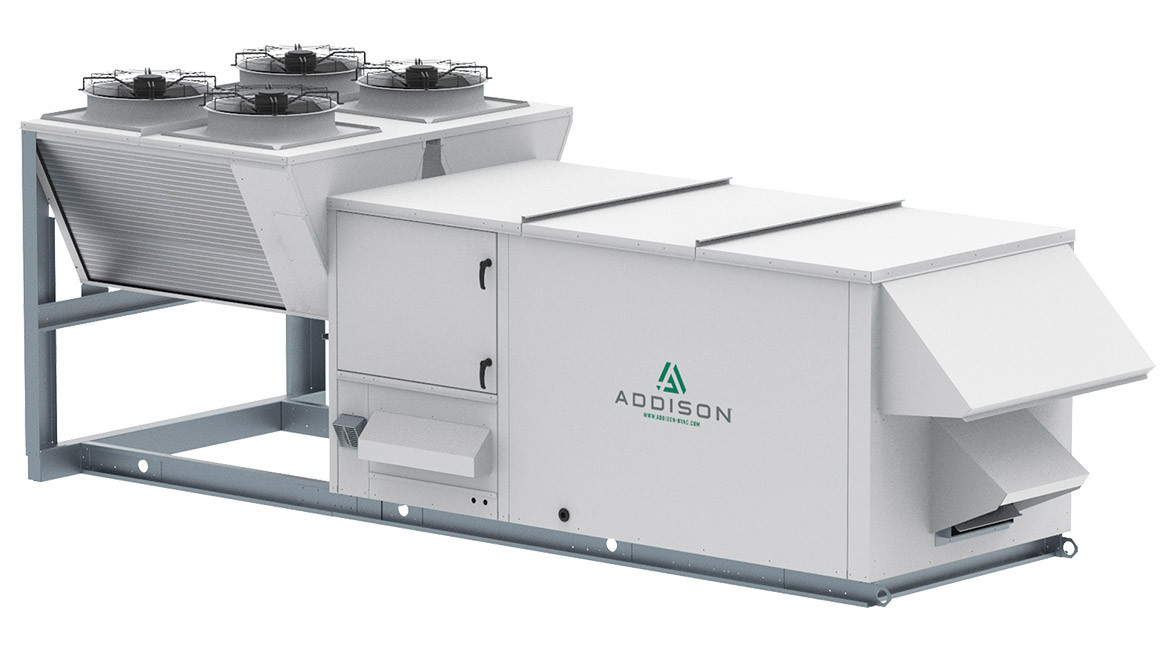

Additional features: The new desiccant option for the PR Series adds increased flexibility for applications that require ultra-low dewpoint air. Precise leaving air temperature and dewpoint control. Complete modulation operation from the speed of the desiccant wheel, to regeneration air, to compressor and supply air blower. Typical applications include retail grocery, laboratories, process control, and many others.

Warranty information: One-year all parts, five-year compressor. Optional extended warranties available.

Special installation requirements: Manufacturer did not specify.

Website: www.addison-hvac.com.

RAV049K0DA0AAA

Serviceability features: Wide selection of outdoor air options including manual and motorized damper, integrated economizer with FDD and Wi-Fi capabilities, CO₂ sensors for demand control ventilation, and Title 24 approved for California.

Noise-reduction features: Patented X-Vane technology units are quiet by design and well suited for noise-sensitive applications.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer recommends its BACnet-enabled Wi-Fi thermostat.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Airquest packaged rooftops with patented X-Vane fan technology are designed to enhance performance and efficiency while reducing maintenance and installation costs. The beltless, direct-drive, vane axial fan for rooftop units is just one of many technological advances that make these units simpler and more efficient. Other improvements include a new intuitive control board and coil technology, composite outdoor fan design, toolless filter access doors, and more.

Warranty information: One-year parts, five-year compressor, 10-year heat exchanger, 15-year stainless steel heat exchanger.

Special installation requirements: Check three-phase compressors to ensure they’re phased correctly at install, then measure temperatures and pressures at startup to ensure compressor is pumping properly. If phased incorrectly, compressor will not make a pressure differential and will generally make a racket when running. The compressors will only run until they overheat and shut off due to thermal overload. Prolonged cycling in this condition will lead to compressor failure.

Website: www.airquestcomfort.com.

QHA, QHA 060 S 4 D N 1 Y

Serviceability features: Arrives ready to install with no special rigging or brackets required for replacement. Easy-to-install, plug-and-play accessories do not require disassembly. Bottom power entry matches many existing installations. Side and bottom entrance to connections. Low-voltage Quick Connect. Factory-installed float switch. Standard base rail with fork lift slots.

Noise-reduction features: With the Q-series scroll compressor, low gas pulses during compression reduce operation sound levels; quiet combustion technology.

IAQ equipment supported: Antimicrobial condensate drain pan.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Engineered to make installations quick and smooth even when replacing different brands.

Warranty information: Five-year limited warranty on compressors, one-year limited warranty on all other covered components.

Special installation requirements: No special rigging or brackets required for placement. Side and bottom connection entrances. Base rails with forklift slots. Easy-to-install, plug-and-play accessories that do not require disassembly.

Website: www.allied-commercial.com.

RAV060H0DA0AAA

Serviceability features: Wide selection of outdoor air options including manual and motorized damper, integrated economizer with FDD and Wi-Fi capabilities, CO₂ sensors for demand control ventilation, and Title 24 approved for California.

Noise-reduction features: Patented X-Vane technology units are quiet by design and well suited for noise-sensitive applications.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer recommends its BACnet-enabled Wi-Fi thermostat.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Arcoaire packaged rooftops with patented X-Vane fan technology are designed to enhance performance and efficiency while reducing maintenance and installation costs. The beltless, direct-drive, vane axial fan for rooftop units is just one of many technological advances that make these units simpler and more efficient. Other improvements include a new intuitive control board and coil technology, composite outdoor fan design, toolless filter access doors, and more.

Warranty information: One-year parts, five-year compressor, 10-year heat exchanger, 15-year stainless steel heat exchanger.

Special installation requirements: Check three-phase compressors to ensure they’re phased correctly at install, then measure temperatures and pressures at startup to ensure compressor is pumping properly. If phased incorrectly, compressor will not make a pressure differential and will generally make a racket when running. The compressors will only run until they overheat and shut off due to thermal overload. Prolonged cycling in this condition will lead to compressor failure.

Website: www.arcoaire.com.

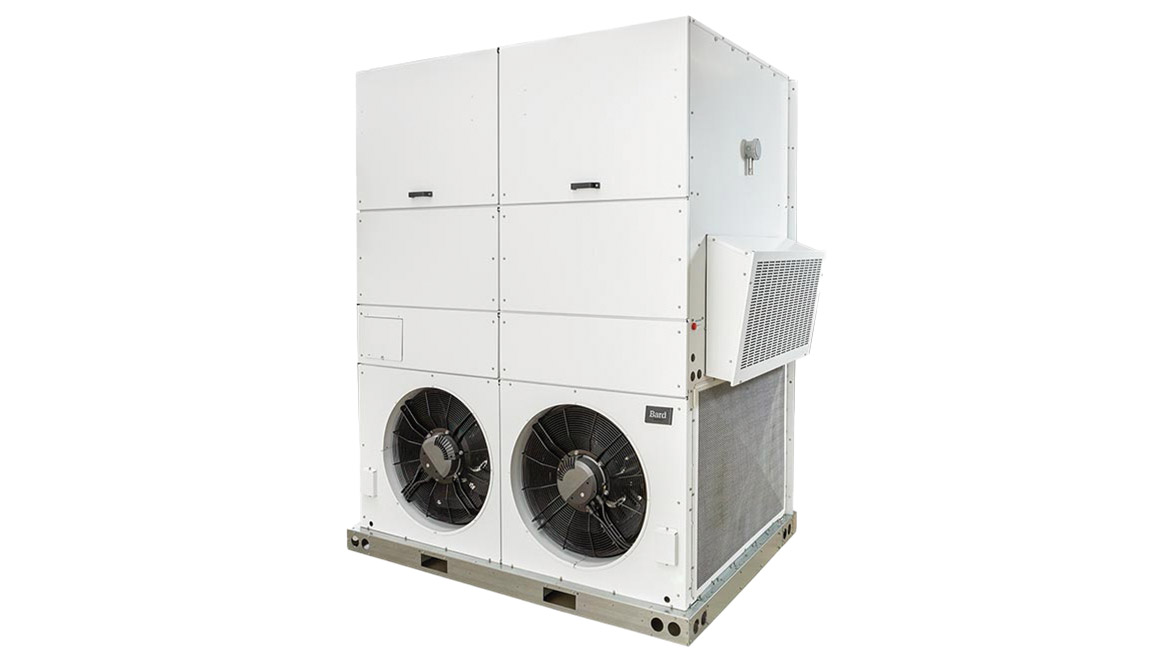

Serviceability features: Hinged service door, roll-out condenser fan assembly, PLC diagnostics for troubleshooting, exterior service port access, dirty filter light indicator, easy-to-clean condenser coils, Modbus interface, and remote access web page, Bard Link. All service and maintenance performed outside the building, consuming no interior floor space.

Noise-reduction features: ECM variable indoor and outdoor fan.

IAQ equipment supported: Up to MERV 13 indoor air filters. Can control external humidifier, emergency shutoff, and emergency ventilation.

Thermostat compatibility: Requires a PLC controller.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: A multi-stage, high-capacity, sensible cooling air conditioner designed to be a slide-in replacement for retrofit applications. AHRI certified and meets state and national codes. Operates remotely via Bard Link technology, leverages favorable weather conditions with optional free cooling economizer, and incorporates electric reheat dehumidification as an optional feature. Bard controller can control up to 14 wall-mount units.

Warranty information: Five-year parts refrigeration components.

Special installation requirements: Manufacturer did not specify.

Website: www.bardhvac.com.

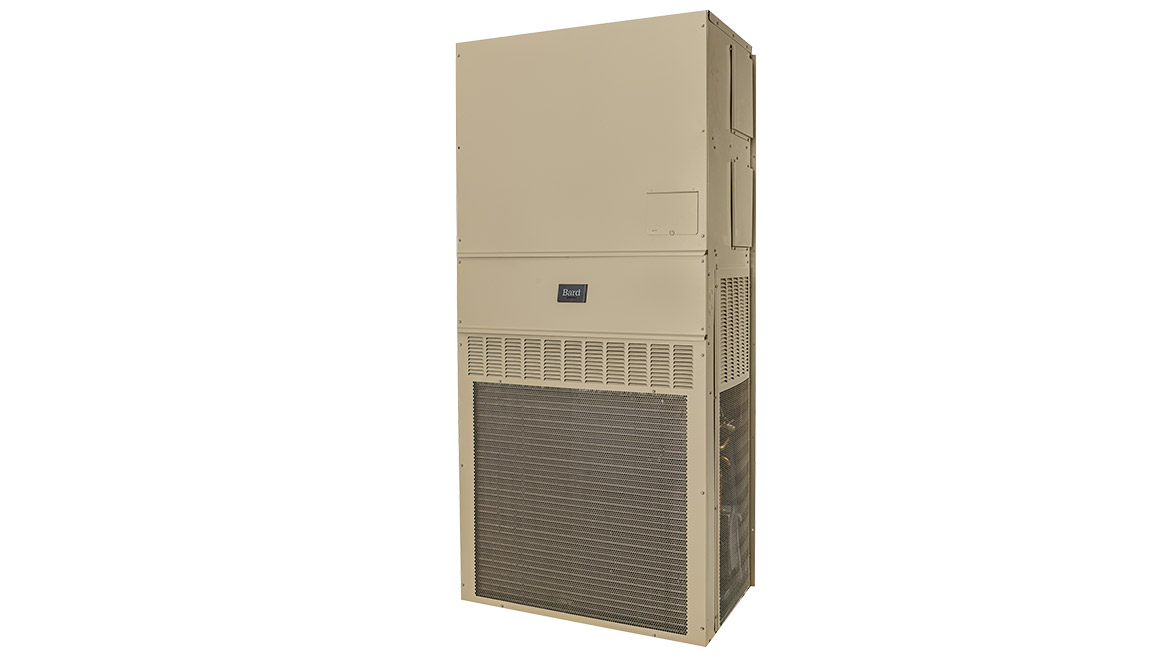

With inverter technology

Serviceability features: Easy filter access; easy-to-access service ports; indoor color touchscreen interface; easy-to-clean coils; and diagnostic service display.

Noise-reduction features: Modulating compressor and fan operation; compressor sound cover; indoor sound reduction accessories; and optional outdoor sound reduction curb with rubber vibration isolation.

IAQ equipment supported: Built-in ventilation options include economizer outdoor air intake and energy recovery ventilator; dehumidification option; up to MERV 13 filter; UV-C light option; and BPI option.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: This heat pump is an energy-efficient self-contained system designed to offer maximum indoor comfort with consistent temperatures. True capacity control is based on cooling and heating demand, providing a comfortable, quiet, and energy-efficient indoor environment for occupants. Features include an inverter compressor, ECM indoor and outdoor motors, indoor color touchscreen interface, and sound reduction accessories.

Warranty information: Five-year warranty on compressor and sealed refrigeration components. One-year warranty on other functional components.

Special installation requirements: Manufacturer did not specify.

Website: www.bardhvac.com.

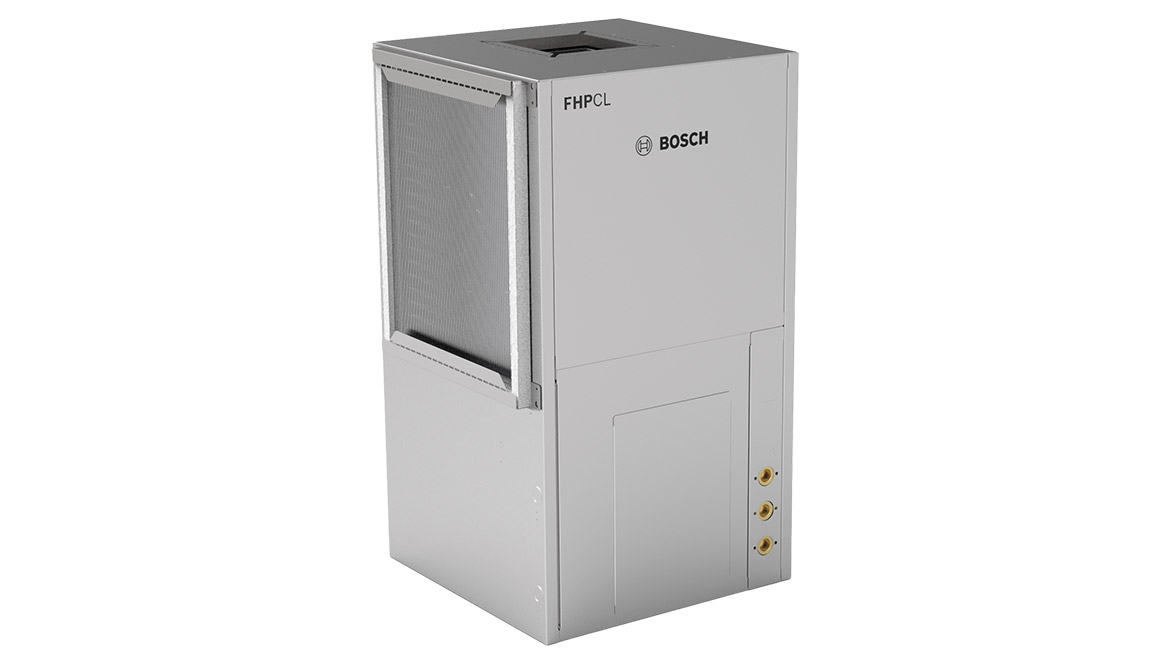

Serviceability features: The CL features a swinging electrical box, which provides convenient access to the compressor and other internal components. Additionally, vertical units include better air coil serviceability and a slide out blower to make servicing the blower and internal components a breeze. A divided electrical box contains a separate designated compartment for high and low voltage components, keeping service technicians safer.

Noise-reduction features: Units come standard with a unique sound package designed to eliminate vibration transmission to the cabinet and reduce unwanted noise in the occupied space. The product is designed with blower wheels that help keep discharge air noise to a minimum.

IAQ equipment supported: MERV 8 and MERV 13 filters.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The CL Series comes equipped with a compact cabinet designed to fit most commercial replacement projects. This single-stage unit is available in ½- to 6-ton size range and meets or exceeds ASHRAE 90.1 efficiency standards. CL horizontal cabinets come standard with blower systems that are easily reconfigured on the job site. The blower discharge arrangement can be changed from end to straight through discharge in only a matter of minutes.

Warranty information: One-year parts and five-year compressors.

Special installation requirements: Manufacturer did not specify.

Website: https://www.bosch-homecomfort.us.

Serviceability features: Compact footprint, completely field serviceable compressor, refrigerant isolation valve, and full complement of marine water boxes and hinges available.

Noise-reduction features: Full-load sound rating is 81 dBA. Part-load sound ratings are as low as 71 dBA.

IAQ equipment supported: Fully supports and optimizes operation during chilled water reset to reduce cycling and enhance IAQ. Incorporates within various IAQ control strategies like humidity control and destratification fan control.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Fully supports integrated water-side economizer operation by starting inverted, operating at low load and low lift, and being able to start as often as every 15 minutes. Also, provides more operating range and high efficiency at design (MORe), meaning the chiller can be highly efficient at the operating condition on the schedule and still be able to operate as high as 10°F above condenser design during periods of stress due to extreme weather (select models).

Warranty information: Available parts or complete unit, parts or parts and labor to 10 years.

Special installation requirements: None.

Website: www.carrier.com/commercial/en/us.

Serviceability features: In order to attend the requirements for new installations as well as replacement jobs, the 30RC is available with unique options such as BHPE or DX evaporator and microchannel or Al-Cu condenser coils, meeting a variety of applications where service concerns can be addressed by these different designs. These unique features were offered in the legacy products and carried to the new design.

Noise-reduction features: Comes standard with the ultra-low noise fan design, which allows air to flow efficiently and with minimum sound generation. Besides the fans, the 30RC can be equipped with compressor sound blankets and compressor enclosures to further reduce the noise generation. The variable-speed fan option, besides making the unit more efficient, also benefits the noise reduction at part-load conditions, where the chiller operates 99% of the time.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The 30RC provides evaporator choices (BHPE or DX), condenser coil choices (microchannel or Al-Cu), and the smallest footprint in the market with its unique compact-tier configuration. It can come with the single or dual pump hydronic kit. It has the option for the desuperheater, which provides hot water and makes the overall performance more efficient, as well as the variable-speed fan option to improve the IPLV (up to 18.5).

Warranty information: The 30RC chiller comes with standard 12/18 warranty like other Carrier chillers. Carrier also offers a range of extended warranties, which may include parts only, parts and labor, as well as compressor only or complete unit. The extended warranty from Carrier can vary from two to 10 years.

Special installation requirements: The 30RC is easy to install and has an option for a built-in hydronic kit for the whole range, making installation even simpler. It requires no special foundation, and Carrier chillers can count on the help of ExpertFit modeling software, which can help customers with restricted space installations, providing a precise expectation of what can happen to the chiller under these circumstances.

Website: www.carrier.com/commercial/en/us.

Serviceability features: All 48/50LC*H units include hinged access panels for easy access to maintain or service key components such as filters, compressors, supply fan, or controls. The Carrier SmartVu controls provide reminders when maintenance items, like filter changes, are overdue, or by providing alerts and alarms to indicate when service may be needed. Factory-installed discharge and suction pressure sensors allow for monitoring of the refrigerant circuit, minimizing the need to connect refrigerant gauges for troubleshooting.

Noise-reduction features: Slow fan ramp-up to speed capabilities help reduce sound and comfort issues typically associated with other drive systems

IAQ equipment supported: Factory- or field-installed return air CO₂ sensor or field-installed space CO₂ sensor.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: This packaged high outdoor air system is a special configuration that has been optimized for use in applications requiring high percentages of outdoor air (up to 100%). The 48/50LC*H optimization includes new features and options, such as modulating hot gas reheat, modulating heat, and a low-load protection valve that allows the unit to operate at a wide range of entering air conditions and airflows needed for high outdoor air operation.

Warranty information: Five-year compressor parts, 15-year stainless steel gas heat exchanger, and one-year non-consumable parts.

Special installation requirements: None.

Website: www.carrier.com/commercial/en/us.

Serviceability features: Unit performance sentinel; monitoring system; eight standard safety features; and non-corrosive polymer drain pan or stainless steel. External connecting port on front left corner post facilitates service tool connectivity, thereby reducing startup, commissioning, and service time. Communicating controls powered by CXM2 or DXM2.5, providing multiple communication pathways for diagnosis. Cloud-based remote monitoring via Wi-Fi, communicating, color, touchscreen thermostat. Connect directly to the system with a handheld service tool. iGate2 platform remote capability. Electrical service disconnect.

Noise-reduction features: Sound-absorbing glass fiber insulation. Unique double isolation compressor mounting for quiet operation. Insulated divider and separate compressor/air handling compartments.

IAQ equipment supported: One- or 2-inch filter options available.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The Tranquility SC raises the bar for water-source heat pump efficiencies, features, and application flexibility. It exceeds ASHRAE 90.1 efficiency standards, uses R-454B low-GWP refrigerant, and is eligible for LEED points due to innovative design. With one of the smallest cabinets in the industry, the Tranquility SC easily fits into tight spaces.

Warranty information: Standard commercial parts warranty with extended warranty available for purchase.

Special installation requirements: Support services are available via email and phone with the ClimateMaster technical support team. Additionally, detailed installation instructions are included with the unit.

Website: www.climatemaster.com.

Serviceability features: Easily removable panels for access. The optional communicating thermostat or the diagnostic tool allows the installer to set up the units for the comfort of the end user.

Noise-reduction features: Units are completely enclosed with insulation and compressor pads to reduce noise. Two- to 5-ton models have ECM motors, which also reduce noise.

IAQ equipment supported: There are many different IAQ options that may be added when ordering these units.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts. Shares replacement parts with other models.

Additional features: EarthPure (HFC-410A) refrigerant. Exceeds ASHRAE 90.1 efficiencies. Galvanized steel construction front access panel. Corrosion-resistant polymer drain pan. Sound-absorbing glass fiber insulation. Unique double isolation compressor mounting for quiet operation. Insulated divider and separate compressor/air handler compartments. Copeland scroll compressors (size 024 and above). TXV metering device. Microprocessor controls standard. Field-convertible discharge air arrangement for horizontal units.

Warranty information: Five-year compressor, one-year parts. (Some limitations apply, please see printed warranty for details.)

Special installation requirements: The installing contractor should use the supplied IOM and follow all instructions as indicated in the manual.

Website: marsdelivers.com.

RAV072H0FA0AAA

Serviceability features: Wide selection of outdoor air options including manual and motorized damper, integrated economizer with FDD and Wi-Fi capabilities, CO₂ sensors for demand control ventilation, and Title 24 approved for California.

Noise-reduction features: Patented X-Vane technology units are quiet by design and well suited for noise-sensitive applications.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer recommends its BACnet-enabled Wi-Fi thermostat.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Comfortmaker packaged rooftops with patented X-Vane fan technology are designed to enhance performance and efficiency while reducing maintenance and installation costs. The beltless, direct-drive, vane axial fan for rooftop units is just one of many technological advances that make these units simpler and more efficient. Other improvements include a new intuitive control board and coil technology, composite outdoor fan design, toolless filter access doors, and more.

Warranty information: One-year parts, five-year compressor, 10-year heat exchanger, 15-year stainless steel heat exchanger.

Special installation requirements: Check three-phase compressors to ensure they’re phased correctly at install, then measure temperatures and pressures at startup to ensure compressor is pumping properly. If phased incorrectly, compressor will not make a pressure differential and will generally make a racket when running. The compressors will only run until they overheat and shut off due to thermal overload. Prolonged cycling in this condition will lead to compressor failure.

Website: www.comfortmaker.com.

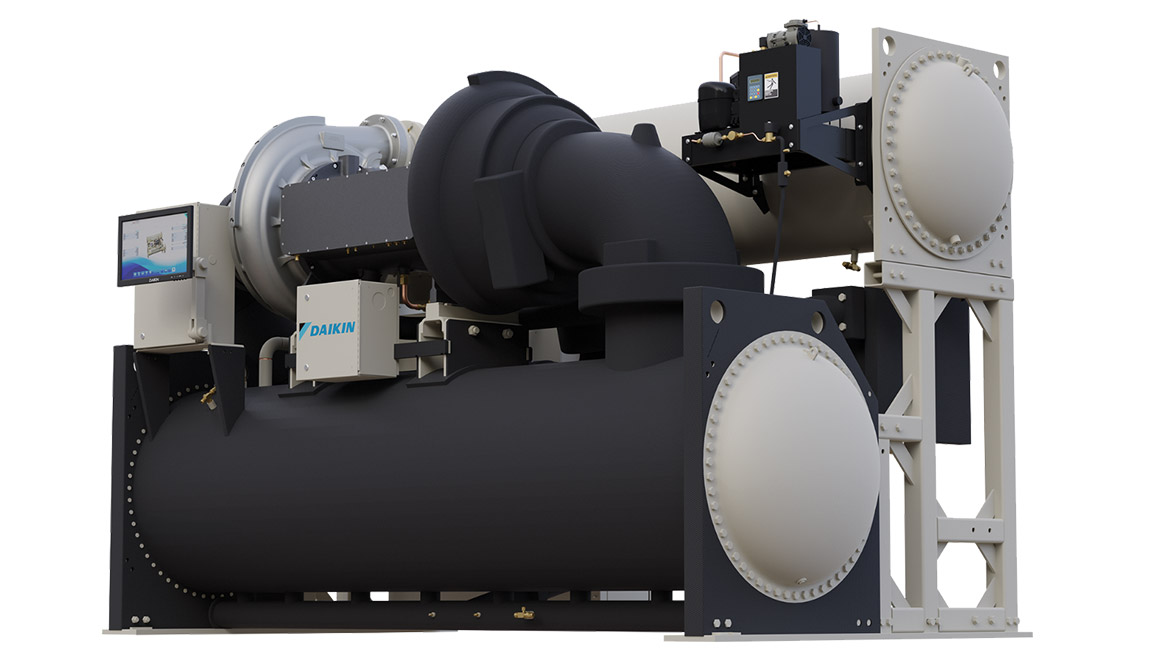

Serviceability features: The oil-free, magnetic bearing design uses a direct-drive motor and shaft that eliminates wear surfaces on bearings, gears, or slide valves, increasing reliability and longevity. The soft start feature minimizes mechanical and thermal stresses, reducing maintenance, and extending the motor's lifespan. The HMI control screen connects to building automation systems to deliver real-time analytics for energy optimization, indoor air quality, and sustainability. Digital controls continuously monitor the chiller's operating status, providing fault protections.

Noise-reduction features: The chiller utilizes magnetic bearings, which offer an inherently quiet design. The sounds levels of the chiller are tested in accordance with AHRI Standard 575 and are as quiet as 79 dBA at full-load capacity. WMT achieves even quieter operation at reduced loads and non-standard conditions.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Magnitude WMT uses VFDs, magnetic bearings, and advanced controls, and delivers unparalleled uptime through Daikin’s unique RideThrough and RapidRestore technologies. In mission critical facilities where power loss means a loss of cooling, RapidRestore ensures industry-leading startup and fast-loading times. RideThrough, Daikin’s power trip resilience technology, enables chillers to maintain operation during brief power loss events. The WMT is also unique, as it utilizes a two-stage, oil-free compressor with R-1233zd(E) refrigerant.

Warranty information: There are warranty options for refrigerant, parts, unit parts and labor, and customers can also purchase extended warranties for these components.

Special installation requirements: Magnitude WMT has standard installation requirements but also offers flexibility through factory knock-down disassembly. This option allows the unit to be broken down into smaller pieces, facilitating easier transportation to the installation site. This also simplifies the process of maneuvering the unit into tight or challenging spaces, reducing overall installation time and effort. This is particularly beneficial for retrofit or renovation projects where space and access constraints may be a concern.

Website: www.daikinapplied.com.

Serviceability features: On-site service is faster for these rooftops with the addition of low-GWP R-32 refrigerant, a single component refrigerant that’s easier to recharge and reclaim than a blend. Double-wall foam construction, coupled with hinged access doors to all major sections, facilitates easy access to replace filters and clean the evaporator coil, energy recovery wheel and drain pan. Additionally, the plethora of BAS communication options offers more ways to monitor and interact with the unit.

Noise-reduction features: These rooftops incorporate several noise-reduction features, such as compressor sound blankets, high-efficiency condenser fans, perforated interior liners, and sound attenuators inside the discharge plenum. Together, these elements contribute to creating an exceptionally quiet interior environment, minimizing both interior and radiated sound power levels.

IAQ equipment supported: Configurable primary filters, coil cleaning UV, precision two-point control (humidity and temperature), modulating hot gas reheat, and precision control of outdoor airflow intake. Rebel Applied also offers features such as UV disinfection, photocatalytic oxidation (PCO), HEPA final filters, gas phase filtration, humidifiers, and sorbent ventilation technology, all contributing to deliver clean, quality indoor air.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

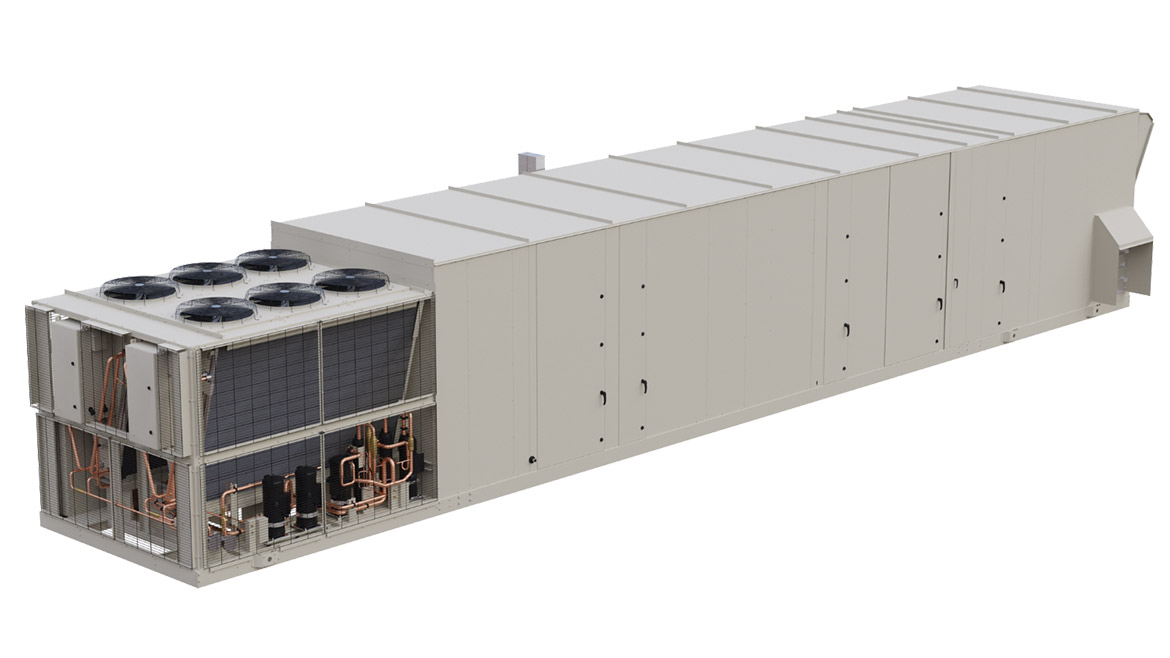

Additional features: The new Rebel and Rebel Applied units feature low-GWP R-32 refrigerant, recognized as one of the most efficient and proven refrigerant options. Paired with an inverter compressor-driven refrigeration circuit, it provides more sustainable heat pump and cooling solutions with ultra-high, part-load energy efficiency. Features such as fully integrated energy recovery and sophisticated control logic tie the system together, making it one of the most advanced rooftop units in the market.

Warranty information: All products include a standard one-year full unit parts warranty. A variety of à la carte options allow customers to customize their warranty coverage. These options range from an extra year of parts to several decades of both parts and labor warranties, providing customers with peace of mind and flexibility.

Special installation requirements: Rooftop units are typically mounted on a roof curb when positioned on a building. When it comes to replacing a rooftop unit at the end of its original lifespan, an adapter curb is usually necessary for the new unit to sit on the existing installed roof curb. However, a unique feature of the Rebel Applied system is its ability to replace both older Daikin rooftop units and competitors' equipment without needing an adapter curb.

Website: www.daikinapplied.com.

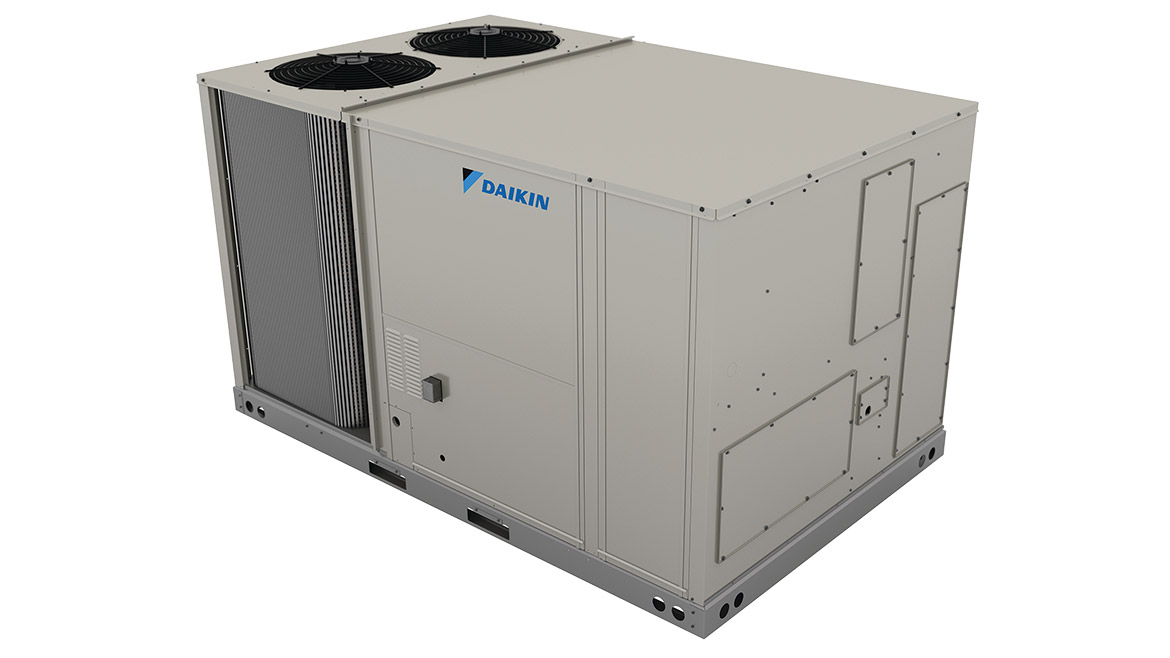

Standard-efficiency, gas/electric, heat pump, and cooling rooftops, 3 to 25 tons

Serviceability features: Designed for convenient servicing. Easy access to fan, motor, control panel, gas valves, and compressor with optional toolless hinged-access doors. Standard features include slide-out blower for easy access and removal; sloped drain pan; contactors with lugs; high- and low-pressure switches; high-capacity steel-cased filter driers; crankcase heater; built-in filter rack for 2-inch filters convertible to 4 inch; color-coded wires; and labeled field connections for easy point-to-point component connections. Removable drain pan facilitates maintainability. Direct-drive motor eliminates belts/pulleys maintenance.

Noise-reduction features: High-performance, low-noise scroll compressors help improve quiet operation.

IAQ equipment supported: Unit provides a draw-through filter section as standard for better air quality and long lasting component maintenance. Factory-installed economizers are available for providing and controlling fresh, outside air.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Daikin’s standard-efficiency RTUs bring ease of installation, efficient operation, and outstanding limited warranties. Features include 5mm condensing coils and Daikin's most durable stainless steel, tubular heat exchanger. Factory-installed options include hinged access panels, powered or unpowered convenience outlets, non-fused disconnect switch, return and/or supply air smoke detectors, economizer, and phase monitor. Microchannel technology creates an efficient coil with increased airflow heat transfer. New Daikin LCXpress selection tool is designed specifically for rooftop configuration.

Warranty information: DFG rooftop units are covered by a 20-year heat exchanger limited warranty and a five-year parts limited warranty. DFC/DFH rooftop units are covered by a five-year parts limited warranty. Complete warranty details are available from local dealer, distributor, or manufacturer representative. To receive the parts limited warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.

Special installation requirements: Engineered as an easy, direct replacement for most rooftop units without the need for a curb adapter. All sizes include built-in, through-the-base options and horizontal access knockouts for easy infield wiring and piping installation. Supply fan comes standard for downflow applications and field convertible for horizontal applications. Base protective fork guides made of 0.095-inch steel limit handling damage. Select and build the proper packaged system based on project needs using the new Daikin LCXpress tool.

Website: northamerica-daikin.com.

High-efficiency gas/electric and heat pump rooftops, 3 to 12.5 tons

Serviceability features: Easy access to fan, motor, control panel, gas valves, and compressor with optional, toolless hinged access doors. Standard features include slide-out blower for easy access and removal; sloped drain pan; contactors with lugs; high- and low-pressure switches; high-capacity steel-cased filter driers; crankcase heater; built-in filter rack for 2-inch filters (convertible to 4 inch); and easy point-to-point component connections with color-coded, continuously marked wires and labeled field connections. Removable drain pan facilitates maintainability. Heat exchanger wrinkle bend technology adds durability.

Noise-reduction features: High-efficiency, two-stage, low-noise scroll compressors help improve quiet operation. The direct-drive supply fan is designed with airfoil single-width, single-inlet (SWSI) Class II construction featuring aluminum fan and blades. It provides efficient quiet operation at wide-ranging static pressure and airflow requirements.

IAQ equipment supported: Unit provides a draw-through filter section as standard for better air quality and long-lasting component maintenance. Filters installed on the units are standard off-the-shelf sizes for easy replacement. One size filter per unit lowers maintenance costs and makes replacement simpler. Factory-installed economizers are available for providing and controlling fresh outside air. Removable drain pan helps improve IAQ (compared to previous designs).

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Daikin’s new, high-efficiency RTUs bring ease of installation, efficient operation, and outstanding limited warranties. Patented 5mm SmartCoil technology creates a high-efficiency coil with increased airflow heat transfer. Tubular stainless-steel heat exchanger with patented wrinkle-bend technology adds durability and overall efficiency. Factory-installed options include hinged access panels, powered or unpowered convenience outlets, non-fused disconnect switch, return and/or supply-air smoke detectors, economizer, and phase monitor. New Daikin LCXpress selection tool is designed specifically for rooftop configuration.

Warranty information: The heat exchanger is covered by a 20-year warranty and all functional parts are covered by a five-year parts warranty. Complete warranty details are available from local dealer, distributor, or manufacturer representative. To receive the parts limited warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.

Special installation requirements: Daikin high-efficiency RTUs are engineered as an easy direct replacement for most rooftop units without needing a curb adapter. Includes built-in, through-the-base options and horizontal access knockouts for easy infield wiring and piping installation. Supply fan comes standard for downflow applications and field convertible for horizontal applications. The direct-drive ECM motor eliminates belts and pulleys for easier in-the-field installation and airflow balance. Base protective fork guides made of 0.095-inch steel help limit handling damage.

Website: northamerica-daikin.com.

Variable refrigerant volume, heat recovery, REYQ

Serviceability features: Completely redesigned to ease service. Sealed electrical box with IP55 rating for protection from dust, water, and snow. Hot gas defrost circuit at bottom of coil eliminates need for base pan heater. Service window provides quick access to configuration buttons and multifunctional display, showing refrigerant pressures and temperatures, eliminating need to connect gauges during routine maintenance. Built-in data recorder. Refrigerant-cooled circuit keeps PCB cool. Integrates with Daikin HERO ecosystem, an IoT-based remote monitoring/diagnostics platform.

Noise-reduction features: Standard operating sound levels are minimized with Daikin's proprietary inverter-driven, variable-speed, vapor-injection compressors, providing system sound-pressure levels as low as 58 dBA. Nighttime quiet mode.

IAQ equipment supported: Compatible with 100% outside air processing unit (FXMQ_MFVJU) and energy recovery ventilator (VAM_GVJU), providing sufficient levels of fresh, outside air and recover waste heat from extracted air leaving the conditioned zone.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Stylish, space-saving design engineered to provide ease of installation and service. VRV EMERION can expand with a building's phased construction. Single- or dual-module lineup; connect just two for up to 40-ton capacity. Longer piping lengths allow coverage up to 360-feet vertical. Patented vapor-injection inverter compressor technology for optimized part-load efficiency. Year-round comfort and efficiency with automatic and customizable variable refrigerant technology (VRT). Refrigerant-cooled inverter board. Three-segment panel designed for easier installation and service.

Warranty information: Ten-year parts limited warranty where online registration is completed within 60 days of installation. Online registration is not required in California or Quebec. The duration of warranty coverages in Texas and Florida differs in some cases. Other limitations and exclusions apply. Complete warranty details are available from local dealer, distributor, manufacturer, representative or at www.DaikinComfort.com.

Special installation requirements: Compact, lightweight (430 lbs.) units are transportable using a dolly and elevator, saving time and labor. Design flexibility allows system enlargement from single to dual module without changes to installed main pipe sizes for phased installation or tenant fit-out buildings. Wiring costs reduced up to 27.4% in MCA values compared to previous series. Currently available for heat pump applications in 208/230V or 460V. Local code compliance-ready from factory via alignment with compliance needs.

Website: northamerica-daikin.com.

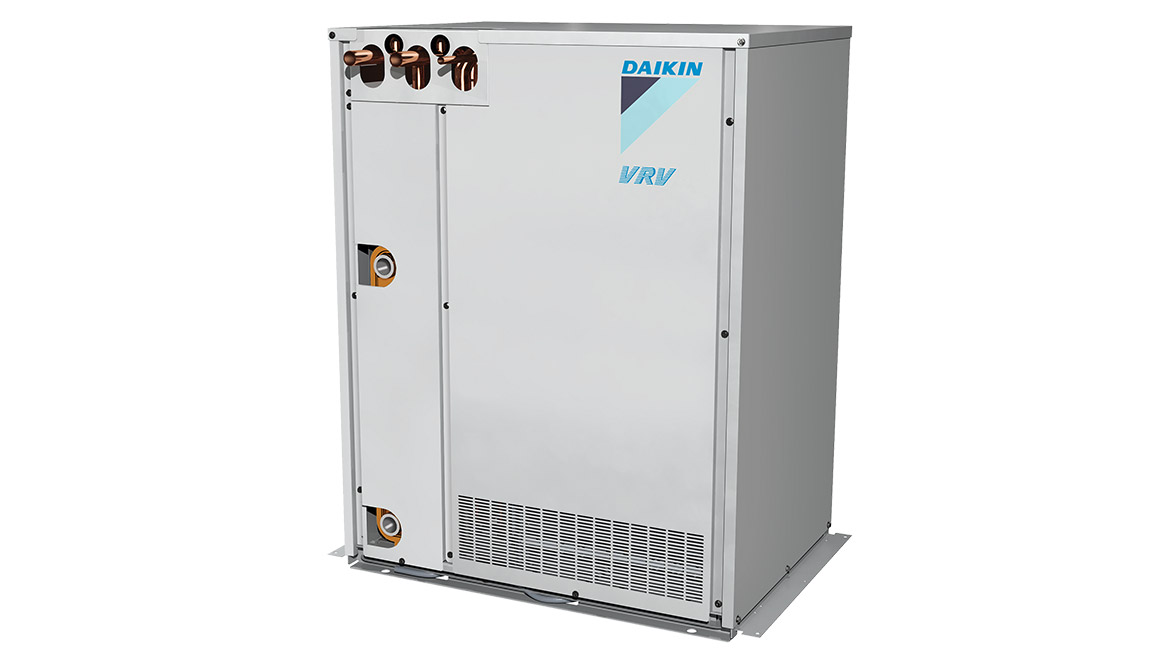

Heat pump or heat recovery

Serviceability features: Daikin's compact -- 39 (h) by 30 (w) by 22 (d) inches -- lightweight (430 lbs.) units are transportable using a dolly and elevators, saving time, labor, and space. Convenient drop-down electrical box provides easy access to internal components. Front or top refrigerant pipe connections provide installation flexibility. New configurator software, plus easy-to-read, seven-character display simplifies diagnostics and troubleshooting. The compact size and heat rejection cancellation technology allow installation in small spaces, without additional ventilation requirements.

Noise-reduction features: Standard operating sound levels are minimized with Daikin engineered and manufactured, proprietary inverter, variable-speed scroll compressors, providing system sound pressure levels as low as 54 dBA. No external operation sound is produced by condensing units to disturb building neighbors, since water-cooled VRV systems are installed indoors only.

IAQ equipment supported: The compact energy recovery ventilator is designed to improve IAQ while reducing the overall HVAC system power consumption. This is achieved by providing fresh outside air and recovering waste heat from exhaust air leaving the conditioned space.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Engineered for buildings with cooling tower water loops or geothermal applications. Single modules are available in 8,10, and 12 tons. Single modules can be manifolded together with up to three units to form one system of up to 36 tons. Simultaneous heating and cooling is available with heat recovery configuration. Provides all the attributes of an air-cooled VRV system including the added flexibility for cold-climate applications, low sound levels, advanced comfort control, and zoning.

Warranty information: Ten-year parts limited warranty and 10-year replacement compressor limited warranty. Complete warranty details are available from local dealer, distributor, or manufacturer representative. To receive the parts limited warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.

Special installation requirements: Designed for maximum placement flexibility, these powerfully compact units feature a unique zero-heat dissipation principle, obviating the need for ventilating or cooling the technical room. Compact casing is triple-stack capable to deliver up to 35.5 tons in under 11.5 feet ceiling height. VRV T-Series can utilize existing building systems such as cooling towers, dry coolers, and boilers during renovation for further savings. Applications include offices, hotels, high-rises, multi-family complexes, malls, and more.

Website: northamerica-daikin.com.

RAV090H02A0AAA

Serviceability features: Wide selection of outdoor air options including manual and motorized damper, integrated economizer with FDD and Wi-Fi capabilities, CO₂ sensors for demand control ventilation, and Title 24 approved for California.

Noise-reduction features: Patented X-Vane technology units are quiet by design and well suited for noise-sensitive applications.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer recommends its BACnet-enabled Wi-Fi thermostat.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Day & Night packaged rooftops with patented X-Vane fan technology are designed to enhance performance and efficiency while reducing maintenance and installation costs. The beltless, direct-drive, vane axial fan for rooftop units is just one of many technological advances that make these units simpler and more efficient. Other improvements include a new intuitive control board and coil technology, composite outdoor fan design, toolless filter access doors, and more.

Warranty information: One-year parts, five-year compressor, 10-year heat exchanger, 15-year stainless steel heat exchanger.

Special installation requirements: Check three-phase compressors to ensure they’re phased correctly at install, then measure temperatures and pressures at startup to ensure compressor is pumping properly. If phased incorrectly, compressor will not make a pressure differential and will generally make a racket when running. The compressors will only run until they overheat and shut off due to thermal overload. Prolonged cycling in this condition will lead to compressor failure.

Website: www.dayandnightcomfort.com.

PDH12K3SGR3

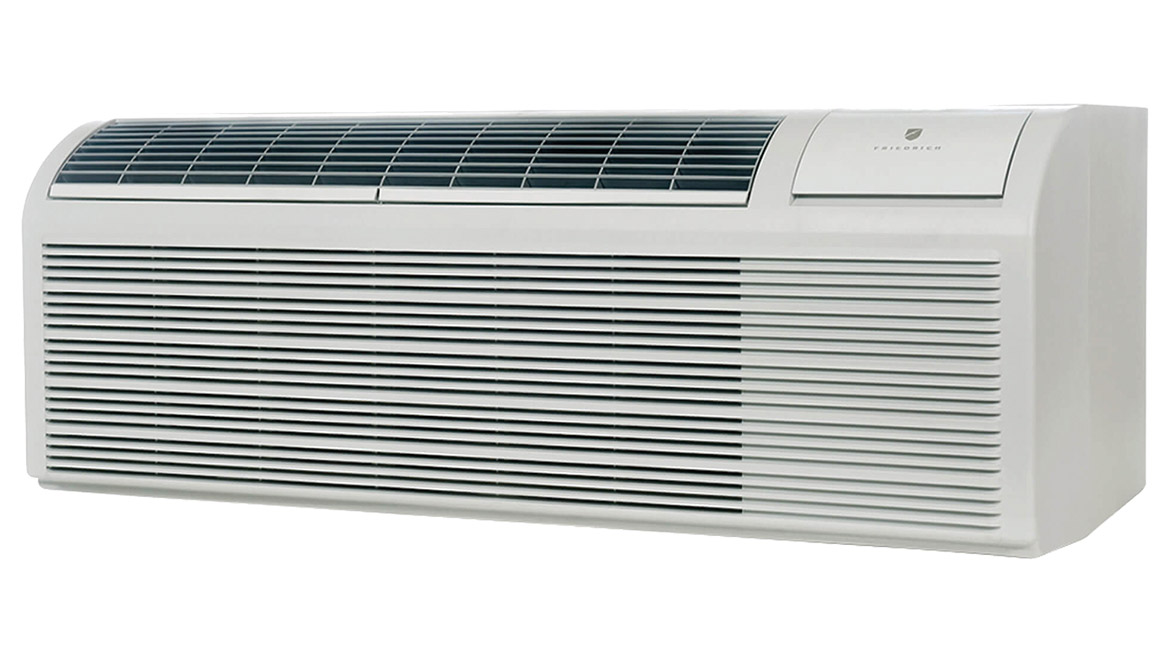

Serviceability features: Packaged terminal products are designed with ease of serviceability in mind for contractors. Friedrich's modular component design allows for quick access and removal of all major components including the blower motor, power board, tangential blower wheel, and filter assembly. With a simple removal from the wall sleeve, contractors have the ultimate access to the complete refrigeration system, including the compressor from the convenience of indoors.

Noise-reduction features: Building the quietest air conditioners begins with the design process and continues through the selection of superior components and materials. ZoneAire Premier packaged terminal units feature QuietMaster technology. This includes dense sound-blocking insulation, compressor grommets, steel inner wall, and tangential wheel for maximum sound reduction, resulting in a noticeably quieter cooling and heating experience.

IAQ equipment supported: A suite of accessory offerings called FreshAire IAQ provides exceptional IAQ by addressing not only ventilation and filtration, but also integrating sophisticated air purification and UV-C lighting capabilities in these units. ZoneAire Premier packaged terminal heat pumps are IAQ ready. FreshAire IAQ accessories are optional, field-installed accessories.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Friedrich’s most efficient standard PTAC with enhanced reliability, performance, and low sound, now features low-GWP R-32 refrigerant, while continuing to be backed by an industry-leading warranty, delivering the lowest cost of operation and the ultimate in guest comfort.

Warranty information: Two-year parts, two-year labor, and limited five-year parts warranty.

Special installation requirements: Must be installed through the wall in a 16- by 42-inch packaged terminal wall sleeve, and 208/230V or 265V must be field supplied to the unit.

Website: friedrich.com.

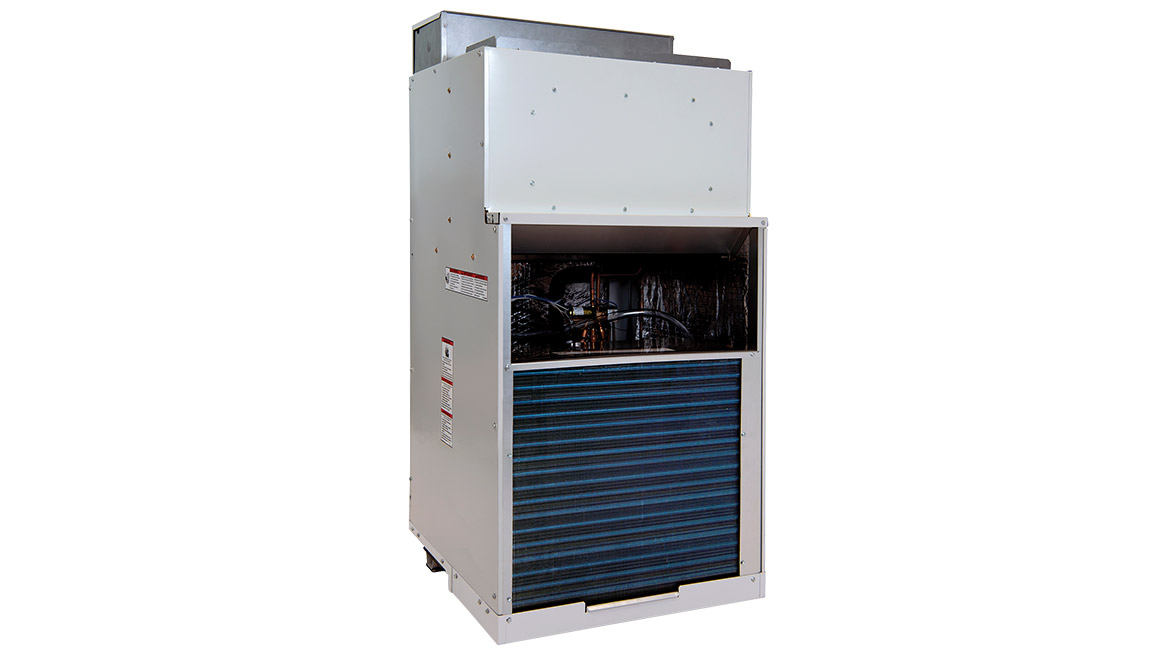

Serviceability features: All-inclusive packaged unit that comes pre-piped and pre-charged. Compact and lightweight, with telescoping plenum from 4- to 14-inch walls, and 24V thermostat compatibility. Units are ready to install with only electrical hookup. Standard safety power disconnect. Electronic control panel for easy diagnostics. Auto changeover. Can be installed from any interior side (front, right, or left).

Noise-reduction features: Patented telescoping plenum with a perimeter gasket that seals the plenum around the unit for no metal -to-metal contact. The plenums are thermally and acoustically bridged, using silicon and rubber gaskets to reduce the vibrations. All units also have neoprene gaskets between the units and legs for added sound attenuation. The compressor is held to the base using grommets to further dampen the noise.

IAQ equipment supported: Compatible with a suite of products that includes MERV 13 filtration, UV germicidal light, and bipolar ionization. Together, they represent a major leap forward in integrated HVAC air purification and rebuilding confidence for indoor environments.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Whole suite of Appendix M1-compliant products (9/12/18/24). Low ambient capability and heat pump operation to 10°F. Active defrost cycle with concurrent compressor and electric heat. Integrated base pan heater melts off any ice built up for continuous heat pump operation below freezing ambient temperatures. Energy management with built-in occupancy sensor and online remote management capability. Three unique ways of handling condensate/water intrusion.

Warranty information: One-year full warranty on parts and labor and five-year limited warranty. Nationwide service network and U.S.-based Friedrich expert technical team ensures fast, knowledgeable service.

Special installation requirements: No special instructions. The unit is designed to be easy to install. The sleeve covers the wall opening and unit slides into the sleeve and is sealed in. The unit can be taken out of the sleeve for major servicing and can also be replaced with newer equipment.

Website: friedrich.com.

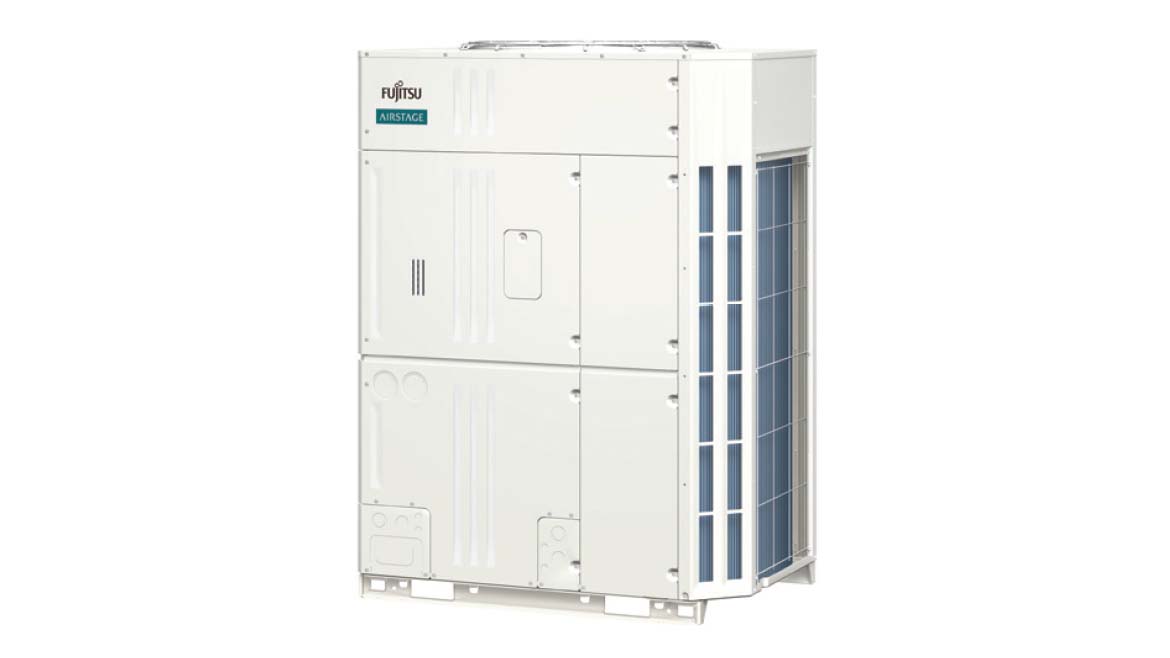

Serviceability features: Equipped with a service window that enables an instant access to the PCB switches and quick check on the error indication.

Noise-reduction features: Low indoor and outdoor unit operating sound levels. Indoor units can be as low as 21 dB (similar to a soft whisper), and outdoor units can be as low as 57 dB.

IAQ equipment supported: Several of the different indoor unit types have options for integration of filtered outside air. The VU-V system can also be configured with dedicated outside air units with air filters.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Expanded outdoor unit capacity, from 6 to 36 tons. Larger single module outdoor units – up to 16 ton. Up to 26% less space with larger single module outdoor units. Both heat pump and heat recovery operation available from one unit. Increased number of connectable indoor units. Extended ambient air temperature operating range from -15°F to 126°F. Intelligent refrigerant control optimizes individual zone comfort.

Warranty information: For systems that are installed and commissioned by a qualified contractor, five-year warranty on parts and seven-year warranty on the compressor. See warranty statement for full details.

Special installation requirements: Installation of the VU-V system is described in the installation manual.

Website: www.fujitsugeneral.com.

Serviceability features: Web-user interface for remote monitoring and easy startup. Hinged access doors for easy access to filters, fans, energy recovery wheel, compressors, and controls. Optional lightweight, segmented energy recovery wheel for easy cleaning. Dirty-filter switches, rotation sensors, airflow monitoring, and microprocessor available.

Noise-reduction features: Units are provided with actual radiated sound data tested in an AMCA-certified lab at full capacity with five planes of actual sound data. Two-inch, R13 injected foam insulated unit and base. Compressor isolation with standard inverter scroll compressor. Standard EC motor on lead condenser fan for head pressure control with optional EC motors on all condenser fans.

IAQ equipment supported: Optional UV light and/or bipolar ionization for air disinfection. Two-inch MERV 8 outdoor air and exhaust filters. Two- or 4-inch filters ranging from MERV 8 to MERV 14 supply filters. Optional outdoor, supply, and exhaust airflow monitoring. Optional CO₂ sensor.

Thermostat compatibility: Compatible with most thermostats when using a BMS. Manufactured thermostat provided with controls by factory when selected.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Offered with optional enthalpy recovery wheel or enthalpy recovery core technology to reduce cooling and heating loads. Inverter compressor from 3 to 70 tons. Air-source heat pump from 5 to 30 tons. High-turndown furnace up to 16:1 turndown. Factory-programmed microprocessor. Built-in furnace commissioning guide. Web user interface allowing the unit to be viewed and controlled from a web browser. Horizontal duct connections for installation flexibility. Web-based selections.

Warranty information: Greenheck warrants the equipment to be free from defects in material and workmanship for a period of 18 months from the shipment date. An extended warranty up to 66 months from the shipment date is also available (based on selection).

Special installation requirements: None.

Website: www.greenheck.com.

Serviceability features: Built-in handles and designed skid for handling and rigging ease. Versatile piping connection design and flexible piping limits allow installer to route pipe according to jobsite needs. Auto-addressing indoor units save time on initial startup while the 0.4 in. water gauge external static pressure design offers unparalleled flexibility, allowing for installation of outdoor units in the desired location, even indoors. Hinged electrical and control panels give easy access to interior components, making diagnostics, maintenance, and repairs simple.

Noise-reduction features: Improved quiet operation with a 10 dBA sound level reduction.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Extended operation range from -22°F to 122°F. Unified chassis can be used for heat pump or heat recovery. Extended pipe lengths allow the indoor units to be placed further away from the outdoor units. Factory-integrated controls with BMS means no adapters required. Features Multi-Link technology, a wireless communication capability that replaces the VRF industry standard, wired, daisy chain network and reduces the amount of labor time spent on installation.

Warranty information: One-year limited parts and compressor warranty. Ten-year limited parts and compressor warranty if all qualifying conditions are met. See warranty documentation for complete information.

Special installation requirements: Follow factory installation and startup instructions.

Website: geappliancesairandwater.com.

RAV120H02A0AAA

Serviceability features: Wide selection of outdoor air options including manual and motorized damper, integrated economizer with FDD and Wi-Fi capabilities, CO₂ sensors for demand control ventilation, and Title 24 approved for California.

Noise-reduction features: Patented X-Vane technology units are quiet by design and well suited for noise-sensitive applications.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer recommends its BACnet-enabled Wi-Fi thermostat.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Heil packaged rooftops with patented X-Vane fan technology are designed to enhance performance and efficiency while reducing maintenance and installation costs. The beltless, direct-drive, vane axial fan for rooftop units is just one of many technological advances that make these units simpler and more efficient. Other improvements include a new intuitive control board and coil technology, composite outdoor fan design, toolless filter access doors, and more.

Warranty information: One-year parts, five-year compressor, 10-year heat exchanger, 15-year stainless steel heat exchanger.

Special installation requirements: Check three-phase compressors to ensure they’re phased correctly at install, then measure temperatures and pressures at startup to ensure compressor is pumping properly. If phased incorrectly, compressor will not make a pressure differential and will generally make a racket when running. The compressors will only run until they overheat and shut off due to thermal overload. Prolonged cycling in this condition will lead to compressor failure.

Website: www.heil-hvac.com.

RAV150H02A0AAA

Serviceability features: Wide selection of outdoor air options including manual and motorized damper, integrated economizer with FDD and Wi-Fi capabilities, CO₂ sensors for demand control ventilation, and Title 24 approved for California.

Noise-reduction features: Patented X-Vane technology units are quiet by design and well suited for noise-sensitive applications.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer recommends its BACnet-enabled Wi-Fi thermostat.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: KeepRite packaged rooftops with patented X-Vane fan technology are designed to enhance performance and efficiency while reducing maintenance and installation costs. The beltless, direct-drive, vane axial fan for rooftop units is just one of many technological advances that make these units simpler and more efficient. Other improvements include a new intuitive control board and coil technology, composite outdoor fan design, toolless filter access doors, and more.

Warranty information: One-year parts, five-year compressor, 10-year heat exchanger, 15-year stainless steel heat exchanger.

Special installation requirements: Check three-phase compressors to ensure they’re phased correctly at install, then measure temperatures and pressures at startup to ensure compressor is pumping properly. If phased incorrectly, compressor will not make a pressure differential and will generally make a racket when running. The compressors will only run until they overheat and shut off due to thermal overload. Prolonged cycling in this condition will lead to compressor failure.

Website: www.keeprite.com.

Serviceability features: Self-diagnostic controls.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Self-contained internal thermostat with self-diagnostics

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: These water-cooled portable air conditioners provide a smart, simple solution for reliable temperature control and spot, supplemental, or emergency cooling where ducting for condenser air is unavailable. Portable casters allow easy movement or removal for more permanent application. The 6WC units feature improved efficiency and can operate either continuously for spot cooling or room cool setting in which the unit will cycle to maintain a set temperature.

Warranty information: Three-year compressor, two-year parts.

Special installation requirements: Manufacturer did not specify.

Website: www.koldwave.com.

Serviceability features: Manufacturer did not specify.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Self-contained internal thermostat with self-diagnostics.

Replacement parts compatibility: Some shared parts and some unique parts.

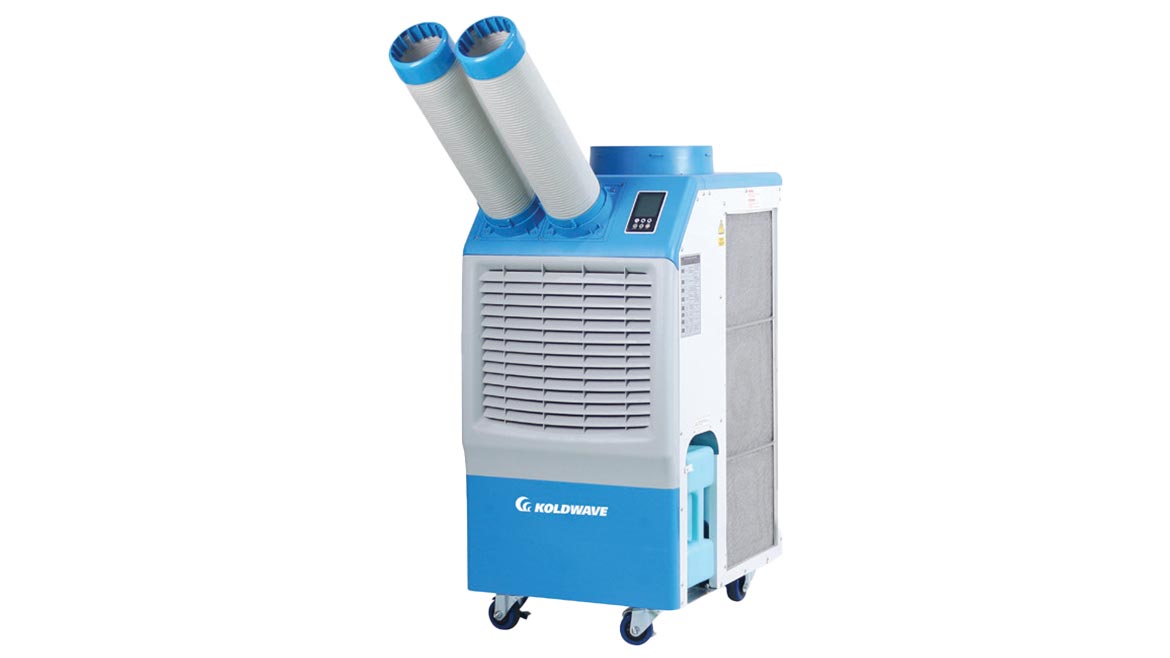

Additional features: With simple setup and quiet operation, 7KK model air-cooled portable air-conditioner deliver convenient spot cooling in a variety of environments. Possible applications include offices, computer rooms, laboratories, industrial kitchens, emergency cooling, and outdoor events. The 7KK models feature lighter weight, molded, ABS plastic, front and top panels, which are scratchproof and dentproof. Controls and connections for the discharge have been upgraded for all 7KK models.

Warranty information: Standard warranty is three-year compressor and two-year parts.

Special installation requirements: Manufacturer did not specify.

Website: www.koldwave.com.

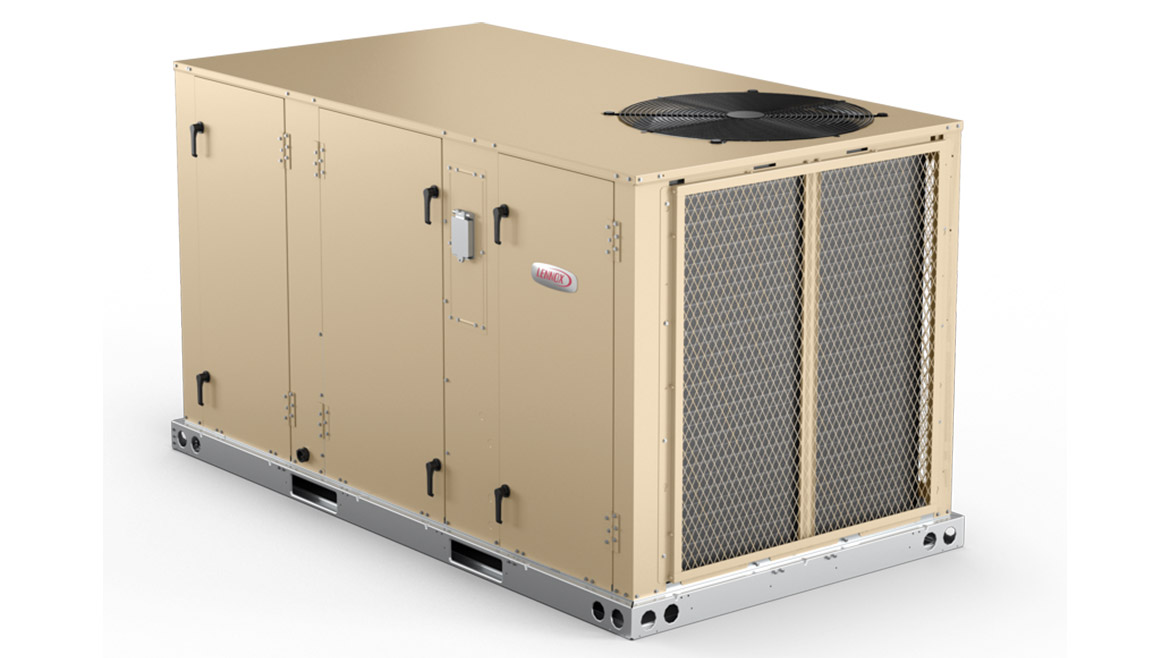

Serviceability features: All Enlight units come standard with toolless filter access, an isolated compressor compartment, and accessible heating compartment, which reduces installation and service time. The Lennox CORE control system and service app provide guided setup menus for install, test and balance, network integration, detail runtimes, and service history. Each of these features allows technicians to quickly perform service and maintenance on every Enlight rooftop unit.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Rooftop units offer field-installed UV-C lights, needle point bipolar ionization, and high-efficiency MERV 16 filters.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Enlight dual fuel units allow the changeover point to be configured from the mobile app during setup or adjusted as needed by the BAS. Enlight heat pump and dual fuel units that are 6.5 tons and up have two independent refrigeration circuits, which allow for independent defrost cycles. Independent defrost cycles provide a more comfortable environment while reducing the runtime of supplemental heat.

Warranty information: Warranty period for Lennox CORE unit controller is three years; 10-year aluminized heat exchangers warranty; 15-year stainless steel heat exchangers warranty; and five-year compressor warranty. High-performance economizers and variable-frequency drives (inverters) are warrantied by Lennox for five years when installed in all applications.

Special installation requirements: The Lennox CORE service app replaces a traditional built-in user interface on the Lennox CORE unit controller and provides guided setup menus for install, test and balance, and network integration. The app also facilitates seamless commissioning of wireless sensors and sensor networks compatible with the CORE control system.

Website: www.lennoxcommercial.com.

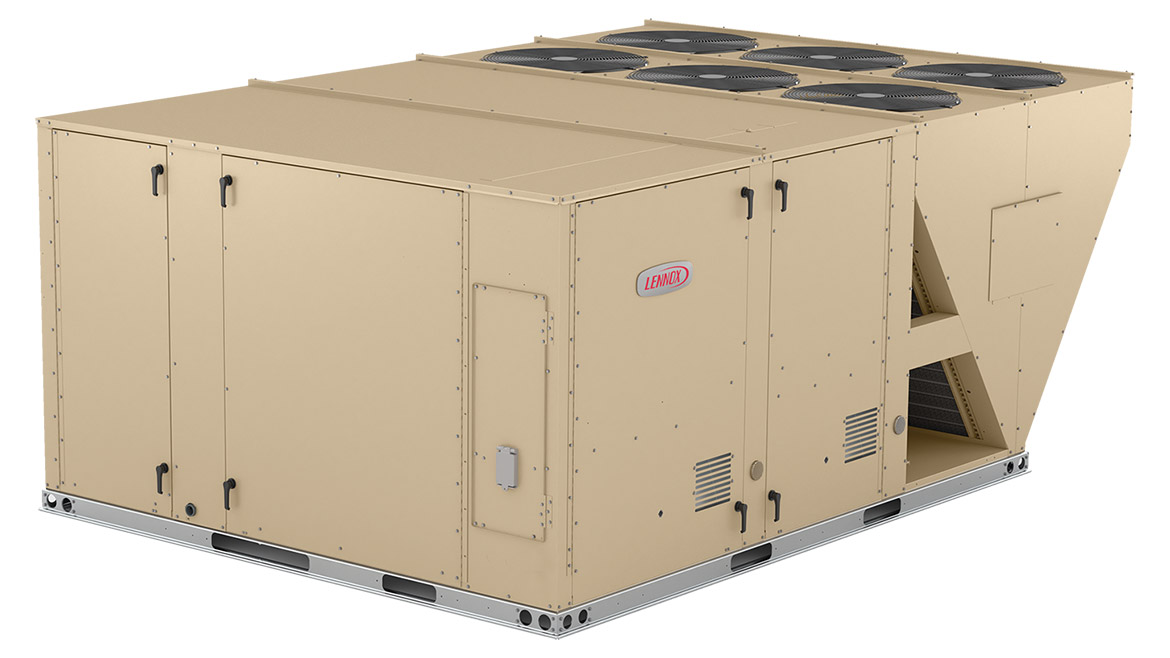

Serviceability features: The Lennox CORE service app brings guided setup menus for install, test and balance, network integration, detail runtimes, and service history to the palm of the technician’s hand. Each Model L unit comes standard with toolless filter access, isolated compressor compartment, and accessible gas compartment, which reduces service time. Each of these features allows technicians to quickly perform service and maintenance on every Model L rooftop unit.

Noise-reduction features: Model L rooftop units all feature a soft-start, inverter-driven, variable-speed compressor, as well as fully variable indoor and outdoor fans, which greatly reduce the noise levels during part-load operation and startup.

IAQ equipment supported: Ultimate IAQ is provided with the rooftop’s ability to remove 99% of the virus that causes COVID-19 from the air. Rooftop units offer factory-installed UV-C lights, needle point bipolar ionization, high efficiency MERV filters, and modulating hot gas reheat to provide superior IAQ and year-round comfort.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The Lennox CORE unit controller and mobile service app provide a first-of-its-kind interface. The built-in wireless gateway provides quick and easy connection to the mobile app, as well as optional wireless zone sensors. Real-time data readouts make servicing Lennox rooftop units easier than ever before. Model L units are enabled with an enhanced dehumidification mode, which is designed to provide additional dehumidification when both cooling and dehumidification demands are present.

Warranty information: Warranty period for Lennox CORE unit controller is three years; 10-year aluminized heat exchangers warranty; 15-year stainless steel heat exchangers warranty; and five-year compressor warranty. High-performance economizers and variable-frequency drives (inverters) are warrantied by Lennox for five years when installed in all applications.

Special installation requirements: The Lennox CORE service app replaces a traditional built-in user interface on the Lennox CORE unit controller and provides guided setup menus for install, test and balance, and network integration. The app also facilitates seamless commissioning of wireless sensors and sensor networks compatible with the CORE control system.

Website: www.lennoxcommercial.com.

ARND063DER4

Serviceability features: The DOAS is serviceable from bottom fan access panel and side controls access panel. The Multi V S outdoor unit has a removeable service panel to access the controls and compressor.

Noise-reduction features: Multi V S outdoor unit uses modulating inverter compressor and modulating condenser fans, keeping sound levels very low.

IAQ equipment supported: Unlike traditional split DOAS systems that are limited by shorter refrigerant pipe lengths, the M3 can connect one outdoor unit to up to four indoor DOAS units, offering increased capacity. This capability allows for efficient conditioning of larger spaces, improving indoor comfort and air quality. The modular approach to addressing total airflow CFM requirements enables users to decrease duct sizing within the space and have direct control over critical areas and zones.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: LG's split compact M3 DOAS with Multi V S offers an ideal solution, as it operates efficiently with just single-phase power for both indoor and outdoor units. The unit incorporates LG's advanced inverter compressor technology in the remote outdoor unit. This innovative technology allows the compressor to adjust its speed based on the changing outdoor air conditions, resulting in reduced energy consumption and lower energy costs compared to traditional on/off compressors.

Warranty information: Standard one-year parts warranty and available options for two- through 10-year extended parts warranties.

Special installation requirements: Installation of refrigerant piping should follow the instructions in the Installation Manual, brazing with nitrogen purge, and performing final pressure and vacuum tests. An optional filter box is available to bolt into the entering air side of the coil and should allow for easy access for maintenance of filters.

Website: https://lghvac.com.

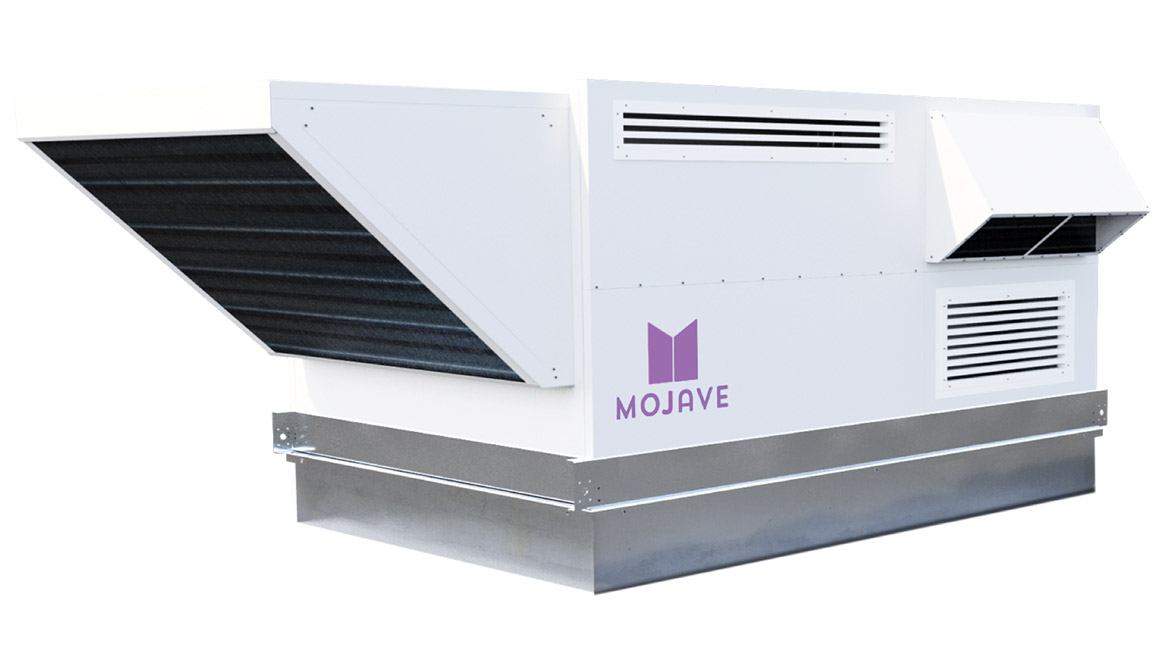

Serviceability features: Hinged access doors throughout, all parts are off-the-shelf.

Noise-reduction features: ECM fans and variable-speed scroll compressor.

IAQ equipment supported: Liquid desiccant saltwater solution is naturally biocidal and cleans the air that passes through it.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: ArctiDry is unique, in that it integrates liquid desiccant without the need for complex refrigeration systems. The unit delivers significant improvement in efficiency in an affordable, reliable, and easy-to-maintain package. A turnkey solution, ArctiDry can independently deliver dewpoints as low as 40°F while delivering supply air at any temperature without requiring hot gas reheat, chilled water, or enthalpy wheels. The unit’s ISMRE is 8 lb/kWh, twice the efficiency required by ASHRAE 90.1.

Warranty information: Two-year parts only warranty, five-year compressor warranty, 10-year gas heat exchanger warranty. Extended warranties available.

Special installation requirements: ArctiDry is a fully packaged unit and has no special installation requirements – only electrical service required (and gas if gas heater option selected for winter operation).

Website: https://mojavehvac.com.

Serviceability features: Maintenance-centered design enhances serviceability, which promotes optimal performance and long life. Hinged control service access door. Pocket handles facilitate access to compressor and other component.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Hydronic fan coils better address humidity with lower coil temperatures.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Manufacturer did not specify.

Warranty information: MAC chiller parts are warrantied to be free from manufacturing defects for up to 12 months from the date of installation. The compressor and heat exchangers are warranted for five years from the date of installation.

Special installation requirements: Manufacturer did not specify.

Website: www.multiaqua.com.

Serviceability features: Manufacturer did not specify.

Noise-reduction features: Low sound condenser fans.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Manufacturer did not specify.

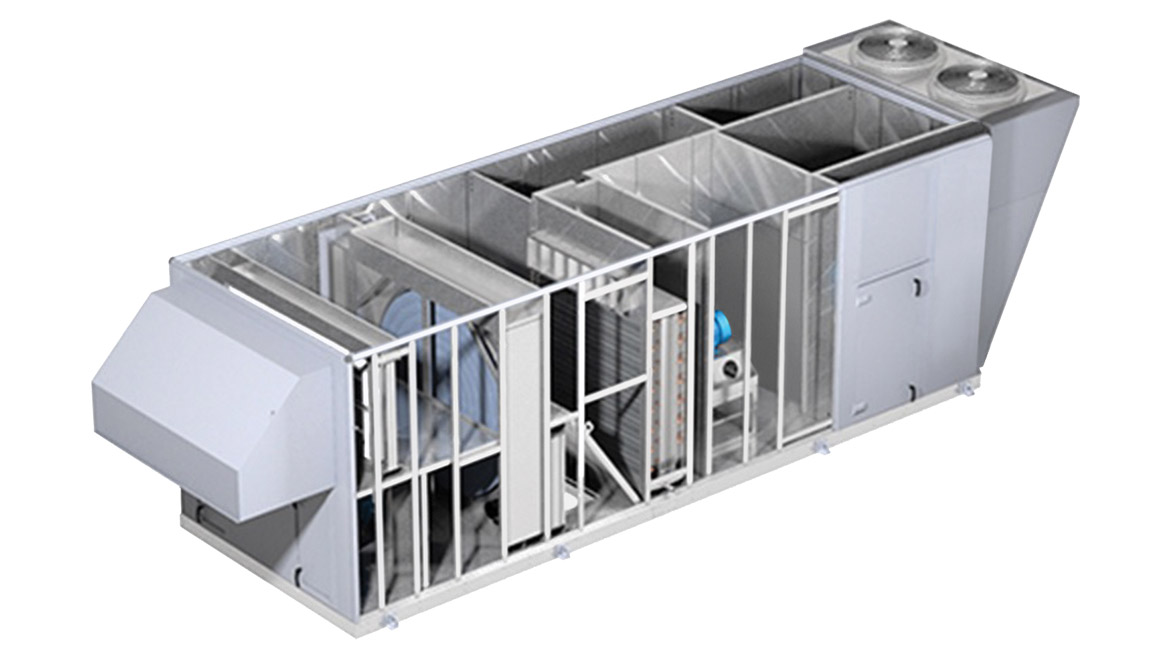

Additional features: Nortek Air Solutions has developed a mixed air and a 100% outside air, air-source heat pump option for Nortek’s EnergyPack and Ultraline product lines. The air-source heat pump can operate with compressors down to 20°F ambient temperature, resulting in extremely high COPs at low ambient temperatures. There's no need for expensive towers, wells, and ground loops; and it's ideal for smaller installations and projects.

Warranty information: Manufacturer did not specify.

Special installation requirements: Manufacturer did not specify.

Website: www.nortekair.com.

Serviceability features: Single-side service access to unit components. Separation of low- and high-voltage components.

Noise-reduction features: Three-phase line monitor module protects against phase loss, phase imbalance, and phase reversal indication. Intended to protect compressors from reverse rotation. The top cover is double hemmed and gasket sealed to prevent water leakage. Each refrigerant circuit has TXVs, service pressure ports, and refrigerant line filter-driers factory installed as standard. Module will automatically reset from a fault condition.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Designed for easy like-for-like replacement with no adaptor curb needed for popular footprints. Electromechanical controls, so pairs easily with existing systems versus having to incorporate smart controls that are not compatible with existing system. Reliable, efficient performance and a great value. Convertible airflow configuration. Single side service access to unit components and three-sided fork access.

Warranty information: Unregistered or registered: one-year parts, five-year compressor, five-year heat exchanger.

Special installation requirements: Manufacturer did not specify.

Website: oxboxhvac.com.

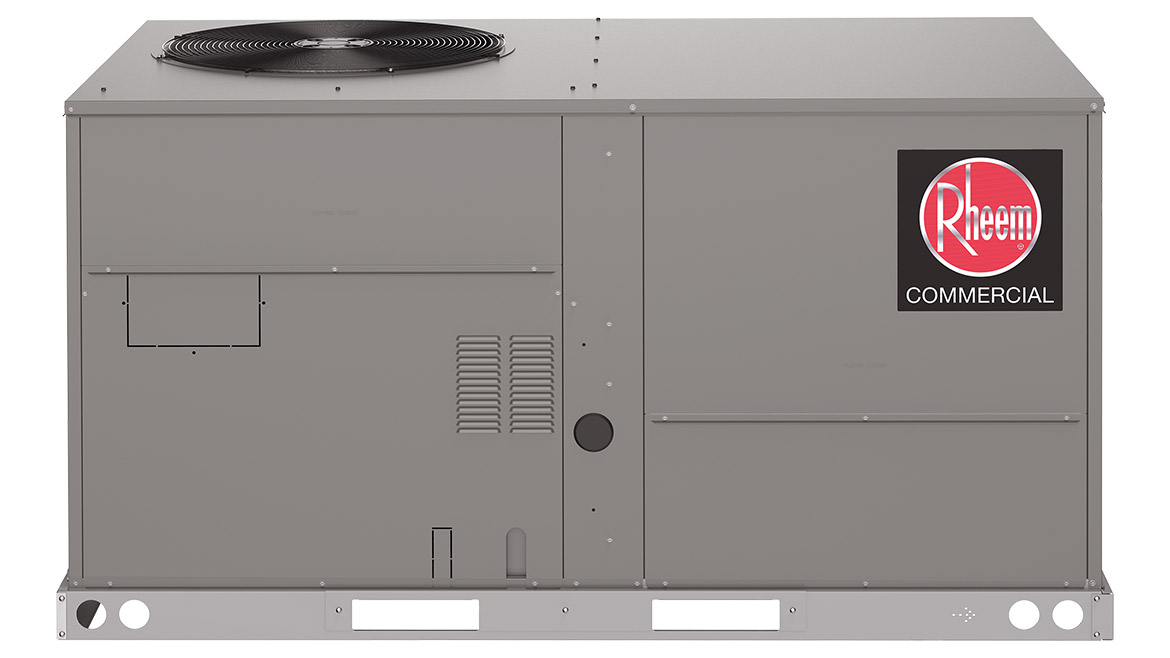

3- to 5-ton, packaged, air conditioner and gas electric unit, RACC/RGECZT036, RACC/RGECZT048, RACC/RGECZT060

Serviceability features: The PlusOne ServiceSmart package delivers features designed with feedback from HVAC field professionals to improve serviceability and provide easy access to unit components. Qwik-slide blower assembly allows easy access and removal of the blower assembly on a sliding track. Qwik-clean drain pan is a composite material pan that slides out completely, allowing for effortless cleaning and includes a standard overflow sensor.

Noise-reduction features: Not applicable, as all components are installed outside the building, usually on the roof, reducing noise in the conditioned space from the air conditioning unit.

IAQ equipment supported: The standard Qwik-change flex-fit rack can help improve IAQ with its easy-to-use design that easily accommodates 2- to 4-inch MERV filters. These thick filters capture dust and pollen, ensuring a healthier environment. The flex-fit feature also simplifies filter replacement, minimizing downtime. Additionally, Rheem’s field-installed UV-C light kit, is designed for fixture-to-fixture plug-n-play, and installation is quick and easy.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: These units are offered with 20% higher SEER2 versus base efficiency to provide businesses with enhanced performance and greater energy savings. With industry-leading serviceability and installability, the entire Renaissance line streamlines maintenance and installation, resulting in tangible time and cost savings. Time spent performing industry-standard service and preventative maintenance is reduced by up to 100 minutes compared to other commercial HVAC brands.

Warranty information: One-year limited parts warranty and five-year compressor warranty. Additionally, gas/electric models are offered with a 10-year standard heat exchanger warranty and a 20-year stainless steel heat exchanger warranty.

Special installation requirements: Before proceeding with installation, refer to installation instructions packaged with each model, as well as complying with all federal, state, and local codes, regulations, and practices. Installation should always be performed by a qualified HVAC professional.

Website: rheem.com.

Serviceability features: Manufacturer did not specify.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Some shared parts and some unique parts.

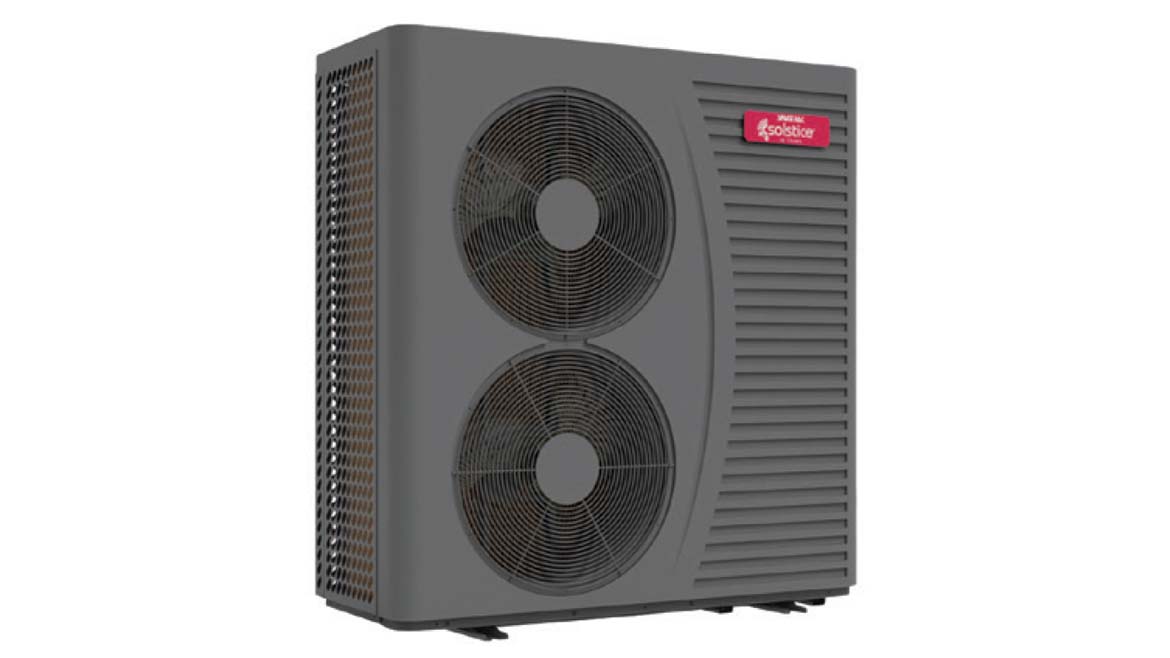

Additional features: SpacePak’s R-32 cold climate air-to-water heat pump for heating, cooling, and domestic hot water offers the highest levels of energy efficiency and comfort in an elegant three-in-one solution. R-32 offers industry-leading cold climate performance, with high performance heating down to -22°F (-30°C) and reliable water temperatures surpassing 140°F (60°C). The new WarmLink remote monitor system offers device management from anywhere.

Warranty information: Five-year compressor and two-year parts are warrantied to the original owner of the system.

Special installation requirements: Manufacturer did not specify.

Website: www.spacepak.com.

RAV180H02A0AAA

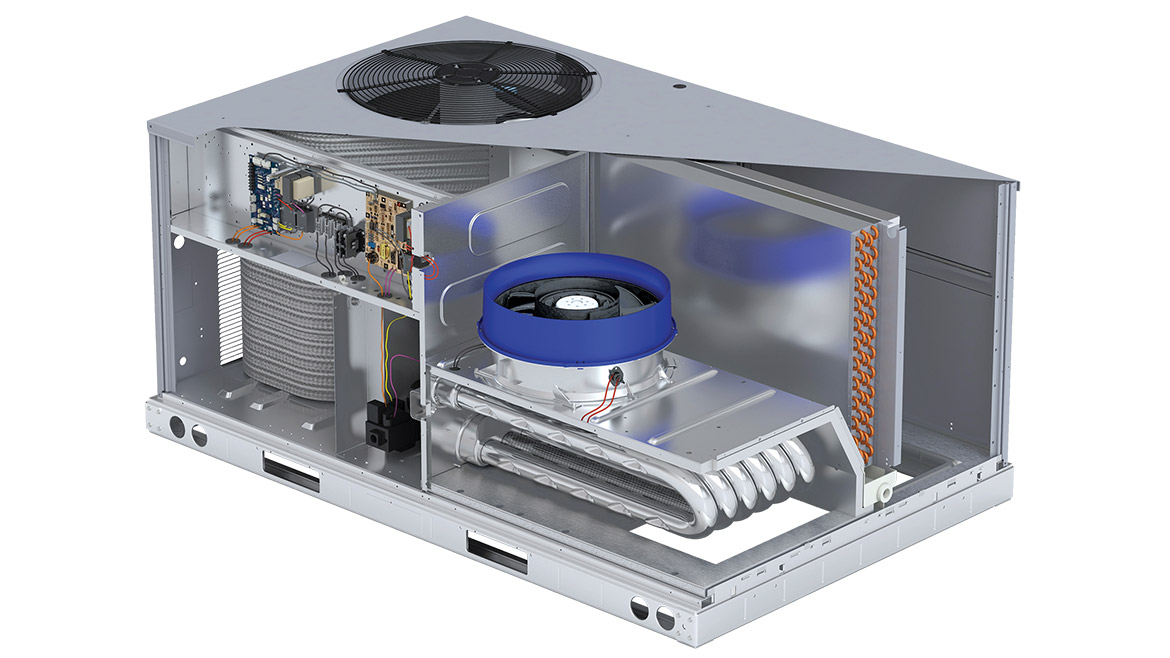

Serviceability features: Wide selection of outdoor air options including manual and motorized damper, integrated economizer with FDD and Wi-Fi capabilities, CO₂ sensors for demand control ventilation, and Title 24 approved for California.

Noise-reduction features: Patented X-Vane technology units are quiet by design and well suited for noise-sensitive applications.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer recommends its BACnet-enabled Wi-Fi thermostat.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Tempstar packaged rooftops with patented X-Vane fan technology are designed to enhance performance and efficiency while reducing maintenance and installation costs. The beltless, direct-drive, vane axial fan for rooftop units is just one of many technological advances that make these units simpler and more efficient. Other improvements include a new intuitive control board and coil technology, composite outdoor fan design, toolless filter access doors, and more.

Warranty information: One-year parts, five-year compressor, 10-year heat exchanger, 15-year stainless steel heat exchanger.

Special installation requirements: Check three-phase compressors to ensure they’re phased correctly at install, then measure temperatures and pressures at startup to ensure compressor is pumping properly. If phased incorrectly, compressor will not make a pressure differential and will generally make a racket when running. The compressors will only run until they overheat and shut off due to thermal overload. Prolonged cycling in this condition will lead to compressor failure.

Website: www.tempstar.com.

Serviceability features: The cabinet on the SWUD has a durable steel frame door, an easy-to-clean shell-and-tube condenser, and a fully hinged, screwless access doors, so maintenance personal can quickly access the essential components. Buyers can choose anticorrosive protection for the evaporator coil as an option.

Noise-reduction features: SWUD has a fan wall with ECM plenum fans and 1-inch foam-injected double-wall panel construction for quiet operation.

IAQ equipment supported: Built with MERV 8, 13, or 15 filters, 1-inch foam-injected double-wall panels, standard ECM plenum fans, and an optional stainless steel drain pan to help prevent mold and corrosion, the new Trane SWUD delivers high IAQ.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The SWUD unit provides improved energy efficiency based on new design features. It has manifolded compressors that support improved efficiency and an IEER rating of up to 22.8. It uses EPA-compliant low-GWP R-454B refrigerant. It has safety features such as an electrical panel separating low- and high-voltage and a leak detection system to help mitigate refrigerant concentrations reaching ignitable levels. Competitively priced, its Symbio controller provides smart connectivity and remote access.

Warranty information: Parts warrantied for 12 months from the initial startup or 18 months from the date of shipment, whichever is less. More optional warranty protections are also available (parts, refrigerant, labor, for up to five years).

Special installation requirements: The one-piece cabinet models drop into place and occupy a footprint that’s up to 28% smaller than the legacy product. Trane’s redesigned SWUD provides left- and right-hand options for water connections, as well as optional factory-supplied plenums. The unit is available in a single-piece design for new construction and a modular solution for retrofits. Trane SWUDs are easier to service with double-action, fully hinged service doors.

Website: www.trane.com/commercial.

Serviceability features: These units have the smallest modular footprint with cleanable shell-and-tube heat exchanger, zero oil-related maintenance, and isolation valves on serviceable parts.

Noise-reduction features: The ultra-quiet compressors produce 75 dB of sound at 10 feet, about the same as a TV at normal volume. Its moving mechanical parts never touch the housing or fame to create noise.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Thermafit units are earth-friendly, mini-modular units that fit in very small spaces. They drive down emissions while reducing utility costs, using low-GWP refrigerants and high-efficiency compressors with variable-speed drives. Low starting current (Amps) avoids expansion of electrical service. Full-load efficiency exceeds ASHRAE 90.1 standards.

Warranty information: Parts warrantied for 12 months from the initial startup or 18 months from the date of shipment, whichever is less. Optional extended warranties are also available.

Special installation requirements: Due to its small size, Thermafit units install in very small spaces and facilitate convenient curbside delivery. Fully assembled, they pass through standard 36-inch doorways and ride on passenger elevators. Components can be taken apart fully or partially for rigging into places like cramped equipment rooms.

Website: www.trane.com/commercial.

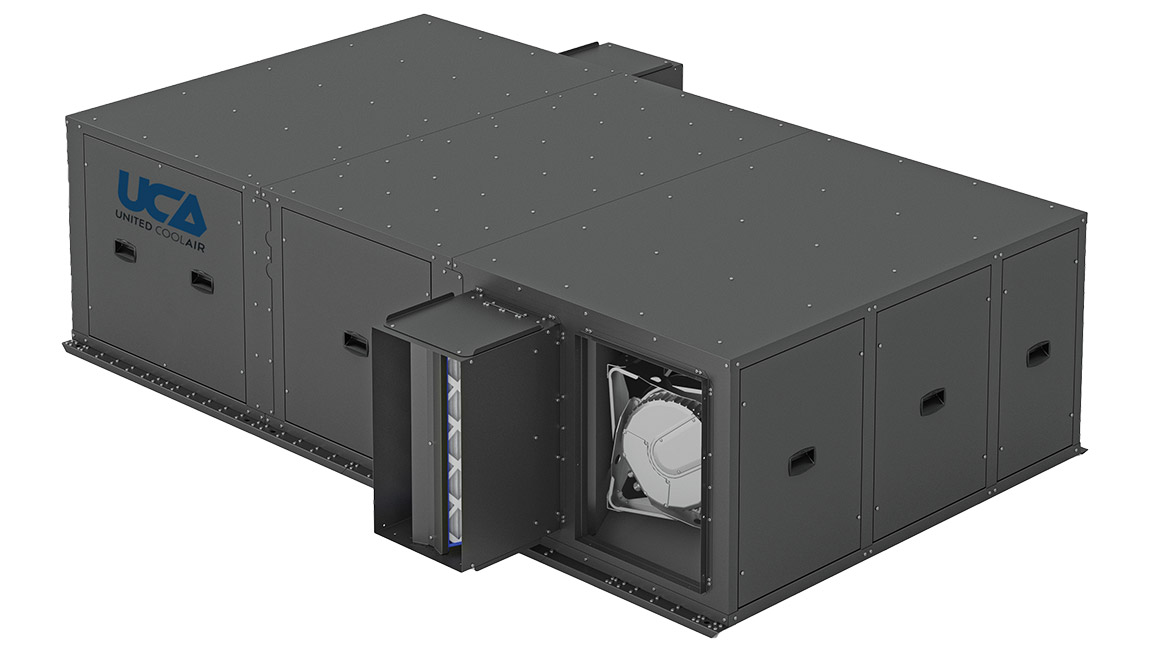

Serviceability features: This single package unit is installed completely indoors, protected by the building for long life expectancy and service capability free from the outdoor elements. Resealable refrigerant fittings between the cabinet sections preserve factory refrigerant charge and eliminate on-site brazing and charging. All sides of the unit incorporate lift-off panels for ease of access to key components, and hinged access doors on the filters rack expedite filter maintenance.

Noise-reduction features: Constructed with a solid double wall liner, 1-inch insulation and ECM plenum fans, the Alpha Aire II provides quiet and efficient operation. Compressor is mounted on rubber vibration isolators and separated from the airstream in its own compartment.

IAQ equipment supported: The unit provides fresh air ventilation, and high efficiency MERV 13 filters are standard.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Alpha Aire II is a single package ASHP designed with an energy recovery wheel to transfer the energy from the exhaust air to the ventilation air. The subcooling coil provides reheat capability and increased efficiency. The modulating valve with the hot gas reheat coil delivers a consistent, neutral leaving air temperature at a low dew point temperature. These combined technologies provide unparalleled efficiency. This unit is all electric, which makes it environmentally friendly.

Warranty information: Five-year compressor and one-year parts warranty.

Special installation requirements: The unit is installed indoors and hung from the ceiling via field provided hanging rods and vibration isolators. The outdoor air intake duct and condenser discharge duct are connected to louvers installed in an exterior wall.

Website: www.unitedcoolair.com.

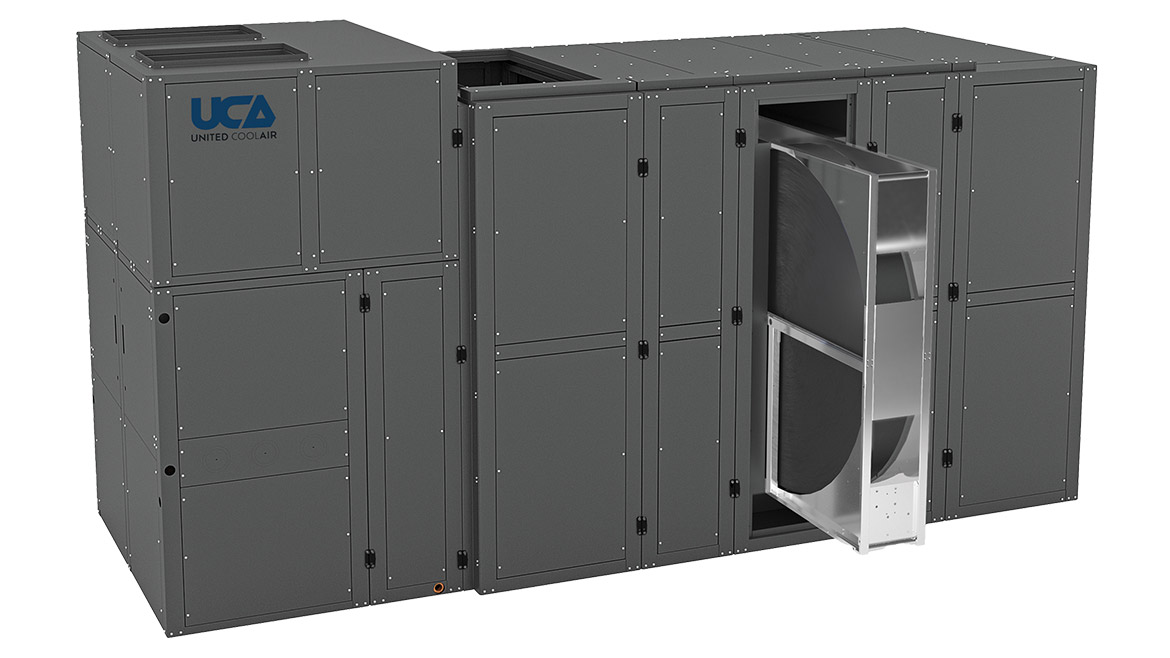

Serviceability features: The EZ-Fit is installed completely indoors, protected by the building for long life expectancy and service capability free from the outdoor elements. Resealable refrigerant fittings between the cabinet sections preserve factory refrigerant charge and eliminate on-site brazing and charging. Hinged access doors and lift-off panels provide access to key components on front and sides of unit.

Noise-reduction features: Constructed with 1-inch, closed-cell, elastomeric foam insulation and ECM plenum fans, the EZ-Fit provides quiet and efficient operation. Each compressor is mounted on rubber vibration isolators and comes with a factory-provided compressor acoustic cover.

IAQ equipment supported: The unit provides fresh air ventilation, and high-efficiency MERV 8 pre- and MERV 13 final filters are standard.

Thermostat compatibility: Marvel premium microprocessor with BACnet.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The modular cabinet has been designed to ship in multiple sections for ease of maneuvering throughout the building. All sections fit through a standard 36-inch doorway and easily assemble on site. Single modules (3,000 to 10,000 CFM) can be twinned as a dual module for higher capacities and CFMs (up to 21,000 CFM), with single point power and single water connections. All units ship with a complete R-410A refrigerant charge.

Warranty information: Five-year compressor and one-year parts warranty.

Special installation requirements: Manufacturer did not specify.

Website: www.unitedcoolair.com.

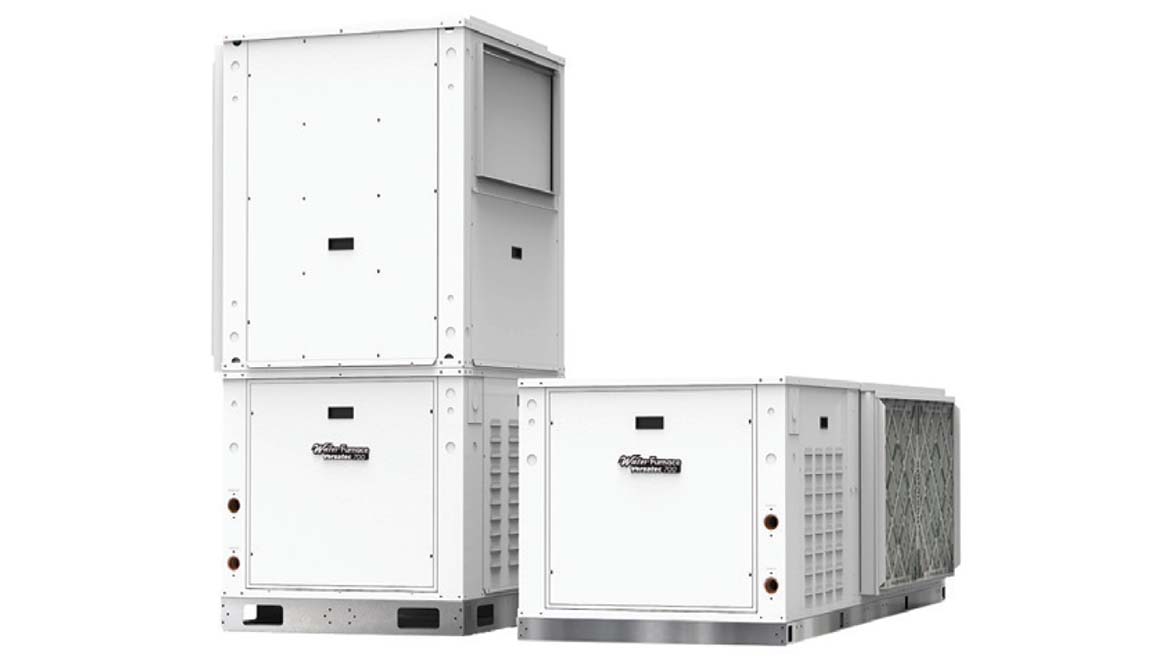

Serviceability features: Aurora advanced controls offer electronic expansion valve and modulating water valve control, true energy monitoring, refrigeration monitoring, and optional performance monitoring.

Noise-reduction features: Cabinets utilize a compact footprint, and all interior surfaces are lined with ½-inch thick, foil-lined, acoustic-type, fiber insulation, which helps reduce noise into the space. Product utilizes quiet variable-speed compressors with optional sound blanket.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Easily fits through standard 36-inch door and small freight elevators. Installs faster with single point power, eliminating the need to rewire existing electrical systems. No need to break the refrigeration circuit, or ship the compressor/fan coil separately, because the unit is self-contained. Easy install with modular design eliminates need for temporary cooling/heating during changeover. The variable-speed unit varies itself between 25%-100% capacity, resulting in the most efficient and comfortable conditioning possible.

Warranty information: Standard 18-months parts-only warranty. Optional extended compressor and refrigerant circuit warranties.

Special installation requirements: Manufacturer did not specify.

Website: www.waterfurnace.com.

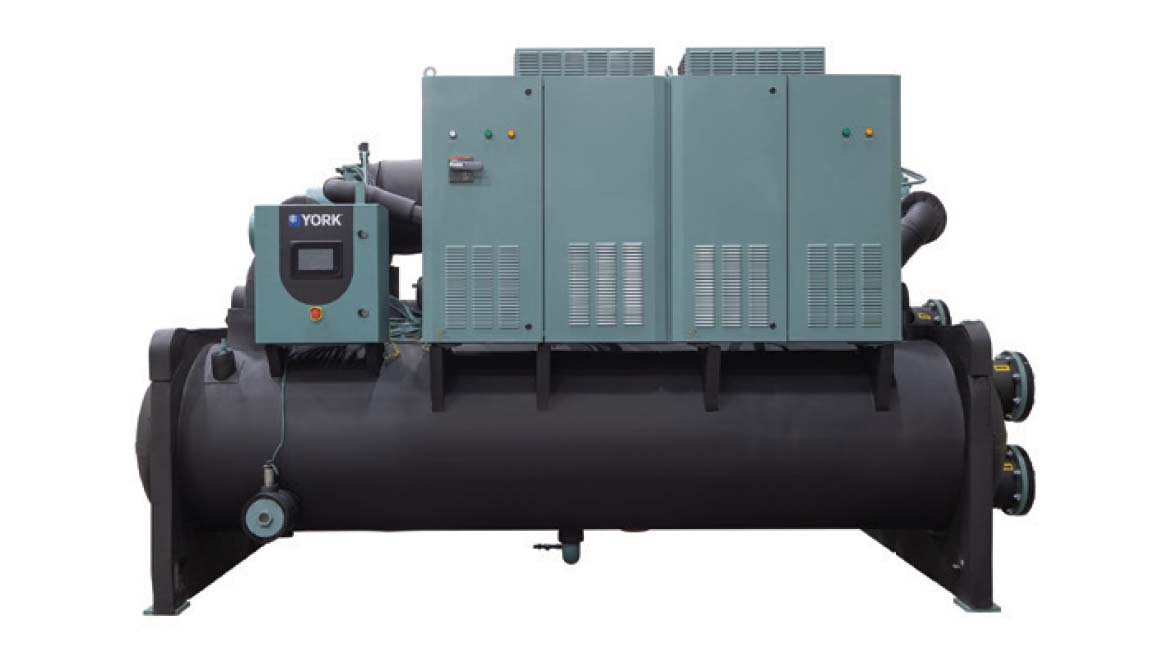

Serviceability features: The YVWH-200 heat pump features an intelligent, touchscreen control panel designed to simplify operation and serviceability. Additionally, the Smart Equipment-enabled YVWH seamlessly connects to building control systems, such as OpenBlue, to maximize system insight and streamline maintenance.

Noise-reduction features: These heat pumps feature advanced variable-speed drive compressors that optimize performance and maintain lower sound levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The YVWH-200 heat pump is engineered to significantly reduce energy use, water consumption, and carbon emissions within facilities that require heating, cooling, and simultaneous heating and cooling functions. The industry-leading heat pump delivers up to 176°F hot water while simultaneously producing chilled water at 41°F. Combined with a turndown capacity as low as 25%, the YVWH-200 is three times more efficient than a typical boiler and four times more efficient than traditional boiler and chiller systems.

Warranty information: Manufacturer did not specify.

Special installation requirements: The heat pump offers maximum scalability and decarbonization within a wide range of applications. Multiple units can be combined based on the facility demands, or YVWH can work in parallel with other YORK water-to-water heat pumps like the CYK to increase capacity and application benefits.

Website: www.york.com.
