2017 New HVAC Commercial Products

It’s time again for the annual Cooling Showcase. This annual isue of The NEWS’s has traditionally introduced the latest air conditioning units available for the upcoming summer season. The intent is to help contractors prepare for this busy period by doing the research that will help them to distinguish between brands.

Like last year, this year’s Cooling Showcase is split into two parts — commercial and residential. This issue focuses on the commercial side of the air conditioning industry while the April 17 issue highlighted new offerings in the residential cooling market. Included in this coverage is feature-specific information about each product as submitted by the manufacturers.

The product grid to the right includes technical facts, such as unit tonnage, refrigerant type, efficiency rating, and cooling capacity. The photo feature, which begins below, provides more in-depth information on the features of each individual unit and also includes technical support information from the manufacturers. The manufacturers provided all of the data included in the product grid as well as in the photo feature; therefore, any questions should be directed to them via the contact information provided in the photo feature section.

Click here to view the 2017 New HVAC Commercial Products Grid.

Aaon

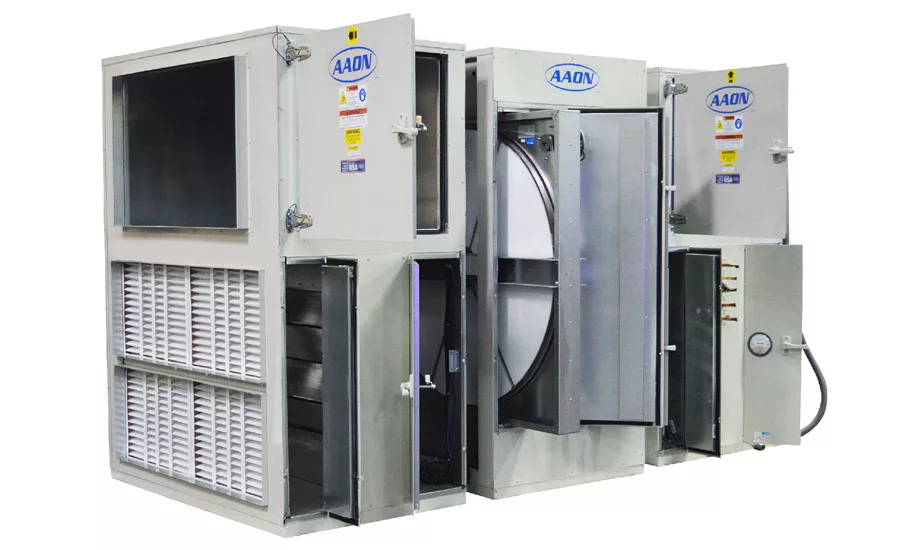

Model: V3 Series energy recovery air handling unit

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Components that require maintenance are accessible via hinged access doors. A slide-out energy recovery wheel features removable pie-shaped sections for easy cleaning. Its terminal block is labeled, and its components feature color-coded wiring and a wiring diagram. A factoryprovided potentiometer dial offers simple supply airflow adjustment, and the unit’s direct-drive fans do not require belt maintenance.

Technical support: Support is available through local Aaon representatives and factory product support. For more information, call 903-236-4403 or email productsupport@aaon.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; startup instructions; and submittal data sheets are available.

Noise-reduction features: This air-handling unit’s doublewall, rigid, polyurethane, foam-injected panel construction dampens radiated fan sound. Supply and exhaust fans include vibration isolation, and its standard direct-drive fans do not emit belt noise. Electronically commutated motors (ECMs) feature variable airflow control and reduced fan sound at lower speeds.

IAQ equipment supported: The energy recovery wheel facilitates air-handling units with 100 percent outside air capabilities and provides fresh air to building occupants. Optional modulating hot gas reheat precisely controls relative humidity. In addition, incoming air can be filtered using up to 4-inch MERV-14 filtration. Double-sloped stainless steel drain pans, double-wall panel construction, and Ultraviolet (UV) lights inhibit microbial growth.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: Units can be selected with factoryinstalled controls for single-zone variable air volume (VAV), constant air volume (CAV), or 100 percent outside air applications. Units are available with chilled water or DX cooling and hot water, steam, electric heat, or heat pump heating. Return air and outside air dampers with direct digital control (DDC) actuators can be used for an economizer and occupied or unoccupied operation.

Warranty information: A standard one-year parts warranty is available.

Special installation requirements: The unit is designed to fit through 36-by-80-inch doors for ease of installation and retrofit applications. Larger size units ship in sections that may be easily assembled in the field. Low-voltage quick connects make wiring between the sections as easy as plugging two parts together, and Aaon’s factory-installed options simplify installation.

Contact: Aaon, 918-583-2266; www.aaon.com.

eProduct 160

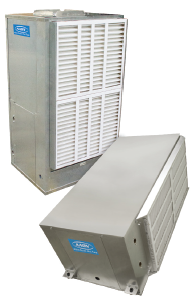

Model: WH/WV Series water-source/geothermal heat pump

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Maintenance is quick and easy via tool-less service access panels. Horizontal units include integrated hanging brackets with rubber vibration isolation. Service access to the expansion valve, reversing valve, filter drier, supply fan, and filters is available via a bottom panel. Vertical units include single side service access to most components.

Technical support: Support is available through local Aaon representatives and factory product support. For more information, call 918-382-6400 or email techsupport@aaon.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; startup instructions; and submittal data sheets are available.

Noise-reduction features: Standard closed-cell neoprene foam insulation reduces sound transmission. Standard direct-drive fans do not have belt noise. Compressors are mounted on an isolation plate mounted with rubber-in-shear isolation for reduced vibration. A low sound package, which includes insulated fan housing, and a compressor sound suppression blanket, is available.

IAQ equipment supported: Standard 2-inch MERV-8 filtration is supported. Optional 4-inch filter racks support up to MERV-14 filters. Stainless steel drain pans come standard and are designed to prevent corrosion and microbial growth. Closed-cell neoprene foam insulation provides a fiber-free and clean airstream.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This heat pump’s aluminum microchannel air coil features a large face area for improved efficiency, reduced air-pressure drop, reduced refrigerant charge, and reduced weight. Its all-aluminum cabinet construction reduces its weight and offers exceptional corrosion resistance. A factory-installed waterside economizer promotes high-efficiency operation. Its vertical units include an internal P-trap, which eliminates a housekeeping pad. Horizontal units have bottom service access to most components for easy maintenance.

Warranty information: A five-year parts warranty is available.

Special installation requirements: Aaon factory-installed options help simplify installation.

Contact: Aaon, 918-583-2266; www.aaon.com.

eProduct 161

Airstage

Model: 460V VRF system

Footprint (in inches): 30 (length) by 37 (width) by 67 (height)

Serviceability features: Inspection/replacement of the system’s main parts is easy due to innovative construction and an LED display. Consolidated electrical components make maintenance easy. A movable printed circuit board (PCB) panel allows for easier maintenance, an easy-to-read, seven-segment LED display explains operational/trouble status, and a split front panel allows for maintenance from the top or bottom of the unit.

Technical support: Support is available 8 a.m. to 8 p.m. Eastern time at 888-888-3424. Through a password-protected website, contractors can download a design and technical manual, an installation manual, a service manual, an operation manual, and submittal drawings.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; and startup instructions are available.

Noise-reduction features: In Low Noise Mode, the operation of the 460-V outdoor condensing unit is limited to keep noise levels below a programmed limit. Using this feature, the sound from a condensing unit can be as low as 50 dBA.

IAQ equipment supported: Indoor wall-mounted units feature ion deodorization filters that decompose absorbed odors using the oxidizing/reducing effects of ions generated by the ultra-fine-particle ceramic and Apple-Catechin filter, which absorbs fine dust, invisible mold spores, and harmful microorganisms by static electricity.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: The Fujitsu variable refrigerant flow (VRF) product line provides exceptional quality and performance and boasts many software features and control options.

Warranty information: Five-year parts and seven-year compressor warranties are available for systems that are installed and commissioned by qualified contractors. See the warranty statement for full details.

Special installation requirements: Installing contractors are required to take a hands-on service course.

Contact: Fujitsu General America Inc., 973-575-0380; www.fujitsugeneral.com.

eProduct 162

Model: J-II Series heat pump

Footprint (in inches): 15 (length) by 38 (width) by 53 (height)

Serviceability features: Inspection and replacement of this heat pump’s main parts is easy due to the unit’s innovative construction, and its consolidated electrical components make maintenance easy. An easy-to-read, seven-segment LED display explains operational/trouble status, and the unit’s Connection Check function simplifies communication wiring checking.

Technical support materials: Installation, operation, and maintenance manuals; an owner’s manual; submittal data sheets; and CAD drawings are available.

Noise-reduction features: The unit offers two Low Noise modes, which can lower the outdoor unit sound rating by 5-6 dBA.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This compact, single-phase, variable refrigerant flow (VRF) system provides both heating and cooling at exceptionally high efficiencies. Its control-logic, inverter-driven, dual-rotary compressor; dual high-efficiency DC fans; and large heat exchanger contribute to an exceptional efficiency rating in its size range.

Warranty information: Ten-year parts and compressor warranties are available for systems that are installed and commissioned by qualified contractors. See the warranty statement for full details.

Special installation requirements: Installing contractors are required to take the Airstage Service training to guarantee trouble-free installation and long equipment life.

Contact: Fujitsu General America Inc., 973-575-0380; www.fujitsugeneral.com.

eProduct 163

Allied Commercial

Model: K-Series high-efficiency packaged heat pump or dual fuel, KHB, KDB

Footprint (in inches): 83, 96, and 101 (length) by 45, 45, and 60 (width) by 37, 47, and 47 (height)

Serviceability features: Features include a slide-out blower compartment, hinged access panel, easily accessible gas compartment, and marked and color-coded wiring.

Technical support: Support is available at 800-448-5872.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; specification sheets; startup instructions; an owner’s manual; and technical support materials are included.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: The unit supports high-MERV filtration and a UV lamp.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: The system features dual-fuel capabilities and is BACnet™-compatible. The Eco-Last™ coil system uses minimal refrigerant, is light in weight, and boasts a reduced number of brazed joints. Single-zone variable air volume (VAV)-equipped units precisely coordinate fan speed with the current demand for cooling, which reduces energy demand.

Warranty information: Fifteen-year limited stainless steel gas heat exchanger, 10-year limited aluminized gas heat exchanger, five-year limited compressor, three-year limited Eco-Last coil system, and one-year limited covered components warranties are available.

Special installation requirements: No special requirements are required for this unit.

Contact: Allied Commercial, 803-738-4000; www.allied-commercial.com.

eProduct 164

Arcoaire

Model: PHR5 packaged heat pump

Footprint (in inches): 48 (length) by 33-44 (width) by 44-55 (height)

Serviceability features: The unit installs easily on a rooftop or on the ground level. Maintenance and installation is easily accessible via three access panels. This heat pump may be easily converted to accommodate down discharge applications.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are included. Additional product information is posted online.

Noise-reduction features: The unit’s outdoor fan is sized and optimized for minimal noise.

IAQ equipment supported: The heat pump’s accessory filter racks support 2-inch filters.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Energy Star-qualified unit achieves up to 15.5-SEER/12.5-EER electric cooling and up to 8.5-HSPF electric heating. The unit also features field-convertible airflow, high- and low-pressure switches for added compressor reliability, and a high-efficiency electronically commutated motor (ECM) indoor blower. A dehumidification mode (airflow reduction) is also available on all models.

Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available. See the warranty certificate for complete details and restrictions.

Special installation requirements: Roof curbs are available as field-installed accessories.

Contact: International Comfort Products, 317-847-6930; www.goarcoaire.com.

eProduct 165

Model: RGH 036-072 packaged gas/electric rooftop

Footprint (in inches): 74-88 (length) by 47-60 (width) by 33-41 (height)

Serviceability features: Access panels with easy-grip handles provide easy access to the blower, blower motor, control box, and compressors. A no-strip screw feature has exceptional holding power and guides screws into position while preventing the screw from stripping the unit’s metal. Its newly designed terminal board facilitates safety circuit troubleshooting and simplifies the control box arrangement.

Noise-reduction features: The unit’s cabinet is fully insulated.

IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Energy Star-qualified unit is field-convertible for vertical or horizontal airflow duct configurations. The unit also features high- and low-pressure switches. Its scroll compressor features internal line-break overload protection. Factory-installed options include a high-static indoor fan, economizers, and hot gas reheat system.

Warranty information: Five-year limited compressor and one-year limited parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goarcoaire.com.

eProduct 166

Bard

Model: MULTI-TEC air conditioner

Footprint (in inches): 17-22 (length) by 33-42 (width) by 74-93 (height)

Serviceability features: Each unit is shipped with a TEC-EYE™ diagnostic tool. When connected to the TEC-EYE, the unit programmable logic controller (PLC) board is able to display stored alarms and easy-to-read diagnostic information. If communication is lost with the controller, the unit is able to operate using on-board sensors and a PLC. All service and maintenance is performed outside the building and consumes no interior floor space. Additional service features include high- and low-pressure switches, a compressor time delay, and a dirty filter switch.

Technical support: Support is available through Bard’s local distribution network.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This air conditioner requires a special controller.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: The wall-mount a/c utilizes PLC technology to allow multiple units to connect to a single LC6000 controller. The LC control and MULTI-TEC allow for programming up to three environmental zones with unique temperature and humidity settings. Additional features include a full-flow economizer; 10-plus-EER operating efficiency; Air-Conditioning, Heating, and Refrigeration Institute (AHRI) certification, and four color options. The unit also uses Modbus communication protocol.

Warranty information: Five-year parts and five-year compressor warranties come standard.

Special installation requirements: None.

Contact: Bard Mfg. Co., 419-636-1194; www.bardhvac.com.

eProduct 167

Bosch

Model: Climate 6000 AH Series, AH semi-custom commercial and industrial air handlers

Footprint (in inches): Varies.

Serviceability features: Standard smart hinged-door panels allow for the easy service and replacement of cartridge panel-filter assemblies and the coil. Most standard coil configurations allow for easy removal through a door panel, which may be selectable on the right or left side.

Technical support: Support is available at 866-642-3198.

Noise-reduction features: Double-wall panels are manufactured using a unique process with steel sheets coated with polyurethane passing over heated rollers to ensure a consistent R-13 insulation. This process provides uniform 2-inch-thick insulated sandwich-panels with improved rigidity, thereby obtaining exceptional sound attenuation while reducing vibration.

IAQ equipment supported: There are several mixing box configurations, pre- and post-filtration options (MERV-8 to MERV-16 ratings), and empty sections available for field-installed devices, such as dehumidifiers, ionizers, or UV lights. The unit’s cooling coil drain pans comply with ASHRAE 62.1.

Thermostat compatibility: Controllers are field-supplied by contractors.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: The same models are suitable for both indoor and outdoor applications. The sandwich panel, tongue-and-groove assembly, and complex gasketing provide exceptional thermal breaking. Available energy recovery options, such as a heat wheel, cross-flow plate heat recuperator, or glycol run-around coils, are available. The standard product lead time is six weeks.

Warranty information: The replacement of defective parts is available 18 months from the unit’s shipment date. See the full warranty details at
www.boschheatingandcooling.com.

Special installation requirements: Units can be ordered in sections for field assembly in existing applications. Curb-ready base frames are available for rooftop installations with crane lifting locations. Several non-standard features are available upon request.

Contact: Bosch Thermotechnology Corp., 603-965-7445; www.boschheatingandcooling.com.

eProduct 168

Bryant

Model: Legacy 548/547J heat pump

Footprint (in inches): 74-141 (length) by 47-86 (width) by 33-49 (height)

Serviceability features: This heat pump’s access panels feature easy-grip handles and an innovative, easy-starting, no-strip screw feature. It includes a tool-less filter access door. A terminal board makes safety circuit troubleshooting easy, which simplifies the control box arrangement.

Technical support: Support is provided via local Bryant distributors.

Noise-reduction features: A fully insulated cabinet, isolated scroll compressors, and prop condenser fan help reduce operational noise levels.

IAQ equipment supported: This heat pump’s economizers include multiple sensor options. Two-inch filters come standard on all models, and multiple fan performance capabilities are supported.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This system’s complete offering in sizes, operation, and options makes it an ideal solution for the replacement market. Many models are capable of fitting on past Bryant roof curbs dating back to the late 1980s without changing the utility connection or duct connections, which saves time and offers financial savings.

Warranty information: Five-year parts-only compressor and electric heaters and one-year parts warranties are available. Optional extended protection programs are also available.

Special installation requirements: This unit requires no special installation requirements. The units come standard with a refrigerant accumulator.

Contact: Bryant, 317-847-6930; www.bryant.com.

eProduct 169

Model: Legacy 580/582J air conditioner

Footprint (in inches): 74-158 (length) by 47-86 (width) by 33-57 (height)

Serviceability features: This air conditioner is designed to be easy to order, install, and maintain. Units throughout the line are similar in design for easy familiarization. Each unit has a large organized control box; standardized components; a central terminal board that centralizes wiring into one convenient location; a handle; easy-access panels; no-strip screw technology; and a removable service plug, which simplifies the acquisition of refrigerant pressures.

Technical support: Support is available via local Bryant distributors.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are included.

Noise-reduction features: A fully insulated cabinet, isolated scroll compressors, and prop condenser fan help reduce operational noise levels.

IAQ equipment supported: This unit’s economizers feature multiple sensor options. Two-inch filters come standard on all models and feature multiple fan performance capabilities.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This system’s complete offering in sizes, operation, and options makes it an ideal solution for the replacement market. Many models are capable of fitting on past Bryant roof curbs dating back to the late 1980s without changing utility connection or duct connections, which saves time and adds financial savings.

Warranty information: Ten-year parts-only aluminum heat exchanger, 15-year parts-only stainless steel heat exchanger, five-year parts-only compressor, and one-year parts warranties are available. Optional extended protection programs are also available.

Special installation requirements: None.

Contact: Bryant, 317-847-6930; www.bryant.com.

eProduct 170

Carrier

Model: WeatherExpert 48/50LC — VAV air conditioner

Footprint (in inches): 88-158 (length) by 59-86 (width) by 49-57 (height)

Serviceability features: Full-sized access panels with built-in handles and no-strip screw technology allow easy component access. Units feature a corrosion-resistant, internally sloped, self-draining condensate pan. Filters may be easily replaced via a tool-less access door. This a/c utilizes common parts and designs used in other Carrier models for ease of familiarization and training.

Technical support: Support is available via a widespread distribution network with on-site expert technical advisory staff and the Commercial Replacement Experts training program. Additional training is available through Carrier University. For more information, call 800-946-2930 or visit www.carrier.com/commercial.

Noise-reduction features: A fully insulated cabinet, isolated scroll compressors, prop condenser fan, and rigid base rails help reduce operational noise levels. The system’s indoor motor speed is controlled by a variable frequency drive (VFD) to make sure the fan operates at optimum speed.

IAQ equipment supported: Factory-furnished air filters, air economizers with sensor options, and demand control ventilation are supported. A supply air temperature sensor provides optimal comfort to the remote, multi-zone terminals.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: With IEER ratings up to 21, this unit provides multi-zone variable air volume (VAV) operation down to 6-ton size models in cooling-only, cooling-with-gas-heat, or electric-heat modes. The unit also provides plug-and-play integration with i-Vu Open terminal controllers for better linkage and system commissioning. The unit uses a supply air temperature sensor and duct static sensor, which are factory furnished.

Warranty information: Ten-year parts-only aluminum heat exchanger, 15-year parts-only stainless steel heat exchanger, five-year parts-only compressor and electric heat, and one-year parts warranties are available. Optional extended protection programs are also available.

Special installation requirements: The unit requires the use of Carrier zone terminal controls to provide optimum comfort control and ease of system commissioning.

Contact: Carrier Corp., 317-847-6930; www.carrier.com/commercial.

eProduct 171

Model: WeatherMaster 48/50HC/Q air conditioner, heat pump

Footprint (in inches): 74-158 (length) by 47-86 (width) by 33-57 (height)

Serviceability features: Full-sized access panels with built-in handles and no-strip screw technology allow for easy component access. Units have a corrosion-resistant, internally sloped, self-draining condensate pan. Filters may be easily replaced via a tool-less access door. This system utilizes common parts and designs used in other Carrier models for ease of familiarization and training.

Noise-reduction features: A fully insulated cabinet, isolated scroll compressors, prop condenser fan, and rigid base rails help reduce operational noise levels. Indoor motor speed is controlled by a variable frequency drive (VFD) to ensure the fan operates at optimum speed.

IAQ equipment supported: The unit includes factory-furnished air filters, air economizers with sensor options, and demand control ventilation. An energy recovery ventilator (ERV) is optional.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: The system uses the same footprint model from units designed in 1989. At that time, SEER was 9.3 and is now up to 15.6 in the same footprint. This improves replacement installation and cost control for that original fit. Units also operate at up to 125°F ambient temperatures.

Special installation requirements: This unit needs no special installation requirements. Accumulators are factory-installed on all heat pump models.

Contact: Carrier Corp., 317-847-6930; www.carrier.com/commercial.

eProduct 172

ClimateMaster

Model: Tranquility TRM heat pump with hydronic heating

Footprint (in inches): 17-24 (length) by 17-24 (width) by 88 (height)

Serviceability features: Manufacturer did not specify.

Technical support: Manufacturer did not specify.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats. The thermostat must work with a heat pump.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: The unit is cost-effective as it operates as a fan coil in heating mode instead of using compressor heating. The reduced compressor cycling leads to quiet operation. Heat retention can be used in buildings with water-loop temperatures as high as 120°F.

Warranty information: Manufacturer did not specify.

Special installation requirements: Manufacturer did not specify.

Contact: ClimateMaster Inc., 405-745-6000; www.climatemaster.com.

eProduct 173

Comfortmaker

Model: RAH 090-150 packaged air conditioner

Footprint (in inches): 88-116 (length) by 60-63 (width) by 49-57 (height)

Serviceability features: All connections and troubleshooting points are located in one convenient place, the easily accessible master terminal board. Units feature through-the-base utility connections capabilities. Access panels have easy-grip handles and a no-strip screw feature. Its newly designed terminal board facilitates safety circuit troubleshooting and simplifies the control box arrangement.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability. An accessory duct-mounted CO2 sensor is available for field installation to provide demand-controlled ventilation (DCV) capability.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Energy Star-qualified unit features field-convertible airflow (the field accessory supply duct kit is required for the 150-size model only), high- and low-pressure switches, and scroll compressors. Its scroll compressors have internal line-break overload protection. Medium- and high-static indoor fan and economizer options come factory-installed.

Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available. See the warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gocomfortmaker.com.

eProduct 174

Model: RGH 181-303 packaged gas/electric rooftop

Footprint (in inches): 128-158 (length) by 86 (width) by 49-57 (height)

Serviceability features: The unit features an IGC solid-state control for on-board diagnostics with an LED error-code designation, burner control logic, and energy-saving indoor fan motor delay. All connections and troubleshooting points are located in one convenient place, the easily accessible master terminal board. Units feature through-the-base utility connections capabilities, and its access panels have easy-grip handles and a no-strip screw feature.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Energy Star-qualified unit features two-stage cooling with independent circuits and controls. It is available in dedicated vertical or horizontal airflow duct configuration models and includes high- and low-pressure switches. Its scroll compressor includes internal line-break overload protection. Factory-installed options include a high-static indoor fan, economizers, a variable frequency drive (VFD) two-speed fan, and a hot gas reheat system.

Warranty information: Fifteen-year limited optional stainless steel heat exchanger, 10-year limited aluminized steel heat exchanger, five-year limited compressor, and one-year limited all-other-parts warranties are available. See the warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gocomfortmaker.com.

eProduct 175

Daikin Applied

Model: Rebel® — DPS packaged rooftop system

Footprint (in inches): 186 (length) by 77 (width) by 71 (height)

Serviceability features: This rooftop system features MicroTech® III controls for easy building automation system (BAS) integration; Intelligent Systems™ or Intelligent Equipment® controls that provide real-time monitoring/diagnostics/serviceability; 2-/4-inch slide-out filter racks; an integrated slide-out energy recovery wheel; low-maintenance, direct-drive fans; a variable-speed, inverter, scroll compressor; hinged access doors; and cleanable, double-wall, foam-injected panels.

Technical support: Contact a local Daikin Applied service representative for complete startup services with comprehensive maintenance agreements and repair services. Daikin factory service can provide help with operational and technical questions and can troubleshoot any Daikin Applied equipment. Emergency service and 24/7 repairs are also available.

Noise-reduction features: Noise-reducing features include ultra-quiet, variable-speed condenser fans; an enclosed inverter compressor; quiet, variable-speed electronically commutated motor (ECM); a direct-drive plenum on supply/return/exhaust fans; and thick, double-wall, R-7/R-13 foam-injected panels.

IAQ equipment supported: The unit is configurable as a 100 percent dedicated outdoor air system (DOAS) with a number of features to improve IAQ and comfort conditions, including a stainless steel, double-sloped drain pan; modulating hot gas reheat dehumidification control; combination 2- and 4-inch filters; MERV prefilters and afterfilters; and cleanable, double-wall construction.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This rooftop system features a variable-speed, inverter compressor; heat pump technology with supplemental staged gas, electric, hot water, or modulating heat; direct-drive fans with a variable-speed ECM or variable frequency drive (VFD) motor; integral energy recovery options; outdoor air monitoring; modulating hot gas reheat dehumidification; MicroTech III controls; and Intelligent Systems or Intelligent Equipment control solutions.

Warranty information: A standard Daikin warranty applies. Contact a local Daikin Applied service representative for complete startup services with comprehensive maintenance agreements and repair services. Daikin factory service can provide answers to operational and technical questions and can troubleshoot any Daikin Applied equipment. Emergency service and 24/7 repairs are also available.

Special installation requirements: All components are factory-installed except the space sensor, humidity sensor, and optional static pressure-sensing tubes. Rebel commercial rooftop systems are easily installed and maintained by capable service and mechanical contractors. Daikin recommends utilizing regional technical training sessions to maximize efficient installation.

Contact: Daikin Applied, 763-553-5157; www.daikinapplied.com.

eProduct 176

Model: Trailblazer® AMZ air-cooled chiller

Footprint (in inches): 87 (length) by 51 (width) by 92 (height)

Serviceability features: This chiller’s reliable single-refrigerant circuit configuration markedly reduces periodic/planned maintenance compared to two-refrigerant circuit configurations with more parts to service. Its open-base design allocates serviceable space that saves maintenance time and associated costs, and its reduced refrigerant charge microchannel coils are easily accessible and quickly cleanable.

Noise-reduction features: This air-cooled chiller features inherently quiet scroll compressors and fans that produce noise levels as low as 53 dBA. In addition, field-installed spring or rubber-in-shear vibration isolators under the unit’s base frame are available for extremely sound-sensitive applications.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: The unit features a small footprint to maximize space savings, high full- and part-load efficiencies to reduce operating costs, MicroTech III controls for easy building automation system (BAS) integration, and R-410A environment-friendly refrigerant with no phaseout date. The unit is Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-certified and contributes toward Leadership in Energy and Environmental Design (LEED) energy/atmosphere credits 1/4 and exceeds ASHRAE 90.1-2016 standards.

Warranty information: A standard one-year parts warranty is available at startup. Up to four additional years of coverage is available on the compressor or parts warranty. Labor or refrigerant warranty coverage plans are also available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin Applied, 763-553-5157; www.daikinapplied.com.

eProduct 177

Daikin

Model: VRV AURORA Canada 575V outdoor heat recovery

Footprint (in inches): Manufacturer did not specify.

Serviceability features: The unit boasts efficient and stable inverter board operation. Refrigerant-cooled inverter technology allows it to be installed without an additional drain pan heater. Auto changeover to back up (auxiliary) heat comes standard. Variable refrigerant temperature technology delivers year-round comfort and efficiencies. Long pipe lengths allow up to 295 feet height difference between the outdoor and indoor units. Continuous heating occurs during defrost and oil return, its PE Blue fin coil undergoes 1,000 hours of salt spray testing, and the coil guards come factory-standard.

Technical support: Contact a local distributor or call 866-432-4546 for support.

Noise-reduction features: Standard operating sound levels are minimized with Daikin’s inverter variable-speed swing compressors.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This unit is engineered and optimized for the total cost of construction and life cycle costs. Part-load efficiency is optimized using dedicated, all-inverter 575V compressors and inverter fan motors. Variable refrigerant flow (VRF) systems deliver heating down to minus 22°F (minus 30°C) and are assembled in North America. The unit offers 100 percent of nominal heating capacity at 0°F (minus 18°C), up to 85 percent of nominal capacity at minus 13°F (minus 25°C), and up to 60 percent capacity at minus 22°F (minus 30°C).

Warranty information: Ten-year limited parts and 10-year limited replacement compressor warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 713-861-2500; www.daikinac.com.

eProduct 178

Model: DVS dedicated outside air system (DOAS)

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Each unit comes standard with an electronically commutated motor (ECM) fan that provides up to 3 inches of external static pressure; hinged access panels for easy serviceability; double-wall, 1-inch foam, R7, insulated cabinet; slide-out filter racks; factory-installed 2-inch MERV-8 filters; an outdoor airflow monitoring station; a 115-V convenience outlet; and a non-fused disconnect switch. The system can be integrated into the same intelligent Touch Manager (iTM) as the comfort cooling and heating variable refrigerant volume (VRV) system.

Technical support: Contact a local distributor or call 866-342-4546.

Noise-reduction features: ECM supply and exhaust fan motors; and a double-wall, 1-inch, foam, R7, insulated cabinet help reduce operational noise levels.

IAQ equipment supported: The unit provides IAQ fresh air for VRV system applications.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This unit is designed to condition 100 percent of the outside ventilation air necessary for VRV air-cooled heat recovery systems. Models with nominal 1,000-, 2,000-, and 3,000-cfm airflow rates can be configured with pre-treatment, cooling, reheat, and heating components. An optional energy recovery wheel section can be added to reduce the mechanical cooling capacity of the system. Auxiliary heat is available in modulating gas heat, silicon controlled rectifier (SCR)-controlled electric heat, or hot water.

Warranty information: Ten-year limited parts and 10-year limited replacement compressor warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 713-861-2500; www.daikinac.com.

eProduct 179

Day & Night

Model: PHR5 packaged heat pump

Footprint (in inches): 48 (length) by 33-44 (width) by 44-55 (height)

Serviceability features: The unit installs easily on a rooftop or at the ground level. Maintenance and installation are accessible beyond three-panel access. The unit may be easily converted to down-discharge applications.

Noise-reduction features: The unit’s outdoor fan is sized and optimized for minimal noise.

IAQ equipment supported: The heat pump’s accessory filter racks support 2-inch filters.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available. See the warranty certificate for complete details and restrictions.

Special installation requirements: Roof curbs are available as field-installed accessories.

Contact: International Comfort Products, 317-847-6930; www.godayandnight.com.

eProduct 180

Model: RGH 181-303 packaged gas/electric rooftop

Footprint (in inches): 128-158 (length) by 86 (width) by 49-57 (height)

Serviceability features: This unit includes an IGC solid-state control for on-board diagnostics with an LED error-code designation, burner control logic, and an energy-saving indoor fan motor delay. All connections and troubleshooting points are located in one convenient place, the easily accessible master terminal board. Units feature through-the-base utility connections capabilities, and its access panels have easy-grip handles and a no-strip screw feature.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.godayandnight.com.

eProduct 181

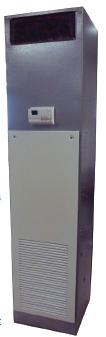

First Co.

Model: Hydrotech, FHR water-source heat pump

Footprint (in inches): 19-24 (length) by 19-24 (width) by 88 (height)

Serviceability features: Service access to all unit components is available from the front of the unit behind an access return panel. The refrigeration circuit and water connections are accessible from the slide-out chassis.

Technical support: Support is available 8 a.m. to 5 p.m. Central time, Monday to Friday, at 214-388-5751, option 5.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and submittal data sheets are available.

Noise-reduction features: A sound attenuation option is provided with a heavy-duty, insulated compressor cover that reduces unwanted compressor noise. A five-second compressor delay allows the blower to start before the compressor, which attenuates compressor startup sound.

IAQ equipment supported: A built-in dehumidification function runs the lowest fan speed for 10 minutes upon startup and then increases the blower speed to nominal cfm until the thermostat is satisfied. Continuous dehumidification mode selects continuous low-speed fan operation for increased humidity removal. Factory-installed 1-inch filters come standard.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Standard features include microprocessor controls, a thermostatic expansion valve (TXV) metering device, a galvanized steel cabinet, foil face insulation, two-speed motor operation, and either a permanent split capacitor (PSC) motor or electronically commutated motor (ECM) for all models. All heat pumps are run-tested with water and quality-certified prior to leaving the factory.

Warranty information: Five-year compressor and one-year parts warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: First Co., 214-388-5751 ext. 1166; www.firstco.com.

eProduct 182

Friedrich Air Conditioning

Model: VRP12K single package vertical heat pump

Footprint (in inches): 25 (length) by 26 (width) by 52 (height)

Serviceability features: These heat pump units are easy to diagnose, repair, and replace. Typical troubleshooting and operational support can be accomplished without specialized training or certifications. Its control boards are easily accessible, refrigerant components are accessible via a single panel, the same size screws are used on all panels to make disassembly quick and easy, wall controller diagnostics provide active diagnostics and historical diagnostic data, the software is upgradable from the wall controller, and the indoor blower may be removed easily.

Technical support: Authorized agencies offer technical service assistance and support. A specialized VRP-dedicated support team is also available. U.S.-based technical support is available 8 a.m. to 5 p.m. Central time, Monday to Friday, at 800-541-6645.

Noise-reduction features: Precision Inverter® technology eliminates noisy on/off cycles and operates quietly. The closet-mounted unitary package design also conceals compressor noise. The unique, free-floating chassis means no metal-to-metal contact, and its fully insulated panels provide improved sound characteristics.

IAQ equipment supported: An optional, integrated FreshAire™ system delivers up to 70 cfm of conditioned fresh air into the space. The fresh air is filtered through a MERV-8 filter per ASHRAE 62.1-2013 and is then conditioned through the unit’s primary DX coils backed by a reheat coil that augments the unit’s dehumidification capability. This integrated fresh-air solution provides the ability to potentially downsize or eliminate additional makeup air and humidity control equipment.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: The unit provides variable refrigerant flow (VRF) performance with single-package simplicity. The Precision Inverter delivers efficiencies up to 20 SEER/13 EER and operates at 20-120 percent of rated capacity. Its humidity control system features on-board sensors and humidistats, reheat coil maintains desired RH levels on colder days, and low-ambient heat pump operates down to 0˚F. An optional FreshAire system brings in up to 70 cfm of conditioned, filtered, MERV-8 outside air, which helps building owners meet ASHRAE 62.1-2013 for IAQ.

Warranty information: One-year parts, and five-year sealed refrigeration system — including compressor, indoor and outdoor coils, and tubing — warranties are available.

Special installation requirements: The unit has no special installation requirements. The VRP is designed for simple in-closet installation and provides exceptional design flexibility.

Contact: Friedrich Air Conditioning, 210-546-0500; www.friedrich.com.

eProduct 183

GeoComfort

Model: Commercial Series, single-stage, compact, horizontal, packaged, ground-source heat pump, GZS 018-072

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: The unit’s hinged control box swings open or is removable for access to internal components. Electrical and water connections are located on the front-corner post. The refrigerant test post is accessible via a front panel. All exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation. The desuperheater switch is mounted externally.

Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, training@geothermaluniversity.com, or by visiting www.geothermaluniversity.com.

Noise-reduction features: Elastomeric compressor vibration absorption pads provide exceptional sound and vibration insulation. High-density, closed-cell, foam insulation helps absorb sound. A heavy-gauge compressor mounting plate with multiple durometer rubber and elastomeric vibration absorption pads provide exceptional compressor and blower motor isolation. High-density, UL Greenguard Gold-certified, closed-cell, foam insulation helps absorb sound. Its heavy-gauge galvanized or pre-painted sheet metal cabinet is engineered and built to meet industry leakage guidelines.

IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners with disposable media packs are available. Most other air filtration, humidification, or purification systems are compatible with all Enertech products.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Models are field-configurable for side or end discharge and feature a compact design with higher efficiencies. Its all-aluminum, microchannel air coil improves efficiency, and its sensor- and flow-switch-protected, foam enclosed, brazed-plate heat exchanger reduces weight and refrigerant charge while increasing performance. Its compact design allows 24-inch-on-center attic truss pass-through installation.

Warranty information: The geothermal unit and all internal system components are warrantied to be free from defects in material and workmanship for a period of one year from the date of delivery to the original purchaser. Optional extended warranties are also available.

Special installation requirements: Its small footprint; front-corner, post-mounted plumbing and electrical connections; and field-selectable discharge air pattern are ideal for retrofit or new construction applications. The unique application of brazed-plate and microchannel heat exchangers in a compact, efficient, and installer-/technician-friendly package provides excellent performance and reliability.

Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.

eProduct 184

Haier

Model: 1U48LP2VHA ductless mini-split heat pump

Footprint (in inches): 38 (length) by 37 (width) by 15 (height)

Serviceability features: This heat pump provides exceptional cooling and heating experiences under a wide temperature range, from low ambient cooling at 0°F to low ambient heating at minus 4°. Highwall, cassette, and duct indoor choices are available. Long-distance piping — up to 230 feet — makes it suitable for many applications, including office buildings, server or equipment rooms, retail shops, restaurants and kitchens, day cares, classrooms, and historical buildings.

Technical support: Manufacturer did not specify.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; an owner’s manual; and submittal data sheets are available.

Noise-reduction features: Noise-reduction mode can reduce noise levels by 10-12 dBA.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Additional features include long-distance indoor and outdoor refrigerant piping up to 230 feet, 0°F cooling, and minus 4° heating. Indoor units may be mixed and matched to the same outdoor unit.

Warranty information: Seven-year compressor and five-year parts warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Haier America, 973-617-1800; https://haierductless.com.

eProduct 185

Heil

Model: PHR5 packaged heat pump

Footprint (in inches): 48 (length) by 33-44 (width) by 44-55 (height)

Serviceability features: This heat pump installs easily on a rooftop or at the ground level. Maintenance and installation is accomplished via three panels. The unit may be easily converted to down-discharge applications.

Noise-reduction features: The unit’s outdoor fan is sized and optimized for minimal noise.

IAQ equipment supported: Its accessory filter racks support 2-inch filters.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available. See the warranty certificate for complete details and restrictions.

Special installation requirements: Roof curbs are available as field-installed accessories.

Contact: International Comfort Products, 317-847-6930; www.goheil.com.

eProduct 186

Model: RAH 090-150 packaged air conditioner

Footprint (in inches): 88-116 (length) by 60-63 (width) by 49-57 (height)

Serviceability features: All connections and troubleshooting points are located in one convenient place, the easily accessible master terminal board. Units feature through-the-base utility connection capabilities, and its access panels feature easy-grip handles and a no-strip screw feature. Its newly designed terminal board facilitates safety circuit troubleshooting and simplifies the control box arrangement.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Energy Star-qualified unit features field-convertible airflow (a field-accessory supply duct kit is required for the 150-size model only), high- and low-pressure switches, and scroll compressors. Scroll compressors offer internal line-break overload protection. Factory-installed medium- and high-static indoor fan and economizer options are available.

Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available. See the warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goheil.com.

eProduct 187

Hydron Module

Model: Commercial Series, single-stage, compact, horizontal, packaged ground-source heat pump, HZS 018-072

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: This unit’s hinged control box swings open or may be removed to access internal components. Electrical and water connections are located on the front-corner post, and its refrigerant test port is accessible via a front panel. All exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation. Its desuperheater switch is mounted externally.

IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Most other air filtration, humidification, or purification systems are compatible with all Enertech products.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Models are field-configurable for side or end discharge and feature a compact design with high efficiencies. Its all-aluminum, microchannel air coil offers improved efficiency. A sensor- and flow-switch-protected, foam enclosed, brazed-plate heat exchanger reduces weight and refrigerant charge while increasing performance. Its compact design allows 24-inch-on-center attic truss pass-through installation.

Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.

eProduct 188

ICP Commercial

Model: RGH 181-303 packaged gas/electric rooftop

Footprint (in inches): 128-158 (length) by 86 (width) by 49-57 (height)

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goicpcommercial.com.

eProduct 189

Model: RHH 036-072 packaged heat pump

Footprint (in inches): 74-116 (length) by 46-63 (width) by 33-57 (height)

Noise-reduction features: The unit’s cabinet is fully insulated.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Energy Star-qualified unit is field-convertible for vertical or horizontal airflow duct configurations and includes high- and low-pressure switches. Its scroll compressor offers internal line-break overload protection. Factory-installed options include a high-static indoor fan and economizers.

Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available. See the warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.goicpcommercial.com.

eProduct 190

Koldwave

Model: HKW Series air conditioner

Footprint (in inches): 67-96 (length) by 30-96 (width) by 55-67 (height)

Serviceability features: All units are designed with removable panels and access doors for ease of service.

Technical support: Support is available 8 a.m. to 5 p.m. Eastern time at technicalservice@koldwave.com.

Noise-reduction features: Units are designed for quiet operations with sound-attenuating insulation.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Portable units include an integral thermostat or the option for a remote thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This air conditioner can be configured with a wide variety of options to fit diverse applications. Units in sizes up to 12 ton are available in a narrow cabinet design to fit through a standard doorway. Units are equipped with an integral for a lifting pad and 8-inch casters. Larger 2- to 30-ton units are available on a base, pod, or U.S. Department of Transportation (DOT)-approved trailer.

Warranty information: Two-year unit and three-year compressor warranties are available.

Special installation requirements: Portable units require no installation.

Contact: Koldwave, 413-564-5520; www.koldwave.com.

eProduct 191

Lennox

Model: Landmark high-efficiency heat pump

Footprint (in inches): 99 (length) by 47 (width) by 47 (height)

Serviceability features: The unit’s isolated compressor compartment allows performance checks during normal compressor operation without disrupting airflow. Independent motor mounts allow for easy/efficient service access without removing the top panel. It features a corrosion-resistant, removable, reversible drain pan, and many maintenance items and common components are standard throughout the entire product line.

Technical support: Parts, application, and technical support are available 6 a.m. to 6 p.m. Central time at 800-453-6669.

Noise-reduction features: This heat pump’s Copeland scroll UltraTech two-stage compressor features high performance and reliability and is resiliently mounted on rubber grommets for quiet operation. The outdoor coil electronically commutated fan motor offers efficient performance and quiet operation.

IAQ equipment supported: Disposable, 2-inch filters are standard and come furnished. An IAQ CO2 sensor monitors CO2 levels and adjusts the economizer dampers as needed for demand control ventilation (DCV). Healthy Climate® UVC germicidal lamps help eliminate mold and bacterial growth on the evaporator and drain pans, which improves IAQ and maintains system efficiency by reducing fouling of the evaporator coil.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This commercial rooftop heat pump with a new dual-fuel system automatically switches between electric and gas heating, based on whichever is most energy efficient for the weather. This option helps buildings save energy without compromising comfort. Demand defrost control helps maximize system efficiency and comfort by activating defrost cycles only when ice forms on the outside coil.

Warranty information: Five-year limited compressor, 15-year limited stainless steel heat exchanger, five-year limited optional high-performance economizers, and one-year limited all-other-covered-components warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: Lennox Intl. Inc., 972-497-7802; www.lennoxcommercial.com.

eProduct 192

Model: Raider® rooftop units

Footprint (in inches): 76 (length) by 47 (width) by 45 (height)

Serviceability features: This unit may be easily and quickly installed or retrofit with many existing rooftop units as it fits many roof curbs commonly used in the industry. The compressor may be directly accessed via a panel with only three screws, which allows pressures to be checked without disrupting unit operation. Labeled and color-coded wiring allows easy point-to-point troubleshooting. A burner access panel provides complete access to all heating components for service, and the filter may be easily and quickly removed without the use of any tools.

Technical support: Parts, applications, and technical support is available 6 a.m. to 6 p.m. Central time at
800-453-6669.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Disposable, 2-inch filters come standard. An optional IAQ CO2 sensor monitors CO2 levels and adjusts the economizer dampers as needed for demand control ventilation (DCV).

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: With the addition of the new 6-ton heat pump, the Raider family has 3- to 12.5-ton gas/electric and electric/electric and 3- to 10-ton heat pump units available. Replacement compatibility fits roof curbs commonly used in the industry and eliminates the need for an adapter curb.

Warranty information: Five-year limited compressor, 15-year limited stainless steel heat exchanger, five-year limited high-performance economizers, and one-year limited all-other-covered-components warranties are available.

Special installation requirements: This unit matches existing electrical and plumbing connections, which reduces installation time and cost.

Contact: Lennox Intl. Inc., 972-497-7802; www.lennoxcommercial.com.

eProduct 193

LG Electronics

Model: LG Multi V 5, ARUM241BTE5 heat pump or heat recovery

Footprint (in inches): 30 (length) by 49 (width) by 67 (height)

Serviceability features: This heat pump or heat recovery features easy-to-service, onboard self-diagnostics. With periodic indoor unit filter changes and annual outdoor unit coil cleanings, its anticipated useful life is 15-20 years.

Technical support: Support is available 8 a.m. to 6 p.m. Central time, Monday to Friday, at
888-865-3026.

Noise-reduction features: This unit features a variable-speed compressor and condenser fan motors. The 42-ton outdoor unit has nearly the same noise level as a 5-ton residential condensing unit.

IAQ equipment supported: The 2VL and 4VL Dynamic V8 air cleaners remove sub-micron size particulate and gas phases contaminants without generating any ozone or ions. The air cleaner filer media has earned a MERV-NC rating exceeding 15. Where gas-phase and sub-micron particulate are not a concern, the MERV-8 to MERV-13 filter box accessory is also available.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This heat pump or heat recovery is equipped with outdoor humidity and air temperature sensors that modify system operation as weather conditions change. This predictive technology maintains tight control of space temperature before the change in load has a chance to impact the conditioned space. On off-peak days, the Smart Load Control technology advances the energy savings the previous generation product delivered.

Warranty information: Standard five-year parts and seven-year compressor warranties are available. The LG Extended Warranty provides an additional five-year parts and three-year compressors warranty to enable LG Excellence contractors to offer consumers a 10/10 limited warranty on this model and other qualifying LG duct-free systems.

Special installation requirements: Refrigerant piping must be installed per LG guidelines set forth in the refrigerant piping diagram provided on every project. For a system to be eligible for the 10/10 limited warranty, certain installation quality control related conditions apply. Refer to the warranty statement for further details.

Contact: LG Electronics USA Inc., 888-865-3026; www.lghvac.com/.

eProduct 194

Mammoth

Model: R7TQ packaged gas/electric unit

Footprint (in inches): 88 (length) by 59 (width) by 50 (height)

Serviceability features: This unit features 1-inch foam panel construction with no exposed fiberglass, which provides exceptional IAQ and allows the unit to be easily cleaned. The unit’s electrical mechanical controls are housed in an extra-large control panel with a low-voltage terminal strip, which simplifies troubleshooting. Plug-in relays provide ease of service. Its controls, blower, and filter are accessible beyond hinged door panels. The compressor(s) and burners are easily accessible, and it features bolt-on thermostatic expansion valves (TXVs). The unit’s many factory-installed options reduce time on the roof.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422–4823, www.mammothlc.com, or www.edgetekhvac.com.

Noise-reduction features: Foam panel construction reduces noise.

IAQ equipment supported: MERV-8 filters are available. Sheet metal walls in the airstream provide for easy cleaning.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Hinged door panels and foam wall construction come standard. Its lightweight microchannel condenser and evaporator coils contribute to reduced refrigerant change, and it meets the federal minimum efficiency requirements effective Jan. 1, 2018, as well as ASHRAE 90.1-2013 and California Title 24-2013 and 2016.

Warranty information: One-year parts, five-year compressor, and 10-year heat exchanger warranties are available.

Special installation requirements: In many replacement applications, the utilities line up and no curb adapter is required.

Contact: Nortek Global HVAC, 636-561-7300; www.nortekhvac.com.

eProduct 195

MARS/Comfort-Aire/Century

Model: HB Series: HBH horizontal and HBV vertical water-source heat pump

Footprint (in inches): Varies.

Serviceability features: Components can be accessed from multiple sides to simplify service and maintenance. Removable blower inlet rings allow easy access to the fan and motor for maintenance. Safety features protect the unit from high pressure and loss of refrigerant charge, condensate overflow, freeze protection for its coaxial heat exchanger and air coil, a hot water generator limiter, a fault lock-out that enables emergency heat and prevents compressor operation, and an anti-short cycle protects the compressor.

Technical support: In-house technical support, document support, and a corporate trainer who will visit a customer’s facility for in-depth training session are available.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: The unit’s innovative cabinet design means there are models to fit just about any existing location. Available in vertical and horizontal applications, this unit can be ordered in a variety of configurations with many options to cover all applications. The addition of the electronically commutated motor (ECM) on the 15K-60K models enhances efficiency to create a shorter payback.

Warranty information: Units used in commercial applications are warrantied to be free from defects in workmanship and materials for normal use and maintenance for one year from the date of purchase by the original consumer for the original installation. Defective compressors will be replaced for a period of five years from date of purchase.

Special installation requirements: Manufacturer did not specify.

Contact: MARS/Comfort-Aire/Century, 877-442-4482; www.marsdelivers.com.

eProduct 196

Mitsubishi Electric

Model: CITY MULTI® four-way ceiling cassette, PLFY

Footprint (in inches): 22, 33, and 33 (length) by 22, 33, and 33 (width) by 10, 10, and 12 (height)

Serviceability features: This ceiling cassette’s corner-pocket design allows access through each of the four corners to complete installation, maintenance, and height adjustments. The unit also has a washable filter that provides about 2,500 hours of use in a normal commercial environment before cleaning is needed.

Technical support: Support is available 8 a.m. to 7 p.m. Eastern time, Monday to Friday, at 800-433-4822. Commercial contractors and Diamond Service Group (DSG) members attend a three-day training at one of Mitsubishi Electric’s approved training centers in order to properly apply, install, commission, and troubleshoot systems.

Noise-reduction features: Indoor units are designed to operate at 27-45 dBA.

IAQ equipment supported: This unit includes a ventilation air intake.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This new, sleek indoor unit features the redesigned 3-D i-see Sensor™, which continuously analyzes the thermal profile of a room and identifies cool and warm spots. It performs hundreds of circular scans with multiple points per scan and continuously monitors a given space for optimal comfort and energy saving opportunities.

Warranty information: A one-year parts warranty is available to the original owner of the system from the date of installation by a licensed contractor. An extended warranty period of 10 years is available to the original owner if the system is designed by a Diamond Designer using Diamond System Builder™ software.

Special installation requirements: Manufacturer did not specify.

Contact: Mitsubishi Electric US Inc. Cooling and Heating Division, 800-687-1966; www.mitsubishipro.com.

eProduct 197

Model: CITY MULTI S-Series heat pump, PUMY

Footprint (in inches): 13 (length) by 41 (width) by 53 (height)

Serviceability features: This heat pump’s convenient front panel allows for easy access to all serviceable components. The unit boasts minimal or no ductwork and simple wiring results in minimal maintenance over the lifetime of the system.

Noise-reduction features: Units are designed for quiet operation, from 49-58 dBA. The inverter-driven compressor and variable-speed fan often run at partial speeds, which results in lower sound levels.

IAQ equipment supported: The paired indoor units feature a washable or replaceable filter that’s optimal for IAQ. The use of the inverter-driven compressor allows for tight temperature control and the ability to ramp down to a lower speed if the indoor unit is calling for a lower temperature. Since reducing humidity is important for occupant health, the S-Series can also pair with ventilation products, for example, the Lossnay® energy recovery ventilator (ERV).

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: The S-Series can connect up to 12 indoor units, offering an increased total connected capacity. Its new tube-in-tube heat interchanger offers improved energy efficiency during cooling operation, which decreases operational costs and increases performance. PUMY’s extended operating range makes the system suitable for a range of applications, and all models are Energy Star-qualified.

Warranty information: One-year parts and seven-year compressor warranties are available from the installation date by a licensed contractor to the original system owner. An extended warranty of 10 years (parts/compressor) is available to the original owner if it’s designed by a Diamond Designer using Diamond System Builder software.

Special installation requirements: Manufacturer did not specify.

Contact: Mitsubishi Electric US Inc. Cooling and Heating Division, 800-687-1966; www.mitsubishipro.com.

eProduct 198

Panasonic

Model: U-72MF2U94 heat recovery unit

Footprint (in inches): 40 (length) by 47 (width) by 73 (height)

Serviceability features: This heat recovery unit’s integrated diagnostic feature lists fault codes with an intelligent controller that can be accessed prior to visiting the job site, thus saving the contractor a separate trip. These units are designed with the main control at eye level to improve accessibility and lighting. Flared fittings are provided for refrigerant connections in order to simplify the connection to the refrigerant circuit.

Technical support: Support is available at 800-851-1235. Free training is available at four training centers throughout the U.S. on applications, installation, commissioning, and service. On-site training and commissioning is also available. A list to all manuals and instructions is available via web support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and building information modeling (BIM) are included.

Noise-reduction features: Outdoor units are insulated to decrease noise. Its Quiet Mode operation is integrated into the operational system to reduce noise levels at night and in critical noise environments.

IAQ equipment supported: These outdoor units may be connected to a range of fresh-air indoor units with reheat. The fresh-air unit utilizes two DX coils to provide neutral fresh air in most conditions. Fresh-air units will be available in 800-, 1,200-, and 1,600-cfm models.

Thermostat compatibility: This unit requires a special thermostat and is compatible with the SE8000 Series from Schneider Electric.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This unit’s simultaneous cooling and heating efficiency (SCHE) is among the highest on the market. This is a ground-up development of 460 V specifically for the U.S. market with compatibility with all indoor units in any combination. The outdoor unit footprint is the same for 6-, 8-, 10-, and 12-ton sizes. Outdoor unit combinations are possible up to 30 ton in a single refrigerant circuit.

Warranty information: Six-year compressor and one-year parts warranties are available. Based on factory contractor training and experience with the Panasonic products, 10-year compressor and parts warranties are also available.

Special installation requirements: This unit requires the use of distribution joints kits and single and multiple solenoid valve kits as provided by Panasonic. The solenoid valve kits facilitate SCHE. Distribution joints kits are engineered to ensure the least amount of resistance to flow of the refrigerant system.

Contact: Panasonic Air Conditioning Group, 678-810-0262; business.panasonic.com/products-hvac-heatingairconditioning.

eProduct 199

Quantech

Model: QWC3 QWC3170TSE water-cooled scroll chiller

Footprint (in inches): 143 (length) by 35 (width) by 77 (height)

Serviceability features: Critical valves and controls, including a liquid line shutoff valve and service isolation valves, simplify setup, maintenance, and troubleshooting. An easy-to-read control display is in plain language (English, Spanish, or French) to simplify troubleshooting. Easy installation is achieved via a single-point electrical power connection and Victaulic water connections.

Technical support: Support is available across North America through an independent Quantech rep channel. Factory support is provided through the manufacturer, Johnson Controls Inc.

Noise-reduction features: This chiller is designed for quiet operation using scroll compressors that are piped to reduce vibration and mounted on isolator pads to reduce transmission of vibration. Optional acoustic blankets for compressors are available to further dampen sound down to 68 dBA. Vibration isolation can be employed using field-mounted 1- or 2-inch spring isolators.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This chiller supports BACnet (NS/TP) and Modbus with optional N2 and LON communications to integrate with a building automation system (BAS).

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: The unit fits through a 3-foot-wide door to bring 59°F (15°C ) to 15°F (minus 9°C) chilled water and a large operating envelope to comfort-, process- and brine-cooling applications. Up to 17 EER full-load/24.5 IPLV part-load using compressor-loading optimization. The unit is available in 50- to 200-ton capacities with short lead times. Additionally, Quantech offers air-cooled chillers from 15-360 ton. All Quantech chillers are Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-certified and meet other industry-wide standards, such as ETL, UL, and ASHRAE.

Warranty information: All equipment and materials are warrantied against defects in workmanship and material for a period of one year from the date of initial startup or 18 months from date of shipment, whichever occurs first.

Special installation requirements: Every unit is charged and pressure- and run-tested at the factory to reduce the risk of startup problems. Although chillers are designed for indoor installation, units should be located away from noise-critical areas. Service clearance must be allowed and include space for removing condenser tubes.

Contact: Quantech, 414-524-3900; www.quantech-hvac.com/products/qwc3.

eProduct 200

Reznor

Model: R7TQ packaged gas/electric units

Footprint (in inches): 88 (length) by 59 (width) by 50 (height)

Serviceability features: These packaged units feature 1-inch foam panel construction with no exposed fiberglass, which provides better IAQ and allows the unit to be easily cleaned. Electrical mechanical controls are housed in an extra-large control panel with a low-voltage terminal strip to simplify troubleshooting. Plug-in relays provide ease of service. Its controls, blower, and filter are easily accessible beyond hinged door panels, and its compressor(s) and burners are easily accessible, as well. It includes bolt-on thermostatic expansion valves (TXVs) and its many factory-installed options reduce time on the roof.

Technical support: Support is available 8 a.m. to 4:30 p.m. Central time, Monday to Friday, at 800-422-4823, www.reznorhvac.com, or www.edgetekhvac.com.

Noise-reduction features: These units’ foam panel construction reduces noise.

IAQ equipment supported: MERV-8 filters are available. Sheet metal walls in the airstream provide for easy cleaning.

Thermostat compatibility: These units are compatible with most thermostats.

Replacement parts compatibility: These systems utilize some shared parts and some unique parts.

Additional features: Standard features include hinged door panels and foam wall construction. Lightweight microchannel condenser and evaporator coils contribute to reduced refrigerant charge. These units meet the federal minimum efficiency standard requirements of Jan. 1, 2018, as well as ASHRAE 90.1-2013 and California Title 24-2013 and 2016.

Warranty information: One-year parts, five-year compressor, and 10-year heat exchanger warranties are available.

Special installation requirements: In many replacement applications, the utilities line up, and no curb adapter is required.

Contact: Nortek Global HVAC, 636-561-7300; www.nortekhvac.com.

eProduct 201

Rheem

Model: Commercial Classic® Series packaged gas/electric rooftop featuring HumidiDry™ technology, RKNL-G180DR25EDPH

Footprint (in inches): 152 (length) by 86 (width) by 57 (height)

Serviceability features: The unit is designed for easy maintenance with features that include quarter-turn service access, a slide-out drain pan, blowers and filters, and external gauge ports. This unit also has a hinged major access door with heavy-duty gasketing and a high-performance belt drive motor with a variable-pitch pulley and quick-adjust belt system.

Technical support: Support is available with authorized Rheem distributors’ district service coordinator (DSC) personnel. Additional factory support is accessible through a network of Rheem district technical representatives (DTR), who provide field tech support as needed at the job site. More information is available 24/7 at www.myrheem.com.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: This unit supports foil-faced insulation and hemmed access panels to conceal fiberglass insulation and keep it out of the airstream. Economizers, outside air dampers, disposable or permanent filters, and electric air cleaners are available. For kitchen applications, power exhaust fans can be used. Low-leakage dampers meet California Title 24 requirements.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This rooftop unit features HumidiDry, Rheem’s exclusive dehumidification package unit solution that keeps humidity levels constant even when there is little or no demand for air conditioning. The series also has variable frequency drive (VFD) technology and factory-installed ClearControl™ direct digital control (DDC) and sensors, which can connect to LonWorks or BACnet building automation systems (BAS) for remote monitoring and control.

Warranty information: One-year parts, five-year compressor, 10-year factory standard heat exchanger, and 20-year stainless steel heat exchanger warranties are available.

Special installation requirements: Standard installation procedures apply. The series has a roof curb or slab mount available.

Contact: Rheem Mfg. Co., 770-351-3000; www.rheem.com.

eProduct 202

Ruud

Model: Commercial Classic® Series package gas/electric rooftop featuring HumidiDry technology, RKNL-G180DR25EDPH

Footprint (in inches): 152 (length) by 86 (width) by 57 (height)

Serviceability features: This series is designed for easy maintenance with features that include quarter-turn service access, a slide-out drain pan, blowers and filters, and external gauge ports. This unit also has a hinged major access door with heavy-duty gasketing and a high-performance belt drive motor with a variable-pitch pulley and quick-adjust belt system.

Technical support: Support is available with authorized Ruud distributors’ district service coordinator (DSC) personnel. Additional factory support is accessible through a network of Ruud district technical representatives (DTR) who provide field tech support as needed at the job site. More information is available 24/7 at www.myruud.com.

Noise-reduction features: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This rooftop unit features HumidiDry, Ruud’s exclusive dehumidification package unit solution that keeps humidity levels constant even when there is little or no demand for air conditioning. The series has variable frequency drive (VFD) technology and a factory-installed ClearControl direct digital control (DDC) and sensors, which can connect to a LonWorks or BACnet building automation system (BAS) for remote monitoring and control.

Warranty information: One-year parts, five-year compressor, 10-year factory standard heat exchanger, and 20-year stainless-steel heat exchanger warranties are available.

Special installation requirements: Standard installation procedures apply. The series has a roof curb or slab mount available.

Contact: Ruud, 404-351-3000; www.ruud.com.

eProduct 203

Samsung

Model: Commercial RAC air conditioner, AC0**MXSCCC/AA

Footprint (in inches): Manufacturer did not specify.

Serviceability features: The unit’s programmable dry contact output indicates high room temperature or high set temperature and room temperature difference to activate a backup system or input to a building management system (BMS) alarm. Wi-Fi adapters will also be available to monitor the unit’s status. Systems are also compatible with Samsung central control options.

Technical support: Support is available 7 a.m. to 7 p.m. Central time at 888-699-6067 or www.samsunghvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and service software for connection to a PC to monitor system operation points and programming are available.

Noise-reduction features: A compressor jacket; brushless DC (BLDC) motors, and inverter-driven, twin BLDC compressors help reduce operational noise levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Systems will provide cooling down to minus 40°F outside ambient. Additional low-ambient cooling kits do not need to be installed, just simple wind baffles provided by Samsung HVAC. A programmable dry contact output indicates high room temperature or high set temperature and room temperature difference to activate a backup system or input to a building management system (BMS) alarm.

Warranty information: Manufacturer did not specify.

Special installation requirements: Manufacturer did not specify.

Contact: Samsung HVAC, 888-699-6067; www.samsunghvac.com.

eProduct 204

TempMaster

Model: OmniElite™ Series, TMAL 050 single packaged rooftop unit

Footprint (in inches): 339 (without hood) (length) by 92 (width) by 82 (height)

Serviceability features: Service access is possible through convenient double-wall access doors on both sides of the unit with spacious compartments and supportive floors. Drain pans are visible and accessible per ASHRAE 62 IAQ standards. Its BACnet- or LonWorks-compatible microprocessor control center simplifies troubleshooting with detailed diagnostics and data logging. A 115-V ground fault circuit interrupter (GFCI) convenience outlet is available.

Technical support: Support is available across North America through TempMaster sales representatives. Technical support is available through the representative whom the product was purchased. Factory support is provided through the manufacturer, Johnson Controls Inc.

Noise-reduction features: To reduce sound and vibration, the unit uses flexible fan connections, fan spring isolators, double-wall construction, multiple fan options, and lower-speed and -horsepower fans. In variable air volume (VAV) applications, variable frequency drive (VFD) motors further reduce fan sound. Additional sound attenuation can be obtained using compressor sound blankets and field-supplied sound attenuators.

IAQ equipment supported: Double-wall construction for roof, floor, doors, and walls prevents insulation fibers from entering the conditioned air and facilitates periodic cleaning. Double-sloped drain pans protect against bacterial growth and corrosion. The unit accommodates up to MERV-14 filters with many filter options for the mixed air section and final filtration. The microprocessor unit control center can optimize ventilation to perform demand ventilation and allow airflow compensation to maintain the air quality. An optional CO2 sensor is also available.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: The unit offers true double-wall construction with a project-winning set of features and options, including multi-step capacity control, fully modulating gas heat, ventilation control, variable-speed VFD fans, an airside economizer, a factory-installed BACnet- or LonWorks-compatible microprocessor control, a single-point power connection, and multiple filter options up to MERV 14. All TempMaster products are Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-certified and meet other industry-wide standards, such as ETL, UL, and ASHRAE.

Warranty information: All equipment and material are warrantied against defects in workmanship and material for a period of one year from date of initial startup or 18 months from date of shipment, whichever occurs first. A 10-year limited stainless steel gas heat exchanger warranty is also available.

Special installation requirements: The unit base is designed for a recessed curb mounting location to ensure a continuous surface for field application of curb gasketing, which creates a weathertight seal between the curb and unit. Select heating, fan, and filter options are available to match specific requirements.

Contact: TempMaster Inc., 414-524-3900; www.tempmasterhvac.com.

eProduct 205

Tempstar

Model: RAH 090-150 packaged air conditioner

Footprint (in inches): 88-116 (length) by 60-63 (width) by 49-57 (height)

Serviceability features: All connections and troubleshooting points are located in one convenient place, the easily accessible master terminal board. Units feature through-the-base utility connections capabilities. Its access panels feature easy-grip handles and a no-strip screw feature. Its newly designed terminal board facilitates safety circuit troubleshooting and simplifies the control box arrangement.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Energy Star-qualified unit features field-convertible airflow (a field-accessory supply duct kit is required for the 150-size model only), high- and low-pressure switches, and scroll compressors. Scroll compressors feature internal line-break overload protection. Medium- and high-static indoor fan and economizer options are available as factory-installed options.

Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available. See the warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gotempstar.com.

eProduct 206

Model: RGH 036-072 packaged gas/electric rooftop

Footprint (in inches): 74-88 (length) by 47-60 (width) by 33-41 (height)

Noise-reduction features: A fully insulated cabinet helps reduce operational noise levels.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Energy Star-qualified unit is field-convertible for vertical or horizontal airflow duct configurations and offers high- and low-pressure switches. Its scroll compressors have internal line-break overload protection. Factory-installed options include a high-static indoor fan, economizers, and a hot gas reheat system.

Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.gotempstar.com.

eProduct 207

TETCO

Model: Commercial Series, single-stage, compact, horizontal, packaged ground-source heat pump, TZS 018-072

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: Internal components are accessible via a hinged control box that swings open or is removable. Electrical and water connections are located on the front-corner post. A refrigerant test port is accessible via a front panel. All exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation. The desuperheater switch is mounted externally.

IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners with disposable media packs are available, as well. Most other air filtration, humidification, or purification systems are compatible with all Enertech products.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Models are field configurable for side or end discharge and feature a compact design with higher efficiencies. An all-aluminum, microchannel air coil improves efficiency. A sensor- and flow-switch-protected, foam-enclosed, brazed-plate heat exchanger reduces weight and refrigerant charge while increasing performance. Its compact design allows 24-inch-on-center attic truss pass-through installation.

Contact: Enertech Global, 618-664-9010; www.enertechgeo.com.

eProduct 208

Trane

Model: BCCD blower coil

Footprint (in inches): 18 (length) by 28 (width) by 52 (height)

Serviceability features: The service panels are located in the front of the unit with a removable sloped drain pan, noncorrosive drain pan, and coils mounted above the drain pan. Service may be completed on one side and its filter may be easily removed without tools. An electronically commutated motor (ECM) improves reliability and eliminates belt and sheave maintenance and replacement.

Technical support: Support is handled by local sales offices and service departments. Contact a local Trane sales office for more information.

Noise-reduction features: This blower coil features an insulated enclosure for a quiet design and variable-speed technology, which provides comfort beyond air temperature and humidity. Variable-speed technology slowly adjusts the fan speed to meet a space’s changing needs. This soft-ramp technology maintains low fan speed and moderated airflow and delivers exceptionally quiet system performance.

IAQ equipment supported: This blower coil supports MERV-13 filters, its variable-speed technology improves dehumidification, reheat coils are available for dehumidification, it offers a removable, noncorrosive dual-sloped drain pan, and includes foil-faced insulation.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This unit offers integrated factory-programmed controls that maximize the unit’s performance and efficiency characteristics through a single-zone variable air volume (VAV) control. The VelociTach™ motor control board comes standard and features an LED display and manual controls, which provides real-time feedback without the inconvenience of needing a remote service tool.

Warranty information: Manufacturer did not specify.

Special installation requirements: A thermostatic expansion valve (TXV) is required for units with DX cooling or heat pump applications.

Contact: Trane, 515-978-3585; www.trane.com.

eProduct 209

Model: Precedent rooftop unit, TSC120ED

Footprint (in inches): 89 (length) by 54 (width) by 47 (height)

Serviceability features: This rooftop unit’s unique indoor fan design eliminates the use of belts. The Human Interface panel allows the user to examine performance trends and quickly diagnose problems. Standard components, like foil-faced insulation edges, are captured and sealed, which reduces the chance for insulation fibers to enter the airstream and clog filters. Hinged access doors provide easy entry to service access areas, and color-coded, numbered wiring allows for faster identification of wires when servicing the unit.

Technical support: Support is handled by local sales offices and service departments.

Noise-reduction features: Direct-drive indoor fans and outdoor electronically commutated motor (ECM) fans save energy and operate quietly. Its beltless design reduces maintenance over the lifetime of the unit.

IAQ equipment supported: High-efficiency filtration offers exceptional IAQ, and occupant comfort is achieved using a MERV-13 air filter. Units are designed to remove contaminants as small as 0.3 microns in size, which can include bacteria, cooking oil, smoke, insecticide, dust, and paint pigments.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system does not share replacement parts with other models.

Additional features: Its eFlex™ variable-speed compressors and fans precisely match the unit’s output to the cooling demands of the space for ultra-high IEER (part-load) performance and a significant kilowatt hour reduction over a broad application spectrum. This is accomplished by modulating the indoor and outdoor fans and the compressor. Most units can be ready in as few as three weeks and may be ordered to ship.

Warranty information: A standard limited warranty applies. The unit also includes five-year limited compressor and heat exchanger warranties.

Special installation requirements: Installation is similar to existing Trane light commercial rooftop units in the portfolio.

Contact: Trane, 515-978-3585; www.trane.com.

eProduct 210

Vertiv

Model: Liebert® SRC mini-split cooling system with iCOM™ CMS monitoring and control system

Footprint (in inches): 41-47 (indoor); 35 (outdoor) (length) by 10-11 (indoor); 13 (outdoor) (width) by 13-14 (indoor); 32 (outdoor) (height)

Serviceability features: Manufacturer did not specify.

Technical support: Support is available 24/7 at 800-543-2778.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; a user manual; a system design manual; and guide specifications are included.

Noise-reduction features: The unit’s variable-speed fan helps reduce operational noise levels.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit includes a special thermostat.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-certified system offers high-efficiency cooling for network closets and other small edge-computing information technology (IT) spaces. Simple and easy to install, it is compatible with the optional Liebert iCOM CMS for advanced thermal monitoring, making it one of the first Internet of Things (IoT) products to support small-space edge and cloud computing.

Warranty information: A one-year limited warranty against defects in material and workmanship is available. Optional extended compressor and spare parts warranties are also available.

Special installation requirements: In climates that experience snow build-up, the outdoor unit must be placed on a raised platform to ensure condenser airflow. The raised support platform must be high enough to allow the unit to remain above possible snow drifts.

Contact: Vertiv, 614-309-1662; www.vertivco.com.

eProduct 211

WaterFurnace

Model: Envision2 Series NXW water-source/geothermal reversible chiller

Footprint (in inches): 50 (length) by 24 (width) by 64 (height)

Serviceability features: This unit features heavy-duty removable hinged access doors with latches simplify service. Optional factory-installed pressure gauges aid service and diagnostics without removing a panel, and a large control panel is included with serviceability in mind.

Technical support: Support is available at 800-257-5667.

Noise-reduction features: A heavy-gauge insulated sheet metal cabinet helps reduce noise.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: The unit includes HydroLink Aurora controls and a 10-inch, color, touchscreen display. The new communicating controls combine field-proven Aurora compressor management with a HydroLink NiagaraAX-based system-level controller to manage set point, control, and staging. The controls also communicate more than 200 points to the building automation system (BAS) network via BACnet, LonWorks or through the NiagaraAX bus.

Warranty information: An 18-month parts only warranty is available.

Special installation requirements: Manufacturer did not specify.

Contact: WaterFurnace Intl. Inc., 260-478-5667; www.waterfurnace.com.

eProduct 212

Model: Versatec Ultra single, hydronic, water-source heat pump

Footprint (in inches): Manufacturer did not specify.

Serviceability features: The control box and piping configurations are reversible and allow for versatile installation. The Aurora controls along with the Aurora Interface Diagnostic (AID) tool allow for troubleshooting, startup, and diagnosis without opening the cabinet.

Technical support: Support is available at 800-257-5667.

Noise-reduction features: Compressor sound blankets are used for reduced noise, and dual-isolation compressor mounts help reduce vibrations and noise, as well.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: With an EER of 14-17.5 and a coefficient of performance (COP) of 2.9-3.1, the unit combines scroll compressors, R-410A refrigerant, and oversized heat exchangers to provide exceptional energy savings in commercial applications. The unit’s wide range of operating temperatures, compact size, reversible control box, and piping enable the heat pump to be used in a variety of applications.

Warranty information: An 18-month parts only warranty is available.

Special installation requirements: Manufacturer did not specify.

Contact: WaterFurnace Intl. Inc., 260-478-5667; www.waterfurnace.com.

eProduct 213

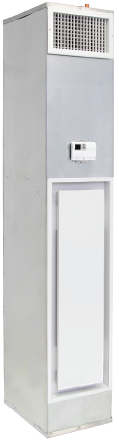

The Whalen Co.

Model: Whisperpack™ water-source heat pump

Footprint (in inches): 21 (length) by 16 (width) by 88 (height)

Serviceability features: Supply openings are located on the left, right, front, back, and top. Its supply grille aluminum construction minimizes future maintenance and eliminates oxidation from condensation. The heat pump’s inner service panel is removable, which allows access to the control wiring and internal piping. The plug-in-type fan/motor assembly is easily removed through return air opening with electronically commutated motor (ECM) technology.

Technical support: Support is available 8:30 a.m. to 5 p.m. Eastern time, Monday to Friday, at 443-258-2800.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a troubleshooting guide; and specification sheets are available.

Noise-reduction features: Water hoses connect the chassis to the supply and return water piping, which isolates sound from the building piping system. An acoustical panel dampens sound while permitting filter removal without the need for tools. The refrigeration chassis uses an insulated compressor compartment and vibration isolation to further reduce noise.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: Hybrid heat pump units use a hydronic heating coil instead of reversing the refrigerant cycle to allow for energy savings by turning the compressor off and diverting the condenser water to a heating coil. The refrigeration chassis uses a versatile, removable-floating design with insulated compressor compartment and vibration isolation.

Warranty information: Fifteen-month cabinet, one-year chassis, five-year compressor, and five-year refrigeration circuit warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: The Whalen Co., 410-822-9200; www.whalencompany.com.

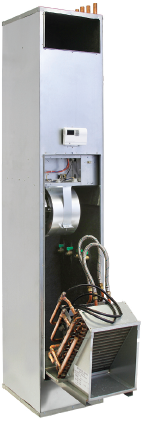

eProduct 214

Model: WRX vertical stack fan coil with a slide-out chassis

Footprint (in inches): 18 (length) by 16 (width) by 88 (height)

Serviceability features: The chassis slides out easily (just remove four screws and slide out) to gain access or remove the valve package, which reduces commissioning time, provides easier access to the drain pan and internal components, and simplifies maintenance with minimal tenant disruption.

Technical support: Support is available 8:30 a.m. to 5 p.m. Eastern time, Monday to Friday, at 443-258-2800.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; and specification sheets are available.

Noise-reduction features: Flush-mounted return-air panels are lined with insulation to help attenuate sound from the fan assembly. Vibration isolation pads, attached to the bottom of the cabinet, dampen vibration from the fan motor.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: The unit’s slide-out chassis can be shipped separately from the cabinet, which reduces the risk of installation damage and keeps the coil clean during construction. With a very small footprint, WRX customization capabilities include cabinet height, riser locations, and handling and discharge arrangements and sizes, so it can be installed and operating in less time.

Warranty information: Two-year fan coil and 15-month heat pump warranties are available.

Special installation requirements: Manufacturer did not specify.

Contact: The Whalen Co., 410-822-9200; www.whalencompany.com.

eProduct 215

YANMAR

Model: VRF system

Footprint (in inches): 32 (length) by 67 (width) by 86 (height)

Serviceability features: This variable refrigerant flow (VRF) system features a diagnostic display that simplifies troubleshooting as well as an optional remote monitoring system, which sends notifications for system errors and required maintenance.

Technical support: Support is available 24/7 at 770-608-8090. On-site factory support for design and installation, commissioning, and technical support is available during normal business hours.

Technical support materials: Specification sheets and submittal data sheets are available.

Noise-reduction features: Units are designed to operate quietly. The leading edge of the fan blade is serrated to provide high-performance fan volume and airflow with minimal sound. The low sound level allows these outdoor condensing units to be installed on balconies, near windows, and on rooftops, which maximizes a building’s usable space without disrupting its ambiance.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: This unit requires a special thermostat.

Replacement parts compatibility: This system shares replacement parts with other models.

Additional features: This unit features VRF technology and consumes around 90 percent less electricity by using natural gas. Its modular design cools only the zones that need it. Lowered emission levels exist due to the use of natural gas. No additional building upgrades are required. The unit is installed with ducted or ductless indoor fan coil units.

Warranty information: The condensing unit includes a five-year/20,000-hours parts; one-year/4,000 hours labor; and seven-year/28,000 hours compressor warranties. All scheduled maintenance must be completed according to the limited warranty statement based on years or hours, whichever comes first. One-year fan coil unit and indoor accessories parts warranties are also available.

Special installation requirements: The outdoor unit’s main component is a natural gas engine, so outdoor installation is recommended. The system’s location should be taken into consideration with doors and windows being the main concern due to engine combustion.

Contact: Yanmar America Energy Systems, 770-877-7602; www.yanmar-es.com.

eProduct 216

YORK

Model: Direct Fit™ ZQ06 rooftop unit

Footprint (in inches): 74 (length) by 489 (width) by 41 (height)

Serviceability features: Simplicity® Smart Equipment™ digital control system simplifies system setup, optimization, and maintenance. It includes 24/7 real-time reporting and performance alerts viewable via a web browser. An on-board USB port for uploading or downloading software is also included. A Fault Detection and Diagnostics (FDD) system is available as an option.

Technical support: Support is available for certified contractors 8 a.m. to 5 p.m. Central time, Monday to Friday, at 877-874-7378 or yorkhvacdealer.com. Technical support is available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific self-directed training.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration.

IAQ equipment supported: The unit supports fresh-air and relief damper options and has three static drive options for airflow versatility up to 2-inch external static pressure. Units ship with MERV-4 throwaway filters, but MERV-8 and MERV-13 filters can be easily added to meet Leadership in Energy and Environmental Design (LEED) requirements. The blower section includes dual-density insulation for IAQ.

Thermostat compatibility: This unit is compatible with most thermostats.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This unit is designed for simple and fast replacement of packaged rooftop units by fitting directly on pre-existing, competitive curbs without the need for a transition adapter. Cooling, two-stage gas heating, or electric heat configuration options are available. Simplicity Smart Equipment ensures easier installation, startup, and troubleshooting versus electromechanical controls.

Warranty information: Ten-year limited heat exchanger, five-year limited compressor, and one-year limited parts warranties are available.

Special installation requirements: Two heights and footprints are available to fit competitive curbs. Select heating, fan, and filter options are available to match specific requirements.

Contact: Johnson Controls Inc., 405-419-6545; www.york.com/directfit.

eProduct 217

Model: YVFA air-cooled screw chiller

Footprint (in inches): 247-467 (length) by 88 (width) by 95 (height)

Serviceability features: This chiller integrates a waterside economizer with the condenser heat exchangers, which allows easy service access to all mechanical components and optimizes the footprint when compared to systems with separate economizers. A single temperature set point permits easy adjustment as a building’s needs evolve. Future temperature changes do not require commissioning and ensure maximum savings are delivered throughout the chiller design life.

Technical support: Support is available through Johnson Controls Inc.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available. Other data are available through local Johnson Controls branches.

Noise-reduction features: The standard chiller configuration is equipped with variable-speed, high-airflow fans. Sound attenuation options are available to further reduce sound at its source, thereby meeting local sound level regulations. The condenser fans are composed of corrosion-resistant aluminum hub and glass-fiber-reinforced polypropylene composite blades molded into a low-noise airfoil section. All blades are statically and dynamically balanced for vibration-free operation. Variable-speed drives come standard and reduce energy use and sound at part load.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Building automation system (BAS)-compatible onboard controls are included.

Replacement parts compatibility: This system utilizes some shared parts and some unique parts.

Additional features: This free-cooling air-cooled screw chiller combines variable-speed drive (VSD) screw compressors with integrated waterside economizer-free cooling into a simple to operate package that is Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-certified. The YVFA utilizes minimal energy consumption at all conditions with hybrid mode technology that continually balances the compressor speed, condenser fans, and free cooling coil use for optimal performance.

Warranty information: Various warranty options are available.

Special installation requirements: This unit is self-contained.

Contact: Johnson Controls Inc., 717-771-6133; www.york.com/yvfa-free-cooling.

eProduct 218

Click here to view the 2017 New HVAC Commercial Products Grid.

Return to the top

During this webinar, we will discuss what acidic condensate is, how it’s formed, and the damage it can cause if not properly treated—while hitting on the latest regulations that are driving the adoption of condensing technology.

On Demand Use the power of AI to your advantage to book more jobs and gain more operational efficiencies during busy season this year! See how an AI Employee can help you save time by qualifying every lead for you, automatically responding to incoming leads, and working overtime so you don’t have to.

2017 New HVAC Commercial Products

Rooftop systems, air handlers, heat pumps, VRF systems and more

Aaon

Airstage

Allied Commercial

Arcoaire

Bard

Bosch

Bryant

Carrier

ClimateMaster

Comfortmaker

Daikin Applied

Daikin

Day & Night

First Co.

Friedrich Air Conditioning

GeoComfort

Haier

Heil

Hydron Module

ICP Commercial

Koldwave

Lennox

LG Electronics

Mammoth

MARS/Comfort-Aire/Century

Mitsubishi Electric

Panasonic

Quantech

Reznor

Rheem

Ruud

Samsung

TempMaster

Tempstar

TETCO

Trane

Vertiv

WaterFurnace

The Whalen Co.

YANMAR

YORK

Share This Story

Report Abusive Comment

Related Articles

Related Products

Related Directories

Sign Up. Stay Informed.

The #1 trusted source for the HVACR industry since 1926
