Fraser-Johnston

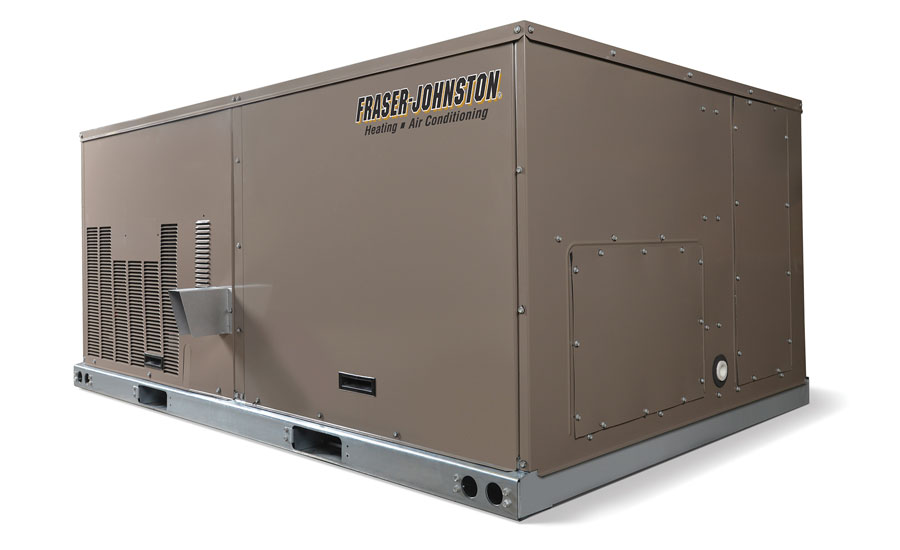

Model: ReliaCore™ YH Series split system air conditioner

Footprint (in inches): 32 to 59 (length) by 59 to 64 (width) by 45 to 50 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. Real-time reporting and performance alerts are viewable via the web. An onboard USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. The optional Verasys BAS accommodates single zone, changeover bypass, and variable air volume (VAV) zoning systems along with control of fans, lighting, third party HVACR, and others. Verasys allows bundling of both HVAC and building automation.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration. Scroll compressors are mounted on rubber isolators to reduce transmission of vibration. Vertical discharge condenser fans direct sound up and away from surrounding structures.

IAQ equipment supported: Both 2- and 4-inch filters can be used in the filter rack.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Meeting EPACT 2005 and ASHRAE 90.1-2013 efficiency standards, ReliaCore air conditioners provide a robust but lightweight design that is ideal for outdoor locations and rooftops. Units are available in two- and four-pipe configurations. Smart Equipment digital controls greatly simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For enhanced efficiency, an optional IntelliSpeed supply fan control incorporates a variable-frequency drive (VFD) for variable air volume (VAV) applications.

Warranty information: Five-year compressor limited warranty and one-year parts limited warranty

Special installation requirements: Either two- or four-pipe configurations can be selected for application flexibility.

Contact: Johnson Controls, 405-419-6557; www.fraserjohnstoncommercial.com.

eProduct 183



Model: ReliaCore high-efficiency rooftop units

Footprint (in inches): 74 to 87 (length) by 49 to 62 (width) by 41 to 49 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. 24/7 real-time reporting and performance alerts are viewable via web browser. The on-board USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. Status, alerts, and reports through a BAS are enabled by Verasys, a simple controls and zoning solution that streamlines BAS integration with configurable, self-recognizing controllers without the need for additional tools.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration.

IAQ equipment supported: The unit offers fresh air and relief damper options and three static drive options for airflow versatility up to 2-inch external static pressure (ESP). Units ship with MERV 4 throwaway filters, but MERV 8 and MERV 13 filters can be easily added to meet LEED requirements. The blower section includes dual density insulation for IAQ.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: These Energy Star-qualified units speed up replacement by fitting on pre-existing competitive curbs without the need for a transition adapter. Available configurations include cooling, two-stage gas heating, or electric heat options. Smart Equipment digital controls simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For BAS connectivity, the optional Verasys controls and zoning system enables BAS networking and streamlines integration of HVACR equipment, zoning, and controls.

Warranty information: Ten-year heat exchanger limited warranty, five-year compressor limited warranty, and one-year parts limited warranty.

Special installation requirements: Two heights and footprints may be selected to fit competitive curbs. Heating, fan, and filter options can be selected to match requirements.

Contact: Johnson Controls, 405-419-6557; www.fraserjohnstoncommercial.com.

eProduct 184



Friedrich Air Conditioning

Model: FreshAire PVH12K variable refrigerant packaged terminal air conditioner with heat pump

Footprint (in inches): 21 (length) by 42 (width) by 16 (height)

Serviceability features: The convenient modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Internal diagnostic program can alert maintenance to component failures or operating problems. There are 14 numeric service error codes stored in memory to facilitate rapid unit diagnostics.

Technical support: Available from 8 a.m. to 5 p.m. Central time, Monday to Friday, at 800-541-6645.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Variable-speed operation allows the unit to work at optimal speed to match the true load of the room, providing the best efficiency and eliminating harsh start-ups associated with single-speed compressors. The quiet, efficient inverter compressor is wrapped in a sound blanket for increased sound absorption and mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and a steel inner wall block outdoor noise.

IAQ equipment supported: The unit features true makeup air capability, bringing up to 35 cfm of conditioned, MERV 8 filtered outside air into the space, per ASHRAE 62.1-2013. Patents-pending technology uses the inverter compressor and main cooling system to optimize the temperature and humidity level of incoming air. The FreshAire PTAC utilizes the main evaporator coil and MERV 8 filters to truly condition and filter the outside ventilation air.

Thermostat compatibility: While the unit is compatible with standard 24V thermostats, a proprietary Friedrich wall controller ensures full functionality of the Precision Inverter® compressor.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Variable-speed technology gives the flexibility of a full PTAC line with only two models. With true make-up air capability, the PTAC meets ASHRAE 62.1-2013 requirements, delivering 35 CFM of conditioned, MERV 8 filtered make-up air. Inverter compressors offer improved dehumidification, better efficiency, and reduced temperature swings. Variable-speed operation allows the unit to work at optimal speed, providing efficiency and eliminating harsh start-ups.

Warranty information: Two-year parts warranty and five-year warranty on the sealed refrigeration system, including compressor, indoor and outdoor coils, and tubing.

Special installation requirements: No special installation requirements.

Contact: Friedrich Air Conditioning, 800-541-6645; www.friedrich.com.

eProduct 185



GeoComfort Geothermal Systems

Model: Single-stage, compact, horizontal, packaged, ground-source heat pump, GZS 018-072

Footprint (in inches): 52 (length) by 22 (width) by 19 (height)

Serviceability features: The hinged control box swings open or removes for access to internal components. Electrical and water connections are located on the front corner post. Other features include front panel refrigerant test port access; removable exterior service panels; sealed air handling compartment for setup and service during unit operation; and externally mounted desuperheater switch.

Technical support: Available 24 hours every day at 618-664-9010 or by email at technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech’s Geothermal University at 618-664-3255, by email at training@geothermaluniversity.com, or by visiting www.geothermaluniversity.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Elastomeric compressor vibration absorption pads provide superior sound and vibration insulation. Heavy-gauge compressor mounting plate with multiple durometer rubber and elastomeric vibration absorption pads provide superior compressor and blower motor isolation. High density, UL Greenguard Gold-certified, closed-cell foam insulation helps absorb sound. Heavy-gauge galvanized or pre-painted sheet metal cabinet is engineered and built to meet industry leakage guidelines.

IAQ equipment supported: Enertech offers a field-installed accessory filter rack that accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners with disposable media packs are available as well. Most other air filtration, humidification, or purifier systems are compatible with all Enertech products.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Compact horizontal packaged models are field configurable for side or end discharge and feature a compact design with higher efficiencies. An all-aluminum microchannel air coil improves efficiency. Sensor-and-flow-switch-protected, foam-enclosed brazed plate heat exchanger reduces weight and refrigerant charge while increasing performance. Compact design allows 24-inch on-center attic truss pass-through installation.

Warranty information: Standard residential warranty includes 10-year warranty on all unit components, 10-year warranty on select accessory items, and a five-year labor allowance on all of the above including select accessories. Free labor allowance upgrade to 10 years with warranty registration. Optional limited lifetime microchannel air coil and compressor warranty available.

Special installation requirements: Manufacturer did not specify.

Contact: GeoComfort Geothermal Systems, 618-690-3231; http://geocomfort.com.

eProduct 186



Haier Ductless

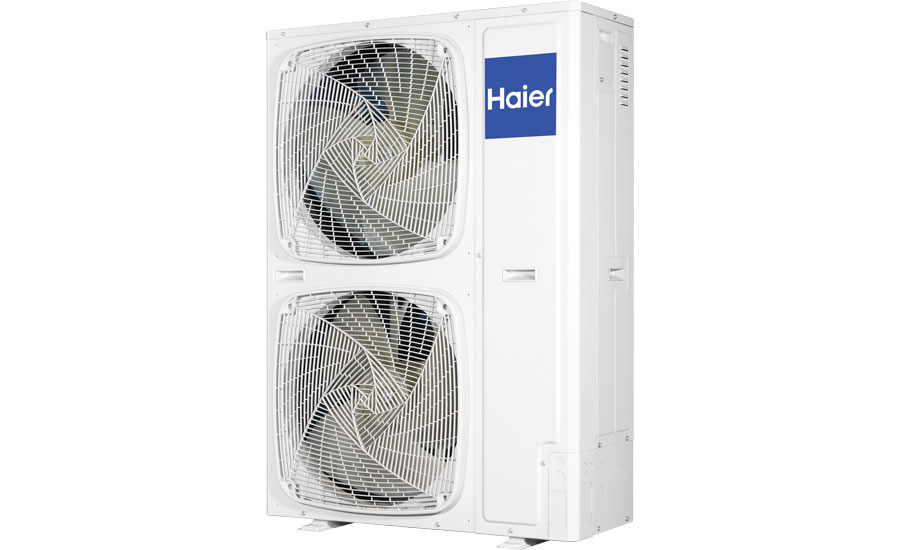

Model: FlexFit Pro, 1U48LP2VHA heat pump

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Manufacturer did not specify.

Technical support: Manufacturer did not specify.

Technical support materials: Specification sheets; startup instructions; owner’s manual; submittal data sheets.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: Manufacturer did not specify.

Warranty information: Manufacturer did not specify.

Special installation requirements: Manufacturer did not specify.

Contact: Haier Ductless, 201-468-7143; www.haierductless.com.

eProduct 187



Heil

Model: CAS 091-151 split system condensing unit

Footprint (in inches): 42 to 50 (length) by 59 (width) by 46 (height)

Serviceability features: The unit features an easy-access control box arrangement; Comfort Alert diagnostic board with LED Go-No Go and fault code, fault code retention logic, phase protection, built-in time guard anti-short cycle, and low volt compressor contactor protector; terminal board, which facilitates simple safety circuit troubleshooting; and high- and low-pressure switches.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; submittal data sheets. Additional product information is posted online at www.GoHeil.com.

Noise-reduction features: The compressor is mounted on independent vibration isolators to minimize sound at maximum performance.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products including filters, humidifiers, UV lights, and electronic air cleaners (EACs). The unit includes a factory-installed outdoor air temperature sensor. Optional CO2 sensors can be used in conjunction with a field-installed economizer on the indoor fan coil unit to help meet IAQ requirements.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The unit features single-stage cooling capacity control with a fully hermetic scroll compressor and crankcase heater. The full perimeter base rail with built-in rigging adapters and fork truck slots allows for easy transport. Other features include a galvanized steel cabinet with pre-painted exterior/primer-coated interior and durable round copper tube aluminum plate fin condenser coils.

Warranty information: Five-year limited warranty on compressor and one-year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoHeil.com.

eProduct 188



Model: RGH 181-303 packaged gas/electric rooftop unit

Footprint (in inches): 128 to 158 (length) by 86 (width) by 49 to 57 (height)

Serviceability features: The unit features an IGC solid-state control for on-board diagnostics with LED error code designation, burner control logic, and energy-saving indoor fan motor delay. All connections and troubleshooting points are located in one convenient place: the easy-access master terminal board. Units feature through-the-base utility connections capability, and access panels have easy-grip handles and a no-strip screw feature.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; submittal data sheets. Additional product information is posted online at www.GoHeil.com.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation capability (DCV).

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: These Energy Star-qualified units feature two-stage cooling with independent circuits and controls. Other features include dedicated vertical or horizontal airflow duct configuration models; high- and low-pressure switches; and a scroll compressor that has internal line-break overload protection. Factory-installed options include a high-static indoor fan, economizers, a variable-frequency drive two-speed fan, and hot gas reheat system.

Warranty information: 15-year limited warranty on optional stainless steel heat exchanger; 10-year limited warranty on aluminized steel heat exchanger; five-year limited warranty on compressor; and one- year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoHeil.com.

eProduct 189



ICP Commercial

Model: CHS 180-240 split system heat pump

Footprint (in inches): 50 (length) by 86 (width) by 45 to 67 (height)

Serviceability features: The Comfort Alert diagnostic board includes an LED screen with fault code, fault code retention logic, phase protection, built-in time guard anti-short cycle, and low volt compressor contactor protector. Other features include an easy-access control box arrangement; simple safety circuit troubleshooting with newly designed terminal board; simplified control box arrangement; and high- and low-pressure switches.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; submittal data sheets. Additional product information is posted online at www.GoICPCommercial.com.

Noise-reduction features: To minimize sound at maximum performance, the compressor includes vibration isolation and overload protection.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products including filters, humidifiers, UV lights, and electronic air cleaners (EACs). The unit includes a factory-installed outdoor air temperature sensor. Optional CO2 sensors can be used in conjunction with a field-installed economizer on the indoor fan coil unit to help meet indoor air quality requirements.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The unit offers superior two-stage cooling; a fully hermetic scroll compressor; crankcase heater; suction line accumulators; and filter drier standard. Full perimeter base rail with built-in rigging adapters and fork truck slots allows for easy transport. The unit also features a galvanized steel cabinet with pre-painted exterior/primer-coated interior and durable round copper tube aluminum plate fin condenser coils.

Warranty information: Five-year limited warranty on compressor and one-year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoICPCommercial.com.

eProduct 190



Model: RGH 073 packaged gas/electric rooftop unit

Footprint (in inches): 41 (length) by 59 (width) by 88 (height)

Serviceability features: The central terminal board allows for simple safety circuit troubleshooting and control box arrangement. The exclusive IGC solid-state control offers on-board diagnostics with LED error code designation, burner control logic, and energy-saving indoor fan motor delay. The unit offers through-the-base, single-point utility connections capability, as well as access panels that have easy-grip handles and no-strip screws.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; submittal data sheets. Additional product information is posted online at www.GoICPCommercial.com.

Noise-reduction features: Permanently lubricated, totally enclosed, shaft down condenser motor and evaporator fan motor minimize sound.

IAQ equipment supported: The unit supports 2-inch disposable return air filters. Optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation capability (DCV).

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Energy Star-certified two-stage cooling utilizes scroll compressors with internal line-break for overload protection. Other features include thermostatic expansion valve (TXV) refrigerant metering device on each circuit; field convertible from vertical to horizontal airflow with no special kit required; and non-corrosive composite condensate pan with sloping design in accordance with ASHRAE 62 standard.

Warranty information: 15-year limited warranty on optional stainless steel heat exchanger; 10-year limited warranty on aluminized steel heat exchanger; five-year limited warranty on compressor; one-year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoICPCommercial.com.

eProduct 191



Johnson Controls Inc.

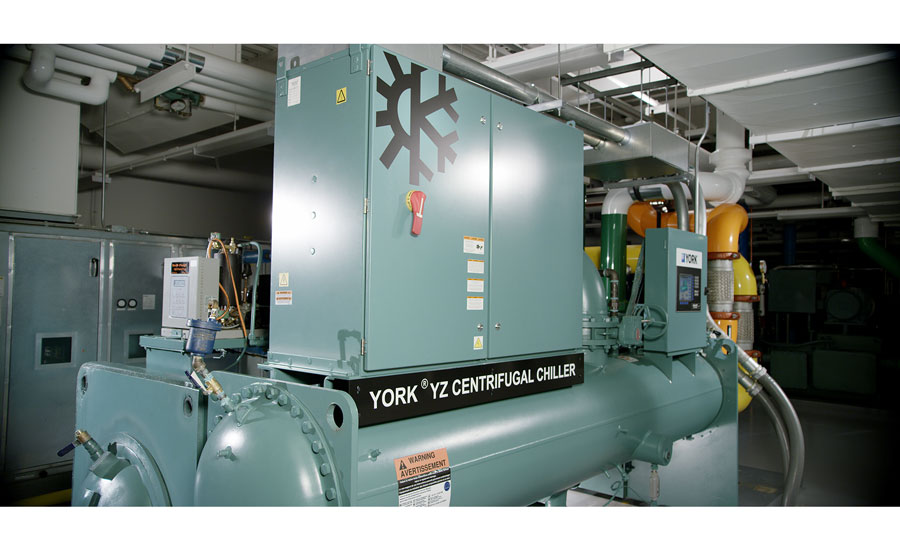

Model: YORK® YZ magnetic bearing centrifugal chiller

Footprint (in inches): As small as 10 feet (length) by 5.9 feet (width) by 7.4 feet (height)

Serviceability features: The magnetic-bearing driveline minimizes serviceable parts and eliminates the service-intensive lubrication system. The OptiView™ control panel provides comprehensive readouts, alerts, and reports to simplify troubleshooting and supports Connected Services with cloud-based predictive analytics to maintain peak performance and prevent downtime. The chiller, and specifically the magnetic-bearing driveline, are field serviceable by the global Johnson Controls service team.

Technical support: Available 24/7 through the manufacturer. Application engineering and design assistance are provided by professional engineers who collaborate with owner and/or consulting engineering teams to ensure project success.

Technical support materials: Manufacturer did not specify.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Does not share replacement parts with other models.

Additional features: The optimized compressor provides real-world energy efficiency and a wide operating range at off-design conditions. The magnetic bearing driveline offers reliability and 80 percent fewer moving parts than traditional lubricated drivelines. The variable-speed drive employs variable geometry diffuser and magnetic bearing technology to deliver up to 35 percent annual energy savings versus traditional fixed-speed oil chillers. The falling film evaporator reduces refrigerant charge up to 60 percent and reduces evaporator shell size up to 20 percent compared to flooded, low-pressure refrigerant designs.

Warranty information: Manufacturer did not specify.

Special installation requirements: Manufacturer did not specify.

Contact: Johnson Controls Inc., 717-881-4048; http://york.com/next.

eProduct 192



Lennox Commercial

Model: Elite® Series split air conditioners and heat pumps

Footprint (in inches): 44 to 89 (length) by 40 to 61 (width) by 49 (height)

Serviceability features: This unit is designed to be easily serviced and maintained. Features include easy access to service filters, slide-out blower motor and auto-tensioning pulley, accessible compressor and service valves, and a removable and reversible drain pan that fits on horizontal or vertical applications.

Technical support: Available at 800-453-6669 (800-4LENNOX).

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: The factory-installed variable-frequency drive (VFD) blower lowers sound in part-load operation by reducing air speed. The VFD slow start gradually ramps blower up to speed, reducing noise on startup.

IAQ equipment supported: This unit features standard MERV 8 filters, which provide higher levels of air filtration and an inverter-driven blower (MSAV™) that reduces airflow to provide better moisture removal in part-load cooling. MERV 14 filters are optional.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: This unit offers a Pure Comfort™ system with two-stage cooling and factory-installed MSAV; Advanced Condensate Management™ design to control condensation to keep moisture where it belongs; and Simple Service™ features, which ensure ease of installation and maintenance to make every service call easier.

Warranty information: Five-year limited warranty on compressor and one-year limited warranty on covered components.

Special installation requirements: There are no special installation requirements.

Contact: Lennox Commercial, 972-947-7802; www.lennoxcommercial.com.

eProduct 193



LG Electronics

Model: Dedicated Outdoor Air System (DOAS) rooftop, AR-DR11-05A

Footprint (in inches): 132 (length) by 78 (width) by 58 (height)

Serviceability features: Manufacturer did not specify.

Technical support: Available from 8 a.m. to 6 p.m. Central time, Monday to Friday at 888-865-3026.

Technical support materials: Installation, operation, and maintenance manuals; specification sheets; submittal data sheets.

Noise-reduction features: The 2-inch, foam-injected, double-wall construction aids in noise reduction and overall energy efficiency.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: The unit has a factory-mounted microprocessor controller with a field-mounted discharge air temperature sensor.

Replacement parts compatibility: Manufacturer did not specify.

Additional features: The system is available in a wide range of capacities — up to 70 tons — and can be easily configured to be compatible with LG VRF systems and MultiSITE™ controls. It is capable of delivering a maximum of 18,000 cfm and features robust, 2-inch, foam-injected, double-wall construction, increasing energy efficiency and unit durability for a longer, more sustainable lifespan. It is configurable with 190-plus options to fit nearly any design specification.

Warranty information: Standard one-year parts warranty for a qualified system and an additional four-year compressor parts warranty after the end of the applicable standard part warranty period (the compressor warranty period). For complete warranty details, visit www.lg-vrf.com/warranty.aspx.

Special installation requirements: Manufacturer did not specify.

Contact: LG Electronics USA, 800-243-0000; lghvac.com.

eProduct 194



Model: Heat recovery unit (HRU), PRHR0X3

Footprint (in inches): 19 (length) by 19 (width) by 9 (height)

Serviceability features: The redesigned heat recovery units now feature bottom access for easy powered commissioning and service. The units also allow side or bottom access to the most commonly used service items and top access to the valves.

Technical support: Available from 8 a.m. to 6 p.m. Central time, Monday to Friday at 888-865-3026.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; submittal data sheets.

Noise-reduction features: The new design now uses motor-driven electronic expansion valve (EEVs) instead of on/off solenoid valves, reducing turbulent refrigerant noise. The new design features an overall noise reduction of 5 dBA over the previous design, cutting the perceived noise almost in half.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Part of a LG Multi V™ system that is compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The redesigned heat recovery units (HRU) now feature bottom access, which allows for easier powered commissioning and servicing, as well as reduced space requirements. These HRUs also afford greater system design flexibility, as they can be installed in series, parallel, or a combination of the two, and feature vertically aligned refrigerant inputs. The series is also expanding to include 6- and 8-port units, which reduce the amount of equipment required for a large-scale project.

Warranty information: Standard one-year parts warranty for a qualified system. Extended warranties of a total of 10 years are available for qualified systems. For complete warranty details visit, www.lg-vrf.com/warranty.aspx.

Special installation requirements: LG HRUs must be installed in a horizontal orientation.

Contact: LG Electronics USA, 800-243-0000; lghvac.com.

eProduct 195



Liebert

Model: Liebert® DCD™ water-cooled rack door

Footprint (in inches): 6 (length) by 24 (width) by 79 (height)

Serviceability features: The door opens 180 degrees for full access to the equipment.

Technical support: Available from 8 a.m. to 6 p.m. Eastern time, Monday to Friday at 800-543-2778.

Technical support materials: Installation, operation, and maintenance manuals; parts list; owner’s manual.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Does not share replacement parts with other models.

Additional features: The DCD replaces back doors on IT racks and can be configured so no heat is released from the rack. The unit is highly efficient with no fans or moving parts and reduces the need for room air conditioning for humidification. It operates with Liebert’s DCP pumping unit to keep water temperature above dewpoint and reduce leakage risk.

Warranty information: One-year limited warranty against defects in material and workmanship

Special installation requirements: Two properly trained and qualified people are required to move and install the module. Only personnel properly trained and qualified in HVAC installation and wearing appropriate safety headgear, gloves, shoes, and glasses should attempt to move, lift, remove packaging from, prepare the module for installation, install, or service this equipment.

Contact: Vertiv, 614-841-6700; www.VertivCo.com.

eProduct 196



Luxaire

Model: Eclipse™ high-efficiency rooftop units

Footprint (in inches): 74 to 87 (length) by 49 to 62 (width) by 41 to 49 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. 24/7 real-time reporting and performance alerts are viewable via web browser. The on-board USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. Status, alerts, and reports through a BAS are enabled by Verasys, a simple controls and zoning solution that streamlines BAS integration with configurable, self-recognizing controllers without the need for additional tools.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration.

IAQ equipment supported: Offers fresh air and relief damper options and three static drive options for airflow versatility up to 2-inch external static pressure (ESP). Units ship with MERV 4 throwaway filters, but MERV 8 and MERV 13 filters can be easily added to meet LEED requirements. The blower section includes a dual density insulation for IAQ.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The Energy Star-qualified Eclipse units speed up replacement by fitting on pre-existing, competitive curbs without the need for a transition adapter. Available configurations include cooling, two-stage gas heating, or electric heat options. Smart Equipment digital controls simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For BAS connectivity, the optional Verasys controls and zoning system enables BAS networking and streamlines integration of HVACR equipment, zoning, and controls.

Warranty information: 10-year heat exchanger limited warranty, five-year compressor limited warranty, and one-year parts limited warranty.

Special installation requirements: Two heights and footprints can be selected to fit competitive curbs. Heating, fan, and filter options can be selected to match requirements.

Contact: Johnson Controls, 405-419-6557; www.luxaire.com.

eProduct 197



Model: Ovation™ YH Series split system air conditioner

Footprint (in inches): 32 to 59 (length) by 59 to 64 (width) by 45 to 50 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. Real-time reporting and performance alerts are viewable via the web. An onboard USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. The optional Verasys BAS accommodates single zone, changeover bypass, and variable air volume (VAV) zoning systems along with control of fans, lighting, third party HVACR and others. Verasys allows bundling of both HVAC and building automation.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific, self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: The indoor and outdoor fans are dynamically balanced for low vibration, scroll compressors are mounted on rubber isolators to reduce transmission of vibration, and vertical discharge condenser fans direct sound up and away from surrounding structures.

IAQ equipment supported: Both 2- and 4-inch filters can be used in filter rack.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Meeting EPACT 2005 and ASHRAE 90.1-2013 efficiency standards, these split system air conditioners provide a robust but lightweight design that accommodates outdoor locations and rooftops. The units are available in two- and four-pipe configurations. Smart Equipment digital controls simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For enhanced efficiency, an optional IntelliSpeed supply fan control incorporates a variable-frequency drive (VFD) for variable air volume (VAV) applications.

Warranty information: Five-year compressor limited warranty and one-year parts limited warranty.

Special installation requirements: None.

Contact: Johnson Controls, 405-419-6557; www.luxaire.com.

eProduct 198



Magic-Pak

Model: M-Series™ MHP and MCE single packaged vertical units

Footprint (in inches): 28 (length) by 21 to 24 (width) by 44 to 56 (height)

Serviceability features: This unit is designed for all service to be performed from the front of the unit. Features include forward-facing components and fasteners; high- and low-pressure ports; built-in filter rack; simple electromechanical controls; and a standard control board on heat pump models.

Technical support: Available at 800-448-5872.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Heat pumps feature Quiet Shift™ technology, which allows pressures to equalize prior to entering the defrost cycle. The insulation in the condensing section helps reduce compressor noise, and wall sleeve base pads reduce vibration transmission to the field-fabricated equipment base.

IAQ equipment supported: None.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Magic-Pak eliminates the need for an outdoor condenser in multifamily structures, which reduces labor costs, material costs, and theft/weather damage. The unit is easy to service and maintain and has proven to reduce upfront construction costs while lessening the total cost of ownership. Features include Climate Guard™ epoxy coating on condenser and evaporator coils, optional Miami-Dade certified impact-resistant louvers, factory-installed electric heat kits, optional no heat models, and a factory-installed ventilation air kit.

Warranty information: Five-year limited warranty on all parts.

Special installation requirements: None.

Contact: Allied Air Enterprises, 803-738-4000; www.magic-pak.com.

eProduct 199
