Recent research explores the seasonality of COVID-19 (Hao, 2020; Araujo & Naimi, 2020) and the influence of relative humidity (Moriyama et al., 2020). However, it is the psychrometric overlap of climatic seasons and HVAC system operation that determines the indoor environment — where most viral propagation and human response occurs.

Research links air between 40%-60% relative humidity (RH) with less-effective aerosol travel, shorter airborne and surface survival times, lower transmission rates (Noti et al., 2013; Marr et al., 2019; Wang et al. 2020), and more effective patient lung repair functions (Kudo, 2019). Patient respiratory benefits include less-viscous mucous membranes, more effective cilia-related and other antiviral actions in the lungs, and a more productive cough.

Yet, hospitals in colder climates typically operate at lower RH levels (often 20%-30%) during winter, in line with minimum requirements. This is due in part to the risk of condensation on windows and in exterior walls, where moisture driven by an outward vapor pressure can damage building materials and cause other health problems.

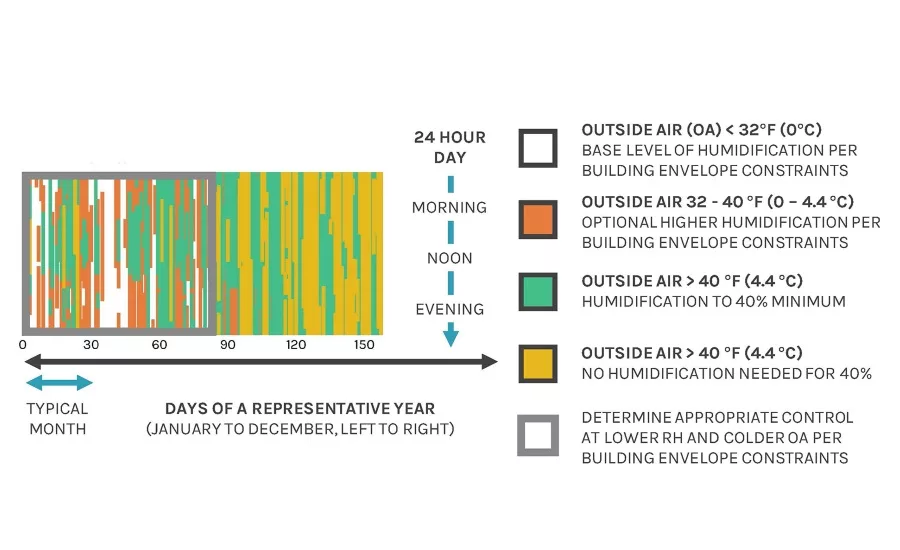

Relative Humidity Climate Legend

Most Northern Hemisphere cities have an immediate window of opportunity — before summer arrives — to increase humidification to 40%, largely without condensation limitations. By applying HVAC algorithms to representative weather records for major cities around the world, we identify opportunities and challenges for each climate zone. Below, we look at data for New York City.



Visualizing Climate and Windows of Opportunity, Challenge for NYC

New York's first, and immediate, window of opportunity (indicated in green) is to increase humidification to 40% during the spring — even as COVID-19 is surging. After that, sufficiently humid outside air (gold) will keep indoor RH above 40%, while the dehumidifying effect of air-conditioning keeps it below 60%.

NYC's second, but equally important, window of opportunity (green) is months away, allowing valuable time for humidifier and related upgrades before fall arrives (the season hit hardest by the 1918 influenza pandemic). As cold weather returns, RH will be of greater concern to facility managers due to the risks of condensation (gray boxes) while still allowing for stepped-down ranges of RH control with outdoor air approaching freezing (orange) and below freezing (white).



View Climate Visualizations for US cities based on ASHRAE Climate Zones (PDF)

View Climate Visualizations for other notable Northern Hemisphere cities (PDF)

View Climate Visualizations for major Southern Hemisphere cities (PDF)



Note, Wuhan's reported COVID-19 recovery aligned closely with the onset of humid weather. Tehran, like other cities in dry climates, will never reach that level of natural humidity, meaning it has a three-season window of opportunity. Miami and humid cities in the Southern Hemisphere require year-round air conditioning with a risk of condensation in walls from moisture moving from the outside in.



Humidification as a Unique HVAC Objective

Other HVAC design aspects — ventilation, filtration, air movement, space pressure relationships, temperature, and purification — can help reduce contagion, and each is important (Wang, et al., 2020). However, no other HVAC aspect reduces contagion while also helping patients fight lung congestion.



Humidification's Relationship with Building Envelopes

While climate visualizations indicate representative areas for building envelope caution (gray boxes) and data to aid seasonal adjustments in RH set points (orange and white colors), we strongly urge facility managers to have their individual building envelopes evaluated for suitability with higher RH, using moisture migration programs or other means.



Recommendation for Health Care Facility Managers and Engineers

  • Use immediate windows of opportunity to raise RH as close to 40% as possible, based on an analysis of building and system constraints.
  • Consider temporary reductions in economizer cycle operation to allow central humidifiers and any local boosters to do more.
  • Optimize control and high-limit sensors for humidifiers at variable air volume air-handing units.
  • Before fall, consider adding boosters or local humidifiers (steam, natural gas, or electric, as appropriate), changing out or increasing capacity of humidifiers for economizer cycle mode, and possibly even enhancing glazing and wall systems.
  • Before winter, step RH settings down incrementally to follow the weather (orange, white). Note, temperature can change faster than a building's hygroscopic mass and system controls will allow.
  • For temporary medical facilities and alternate care sites, consider how to get to 40% RH, even with novel means in an emergency model: e.g., RO/UV-treated water feeding atomizing-mist evaporative fans.



For the Self-Sequestered and Susceptible at Home

For residences, consider buying an evaporative or other type of humidifier with automatic RH control for one or (ideally) more rooms, but watch the weather to keep RH below the onset of window condensation.



Implications for the Future Design of Health Care and Other Facilities

If building envelopes were designed and constructed to accommodate 40% RH throughout winter, we could help fight viral epidemics from the start of their typical season, not just toward the end.

We believe increased humidification will begin to drive design. Expect more triple-pane glazing with thermally enhanced frames, robust vapor retarder systems properly placed within walls and roofs, local humidifiers, and other changes with an integrated design approach.

As health care standard committees work through due processes for potential updates (some of us remember higher minimum RH standards), we are encouraged that ASHRAE has formed a new epidemic task force to study these recommendations in more depth.

Much as 9/11 changed airport design, COVID-19 will change health facility design — and spill over into schools, workplaces, and other types of building design and renovation (Reiman, et al., 2018; Taylor, 2019). However, the steps we have outlined are immediate and near-term interventions that can raise RH levels in accordance with specific climate zones and perhaps slow the spread of this deadly disease.
