Legionella pneumophila is a waterborne pathogen found in natural and man-made water systems.

The Legionella bacteria was first identified by the U.S. Centers for Disease Control (CDC) in 1976, following an outbreak of pneumonia-like symptoms among a number of attendees at an American Legion conference in Philadelphia. This outbreak led to the name of both the bacteria and the illness it causes: Legionnaires’ disease.

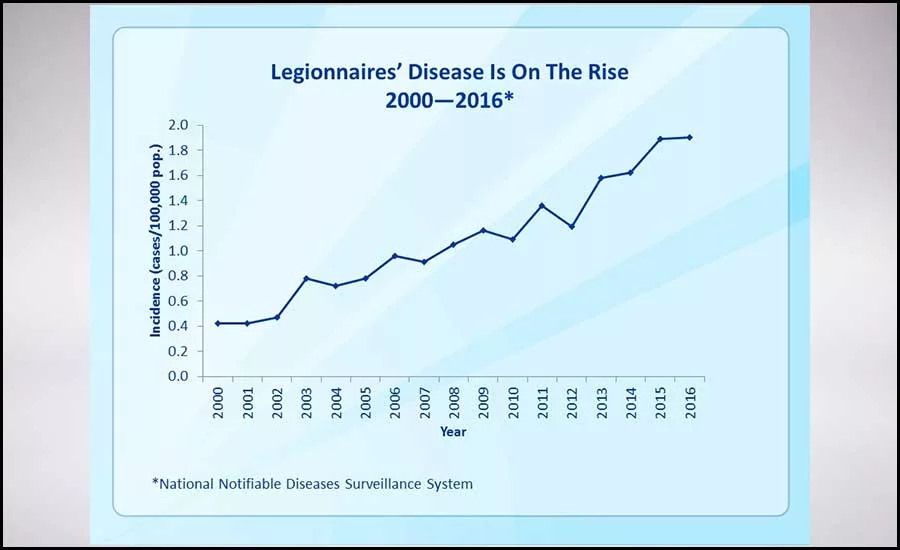

The CDC has retrospectively reviewed outbreaks and determined that Legionella-related illness can be traced back at least as far as 1959 to an outbreak of what was called “Pontiac Fever” in Pontiac, Michigan. The CDC estimates that there are between 8,000 and 18,000 cases of Legionnaires’ disease and Pontiac Fever every year. Health departments reported nearly 10,000 cases of Legionnaires’ disease in the U.S. in 2018.1 However, Legionnaires’ disease is likely underdiagnosed, and this number may underestimate the true incidence.

About one in 10 people who gets sick from Legionnaires’ disease will die.2 Death occurs through progressive pneumonia with respiratory failure and/or shock and multi-organ failure.

Both potable and nonpotable water supplies harbor Legionella bacteria and have been linked to outbreaks of Legionnaires' disease.

According to the World Health Organization, the most common form of transmission of Legionella is inhalation of contaminated aerosols produced in conjunction with water sprays, jets, or mists. Sources of aerosols that have been linked with transmission of Legionella include both open- and closed-loop cooling towers, misters, evaporative coolers, humidifiers, and whirlpool spas. Infection can also occur by aspiration of contaminated water or ice, particularly in susceptible hospital patients. There is no direct human-to-human transmission.



PREVENTION AND CONTROL

As building water supplies are a prime source of Legionella, keeping Legionella out of water systems in buildings is key to preventing infections or outbreaks. A variety of internal and external factors can lead to a Legionella problem in a building, including:

  • Construction;
  • Water main breaks;
  • Changes in municipal water quality;
  • Biofilm;
  • Scale and sediment;
  • Water temperature fluctuations;
  • Water pH fluctuations;
  • Inadequate levels of disinfectant;
  • Changes in water pressure; and
  • Water stagnation.

According to the U.S. Occupational Safety and Health Association (OSHA), water management programs that effectively prevent Legionella growth in water systems rely on specific measures, including good system design, proper facility and equipment maintenance, and routine cleaning and disinfection. Effective maintenance and regular visual inspections should prevent scale buildup, sediment, and gradual water organism accumulation on structural surfaces (i.e., biofouling) — processes that support Legionella growth.

OSHA recommends activity records to help ensure proper maintenance. These may include operating system descriptions for all components in the system and the makeup water supply to the system; written procedures for the system’s proper operation and maintenance covering scale and corrosion inhibitor use, antifoaming agent use, and biocide or chlorine use; inspection, cleaning, and disinfection dates; test results from any water sampling that has been performed; and system maintenance/monitoring dates and work description/results.



WATER MANAGEMENT PRINCIPLES

According to the CDC, the principles of effective water management include:

  • Maintaining water temperatures outside the ideal range for Legionella growth;
  • Preventing water stagnation;
  • Ensuring adequate disinfection; and
  • Maintaining devices to prevent scale, corrosion, and biofilm growth, all of which provide a habitat and nutrients for Legionella.

Once established, water management programs require regular monitoring of key areas for potentially hazardous conditions and the use of predetermined responses to remediate such conditions if they are detected.

Water management programs must be tailored for each particular building at a particular point in time. Building factors to take into consideration include structure and size, age, location and surrounding conditions, unique areas of risk for Legionella growth and spread, and the susceptibilities of the people found within (i.e., the elderly; individuals with comprised immune systems; and those who have certain health conditions, such as chronic obstructive pulmonary disease or emphysema, are at increased risk from Legionella).

Water system management options may vary depending upon state and local building codes, water treatment regulations, health care accreditation and survey requirements, and public health reporting requirements.

In some settings, such as hospitals and other large buildings with complex water systems, a water management program may need to encompass the entire building. Smaller buildings with simple water systems may only need a water management program to cover the devices that aerosolize water, such as fountains, hot tubs, and cooling towers.



ADDRESSING LEGIONELLA GROWTH

According to the CDC, maintaining and operating a building’s equipment effectively will help prevent biofilm, organic debris, and corrosion from contaminating the water system; all of these provide a habitat and nutrients for Legionella.

Other Legionella control strategies recommended by the CDC include:

  • Maintain proper disinfectant amounts. A reduction in disinfectant levels in a building water system can open the door for Legionella growth. In some buildings, processes such as heating, storing, and filtering can reduce the amount of available disinfectant, allowing Legionella to grow if steps are not taken to stop it.

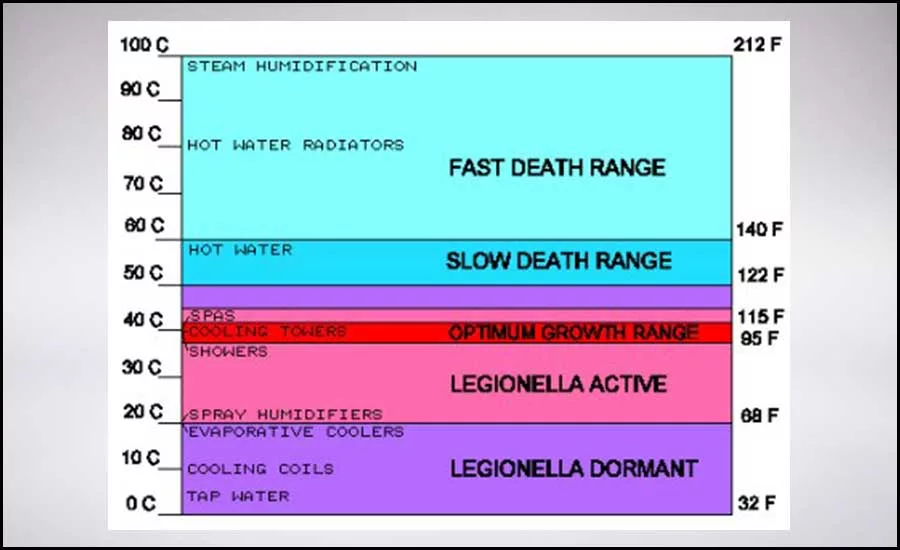

  • Maintain proper water temperatures. Legionella grows best within a specific temperature range (77°F to 108°F). To keep water outside the range for Legionella growth, it is important to keep cold water cold and keep hot water hot.

    It’s important to remember that in warm climates, water in pipes that carry cold water may reach a temperature that allows Legionella to grow. In hot water systems, water heaters must be maintained at appropriate temperatures while following local and state anti-scald regulations. Maximum temperatures allowed by some states may be too low to limit Legionella growth. Engineering controls that mix hot and cold water together at or near the point of use can reduce the risk of scalding while allowing water in pipes to remain hot enough to limit Legionella growth.

  • Prevent stagnation. When water does not flow well, the resulting areas of stagnation encourage biofilm growth, reduce water temperatures to levels that allow Legionella to grow, and reduce levels of disinfectant. It is important to understand the flow of water in a building in order to identify areas of risk where water may become stagnant.


WATER SYSTEM TREATMENT OPTIONS

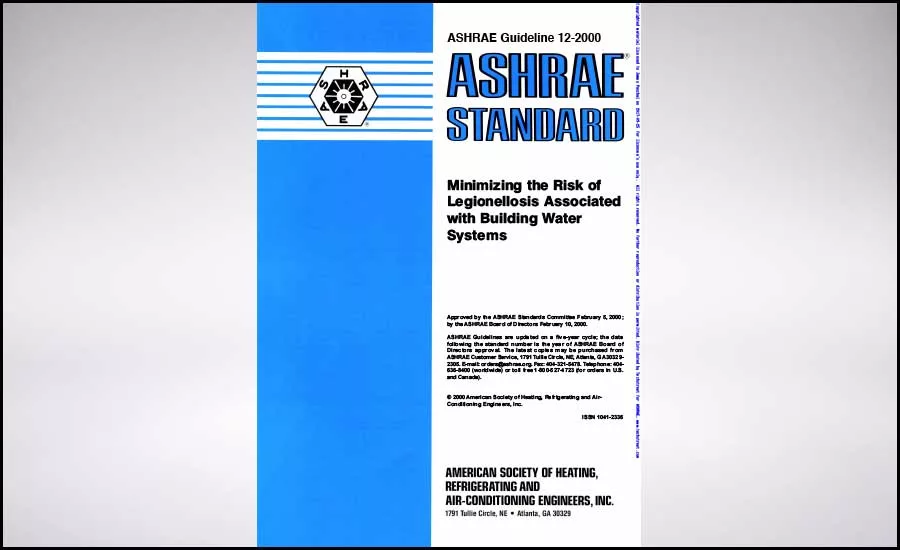

A number of standards and practices have been created to address control of Legionella. Jim Paschal, P.E. LEED AP, chief technology officer at Aquatherm North America, a manufacturer of polypropylene piping systems for commercial and industrial HVAC systems, noted that most of these materials follow what is known as a Hazard Analysis and Critical Control Point (HACCP) protocol. The control points for Legionella in water systems include:

  • Hyper/super chlorination;
  • Chlorine dioxide;
  • Monochloramines;
  • Copper-silver ion generation;
  • Heat; and
  • Ultraviolet light.

All of these treatment methods have their pros and cons, and no one method is perfect for all applications. Here are the pros and cons of these water treatment methods, according to Paschal.

Hyper/super chlorination has been shown in a number of studies to not be a very reliable technique for a number of reasons. The high concentration of chlorine does not necessarily penetrate the biofilm in the piping, it can be costly, and it is not very reliable as a day-to-day method.

Chlorine dioxide is very effective at killing Legionella. Unfortunately, as a byproduct, it also creates chlorates and chlorites, and the combination of the three is regulated by the U.S. Environmental Protection Agency (EPA). The EPA also is setting up standards by which a building’s management — if they are performing any on-site treatment of the water system — can be held accountable for maintaining those EPA requirements in their own systems.
Monochloramines have been found to be very effective. They are very effective against Legionella and maintain a residual in the water longer than either the free chlorine or chlorine dioxide. Unfortunately, they are not as effective against some other types of bacteria, so their use must be evaluated based on how they are being used — possibly in other facilities similar to the one where this treatment method is being considered.

The copper-silver ions in copper-silver ion generation have been found to be very effective against Legionella, and they do provide a longer-term effect, so if the system goes down due to a mechanical failure, the piping system will still continue to be effective against Legionella because of the presence of the copper ions over an extended period of time. However, Paschal cautions that the combination of chlorine and copper can be detrimental to certain plastic piping systems.

A non-chemical option is heat. Heat treatment will destroy Legionella, and the temperature and exposure time are directly related: The higher the temperature, the shorter the exposure time. A number of facilities have incorporated options such as heating the water in the system up to 160°F for one hour each day or running the system continuously at 140°F. Although both of these methods can be done properly, the concern is that the temperature must be maintained throughout the entire system, so the water must be kept circulating as much as possible.

Another nonchemical treatment is ultraviolet (UV) light. UV light works very well in eradicating Legionella bacteria, and it can also be very cost-effective. It does have the downside of being a one-pass system that does not maintain a residual in the water. However, if the system is designed and operated properly, the use of UV light can be very successful.

Paschal added that the choice of pipe material in water systems is not a factor in controlling Legionella and should not be relied upon by facility maintenance staffs for this purpose. For example, several Legionella prevention methods can be used successfully with polypropylene pipe, such as the use of high temperature for short periods, UV disinfection, or chloramines, while other methods, such as chlorine dioxide and copper-silver ion generators, may be detrimental to any piping material and must be carefully evaluated.

“Care must be taken in the method(s) of Legionella control to ensure the control method doesn’t damage the piping system,” Paschal said. “However, Legionella is a system issue and more important than the piping material type is proper system design, operation, and maintenance, such as avoiding ‘dead legs’ or stagnation points.”



CONCLUSION

In conclusion, although not identified until the 1970s, it’s likely that Legionella has been around for much longer. Thanks to our growing knowledge of it, we are now better equipped than ever to control it and to prevent the illnesses it causes. Following proper control protocols and closely monitoring the results will help ensure the safety and health of building occupants and those who may inhale aerosolized droplets from building water sources.



RESOURCES AND GUIDANCE

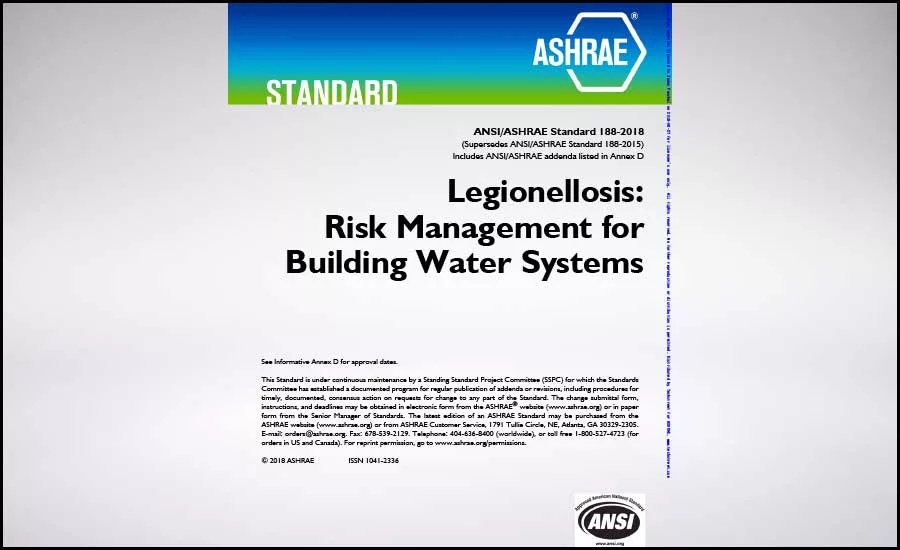

ANSI/ASHRAE Standard 188-2018, Legionellosis: Risk Management for Building Water Systems, establishes minimum legionellosis risk management requirements for building water systems.

The 2018 edition clarifies compliance requirements, and is updated throughout with enforceable, code-intended language to facilitate adoption of the standard for code and regulatory purposes. Included in this publication are a description of environmental conditions that promote the growth of Legionella, and informative annexes and bibliography with suggestions, recommendations, and references to additional guidance.

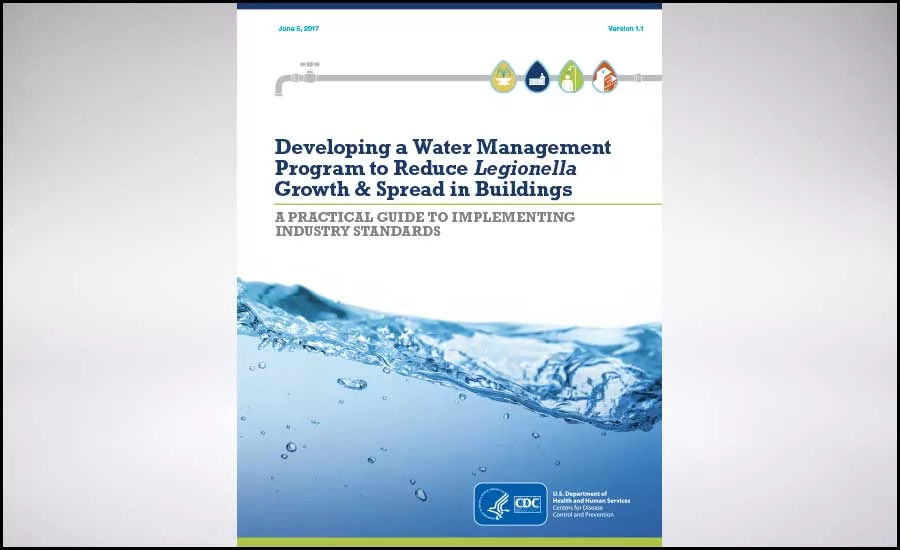

The Centers for Disease Control (CDC) offers Developing a Water Management Program to Reduce Legionella Growth and Spread in Buildings: A Practical Guide to Implementing Industry Standards, a toolkit that can help employers develop and implement a water management program to reduce the risk for growing and spreading Legionella in buildings. The toolkit also provides direction on assessing and strengthening existing water management programs.

A worksheet from the CDC can be used to identify buildings and devices at increased risk for Legionella growth and spread that should have a water management program according to industry standards.

The American Industrial Hygiene Association also offers guidelines in its Recognition, Evaluation, and Control of Legionella in Building Water Systems publication.



FOOTNOTES

1. Reported cases of notifiable diseases, by region and area – United States and U.S. territories, 2016.
2. Dooling KL, Toews KA, Hicks LA, et al. Active Bacterial Core surveillance for legionellosis–United States, 2011–2013. MMWR Morb Mortal Wkly Rep. 2015;64(42):1190–3.
